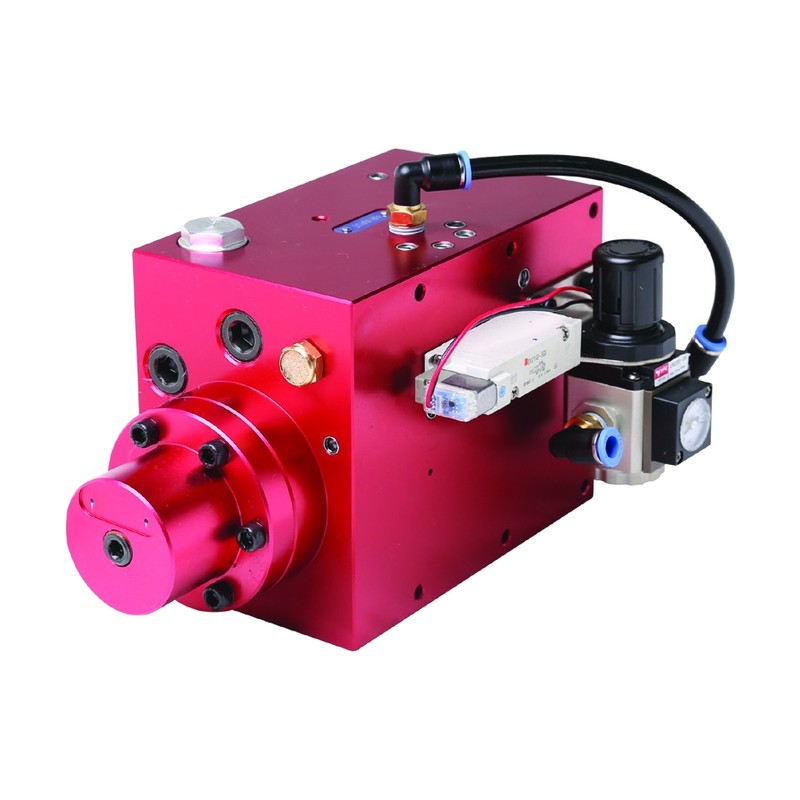

Samchully Air Booster (Air-Hydraulic) AH Series

Samchully Air Booster (Air-Hydraulic) AH Series

Air-over-hydraulic boosters that convert 0.4~0.45 MPa shop air into 3.2~3.6 MPa hydraulic pressure (1:8) for hydraulic clamping of NC rotary tables.

Key features

  • Boosts hydraulic clamp force using pneumatic supply
  • Multiplication ratio 1:8
  • Single (AH-C) or twin (AH-T) circuit
  • Large 200cc type for HRS-430/515/650 and TR-320
50AH-C Operation Type: Single | Input Air Pressure (MPa): 0.4~0.45 | Output Hydraulic Pressure (MPa): 3.2~3.6 | Multiplication Ratio: 1:8 | Discharge Rate: 50cc | Recommended Oil: Turbine oil #32 | Weight (kg): 7 | Applicable: S series large type, HRS series
200AH-C Operation Type: Single | Input Air Pressure (MPa): 0.4~0.45 | Output Hydraulic Pressure (MPa): 3.2~3.6 | Multiplication Ratio: 1:8 | Discharge Rate: 200cc | Recommended Oil: Turbine oil #32 | Weight (kg): 23 | Applicable: HRS-430, HRS-515, HRS-650 open center chuck and TR-320
50AH-T Operation Type: Twin | Input Air Pressure (MPa): 0.4~0.45 | Output Hydraulic Pressure (MPa): 3.2~3.6 | Multiplication Ratio: 1:8 | Discharge Rate: 50cc | Recommended Oil: Turbine oil #32 | Weight (kg): 12.5 | Applicable: TR, MTR series large type, HRS series
Rotary Table AccessoriesSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Air Booster (Air-Hydraulic) AH Series

Brand Samchully·Rotary Table Accessories

Available part numbers (3)

50AH-C, 200AH-C, 50AH-T

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
50AH-COperation Type: Single | Input Air Pressure (MPa): 0.4~0.45 | Output Hydraulic Pressure (MPa): 3.2~3.6 | Multiplication Ratio: 1:8 | Discharge Rate: 50cc | Recommended Oil: Turbine oil #32 | Weight (kg): 7 | Applicable: S series large type, HRS series
200AH-COperation Type: Single | Input Air Pressure (MPa): 0.4~0.45 | Output Hydraulic Pressure (MPa): 3.2~3.6 | Multiplication Ratio: 1:8 | Discharge Rate: 200cc | Recommended Oil: Turbine oil #32 | Weight (kg): 23 | Applicable: HRS-430, HRS-515, HRS-650 open center chuck and TR-320
50AH-TOperation Type: Twin | Input Air Pressure (MPa): 0.4~0.45 | Output Hydraulic Pressure (MPa): 3.2~3.6 | Multiplication Ratio: 1:8 | Discharge Rate: 50cc | Recommended Oil: Turbine oil #32 | Weight (kg): 12.5 | Applicable: TR, MTR series large type, HRS series
