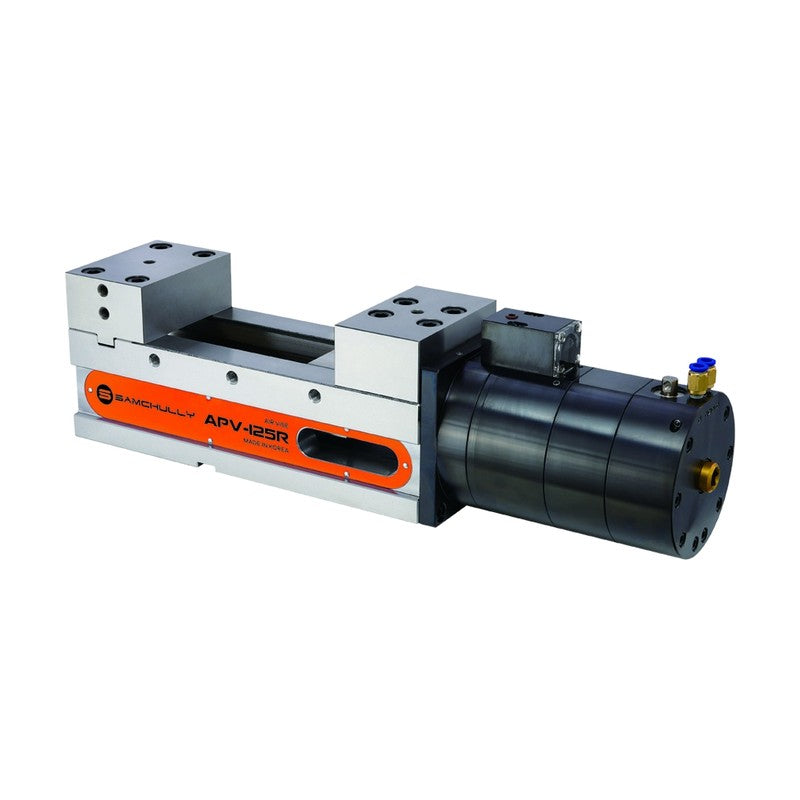

Samchully Air Vise APV

Samchully Air Vise APV

Pneumatic vise with hydraulic booster and direction change switch for easy clamping with air pressure.

Key features

  • Clamping by pneumatic pressure
  • Hydraulic booster
  • Direction change switch
APV-125S Jaw width (mm): 125 | Jaw height (mm): 50 | Max. opening (mm): 133 | Total height (mm): 160 | Slider height (mm): 100 | Total width (mm): 126 | Total length (mm): 511 | Max. gripping force [kN(kgf)]: 40(3974) | Weight (kg): 50
APV-125R Jaw width (mm): 125 | Jaw height (mm): 50 | Max. opening (mm): 188 | Total height (mm): 160 | Slider height (mm): 100 | Total width (mm): 126 | Total length (mm): 566 | Max. gripping force [kN(kgf)]: 40(3974) | Weight (kg): 55
APV-125L Jaw width (mm): 125 | Jaw height (mm): 50 | Max. opening (mm): 350 | Total height (mm): 160 | Slider height (mm): 100 | Total width (mm): 126 | Total length (mm): 728 | Max. gripping force [kN(kgf)]: 40(3974) | Weight (kg): 70
Machine VisesSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Air Vise APV

Brand Samchully·Machine Vises

Available part numbers (3)

APV-125S, APV-125R, APV-125L

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APV-125SJaw width (mm): 125 | Jaw height (mm): 50 | Max. opening (mm): 133 | Total height (mm): 160 | Slider height (mm): 100 | Total width (mm): 126 | Total length (mm): 511 | Max. gripping force [kN(kgf)]: 40(3974) | Weight (kg): 50
APV-125RJaw width (mm): 125 | Jaw height (mm): 50 | Max. opening (mm): 188 | Total height (mm): 160 | Slider height (mm): 100 | Total width (mm): 126 | Total length (mm): 566 | Max. gripping force [kN(kgf)]: 40(3974) | Weight (kg): 55
APV-125LJaw width (mm): 125 | Jaw height (mm): 50 | Max. opening (mm): 350 | Total height (mm): 160 | Slider height (mm): 100 | Total width (mm): 126 | Total length (mm): 728 | Max. gripping force [kN(kgf)]: 40(3974) | Weight (kg): 70

Need a different model, or a part not listed here? Send us your parts list →
