• Samchully Aluminum Wheel Chuck FWC
1 1

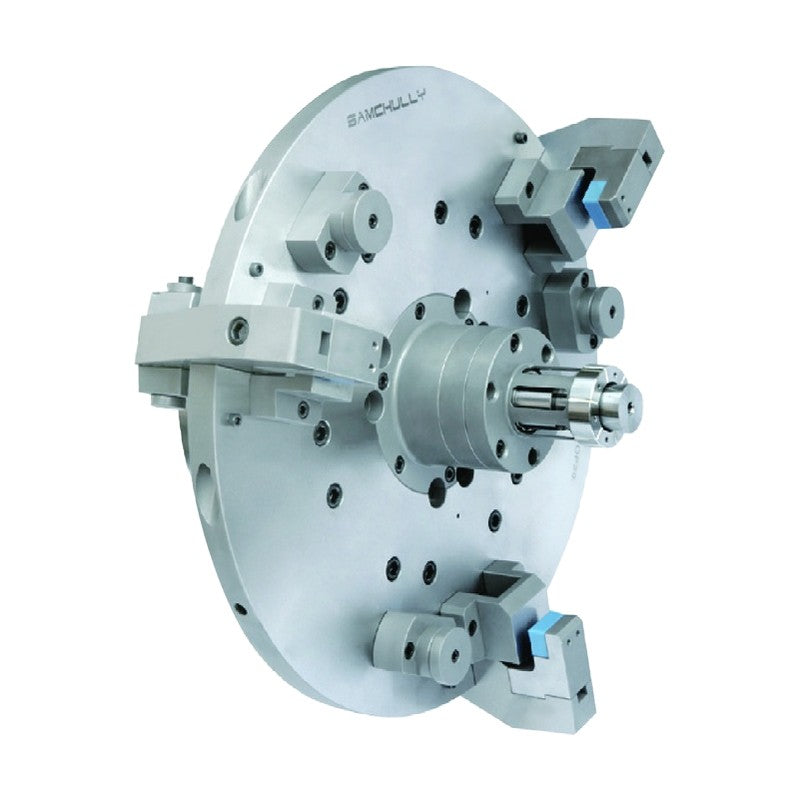

Samchully Aluminum Wheel Chuck FWC

Samchully Aluminum Wheel Chuck FWC

Cam-arm chuck for machining aluminum wheels.

Key features

  • Cam arm structure achieves high clamping force
  • Low weight increases efficiency and reduces downtime

Specifications

Max. Clamping Force (kgf) 970
Max. Drawbar Pull (kgf) 3000
Jaw Stroke Dia. (mm) 27
Plunger Stroke (mm) 35
FWC-300 Wheel Size Range (in): 12~18 | Max. Speed (rpm): 2800 | Weight (kg): 120
FWC-310 Wheel Size Range (in): 13~20 | Max. Speed (rpm): 2200 | Weight (kg): 160
FWC-320 Wheel Size Range (in): 17.5~24.5 | Max. Speed (rpm): 1800 | Weight (kg): 240
Special ChucksSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Aluminum Wheel Chuck FWC

Brand Samchully·Special Chucks

Available part numbers (3)

FWC-300, FWC-310, FWC-320

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FWC-300Wheel Size Range (in): 12~18 | Max. Speed (rpm): 2800 | Weight (kg): 120
FWC-310Wheel Size Range (in): 13~20 | Max. Speed (rpm): 2200 | Weight (kg): 160
FWC-320Wheel Size Range (in): 17.5~24.5 | Max. Speed (rpm): 1800 | Weight (kg): 240
