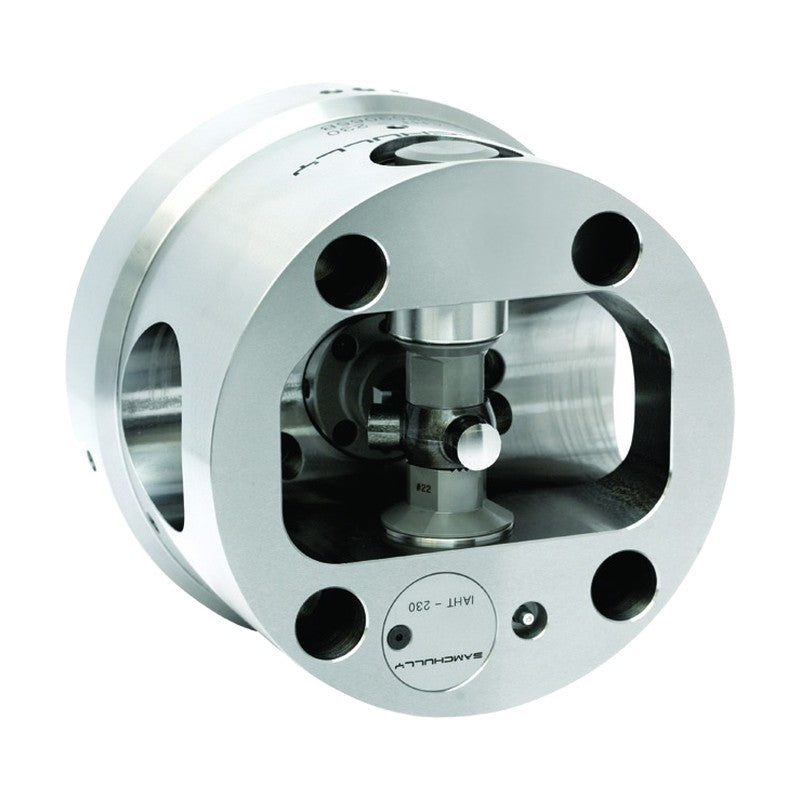

Samchully Auto-Indexing Chuck IAH

Samchully Auto-Indexing Chuck IAH

Auto-indexing chuck for machining multiple surfaces of a workpiece in one operation.

Key features

  • Accurate, durable indexing system
  • Index positions 4 x 90 or 8 x 45 degrees
  • Check valve assures safe operation
IAH-225 Max. Clamping Force (kgf): 1270 | Main Spindle Bore (mm): OVER 45 | Max. Speed (rpm): 2800 | Weight (kg): 29 | Max. Workpiece Size ØS (mm): 60 | Max. Workpiece Size T (mm): 100
IAH-250 Max. Clamping Force (kgf): 1730 | Main Spindle Bore (mm): OVER 45 | Max. Speed (rpm): 2400 | Weight (kg): 44 | Max. Workpiece Size ØS (mm): 65 | Max. Workpiece Size T (mm): 160
IAH-275 Max. Clamping Force (kgf): 2550 | Main Spindle Bore (mm): OVER 45 | Max. Speed (rpm): 2000 | Weight (kg): 56 | Max. Workpiece Size ØS (mm): 80 | Max. Workpiece Size T (mm): 220
IAH-315 Max. Clamping Force (kgf): 2550 | Main Spindle Bore (mm): OVER 45 | Max. Speed (rpm): 1800 | Weight (kg): 75 | Max. Workpiece Size ØS (mm): 100 | Max. Workpiece Size T (mm): 230
IAH-350 Max. Clamping Force (kgf): 2550 | Main Spindle Bore (mm): OVER 55 | Max. Speed (rpm): 1800 | Weight (kg): 100 | Max. Workpiece Size ØS (mm): 135 | Max. Workpiece Size T (mm): 240
IAH-400 Max. Clamping Force (kgf): 3530 | Main Spindle Bore (mm): OVER 55 | Max. Speed (rpm): 1200 | Weight (kg): 145 | Max. Workpiece Size ØS (mm): 170 | Max. Workpiece Size T (mm): 260
IAH-500 Max. Clamping Force (kgf): 4670 | Main Spindle Bore (mm): OVER 55 | Max. Speed (rpm): 900 | Weight (kg): 230 | Max. Workpiece Size ØS (mm): 220 | Max. Workpiece Size T (mm): 310
Special ChucksSamchully
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Auto-Indexing Chuck IAH

Brand Samchully·Special Chucks

Available part numbers (7)

IAH-225, IAH-250, IAH-275, IAH-315, IAH-350, IAH-400, IAH-500

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IAH-225Max. Clamping Force (kgf): 1270 | Main Spindle Bore (mm): OVER 45 | Max. Speed (rpm): 2800 | Weight (kg): 29 | Max. Workpiece Size ØS (mm): 60 | Max. Workpiece Size T (mm): 100
IAH-250Max. Clamping Force (kgf): 1730 | Main Spindle Bore (mm): OVER 45 | Max. Speed (rpm): 2400 | Weight (kg): 44 | Max. Workpiece Size ØS (mm): 65 | Max. Workpiece Size T (mm): 160
IAH-275Max. Clamping Force (kgf): 2550 | Main Spindle Bore (mm): OVER 45 | Max. Speed (rpm): 2000 | Weight (kg): 56 | Max. Workpiece Size ØS (mm): 80 | Max. Workpiece Size T (mm): 220
IAH-315Max. Clamping Force (kgf): 2550 | Main Spindle Bore (mm): OVER 45 | Max. Speed (rpm): 1800 | Weight (kg): 75 | Max. Workpiece Size ØS (mm): 100 | Max. Workpiece Size T (mm): 230
IAH-350Max. Clamping Force (kgf): 2550 | Main Spindle Bore (mm): OVER 55 | Max. Speed (rpm): 1800 | Weight (kg): 100 | Max. Workpiece Size ØS (mm): 135 | Max. Workpiece Size T (mm): 240
IAH-400Max. Clamping Force (kgf): 3530 | Main Spindle Bore (mm): OVER 55 | Max. Speed (rpm): 1200 | Weight (kg): 145 | Max. Workpiece Size ØS (mm): 170 | Max. Workpiece Size T (mm): 260
IAH-500Max. Clamping Force (kgf): 4670 | Main Spindle Bore (mm): OVER 55 | Max. Speed (rpm): 900 | Weight (kg): 230 | Max. Workpiece Size ØS (mm): 220 | Max. Workpiece Size T (mm): 310
