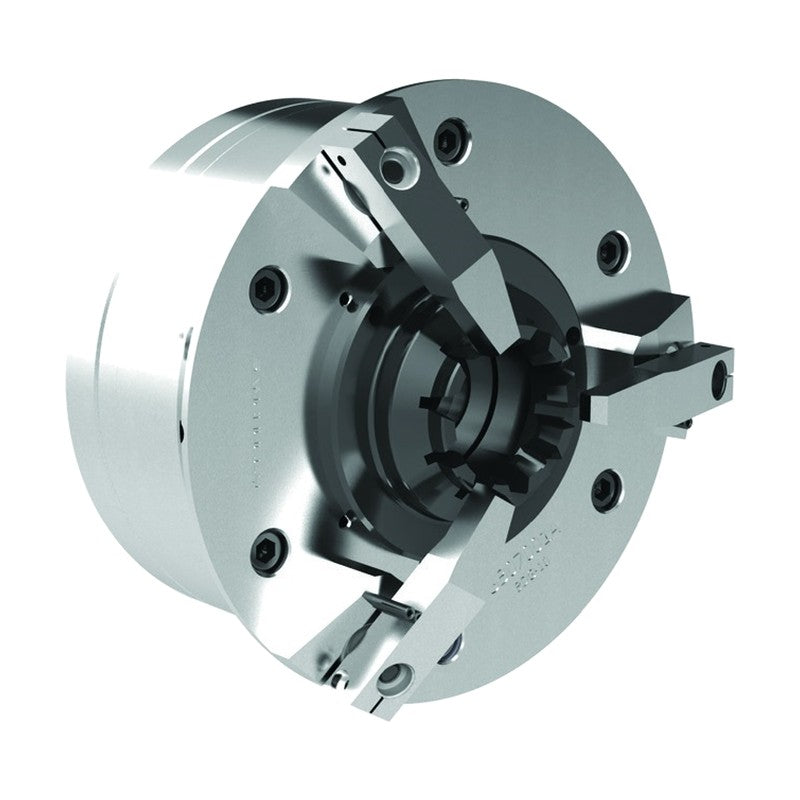

Samchully Bevel Gear Chuck BDG

Samchully Bevel Gear Chuck BDG

Finger chuck for highly accurate machining of bevel gears.

Key features

  • Floating action ensures equal clamping force on all 3 fingers
  • Available with hydraulic or pneumatic actuation

Specifications

Max. Drawbar Pull (kgf) 1500
Plunger Stroke (mm) 15
BDG-07 Clamping Range (mm): 22.2 ~ 147.5 | Max. Speed (rpm): 2000 | Weight (kg): 30
BDG-10 Clamping Range (mm): 88.9 ~ 203.2 | Max. Speed (rpm): 1500 | Weight (kg): 45
Special ChucksSamchully
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Bevel Gear Chuck BDG

Brand Samchully·Special Chucks

Available part numbers (2)

BDG-07, BDG-10

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BDG-07Clamping Range (mm): 22.2 ~ 147.5 | Max. Speed (rpm): 2000 | Weight (kg): 30
BDG-10Clamping Range (mm): 88.9 ~ 203.2 | Max. Speed (rpm): 1500 | Weight (kg): 45
