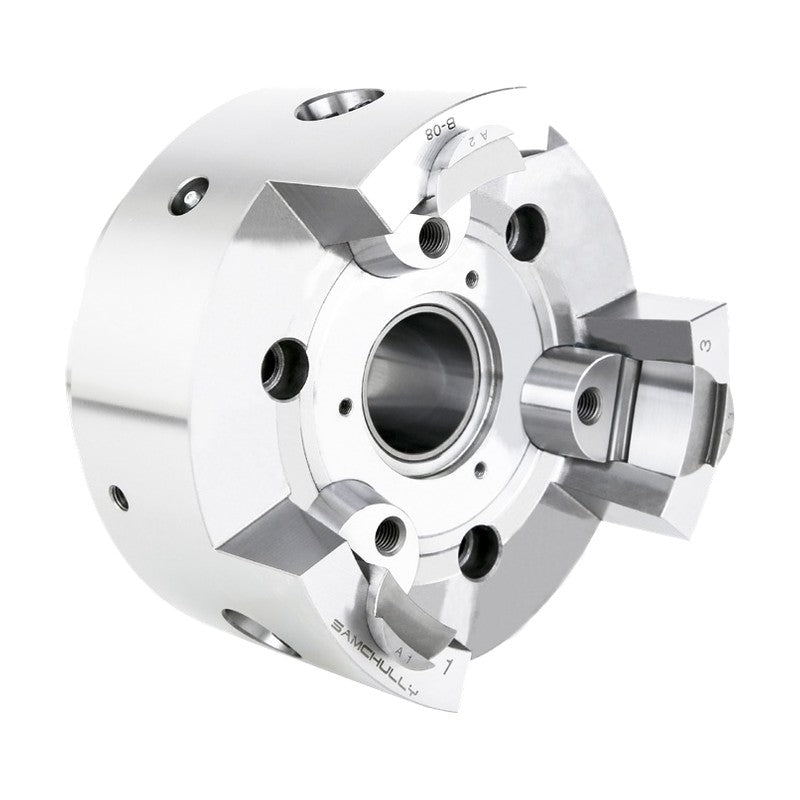

Samchully Big-Bore Pin Arbor Chuck POLB

Samchully Big-Bore Pin Arbor Chuck POLB

Big-bore pin arbor chuck for second-operation O.D. gripping.

Key features

  • Bore space allows machining of shafts passing through the chuck

Specifications

Plunger Stroke (mm) 10
POLB-06 Max. Clamping Force (kgf): 5,914 | Max. Drawbar Pull (kgf): 1,835 | Clamping Range Top Jaw (mm): 20~65 | Max. Speed (rpm): 7000 | Weight (kg): 14.4
POLB-08 Max. Clamping Force (kgf): 5,914 | Max. Drawbar Pull (kgf): 1,835 | Clamping Range Top Jaw (mm): 30~85 | Max. Speed (rpm): 5000 | Weight (kg): 25.3
POLB-10 Max. Clamping Force (kgf): 10,197 | Max. Drawbar Pull (kgf): 3,569 | Clamping Range Top Jaw (mm): 50~105 | Max. Speed (rpm): 4500 | Weight (kg): 43.5
POLB-12 Max. Clamping Force (kgf): 10,197 | Max. Drawbar Pull (kgf): 3,569 | Clamping Range Top Jaw (mm): 100~150 | Max. Speed (rpm): 3600 | Weight (kg): 60.5
Special ChucksSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Big-Bore Pin Arbor Chuck POLB

Brand Samchully·Special Chucks

Available part numbers (4)

POLB-06, POLB-08, POLB-10, POLB-12

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
POLB-06Max. Clamping Force (kgf): 5,914 | Max. Drawbar Pull (kgf): 1,835 | Clamping Range Top Jaw (mm): 20~65 | Max. Speed (rpm): 7000 | Weight (kg): 14.4
POLB-08Max. Clamping Force (kgf): 5,914 | Max. Drawbar Pull (kgf): 1,835 | Clamping Range Top Jaw (mm): 30~85 | Max. Speed (rpm): 5000 | Weight (kg): 25.3
POLB-10Max. Clamping Force (kgf): 10,197 | Max. Drawbar Pull (kgf): 3,569 | Clamping Range Top Jaw (mm): 50~105 | Max. Speed (rpm): 4500 | Weight (kg): 43.5
POLB-12Max. Clamping Force (kgf): 10,197 | Max. Drawbar Pull (kgf): 3,569 | Clamping Range Top Jaw (mm): 100~150 | Max. Speed (rpm): 3600 | Weight (kg): 60.5
