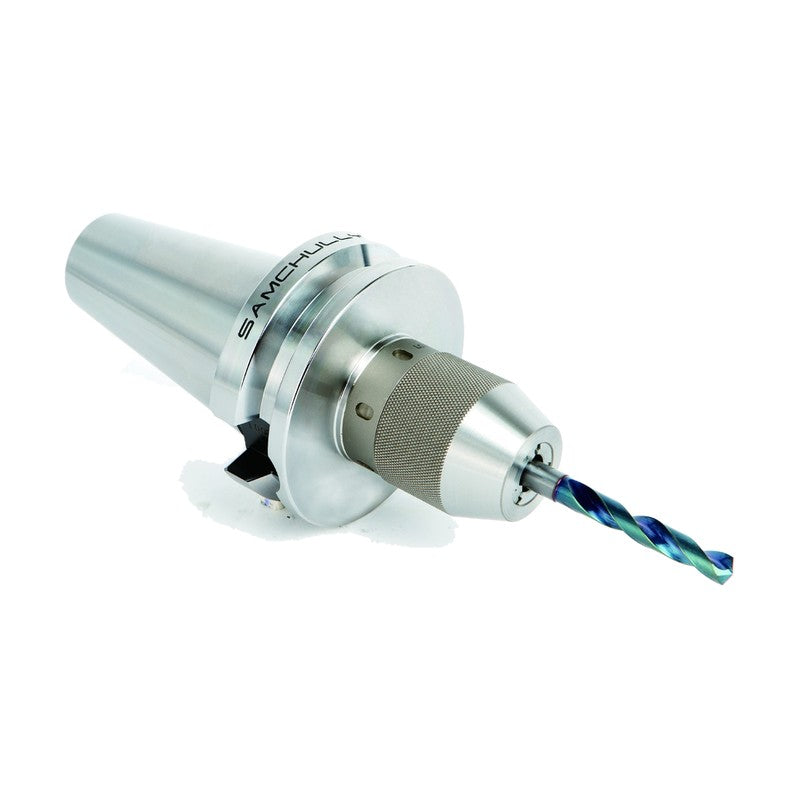

Samchully BT Drill Chuck

Samchully BT Drill Chuck

Drill Chuck with BT (MAS 403 BT) shank, available in BT30, BT40, BT50 sizes.

Specifications

Shank standard MAS 403-BT
BT30-NPU6.5-70 Shank: BT30 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 76 | L2 (mm): 70 | Weight (kg): 0.7
BT30-NPU13-90 Shank: BT30 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 102 | L2 (mm): 90 | Weight (kg): 1.1
BT40-NPU6.5-75 Shank: BT40 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 81 | L2 (mm): 75 | Weight (kg): 1.2
BT40-NPU6.5-115 Shank: BT40 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 121 | L2 (mm): 115 | Weight (kg): 1.4
BT40-NPU6.5-155 Shank: BT40 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 161 | L2 (mm): 155 | Weight (kg): 1.7
BT40-NPU13-95 Shank: BT40 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 107 | L2 (mm): 95 | Weight (kg): 1.7
BT40-NPU13-135 Shank: BT40 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 147 | L2 (mm): 135 | Weight (kg): 2.3
BT40-NPU13-175 Shank: BT40 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 187 | L2 (mm): 175 | Weight (kg): 2.8
BT50-NPU6.5-85 Shank: BT50 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 91 | L2 (mm): 85 | Weight (kg): 3.9
BT50-NPU6.5-130 Shank: BT50 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 136 | L2 (mm): 130 | Weight (kg): 4.1
BT50-NPU6.5-175 Shank: BT50 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 181 | L2 (mm): 175 | Weight (kg): 4.3
BT50-NPU13-105 Shank: BT50 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 117 | L2 (mm): 105 | Weight (kg): 4.3
BT50-NPU13-150 Shank: BT50 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 162 | L2 (mm): 150 | Weight (kg): 4.9
BT50-NPU13-195 Shank: BT50 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 207 | L2 (mm): 195 | Weight (kg): 5.4
Drill ChucksSamchully
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully BT Drill Chuck

Brand Samchully·Drill Chucks

Available part numbers (14)

BT30-NPU6.5-70, BT30-NPU13-90, BT40-NPU6.5-75, BT40-NPU6.5-115, BT40-NPU6.5-155, BT40-NPU13-95, BT40-NPU13-135, BT40-NPU13-175, BT50-NPU6.5-85, BT50-NPU6.5-130 + 4 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-NPU6.5-70Shank: BT30 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 76 | L2 (mm): 70 | Weight (kg): 0.7
BT30-NPU13-90Shank: BT30 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 102 | L2 (mm): 90 | Weight (kg): 1.1
BT40-NPU6.5-75Shank: BT40 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 81 | L2 (mm): 75 | Weight (kg): 1.2
BT40-NPU6.5-115Shank: BT40 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 121 | L2 (mm): 115 | Weight (kg): 1.4
BT40-NPU6.5-155Shank: BT40 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 161 | L2 (mm): 155 | Weight (kg): 1.7
BT40-NPU13-95Shank: BT40 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 107 | L2 (mm): 95 | Weight (kg): 1.7
BT40-NPU13-135Shank: BT40 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 147 | L2 (mm): 135 | Weight (kg): 2.3
BT40-NPU13-175Shank: BT40 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 187 | L2 (mm): 175 | Weight (kg): 2.8
BT50-NPU6.5-85Shank: BT50 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 91 | L2 (mm): 85 | Weight (kg): 3.9
BT50-NPU6.5-130Shank: BT50 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 136 | L2 (mm): 130 | Weight (kg): 4.1
BT50-NPU6.5-175Shank: BT50 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 181 | L2 (mm): 175 | Weight (kg): 4.3
BT50-NPU13-105Shank: BT50 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 117 | L2 (mm): 105 | Weight (kg): 4.3
BT50-NPU13-150Shank: BT50 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 162 | L2 (mm): 150 | Weight (kg): 4.9
BT50-NPU13-195Shank: BT50 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 207 | L2 (mm): 195 | Weight (kg): 5.4
