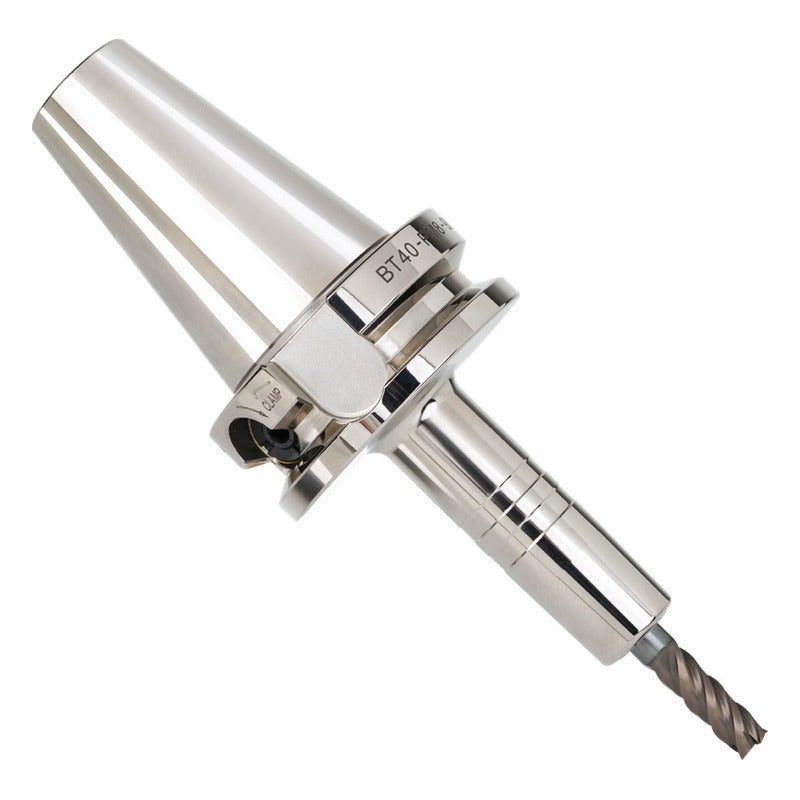

Samchully BT PRIME Ultra-Precision Chuck

Samchully BT PRIME Ultra-Precision Chuck

PRIME Ultra-Precision Chuck with BT (MAS 403 BT) shank, available in BT30, BT40, BT50 sizes.

Key features

  • Set-up without a tooling fixture
  • Slim body for tight clearance features
  • Ultra-precision run-out and high-RPM balance
  • Fastening wrench included

Specifications

Shank standard MAS 403-BT
Max speed (rpm) 25,000
Run-out 3 µm
BT30-PM04-80 Shank: BT30 | Ød (mm): 2.0~4.0 | ØD (mm): 15 | L (mm): 80 | L1 (mm): 41 | L2 (mm): 46 | R (mm): 5
BT30-PM04-105 Shank: BT30 | Ød (mm): 2.0~4.0 | ØD (mm): 15 | L (mm): 105 | L1 (mm): 66 | L2 (mm): 71 | R (mm): 5
BT30-PM08-95 Shank: BT30 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 95 | L1 (mm): 56 | L2 (mm): 61 | R (mm): 5
BT30-PM08-105 Shank: BT30 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 105 | L1 (mm): 66 | L2 (mm): 71 | R (mm): 5
BT30-PM12-100 Shank: BT30 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 100 | L1 (mm): 66 | L2 (mm): 71 | R (mm): 5
BT30-PM12-105 Shank: BT30 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 105 | L1 (mm): 66 | L2 (mm): 71 | R (mm): 5
BT30-PM16-105 Shank: BT30 | Ød (mm): 2.8~16.0 | ØD (mm): 34 | L (mm): 105 | L1 (mm): 66 | L2 (mm): 71 | R (mm): 5
BT40-PM04-75 Shank: BT40 | Ød (mm): 2.0~4.0 | ØD (mm): 15 | L (mm): 75 | L1 (mm): 42 | L2 (mm): 47 | R (mm): 5
BT40-PM04-90 Shank: BT40 | Ød (mm): 2.0~4.0 | ØD (mm): 15 | L (mm): 90 | L1 (mm): 67 | L2 (mm): 72 | R (mm): 5
BT40-PM08-90 Shank: BT40 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 90 | L1 (mm): 58 | L2 (mm): 63 | R (mm): 5
BT40-PM08-120 Shank: BT40 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 120 | L1 (mm): 85 | L2 (mm): 93 | R (mm): 8
BT40-PM12-90 Shank: BT40 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 90 | L1 (mm): 58 | L2 (mm): 63 | R (mm): 5
BT40-PM12-120 Shank: BT40 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 120 | L1 (mm): 85 | L2 (mm): 93 | R (mm): 8
BT40-PM16-90 Shank: BT40 | Ød (mm): 2.8~16.0 | ØD (mm): 34 | L (mm): 90 | L1 (mm): 58 | L2 (mm): 63 | R (mm): 5
BT40-PM16-120 Shank: BT40 | Ød (mm): 2.8~16.0 | ØD (mm): 34 | L (mm): 120 | L1 (mm): 82 | L2 (mm): 90 | R (mm): 8
BT50-PM08-85 Shank: BT50 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 85 | L1 (mm): 39 | L2 (mm): 47
BT50-PM08-105 Shank: BT50 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 105 | L1 (mm): 55 | L2 (mm): 67
BT50-PM08-135 Shank: BT50 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 135 | L1 (mm): 82 | L2 (mm): 97
BT50-PM08-165 Shank: BT50 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 165 | L1 (mm): 109 | L2 (mm): 127
BT50-PM12-90 Shank: BT50 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 90 | L1 (mm): 47 | L2 (mm): 52
BT50-PM12-105 Shank: BT50 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 105 | L1 (mm): 59 | L2 (mm): 67
BT50-PM12-135 Shank: BT50 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 135 | L1 (mm): 85 | L2 (mm): 97
BT50-PM12-165 Shank: BT50 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 165 | L1 (mm): 112 | L2 (mm): 127
BT50-PM16-105 Shank: BT50 | Ød (mm): 2.8~16.0 | ØD (mm): 34 | L (mm): 105 | L1 (mm): 59 | L2 (mm): 67
BT50-PM16-135 Shank: BT50 | Ød (mm): 2.8~16.0 | ØD (mm): 34 | L (mm): 135 | L1 (mm): 85 | L2 (mm): 93
BT50-PM16-165 Shank: BT50 | Ød (mm): 2.8~16.0 | ØD (mm): 34 | L (mm): 165 | L1 (mm): 112 | L2 (mm): 120
BT50-PM20-110 Shank: BT50 | Ød (mm): 3.8~20.0 | ØD (mm): 42 | L (mm): 105 | L1 (mm): 67 | L2 (mm): 72
BT50-PM20-135 Shank: BT50 | Ød (mm): 3.8~20.0 | ØD (mm): 42 | L (mm): 135 | L1 (mm): 92 | L2 (mm): 97
BT50-PM20-165 Shank: BT50 | Ød (mm): 3.8~20.0 | ØD (mm): 42 | L (mm): 165 | L1 (mm): 122 | L2 (mm): 127
Collet ChucksSamchully
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully BT PRIME Ultra-Precision Chuck

Brand Samchully·Collet Chucks

Available part numbers (29)

BT30-PM04-80, BT30-PM04-105, BT30-PM08-95, BT30-PM08-105, BT30-PM12-100, BT30-PM12-105, BT30-PM16-105, BT40-PM04-75, BT40-PM04-90, BT40-PM08-90 + 19 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-PM04-80Shank: BT30 | Ød (mm): 2.0~4.0 | ØD (mm): 15 | L (mm): 80 | L1 (mm): 41 | L2 (mm): 46 | R (mm): 5
BT30-PM04-105Shank: BT30 | Ød (mm): 2.0~4.0 | ØD (mm): 15 | L (mm): 105 | L1 (mm): 66 | L2 (mm): 71 | R (mm): 5
BT30-PM08-95Shank: BT30 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 95 | L1 (mm): 56 | L2 (mm): 61 | R (mm): 5
BT30-PM08-105Shank: BT30 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 105 | L1 (mm): 66 | L2 (mm): 71 | R (mm): 5
BT30-PM12-100Shank: BT30 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 100 | L1 (mm): 66 | L2 (mm): 71 | R (mm): 5
BT30-PM12-105Shank: BT30 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 105 | L1 (mm): 66 | L2 (mm): 71 | R (mm): 5
BT30-PM16-105Shank: BT30 | Ød (mm): 2.8~16.0 | ØD (mm): 34 | L (mm): 105 | L1 (mm): 66 | L2 (mm): 71 | R (mm): 5
BT40-PM04-75Shank: BT40 | Ød (mm): 2.0~4.0 | ØD (mm): 15 | L (mm): 75 | L1 (mm): 42 | L2 (mm): 47 | R (mm): 5
BT40-PM04-90Shank: BT40 | Ød (mm): 2.0~4.0 | ØD (mm): 15 | L (mm): 90 | L1 (mm): 67 | L2 (mm): 72 | R (mm): 5
BT40-PM08-90Shank: BT40 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 90 | L1 (mm): 58 | L2 (mm): 63 | R (mm): 5
BT40-PM08-120Shank: BT40 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 120 | L1 (mm): 85 | L2 (mm): 93 | R (mm): 8
BT40-PM12-90Shank: BT40 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 90 | L1 (mm): 58 | L2 (mm): 63 | R (mm): 5
BT40-PM12-120Shank: BT40 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 120 | L1 (mm): 85 | L2 (mm): 93 | R (mm): 8
BT40-PM16-90Shank: BT40 | Ød (mm): 2.8~16.0 | ØD (mm): 34 | L (mm): 90 | L1 (mm): 58 | L2 (mm): 63 | R (mm): 5
BT40-PM16-120Shank: BT40 | Ød (mm): 2.8~16.0 | ØD (mm): 34 | L (mm): 120 | L1 (mm): 82 | L2 (mm): 90 | R (mm): 8
BT50-PM08-85Shank: BT50 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 85 | L1 (mm): 39 | L2 (mm): 47
BT50-PM08-105Shank: BT50 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 105 | L1 (mm): 55 | L2 (mm): 67
BT50-PM08-135Shank: BT50 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 135 | L1 (mm): 82 | L2 (mm): 97
BT50-PM08-165Shank: BT50 | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 165 | L1 (mm): 109 | L2 (mm): 127
BT50-PM12-90Shank: BT50 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 90 | L1 (mm): 47 | L2 (mm): 52
BT50-PM12-105Shank: BT50 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 105 | L1 (mm): 59 | L2 (mm): 67
BT50-PM12-135Shank: BT50 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 135 | L1 (mm): 85 | L2 (mm): 97
BT50-PM12-165Shank: BT50 | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 165 | L1 (mm): 112 | L2 (mm): 127
BT50-PM16-105Shank: BT50 | Ød (mm): 2.8~16.0 | ØD (mm): 34 | L (mm): 105 | L1 (mm): 59 | L2 (mm): 67
BT50-PM16-135Shank: BT50 | Ød (mm): 2.8~16.0 | ØD (mm): 34 | L (mm): 135 | L1 (mm): 85 | L2 (mm): 93
BT50-PM16-165Shank: BT50 | Ød (mm): 2.8~16.0 | ØD (mm): 34 | L (mm): 165 | L1 (mm): 112 | L2 (mm): 120
BT50-PM20-110Shank: BT50 | Ød (mm): 3.8~20.0 | ØD (mm): 42 | L (mm): 105 | L1 (mm): 67 | L2 (mm): 72
BT50-PM20-135Shank: BT50 | Ød (mm): 3.8~20.0 | ØD (mm): 42 | L (mm): 135 | L1 (mm): 92 | L2 (mm): 97
BT50-PM20-165Shank: BT50 | Ød (mm): 3.8~20.0 | ØD (mm): 42 | L (mm): 165 | L1 (mm): 122 | L2 (mm): 127
