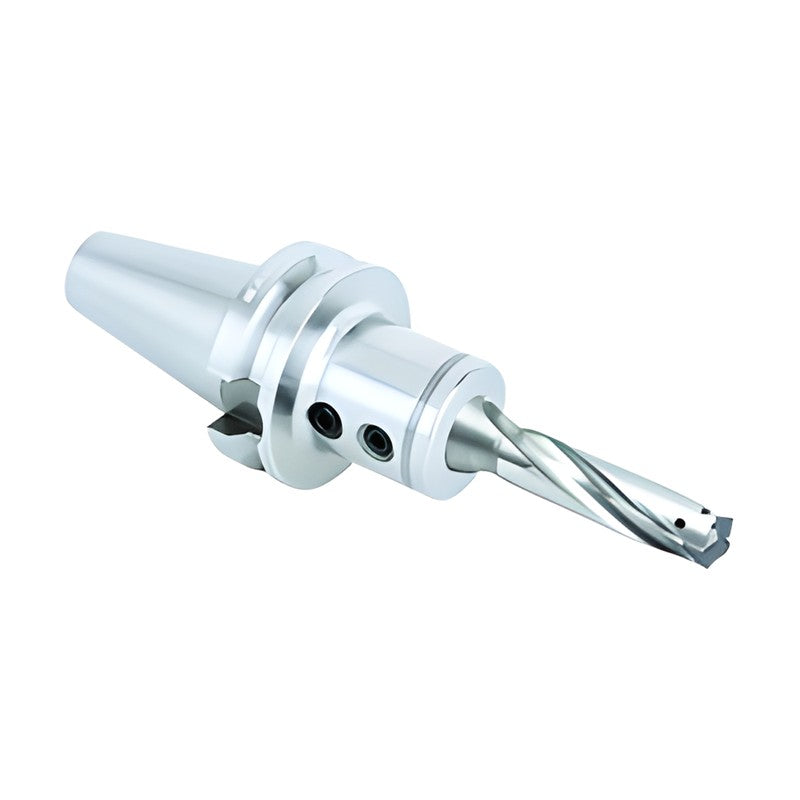

Samchully BT Side Lock Holder

Samchully BT Side Lock Holder

Side Lock Holder with BT (MAS 403 BT) shank, available in BT30, BT40, BT50 sizes.

Specifications

Shank standard MAS 403-BT
BT30-SLA16-90 Shank: BT30 | L (mm): 90 | Ød (mm): 16 | ØD (mm): 40 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.1
BT30-SLA20-90 Shank: BT30 | L (mm): 90 | Ød (mm): 20 | ØD (mm): 50 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.2
BT30-SLA25-90 Shank: BT30 | L (mm): 90 | Ød (mm): 25 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.2
BT40-SLA16-90 Shank: BT40 | L (mm): 90 | Ød (mm): 16 | ØD (mm): 40 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.5
BT40-SLA20-90 Shank: BT40 | L (mm): 90 | Ød (mm): 20 | ØD (mm): 50 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.8
BT40-SLA25-90 Shank: BT40 | L (mm): 90 | Ød (mm): 25 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 2.0
BT40-SLA32-90 Shank: BT40 | L (mm): 90 | Ød (mm): 32 | ØD (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 2.2
BT40-SLA32-105 Shank: BT40 | L (mm): 105 | Ød (mm): 32 | ØD (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 2.4
BT40-SLA40-105 Shank: BT40 | L (mm): 105 | Ød (mm): 40 | ØD (mm): 80 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 2.4
BT50-SLA20-105 Shank: BT50 | L (mm): 105 | Ød (mm): 20 | ØD (mm): 50 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 4.4
BT50-SLA25-105 Shank: BT50 | L (mm): 105 | Ød (mm): 25 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 4.4
BT50-SLA32-105 Shank: BT50 | L (mm): 105 | Ød (mm): 32 | ØD (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 4.8
BT50-SLA40-105 Shank: BT50 | L (mm): 105 | Ød (mm): 40 | ØD (mm): 90 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 5.2
BT50-SLA42-105 Shank: BT50 | L (mm): 105 | Ød (mm): 42 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 5.8
Side Lock HoldersSamchully
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully BT Side Lock Holder

Brand Samchully·Side Lock Holders

Available part numbers (14)

BT30-SLA16-90, BT30-SLA20-90, BT30-SLA25-90, BT40-SLA16-90, BT40-SLA20-90, BT40-SLA25-90, BT40-SLA32-90, BT40-SLA32-105, BT40-SLA40-105, BT50-SLA20-105 + 4 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-SLA16-90Shank: BT30 | L (mm): 90 | Ød (mm): 16 | ØD (mm): 40 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.1
BT30-SLA20-90Shank: BT30 | L (mm): 90 | Ød (mm): 20 | ØD (mm): 50 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.2
BT30-SLA25-90Shank: BT30 | L (mm): 90 | Ød (mm): 25 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.2
BT40-SLA16-90Shank: BT40 | L (mm): 90 | Ød (mm): 16 | ØD (mm): 40 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.5
BT40-SLA20-90Shank: BT40 | L (mm): 90 | Ød (mm): 20 | ØD (mm): 50 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.8
BT40-SLA25-90Shank: BT40 | L (mm): 90 | Ød (mm): 25 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 2.0
BT40-SLA32-90Shank: BT40 | L (mm): 90 | Ød (mm): 32 | ØD (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 2.2
BT40-SLA32-105Shank: BT40 | L (mm): 105 | Ød (mm): 32 | ØD (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 2.4
BT40-SLA40-105Shank: BT40 | L (mm): 105 | Ød (mm): 40 | ØD (mm): 80 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 2.4
BT50-SLA20-105Shank: BT50 | L (mm): 105 | Ød (mm): 20 | ØD (mm): 50 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 4.4
BT50-SLA25-105Shank: BT50 | L (mm): 105 | Ød (mm): 25 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 4.4
BT50-SLA32-105Shank: BT50 | L (mm): 105 | Ød (mm): 32 | ØD (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 4.8
BT50-SLA40-105Shank: BT50 | L (mm): 105 | Ød (mm): 40 | ØD (mm): 90 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 5.2
BT50-SLA42-105Shank: BT50 | L (mm): 105 | Ød (mm): 42 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 5.8

Need a different model, or a part not listed here? Send us your parts list →
