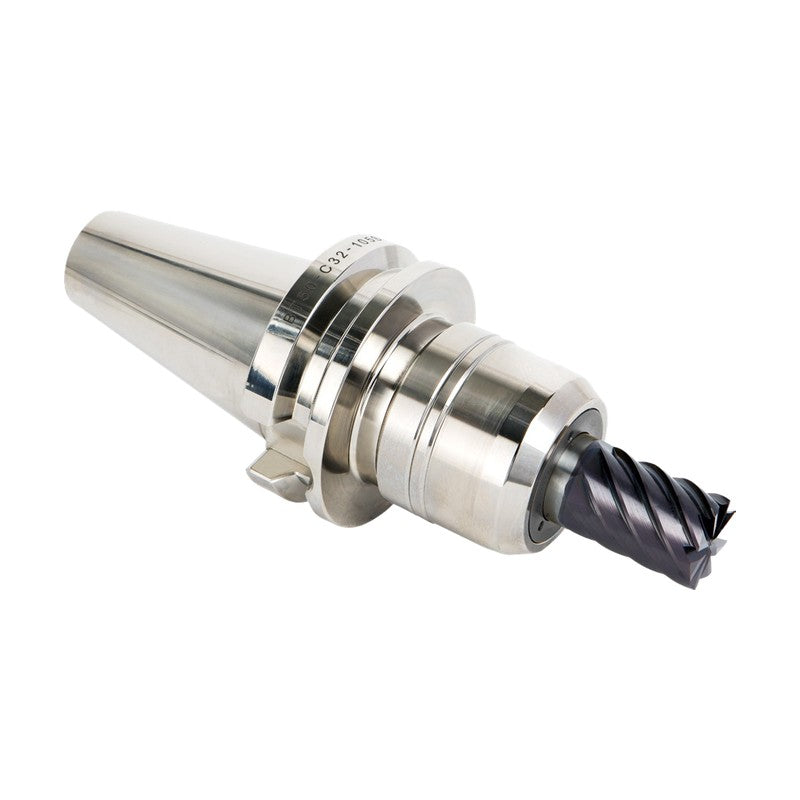

Samchully BT SPEEDIA High-Speed Milling Chuck

Samchully BT SPEEDIA High-Speed Milling Chuck

SPEEDIA High-Speed Milling Chuck with BT (MAS 403 BT) shank, available in BT30, BT40, BT50 sizes.

Key features

  • Designed for high-speed rotation
  • Extreme gripping strength with high precision
  • Smooth nut improves balance and prevents coolant flaring

Specifications

Shank standard MAS 403-BT
Max speed (rpm) 25,000
Run-out 5 µm
BT30-C16-75S Shank: BT30 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 75 | H (mm): 65 | E (mm): 55 | Weight (kg): 0.6
BT30-C20-75S Shank: BT30 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 75 | H (mm): 80 | E (mm): 56 | Weight (kg): 0.6
BT30-C25-80S Shank: BT30 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 80 | H (mm): 70 | E (mm): 57 | Weight (kg): 1.3 | Note: May be incompatible with some machines depending on flange specification
BT30-C32-100S Shank: BT30 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 100 | H (mm): 76 | E (mm): 58 | Weight (kg): 1.5
BT40-C16-75S Shank: BT40 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 75 | H (mm): 65 | E (mm): 55 | Weight (kg): 1.3
BT40-C16-90S Shank: BT40 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 90 | H (mm): 65 | E (mm): 55 | Weight (kg): 1.5
BT40-C20-75S Shank: BT40 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 75 | H (mm): 80 | E (mm): 56 | Weight (kg): 1.4
BT40-C20-90S Shank: BT40 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 90 | H (mm): 80 | E (mm): 56 | Weight (kg): 1.7
BT40-C25-75S Shank: BT40 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 75 | H (mm): 85 | E (mm): 57 | Weight (kg): 1.7
BT40-C25-90S Shank: BT40 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 90 | H (mm): 85 | E (mm): 57 | Weight (kg): 2.0
BT40-C32-90S Shank: BT40 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 90 | H (mm): 100 | E (mm): 64 | Weight (kg): 2.0
BT40-C32-105S Shank: BT40 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 105 | H (mm): 100 | E (mm): 64 | Weight (kg): 2.3
BT40-C32-135S Shank: BT40 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 135 | H (mm): 105 | E (mm): 64 | Weight (kg): 2.9
BT50-C16-105S Shank: BT50 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 105 | H (mm): 65 | E (mm): 55 | Weight (kg): 4.1
BT50-C16-135S Shank: BT50 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 135 | H (mm): 65 | E (mm): 55 | Weight (kg): 4.4
BT50-C20-105S Shank: BT50 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 105 | H (mm): 80 | E (mm): 56 | Weight (kg): 4.4
BT50-C20-135S Shank: BT50 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 135 | H (mm): 80 | E (mm): 56 | Weight (kg): 4.8
BT50-C25-105S Shank: BT50 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 105 | H (mm): 90 | E (mm): 65 | Weight (kg): 4.6
BT50-C25-135S Shank: BT50 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 135 | H (mm): 90 | E (mm): 65
BT50-C32-105S Shank: BT50 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 105 | H (mm): 105 | E (mm): 71
BT50-C32-135S Shank: BT50 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 135 | H (mm): 105 | E (mm): 71
Milling ChucksSamchully
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully BT SPEEDIA High-Speed Milling Chuck

Brand Samchully·Milling Chucks

Available part numbers (21)

BT30-C16-75S, BT30-C20-75S, BT30-C25-80S, BT30-C32-100S, BT40-C16-75S, BT40-C16-90S, BT40-C20-75S, BT40-C20-90S, BT40-C25-75S, BT40-C25-90S + 11 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-C16-75SShank: BT30 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 75 | H (mm): 65 | E (mm): 55 | Weight (kg): 0.6
BT30-C20-75SShank: BT30 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 75 | H (mm): 80 | E (mm): 56 | Weight (kg): 0.6
BT30-C25-80SShank: BT30 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 80 | H (mm): 70 | E (mm): 57 | Weight (kg): 1.3 | Note: May be incompatible with some machines depending on flange specification
BT30-C32-100SShank: BT30 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 100 | H (mm): 76 | E (mm): 58 | Weight (kg): 1.5
BT40-C16-75SShank: BT40 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 75 | H (mm): 65 | E (mm): 55 | Weight (kg): 1.3
BT40-C16-90SShank: BT40 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 90 | H (mm): 65 | E (mm): 55 | Weight (kg): 1.5
BT40-C20-75SShank: BT40 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 75 | H (mm): 80 | E (mm): 56 | Weight (kg): 1.4
BT40-C20-90SShank: BT40 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 90 | H (mm): 80 | E (mm): 56 | Weight (kg): 1.7
BT40-C25-75SShank: BT40 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 75 | H (mm): 85 | E (mm): 57 | Weight (kg): 1.7
BT40-C25-90SShank: BT40 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 90 | H (mm): 85 | E (mm): 57 | Weight (kg): 2.0
BT40-C32-90SShank: BT40 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 90 | H (mm): 100 | E (mm): 64 | Weight (kg): 2.0
BT40-C32-105SShank: BT40 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 105 | H (mm): 100 | E (mm): 64 | Weight (kg): 2.3
BT40-C32-135SShank: BT40 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 135 | H (mm): 105 | E (mm): 64 | Weight (kg): 2.9
BT50-C16-105SShank: BT50 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 105 | H (mm): 65 | E (mm): 55 | Weight (kg): 4.1
BT50-C16-135SShank: BT50 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 135 | H (mm): 65 | E (mm): 55 | Weight (kg): 4.4
BT50-C20-105SShank: BT50 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 105 | H (mm): 80 | E (mm): 56 | Weight (kg): 4.4
BT50-C20-135SShank: BT50 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 135 | H (mm): 80 | E (mm): 56 | Weight (kg): 4.8
BT50-C25-105SShank: BT50 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 105 | H (mm): 90 | E (mm): 65 | Weight (kg): 4.6
BT50-C25-135SShank: BT50 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 135 | H (mm): 90 | E (mm): 65
BT50-C32-105SShank: BT50 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 105 | H (mm): 105 | E (mm): 71
BT50-C32-135SShank: BT50 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 135 | H (mm): 105 | E (mm): 71
