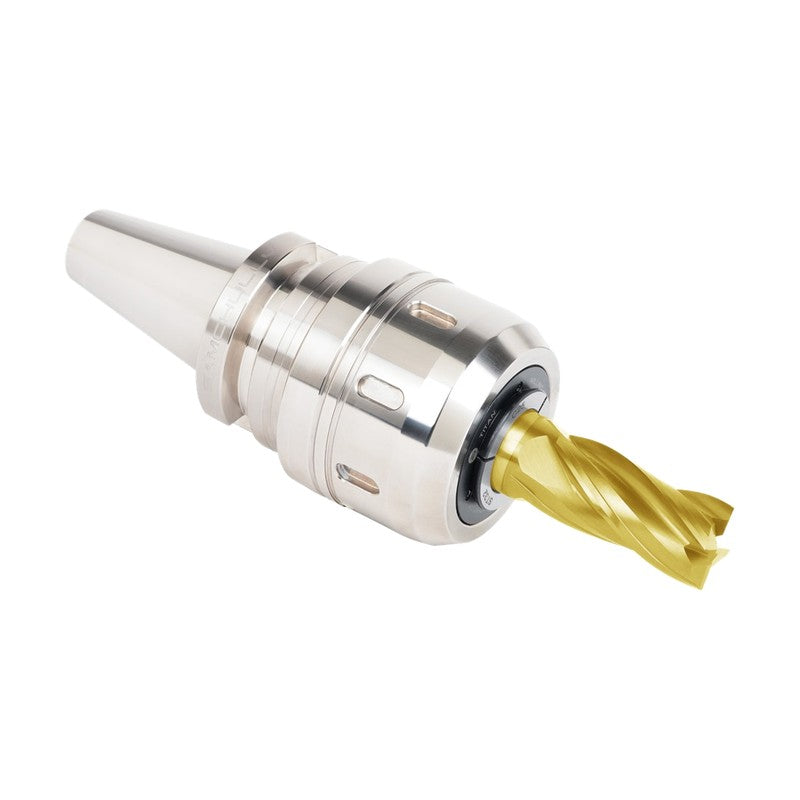

Samchully BT Standard Titan Milling Chuck

Samchully BT Standard Titan Milling Chuck

Standard Titan Milling Chuck with BT (MAS 403 BT) shank, available in BT30, BT40, BT50 sizes.

Key features

  • Extreme gripping strength with high precision for aggressive material removal
  • Minimal run-out extends cutting tool life and improves surface finish
  • Straight collet and spanner available as options

Specifications

Shank standard MAS 403-BT
Run-out 10 µm
BT30-C16-75 Shank: BT30 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 75 | H (mm): 65 | E (mm): 55 | Weight (kg): 0.8
BT30-C20-75 Shank: BT30 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 75 | H (mm): 80 | E (mm): 56 | Weight (kg): 1.0
BT30-C25-80 Shank: BT30 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 80 | H (mm): 70 | E (mm): 57 | Weight (kg): 1.2 | Note: May be incompatible with some machines depending on flange specification
BT30-C32-100 Shank: BT30 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 100 | H (mm): 76 | E (mm): 58 | Weight (kg): 1.5
BT40-C16-75 Shank: BT40 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 75 | H (mm): 65 | E (mm): 55 | Weight (kg): 1.5
BT40-C16-90 Shank: BT40 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 90 | H (mm): 65 | E (mm): 55 | Weight (kg): 1.8
BT40-C16-120 Shank: BT40 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 120 | H (mm): 65 | E (mm): 55 | Weight (kg): 2.2
BT40-C20-75 Shank: BT40 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 75 | H (mm): 80 | E (mm): 56 | Weight (kg): 1.7
BT40-C20-90 Shank: BT40 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 90 | H (mm): 80 | E (mm): 56 | Weight (kg): 1.8
BT40-C20-105 Shank: BT40 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 105 | H (mm): 80 | E (mm): 56 | Weight (kg): 2.0
BT40-C20-120 Shank: BT40 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 120 | H (mm): 80 | E (mm): 56 | Weight (kg): 2.2
BT40-C25-75 Shank: BT40 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 75 | H (mm): 85 | E (mm): 57 | Weight (kg): 1.9
BT40-C25-90 Shank: BT40 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 90 | H (mm): 85 | E (mm): 57 | Weight (kg): 2.1
BT40-C25-120 Shank: BT40 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 120 | H (mm): 85 | E (mm): 57 | Weight (kg): 2.5
BT40-C32-90 Shank: BT40 | Ød (mm): 32 | ØD (mm): 72 | L (mm): 90 | H (mm): 100 | E (mm): 64 | Weight (kg): 2.2
BT40-C32-105 Shank: BT40 | Ød (mm): 32 | ØD (mm): 72 | L (mm): 105 | H (mm): 100 | E (mm): 64 | Weight (kg): 2.5
BT40-C32-120 Shank: BT40 | Ød (mm): 32 | ØD (mm): 72 | L (mm): 120 | H (mm): 105 | E (mm): 64 | Weight (kg): 2.8
BT40-C32-135 Shank: BT40 | Ød (mm): 32 | ØD (mm): 72 | L (mm): 135 | H (mm): 105 | E (mm): 64 | Weight (kg): 3.1
BT40-C32-165 Shank: BT40 | Ød (mm): 32 | ØD (mm): 72 | L (mm): 165 | H (mm): 105 | E (mm): 64 | Weight (kg): 3.8
BT40-C32-200 Shank: BT40 | Ød (mm): 32 | ØD (mm): 72 | L (mm): 200 | H (mm): 105 | E (mm): 64 | Weight (kg): 4.6
BT50-C16-105 Shank: BT50 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 105 | H (mm): 65 | E (mm): 55 | Weight (kg): 4.2
BT50-C16-135 Shank: BT50 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 135 | H (mm): 65 | E (mm): 55 | Weight (kg): 4.5
BT50-C16-165 Shank: BT50 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 165 | H (mm): 65 | E (mm): 55 | Weight (kg): 4.8
BT50-C20-105 Shank: BT50 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 105 | H (mm): 80 | E (mm): 56 | Weight (kg): 4.5
BT50-C20-135 Shank: BT50 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 135 | H (mm): 80 | E (mm): 56 | Weight (kg): 4.8
BT50-C20-165 Shank: BT50 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 165 | H (mm): 80 | E (mm): 56 | Weight (kg): 5.1
BT50-C20-180 Shank: BT50 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 180 | H (mm): 80 | E (mm): 56 | Weight (kg): 5.4
BT50-C25-105 Shank: BT50 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 105 | H (mm): 90 | E (mm): 65 | Weight (kg): 4.8
BT50-C25-135 Shank: BT50 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 135 | H (mm): 90 | E (mm): 65 | Weight (kg): 5.2
BT50-C25-165 Shank: BT50 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 165 | H (mm): 90 | E (mm): 65 | Weight (kg): 5.6
BT50-C32-105 Shank: BT50 | Ød (mm): 32 | ØD (mm): 75 | L (mm): 105 | H (mm): 105 | E (mm): 71 | Weight (kg): 4.6
BT50-C32-120 Shank: BT50 | Ød (mm): 32 | ØD (mm): 75 | L (mm): 120 | H (mm): 105 | E (mm): 71 | Weight (kg): 5.1
BT50-C32-135 Shank: BT50 | Ød (mm): 32 | ØD (mm): 75 | L (mm): 135 | H (mm): 105 | E (mm): 71 | Weight (kg): 5.6
BT50-C32-165 Shank: BT50 | Ød (mm): 32 | ØD (mm): 75 | L (mm): 165 | H (mm): 105 | E (mm): 71 | Weight (kg): 6.4
BT50-C32-200 Shank: BT50 | Ød (mm): 32 | ØD (mm): 75 | L (mm): 200 | H (mm): 105 | E (mm): 71 | Weight (kg): 7.8
BT50-C42-105 Shank: BT50 | Ød (mm): 42 | ØD (mm): 90 | L (mm): 105 | H (mm): 125 | E (mm): 73 | Weight (kg): 5.8
BT50-C42-120 Shank: BT50 | Ød (mm): 42 | ØD (mm): 90 | L (mm): 120 | H (mm): 125 | E (mm): 73 | Weight (kg): 6.6
BT50-C42-135 Shank: BT50 | Ød (mm): 42 | ØD (mm): 90 | L (mm): 135 | H (mm): 125 | E (mm): 73 | Weight (kg): 7.2
BT50-C42-165 Shank: BT50 | Ød (mm): 42 | ØD (mm): 90 | L (mm): 165 | H (mm): 125 | E (mm): 73 | Weight (kg): 8.6
BT50-C42-200 Shank: BT50 | Ød (mm): 42 | ØD (mm): 90 | L (mm): 200 | H (mm): 125 | E (mm): 73 | Weight (kg): 9.5
