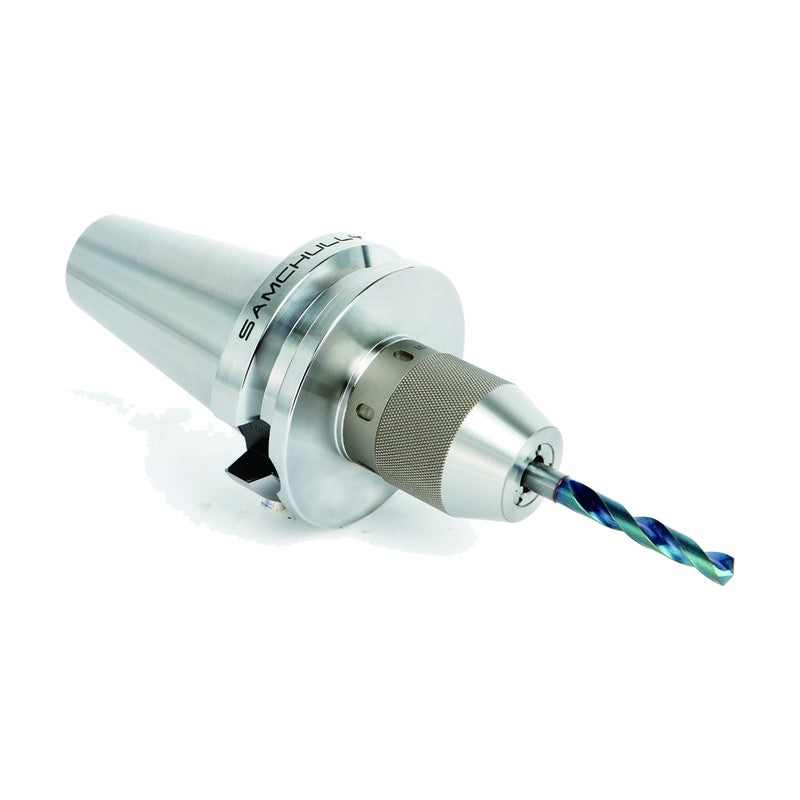

Samchully BTT Drill Chuck

Samchully BTT Drill Chuck

Drill Chuck with BTT (MAS 403 BT taper with flange contact) shank, available in BTT30, BTT40, BTT50 sizes.

Specifications

Shank standard MAS 403-BT
BTT30-NPU6.5-70 Shank: BTT30 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 76 | L2 (mm): 70 | Weight (kg): 0.7
BTT30-NPU13-90 Shank: BTT30 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 102 | L2 (mm): 90 | Weight (kg): 1.1
BTT40-NPU6.5-75 Shank: BTT40 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 81 | L2 (mm): 75 | Weight (kg): 1.2
BTT40-NPU6.5-115 Shank: BTT40 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 121 | L2 (mm): 115 | Weight (kg): 1.4
BTT40-NPU6.5-155 Shank: BTT40 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 161 | L2 (mm): 155 | Weight (kg): 1.7
BTT40-NPU13-95 Shank: BTT40 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 107 | L2 (mm): 95 | Weight (kg): 1.7
BTT40-NPU13-135 Shank: BTT40 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 147 | L2 (mm): 135 | Weight (kg): 2.3
BTT40-NPU13-175 Shank: BTT40 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 187 | L2 (mm): 175 | Weight (kg): 2.8
BTT50-NPU6.5-85 Shank: BTT50 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 91 | L2 (mm): 85 | Weight (kg): 3.9
BTT50-NPU6.5-130 Shank: BTT50 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 136 | L2 (mm): 130 | Weight (kg): 4.1
BTT50-NPU6.5-175 Shank: BTT50 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 181 | L2 (mm): 175 | Weight (kg): 4.3
BTT50-NPU13-105 Shank: BTT50 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 117 | L2 (mm): 105 | Weight (kg): 4.3
BTT50-NPU13-150 Shank: BTT50 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 162 | L2 (mm): 150 | Weight (kg): 4.9
BTT50-NPU13-195 Shank: BTT50 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 207 | L2 (mm): 195 | Weight (kg): 5.4
Drill ChucksSamchully
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully BTT Drill Chuck

Brand Samchully·Drill Chucks

Available part numbers (14)

BTT30-NPU6.5-70, BTT30-NPU13-90, BTT40-NPU6.5-75, BTT40-NPU6.5-115, BTT40-NPU6.5-155, BTT40-NPU13-95, BTT40-NPU13-135, BTT40-NPU13-175, BTT50-NPU6.5-85, BTT50-NPU6.5-130 + 4 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BTT30-NPU6.5-70Shank: BTT30 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 76 | L2 (mm): 70 | Weight (kg): 0.7
BTT30-NPU13-90Shank: BTT30 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 102 | L2 (mm): 90 | Weight (kg): 1.1
BTT40-NPU6.5-75Shank: BTT40 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 81 | L2 (mm): 75 | Weight (kg): 1.2
BTT40-NPU6.5-115Shank: BTT40 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 121 | L2 (mm): 115 | Weight (kg): 1.4
BTT40-NPU6.5-155Shank: BTT40 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 161 | L2 (mm): 155 | Weight (kg): 1.7
BTT40-NPU13-95Shank: BTT40 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 107 | L2 (mm): 95 | Weight (kg): 1.7
BTT40-NPU13-135Shank: BTT40 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 147 | L2 (mm): 135 | Weight (kg): 2.3
BTT40-NPU13-175Shank: BTT40 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 187 | L2 (mm): 175 | Weight (kg): 2.8
BTT50-NPU6.5-85Shank: BTT50 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 91 | L2 (mm): 85 | Weight (kg): 3.9
BTT50-NPU6.5-130Shank: BTT50 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 136 | L2 (mm): 130 | Weight (kg): 4.1
BTT50-NPU6.5-175Shank: BTT50 | Clamping range Ød (mm): 0.5~6.5 | ØD (mm): 34 | L1 (mm): 181 | L2 (mm): 175 | Weight (kg): 4.3
BTT50-NPU13-105Shank: BTT50 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 117 | L2 (mm): 105 | Weight (kg): 4.3
BTT50-NPU13-150Shank: BTT50 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 162 | L2 (mm): 150 | Weight (kg): 4.9
BTT50-NPU13-195Shank: BTT50 | Clamping range Ød (mm): 0.5~13.0 | ØD (mm): 50 | L1 (mm): 207 | L2 (mm): 195 | Weight (kg): 5.4
