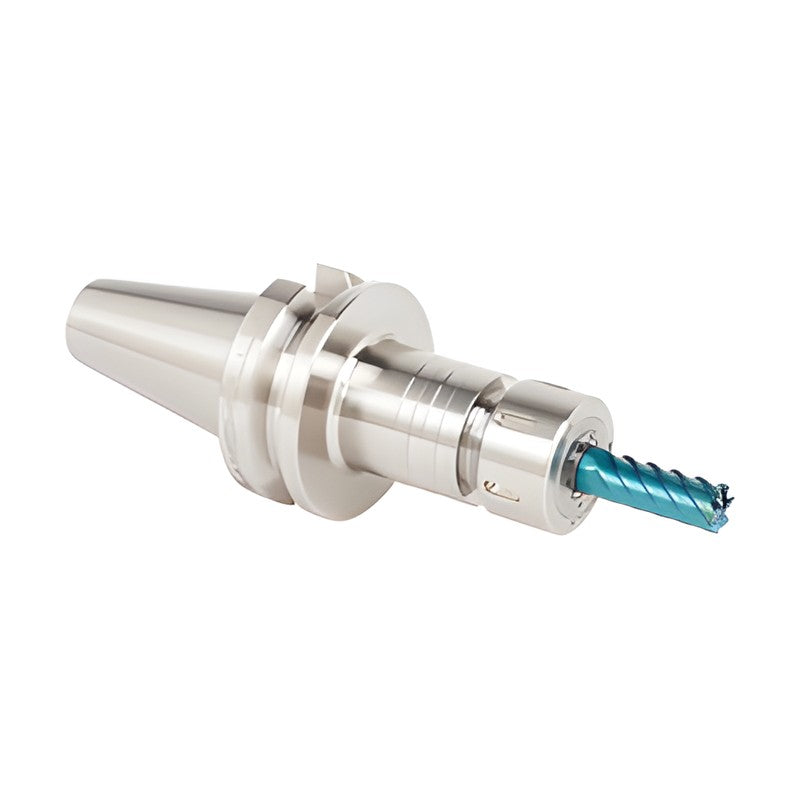

Samchully BTT ER Collet Chuck

Samchully BTT ER Collet Chuck

ER Collet Chuck with BTT (MAS 403 BT taper with flange contact) shank, available in BTT30, BTT40, BTT50 sizes.

Key features

  • Eccentric collet race for greater accuracy and faster set-up
  • Ball bearing nut on ER16 and larger
  • Specially tempered steel and coating

Specifications

Shank standard MAS 403-BT
Balancing grade G6.3
Max speed (rpm) 15,000
BTT30-ER11-50 Shank: BTT30 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L1 (mm): 50 | L2 (mm): 26 | H (mm): 26~38 | Weight (kg): 0.5
BTT30-ER11-75 Shank: BTT30 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L1 (mm): 75 | L2 (mm): 50 | H (mm): 26~38 | Weight (kg): 0.5
BTT30-ER11-105 Shank: BTT30 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L1 (mm): 105 | L2 (mm): 80 | H (mm): 26~38 | Weight (kg): 0.6
BTT30-ER16-50 Shank: BTT30 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 50 | L2 (mm): 26 | H (mm): 35~50 | Weight (kg): 0.5
BTT30-ER16-75 Shank: BTT30 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 75 | L2 (mm): 50 | H (mm): 35~50 | Weight (kg): 0.5
BTT30-ER16-90 Shank: BTT30 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 90 | L2 (mm): 65 | H (mm): 35~50 | Weight (kg): 0.6
BTT30-ER16-105 Shank: BTT30 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 105 | L2 (mm): 80 | H (mm): 35~50 | Weight (kg): 0.6
BTT30-ER20-75 Shank: BTT30 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 75 | L2 (mm): 51 | H (mm): 42~62 | Weight (kg): 0.6
BTT30-ER20-105 Shank: BTT30 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 105 | L2 (mm): 81 | H (mm): 42~62 | Weight (kg): 0.7
BTT30-ER25-50 Shank: BTT30 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 50 | L2 (mm): 27.6 | H (mm): 53 | Weight (kg): 0.6 | Note: Uses M12 adjust bolt
BTT30-ER25-75 Shank: BTT30 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 75 | L2 (mm): 52.6 | H (mm): 44~67 | Weight (kg): 0.7
BTT30-ER25-105 Shank: BTT30 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 105 | L2 (mm): 82.6 | H (mm): 44~67 | Weight (kg): 0.8
BTT30-ER32-60 Shank: BTT30 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 60 | L2 (mm): 38 | H (mm): 60 | Weight (kg): 0.5
BTT30-ER32-90 Shank: BTT30 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 90 | L2 (mm): 68 | H (mm): 50~68 | Weight (kg): 0.8
BTT30-ER32-120 Shank: BTT30 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 120 | L2 (mm): 98 | H (mm): 50~68 | Weight (kg): 1.0
BTT40-ER11-60 Shank: BTT40 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L1 (mm): 60 | L2 (mm): 27 | H (mm): 26~38 | Weight (kg): 1.0
BTT40-ER11-90 Shank: BTT40 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L1 (mm): 90 | L2 (mm): 55 | H (mm): 26~38 | Weight (kg): 1.1
BTT40-ER11-135 Shank: BTT40 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L1 (mm): 135 | L2 (mm): 98 | H (mm): 26~38 | Weight (kg): 1.2
BTT40-ER16-60 Shank: BTT40 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 60 | L2 (mm): 29 | H (mm): 35~50 | Weight (kg): 1.1
BTT40-ER16-90 Shank: BTT40 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 90 | L2 (mm): 57 | H (mm): 35~50 | Weight (kg): 1.2
BTT40-ER16-135 Shank: BTT40 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 135 | L2 (mm): 100 | H (mm): 35~50 | Weight (kg): 1.4
BTT40-ER20-60 Shank: BTT40 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 60 | L2 (mm): 31 | H (mm): 42~62 | Weight (kg): 1.1
BTT40-ER20-90 Shank: BTT40 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 90 | L2 (mm): 60 | H (mm): 42~62 | Weight (kg): 1.3
BTT40-ER20-120 Shank: BTT40 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 120 | L2 (mm): 89 | H (mm): 42~62 | Weight (kg): 1.5
BTT40-ER20-150 Shank: BTT40 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 150 | L2 (mm): 119 | H (mm): 42~62 | Weight (kg): 1.8
BTT40-ER25-60 Shank: BTT40 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 60 | L2 (mm): 31 | H (mm): 44~67 | Weight (kg): 1.2
BTT40-ER25-90 Shank: BTT40 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 90 | L2 (mm): 60 | H (mm): 44~67 | Weight (kg): 1.4
BTT40-ER25-120 Shank: BTT40 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 120 | L2 (mm): 89 | H (mm): 44~67 | Weight (kg): 1.6
BTT40-ER32-60 Shank: BTT40 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 60 | L2 (mm): 32 | H (mm): 50~68 | Weight (kg): 1.1
BTT40-ER32-90 Shank: BTT40 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 90 | L2 (mm): 61 | H (mm): 50~68 | Weight (kg): 1.4
BTT40-ER32-120 Shank: BTT40 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 120 | L2 (mm): 90 | H (mm): 50~68 | Weight (kg): 1.7
BTT40-ER40-90 Shank: BTT40 | Ød (mm): 2.0~26.0 | ØD (mm): 63 | ØD1 (mm): 58 | L1 (mm): 90 | L2 (mm): 62 | H (mm): 56~71 | Weight (kg): 2.4
BTT40-ER40-120 Shank: BTT40 | Ød (mm): 2.0~26.0 | ØD (mm): 63 | ØD1 (mm): 58 | L1 (mm): 120 | L2 (mm): 91 | H (mm): 56~71 | Weight (kg): 2.7
BTT50-ER16-90 Shank: BTT50 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 90 | L2 (mm): 37 | H (mm): 35~50 | Weight (kg): 3.8
BTT50-ER16-120 Shank: BTT50 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 120 | L2 (mm): 64 | H (mm): 35~50 | Weight (kg): 4.0
BTT50-ER16-165 Shank: BTT50 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 165 | L2 (mm): 109 | H (mm): 35~50 | Weight (kg): 4.2
BTT50-ER20-105 Shank: BTT50 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 105 | L2 (mm): 57 | H (mm): 42~62 | Weight (kg): 3.9
BTT50-ER20-135 Shank: BTT50 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 135 | L2 (mm): 82 | H (mm): 42~62 | Weight (kg): 4.1
BTT50-ER20-165 Shank: BTT50 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 165 | L2 (mm): 112 | H (mm): 42~62 | Weight (kg): 4.5
BTT50-ER25-105 Shank: BTT50 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 105 | L2 (mm): 59 | H (mm): 44~67 | Weight (kg): 4.1
BTT50-ER25-165 Shank: BTT50 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 165 | L2 (mm): 115 | H (mm): 44~67 | Weight (kg): 4.5
BTT50-ER32-75 Shank: BTT50 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 75 | L2 (mm): 31 | H (mm): 50~68 | Weight (kg): 4.0
BTT50-ER32-105 Shank: BTT50 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 105 | L2 (mm): 61 | H (mm): 50~68 | Weight (kg): 4.3
BTT50-ER32-135 Shank: BTT50 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 135 | L2 (mm): 89 | H (mm): 50~68 | Weight (kg): 4.9
BTT50-ER32-165 Shank: BTT50 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 165 | L2 (mm): 119 | H (mm): 50~68 | Weight (kg): 5.0
BTT50-ER32-180 Shank: BTT50 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 180 | L2 (mm): 132 | H (mm): 50~68 | Weight (kg): 5.0
BTT50-ER40-165 Shank: BTT50 | Ød (mm): 2.0~30.0 | ØD (mm): 63 | ØD1 (mm): 63 | L1 (mm): 165 | L2 (mm): 123 | H (mm): 56~79 | Weight (kg): 6.0
Collet ChucksSamchully
47 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully BTT ER Collet Chuck

Brand Samchully·Collet Chucks

Available part numbers (47)

BTT30-ER11-50, BTT30-ER11-75, BTT30-ER11-105, BTT30-ER16-50, BTT30-ER16-75, BTT30-ER16-90, BTT30-ER16-105, BTT30-ER20-75, BTT30-ER20-105, BTT30-ER25-50 + 37 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BTT30-ER11-50Shank: BTT30 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L1 (mm): 50 | L2 (mm): 26 | H (mm): 26~38 | Weight (kg): 0.5
BTT30-ER11-75Shank: BTT30 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L1 (mm): 75 | L2 (mm): 50 | H (mm): 26~38 | Weight (kg): 0.5
BTT30-ER11-105Shank: BTT30 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L1 (mm): 105 | L2 (mm): 80 | H (mm): 26~38 | Weight (kg): 0.6
BTT30-ER16-50Shank: BTT30 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 50 | L2 (mm): 26 | H (mm): 35~50 | Weight (kg): 0.5
BTT30-ER16-75Shank: BTT30 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 75 | L2 (mm): 50 | H (mm): 35~50 | Weight (kg): 0.5
BTT30-ER16-90Shank: BTT30 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 90 | L2 (mm): 65 | H (mm): 35~50 | Weight (kg): 0.6
BTT30-ER16-105Shank: BTT30 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 105 | L2 (mm): 80 | H (mm): 35~50 | Weight (kg): 0.6
BTT30-ER20-75Shank: BTT30 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 75 | L2 (mm): 51 | H (mm): 42~62 | Weight (kg): 0.6
BTT30-ER20-105Shank: BTT30 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 105 | L2 (mm): 81 | H (mm): 42~62 | Weight (kg): 0.7
BTT30-ER25-50Shank: BTT30 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 50 | L2 (mm): 27.6 | H (mm): 53 | Weight (kg): 0.6 | Note: Uses M12 adjust bolt
BTT30-ER25-75Shank: BTT30 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 75 | L2 (mm): 52.6 | H (mm): 44~67 | Weight (kg): 0.7
BTT30-ER25-105Shank: BTT30 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 105 | L2 (mm): 82.6 | H (mm): 44~67 | Weight (kg): 0.8
BTT30-ER32-60Shank: BTT30 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 60 | L2 (mm): 38 | H (mm): 60 | Weight (kg): 0.5
BTT30-ER32-90Shank: BTT30 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 90 | L2 (mm): 68 | H (mm): 50~68 | Weight (kg): 0.8
BTT30-ER32-120Shank: BTT30 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 120 | L2 (mm): 98 | H (mm): 50~68 | Weight (kg): 1.0
BTT40-ER11-60Shank: BTT40 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L1 (mm): 60 | L2 (mm): 27 | H (mm): 26~38 | Weight (kg): 1.0
BTT40-ER11-90Shank: BTT40 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L1 (mm): 90 | L2 (mm): 55 | H (mm): 26~38 | Weight (kg): 1.1
BTT40-ER11-135Shank: BTT40 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L1 (mm): 135 | L2 (mm): 98 | H (mm): 26~38 | Weight (kg): 1.2
BTT40-ER16-60Shank: BTT40 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 60 | L2 (mm): 29 | H (mm): 35~50 | Weight (kg): 1.1
BTT40-ER16-90Shank: BTT40 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 90 | L2 (mm): 57 | H (mm): 35~50 | Weight (kg): 1.2
BTT40-ER16-135Shank: BTT40 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 135 | L2 (mm): 100 | H (mm): 35~50 | Weight (kg): 1.4
BTT40-ER20-60Shank: BTT40 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 60 | L2 (mm): 31 | H (mm): 42~62 | Weight (kg): 1.1
BTT40-ER20-90Shank: BTT40 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 90 | L2 (mm): 60 | H (mm): 42~62 | Weight (kg): 1.3
BTT40-ER20-120Shank: BTT40 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 120 | L2 (mm): 89 | H (mm): 42~62 | Weight (kg): 1.5
BTT40-ER20-150Shank: BTT40 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 150 | L2 (mm): 119 | H (mm): 42~62 | Weight (kg): 1.8
BTT40-ER25-60Shank: BTT40 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 60 | L2 (mm): 31 | H (mm): 44~67 | Weight (kg): 1.2
BTT40-ER25-90Shank: BTT40 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 90 | L2 (mm): 60 | H (mm): 44~67 | Weight (kg): 1.4
BTT40-ER25-120Shank: BTT40 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 120 | L2 (mm): 89 | H (mm): 44~67 | Weight (kg): 1.6
BTT40-ER32-60Shank: BTT40 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 60 | L2 (mm): 32 | H (mm): 50~68 | Weight (kg): 1.1
BTT40-ER32-90Shank: BTT40 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 90 | L2 (mm): 61 | H (mm): 50~68 | Weight (kg): 1.4
BTT40-ER32-120Shank: BTT40 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 120 | L2 (mm): 90 | H (mm): 50~68 | Weight (kg): 1.7
BTT40-ER40-90Shank: BTT40 | Ød (mm): 2.0~26.0 | ØD (mm): 63 | ØD1 (mm): 58 | L1 (mm): 90 | L2 (mm): 62 | H (mm): 56~71 | Weight (kg): 2.4
BTT40-ER40-120Shank: BTT40 | Ød (mm): 2.0~26.0 | ØD (mm): 63 | ØD1 (mm): 58 | L1 (mm): 120 | L2 (mm): 91 | H (mm): 56~71 | Weight (kg): 2.7
BTT50-ER16-90Shank: BTT50 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 90 | L2 (mm): 37 | H (mm): 35~50 | Weight (kg): 3.8
BTT50-ER16-120Shank: BTT50 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 120 | L2 (mm): 64 | H (mm): 35~50 | Weight (kg): 4.0
BTT50-ER16-165Shank: BTT50 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L1 (mm): 165 | L2 (mm): 109 | H (mm): 35~50 | Weight (kg): 4.2
BTT50-ER20-105Shank: BTT50 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 105 | L2 (mm): 57 | H (mm): 42~62 | Weight (kg): 3.9
BTT50-ER20-135Shank: BTT50 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 135 | L2 (mm): 82 | H (mm): 42~62 | Weight (kg): 4.1
BTT50-ER20-165Shank: BTT50 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L1 (mm): 165 | L2 (mm): 112 | H (mm): 42~62 | Weight (kg): 4.5
BTT50-ER25-105Shank: BTT50 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 105 | L2 (mm): 59 | H (mm): 44~67 | Weight (kg): 4.1
BTT50-ER25-165Shank: BTT50 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L1 (mm): 165 | L2 (mm): 115 | H (mm): 44~67 | Weight (kg): 4.5
BTT50-ER32-75Shank: BTT50 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 75 | L2 (mm): 31 | H (mm): 50~68 | Weight (kg): 4.0
BTT50-ER32-105Shank: BTT50 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 105 | L2 (mm): 61 | H (mm): 50~68 | Weight (kg): 4.3
BTT50-ER32-135Shank: BTT50 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 135 | L2 (mm): 89 | H (mm): 50~68 | Weight (kg): 4.9
BTT50-ER32-165Shank: BTT50 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 165 | L2 (mm): 119 | H (mm): 50~68 | Weight (kg): 5.0
BTT50-ER32-180Shank: BTT50 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L1 (mm): 180 | L2 (mm): 132 | H (mm): 50~68 | Weight (kg): 5.0
BTT50-ER40-165Shank: BTT50 | Ød (mm): 2.0~30.0 | ØD (mm): 63 | ØD1 (mm): 63 | L1 (mm): 165 | L2 (mm): 123 | H (mm): 56~79 | Weight (kg): 6.0
