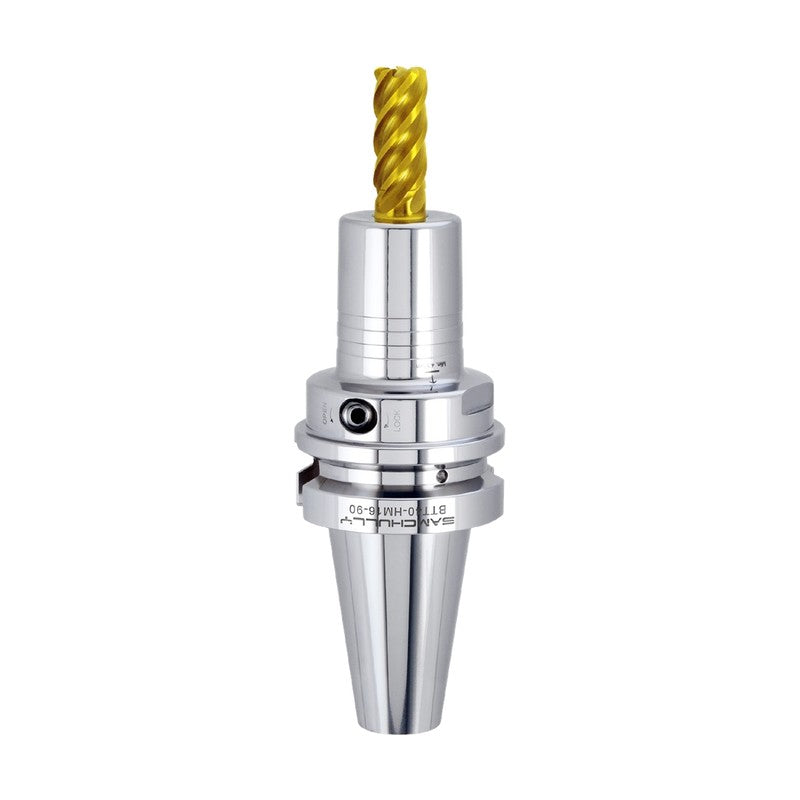

Samchully BTT Hydraulic Milling Chuck

Samchully BTT Hydraulic Milling Chuck

Hydraulic Milling Chuck with BTT (MAS 403 BT taper with flange contact) shank, available in BTT30, BTT40, BTT50 sizes.

Key features

  • Vibration dampening extends cutting tool life
  • Cutting tool run-out of 3 microns or better
  • T wrench included for fast set-up
  • Tools can be exchanged directly in the machine spindle

Specifications

Shank standard MAS 403-BT
Max speed (rpm) 25,000
Run-out 3 µm
Balancing grade G2.5
BTT30-HM06-45 Shank: BTT30 | Ød (mm): 6 | ØD (mm): 30 | ØD1 (mm): 46 | L (mm): 45 | L1 (mm): 7 | H (mm): 35~50 | E (mm): 28 | Weight (kg): 0.6
BTT30-HM06-75 Shank: BTT30 | Ød (mm): 6 | ØD (mm): 26 | ØD1 (mm): 46 | L (mm): 75 | L1 (mm): 40 | H (mm): 28~50 | E (mm): 28 | Weight (kg): 0.7
BTT30-HM06-90 Shank: BTT30 | Ød (mm): 6 | ØD (mm): 26 | ØD1 (mm): 46 | L (mm): 90 | L1 (mm): 43 | L2 (mm): 57 | H (mm): 28~50 | E (mm): 28 | Weight (kg): 0.8
BTT30-HM06-105 Shank: BTT30 | Ød (mm): 6 | ØD (mm): 26 | ØD1 (mm): 46 | L (mm): 105 | L1 (mm): 43 | L2 (mm): 72 | H (mm): 28~50 | E (mm): 28 | Weight (kg): 0.8
BTT30-HM08-45 Shank: BTT30 | Ød (mm): 8 | ØD (mm): 32 | ØD1 (mm): 46 | L (mm): 45 | L1 (mm): 7 | H (mm): 35~50 | E (mm): 28 | Weight (kg): 0.6
BTT30-HM08-75 Shank: BTT30 | Ød (mm): 8 | ØD (mm): 28 | ØD1 (mm): 46 | L (mm): 75 | L1 (mm): 41 | H (mm): 28~50 | E (mm): 28 | Weight (kg): 0.7
BTT30-HM08-90 Shank: BTT30 | Ød (mm): 8 | ØD (mm): 28 | ØD1 (mm): 46 | L (mm): 90 | L1 (mm): 44 | L2 (mm): 57 | H (mm): 28~50 | E (mm): 28 | Weight (kg): 0.8
BTT30-HM08-105 Shank: BTT30 | Ød (mm): 8 | ØD (mm): 28 | ØD1 (mm): 46 | L (mm): 105 | L1 (mm): 44 | L2 (mm): 72 | H (mm): 28~50 | E (mm): 28 | Weight (kg): 0.9
BTT30-HM10-45 Shank: BTT30 | Ød (mm): 10 | ØD (mm): 34 | ØD1 (mm): 46 | L (mm): 45 | L1 (mm): 7 | H (mm): 45~55 | E (mm): 33 | Weight (kg): 0.6
BTT30-HM10-75 Shank: BTT30 | Ød (mm): 10 | ØD (mm): 30 | ØD1 (mm): 46 | L (mm): 75 | L1 (mm): 36 | H (mm): 33~55 | E (mm): 33 | Weight (kg): 0.8
BTT30-HM10-90 Shank: BTT30 | Ød (mm): 10 | ØD (mm): 30 | ØD1 (mm): 46 | L (mm): 90 | L1 (mm): 45 | L2 (mm): 51 | H (mm): 33~55 | E (mm): 33 | Weight (kg): 0.8
BTT30-HM10-105 Shank: BTT30 | Ød (mm): 10 | ØD (mm): 30 | ØD1 (mm): 46 | L (mm): 105 | L1 (mm): 45 | L2 (mm): 66 | H (mm): 33~55 | E (mm): 33 | Weight (kg): 0.9
BTT30-HM12-45 Shank: BTT30 | Ød (mm): 12 | ØD (mm): 36 | ØD1 (mm): 46 | L (mm): 45 | L1 (mm): 7 | H (mm): 55~60 | E (mm): 38 | Weight (kg): 0.6
BTT30-HM12-75 Shank: BTT30 | Ød (mm): 12 | ØD (mm): 32 | ØD1 (mm): 46 | L (mm): 75 | L1 (mm): 36 | H (mm): 38~60 | E (mm): 38 | Weight (kg): 0.8
BTT30-HM12-90 Shank: BTT30 | Ød (mm): 12 | ØD (mm): 32 | ØD1 (mm): 46 | L (mm): 90 | L1 (mm): 45 | L2 (mm): 51 | H (mm): 38~60 | E (mm): 38 | Weight (kg): 0.9
BTT30-HM12-105 Shank: BTT30 | Ød (mm): 12 | ØD (mm): 32 | ØD1 (mm): 46 | L (mm): 105 | L1 (mm): 45 | L2 (mm): 67 | H (mm): 38~60 | E (mm): 38 | Weight (kg): 1.0
BTT30-HM14-90 Shank: BTT30 | Ød (mm): 14 | ØD (mm): 34 | ØD1 (mm): 46 | L (mm): 90 | L1 (mm): 46 | L2 (mm): 52 | H (mm): 38~60 | E (mm): 38 | Weight (kg): 0.9
BTT30-HM16-45 Shank: BTT30 | Ød (mm): 16 | ØD (mm): 42 | ØD1 (mm): 46 | L (mm): 45 | L1 (mm): 7 | H (mm): 70 | E (mm): 43 | Weight (kg): 0.6 | Note: Marked with a star in the catalog
BTT30-HM16-75 Shank: BTT30 | Ød (mm): 16 | ØD (mm): 38 | ØD1 (mm): 46 | L (mm): 75 | L1 (mm): 35 | H (mm): 43~70 | E (mm): 43 | Weight (kg): 0.8
BTT30-HM16-90 Shank: BTT30 | Ød (mm): 16 | ØD (mm): 38 | ØD1 (mm): 46 | L (mm): 90 | L1 (mm): 47 | H (mm): 43~70 | E (mm): 43 | Weight (kg): 0.9
BTT30-HM16-105 Shank: BTT30 | Ød (mm): 16 | ØD (mm): 38 | ØD1 (mm): 46 | L (mm): 105 | L1 (mm): 47 | H (mm): 43~70 | E (mm): 43 | Weight (kg): 1.1
BTT30-HM18-90 Shank: BTT30 | Ød (mm): 18 | ØD (mm): 36 | ØD1 (mm): 51 | L (mm): 90 | L1 (mm): 31 | L2 (mm): 41 | H (mm): 43~70 | E (mm): 43 | Weight (kg): 1.0
BTT30-HM20-60◇ Shank: BTT30 | Ød (mm): 20 | ØD (mm): 38 | ØD1 (mm): 53 | L (mm): 60 | L2 (mm): 14 | H (mm): 43~54 | E (mm): 43 | Weight (kg): 0.8
BTT30-HM20-75 Shank: BTT30 | Ød (mm): 20 | ØD (mm): 38 | ØD1 (mm): 53 | L (mm): 75 | L1 (mm): 16 | L2 (mm): 26 | H (mm): 46~70 | E (mm): 43 | Weight (kg): 0.9
BTT30-HM20-90 Shank: BTT30 | Ød (mm): 20 | ØD (mm): 38 | ØD1 (mm): 53 | L (mm): 90 | L1 (mm): 31 | L2 (mm): 41 | H (mm): 43~70 | E (mm): 43 | Weight (kg): 1.0
BTT30-HM20-105 Shank: BTT30 | Ød (mm): 20 | ØD (mm): 38 | ØD1 (mm): 53 | L (mm): 105 | L1 (mm): 40 | H (mm): 43~70 | E (mm): 43 | Weight (kg): 1.0
BTT40-HM06-60 Shank: BTT40 | Ød (mm): 6 | ØD (mm): 27 | ØD1 (mm): 45 | L (mm): 60 | L1 (mm): 19 | H (mm): 28~50 | E (mm): 28 | Weight (kg): 1.2
BTT40-HM06-90 Shank: BTT40 | Ød (mm): 6 | ØD (mm): 26 | ØD1 (mm): 45 | L (mm): 90 | L1 (mm): 44 | L2 (mm): 50 | H (mm): 28~50 | E (mm): 28 | Weight (kg): 1.4
BTT40-HM06-135 Shank: BTT40 | Ød (mm): 6 | ØD (mm): 26 | ØD1 (mm): 45 | L (mm): 135 | L1 (mm): 44 | L2 (mm): 95 | H (mm): 28~50 | E (mm): 28 | Weight (kg): 1.7
BTT40-HM08-60 Shank: BTT40 | Ød (mm): 8 | ØD (mm): 29 | ØD1 (mm): 45 | L (mm): 60 | L1 (mm): 19 | H (mm): 28~50 | E (mm): 28 | Weight (kg): 1.2
BTT40-HM08-90 Shank: BTT40 | Ød (mm): 8 | ØD (mm): 28 | ØD1 (mm): 45 | L (mm): 90 | L1 (mm): 44 | L2 (mm): 50 | H (mm): 28~50 | E (mm): 28 | Weight (kg): 1.4
BTT40-HM08-135 Shank: BTT40 | Ød (mm): 8 | ØD1 (mm): 45 | L (mm): 135 | L1 (mm): 44 | L2 (mm): 95 | H (mm): 28~50 | E (mm): 28 | Weight (kg): 1.7
BTT40-HM10-60 Shank: BTT40 | Ød (mm): 10 | ØD (mm): 31 | ØD1 (mm): 45 | L (mm): 60 | L1 (mm): 20 | H (mm): 33~35 | E (mm): 33 | Weight (kg): 1.2
BTT40-HM10-90 Shank: BTT40 | Ød (mm): 10 | ØD (mm): 30 | ØD1 (mm): 45 | L (mm): 90 | L1 (mm): 45 | L2 (mm): 50 | H (mm): 33~35 | E (mm): 33 | Weight (kg): 1.4
BTT40-HM10-135 Shank: BTT40 | Ød (mm): 10 | ØD (mm): 30 | ØD1 (mm): 45 | L (mm): 135 | L1 (mm): 45 | L2 (mm): 95 | H (mm): 33~35 | E (mm): 33 | Weight (kg): 1.7
BTT40-HM12-60 Shank: BTT40 | Ød (mm): 12 | ØD (mm): 33 | ØD1 (mm): 45 | L (mm): 60 | L1 (mm): 20 | H (mm): 38~60 | E (mm): 38 | Weight (kg): 1.2
BTT40-HM12-90 Shank: BTT40 | Ød (mm): 12 | ØD (mm): 32 | ØD1 (mm): 45 | L (mm): 90 | L1 (mm): 45 | L2 (mm): 49 | H (mm): 38~60 | E (mm): 38 | Weight (kg): 1.4
BTT40-HM12-135 Shank: BTT40 | Ød (mm): 12 | ØD (mm): 32 | ØD1 (mm): 45 | L (mm): 135 | L1 (mm): 45 | L2 (mm): 94 | H (mm): 38~60 | E (mm): 38 | Weight (kg): 1.8
BTT40-HM14-90 Shank: BTT40 | Ød (mm): 14 | ØD (mm): 34 | ØD1 (mm): 45 | L (mm): 90 | L1 (mm): 46 | L2 (mm): 49 | H (mm): 38~60 | E (mm): 38 | Weight (kg): 1.4
BTT40-HM14-110 Shank: BTT40 | Ød (mm): 14 | ØD (mm): 34 | ØD1 (mm): 45 | L (mm): 110 | L1 (mm): 46 | L2 (mm): 69 | H (mm): 38~60 | E (mm): 38 | Weight (kg): 1.6
BTT40-HM14-135 Shank: BTT40 | Ød (mm): 14 | ØD (mm): 34 | ØD1 (mm): 45 | L (mm): 135 | L1 (mm): 46 | L2 (mm): 94 | H (mm): 38~60 | E (mm): 38 | Weight (kg): 1.8
BTT40-HM16-90 Shank: BTT40 | Ød (mm): 16 | ØD (mm): 38 | ØD1 (mm): 45 | L (mm): 90 | L1 (mm): 47 | L2 (mm): 49 | H (mm): 43~70 | E (mm): 43 | Weight (kg): 1.4
BTT40-HM16-110 Shank: BTT40 | Ød (mm): 16 | ØD (mm): 38 | ØD1 (mm): 45 | L (mm): 110 | L1 (mm): 47 | L2 (mm): 69 | H (mm): 43~70 | E (mm): 43 | Weight (kg): 1.6
BTT40-HM16-135 Shank: BTT40 | Ød (mm): 16 | ØD (mm): 38 | ØD1 (mm): 45 | L (mm): 135 | L1 (mm): 47 | L2 (mm): 94 | H (mm): 43~70 | E (mm): 43 | Weight (kg): 1.9
BTT40-HM18-90 Shank: BTT40 | Ød (mm): 18 | ØD (mm): 40 | ØD1 (mm): 45 | L (mm): 90 | L1 (mm): 48 | L2 (mm): 49 | H (mm): 43~70 | E (mm): 43 | Weight (kg): 1.5
BTT40-HM18-110 Shank: BTT40 | Ød (mm): 18 | ØD (mm): 40 | ØD1 (mm): 45 | L (mm): 110 | L1 (mm): 48 | L2 (mm): 69 | H (mm): 43~70 | E (mm): 43 | Weight (kg): 1.6
BTT40-HM18-135 Shank: BTT40 | Ød (mm): 18 | ØD (mm): 40 | ØD1 (mm): 45 | L (mm): 135 | L1 (mm): 48 | L2 (mm): 94 | H (mm): 43~70 | E (mm): 43 | Weight (kg): 1.9
BTT40-HM20-90 Shank: BTT40 | Ød (mm): 20 | ØD (mm): 42 | ØD1 (mm): 45 | L (mm): 90 | L1 (mm): 48 | L2 (mm): 50 | H (mm): 43~70 | E (mm): 43 | Weight (kg): 1.4
BTT40-HM20-110 Shank: BTT40 | Ød (mm): 20 | ØD (mm): 42 | ØD1 (mm): 50 | L (mm): 110 | L1 (mm): 48 | L2 (mm): 70 | H (mm): 43~70 | E (mm): 43 | Weight (kg): 1.7
BTT40-HM20-135 Shank: BTT40 | Ød (mm): 20 | ØD (mm): 42 | ØD1 (mm): 50 | L (mm): 135 | L1 (mm): 48 | L2 (mm): 95 | H (mm): 43~70 | E (mm): 43 | Weight (kg): 2.0
BTT50-HM06-105 Shank: BTT50 | Ød (mm): 6 | ØD (mm): 26 | ØD1 (mm): 45 | L (mm): 105 | L1 (mm): 44 | L2 (mm): 48 | H (mm): 80~120 | E (mm): 28 | Weight (kg): 4.2
BTT50-HM06-135 Shank: BTT50 | Ød (mm): 6 | ØD (mm): 26 | ØD1 (mm): 45 | L (mm): 135 | L1 (mm): 44 | L2 (mm): 78 | H (mm): 110~150 | E (mm): 28 | Weight (kg): 4.3
BTT50-HM06-165 Shank: BTT50 | Ød (mm): 6 | ØD (mm): 26 | ØD1 (mm): 45 | L (mm): 165 | L1 (mm): 44 | L2 (mm): 108 | H (mm): 140~180 | E (mm): 28 | Weight (kg): 4.5
BTT50-HM08-105 Shank: BTT50 | Ød (mm): 8 | ØD (mm): 28 | ØD1 (mm): 45 | L (mm): 105 | L1 (mm): 45 | L2 (mm): 48 | H (mm): 80~120 | E (mm): 28 | Weight (kg): 4.2
BTT50-HM08-135 Shank: BTT50 | Ød (mm): 8 | ØD (mm): 28 | ØD1 (mm): 45 | L (mm): 135 | L1 (mm): 45 | L2 (mm): 78 | H (mm): 110~150 | E (mm): 28 | Weight (kg): 4.4
BTT50-HM08-165 Shank: BTT50 | Ød (mm): 8 | ØD (mm): 28 | ØD1 (mm): 45 | L (mm): 165 | L1 (mm): 45 | L2 (mm): 108 | H (mm): 140~180 | E (mm): 28 | Weight (kg): 4.6
BTT50-HM10-105 Shank: BTT50 | Ød (mm): 10 | ØD (mm): 30 | ØD1 (mm): 45 | L (mm): 105 | L1 (mm): 45 | L2 (mm): 48 | H (mm): 80~120 | E (mm): 33 | Weight (kg): 4.2
BTT50-HM10-135 Shank: BTT50 | Ød (mm): 10 | ØD (mm): 30 | ØD1 (mm): 45 | L (mm): 135 | L1 (mm): 45 | L2 (mm): 78 | H (mm): 110~150 | E (mm): 33 | Weight (kg): 4.4
BTT50-HM10-165 Shank: BTT50 | Ød (mm): 10 | ØD (mm): 30 | ØD1 (mm): 45 | L (mm): 165 | L1 (mm): 45 | L2 (mm): 108 | H (mm): 140~180 | E (mm): 33 | Weight (kg): 4.7
BTT50-HM12-105 Shank: BTT50 | Ød (mm): 12 | ØD (mm): 32 | ØD1 (mm): 45 | L (mm): 105 | L1 (mm): 45 | L2 (mm): 48 | H (mm): 80~120 | E (mm): 38 | Weight (kg): 4.2
BTT50-HM12-135 Shank: BTT50 | Ød (mm): 12 | ØD (mm): 32 | ØD1 (mm): 45 | L (mm): 135 | L1 (mm): 45 | L2 (mm): 78 | H (mm): 110~150 | E (mm): 38 | Weight (kg): 4.4
BTT50-HM12-165 Shank: BTT50 | Ød (mm): 12 | ØD (mm): 32 | ØD1 (mm): 45 | L (mm): 165 | L1 (mm): 45 | L2 (mm): 108 | H (mm): 140~180 | E (mm): 38 | Weight (kg): 4.7
BTT50-HM16-90 Shank: BTT50 | Ød (mm): 16 | ØD (mm): 38 | ØD1 (mm): 56 | L (mm): 90 | L1 (mm): 34 | L2 (mm): 37 | H (mm): 56~96 | E (mm): 43 | Weight (kg): 4.0
BTT50-HM16-105 Shank: BTT50 | Ød (mm): 16 | ØD (mm): 38 | ØD1 (mm): 47 | L (mm): 105 | L1 (mm): 47 | L2 (mm): 48 | H (mm): 80~120 | E (mm): 43 | Weight (kg): 4.1
BTT50-HM16-135 Shank: BTT50 | Ød (mm): 16 | ØD (mm): 38 | ØD1 (mm): 47 | L (mm): 135 | L1 (mm): 48 | L2 (mm): 78 | H (mm): 110~150 | E (mm): 43 | Weight (kg): 4.3
BTT50-HM20-105 Shank: BTT50 | Ød (mm): 20 | ØD (mm): 42 | ØD1 (mm): 50 | L (mm): 105 | L1 (mm): 47 | L2 (mm): 48 | H (mm): 71~111 | E (mm): 43 | Weight (kg): 4.4
BTT50-HM20-135 Shank: BTT50 | Ød (mm): 20 | ØD (mm): 42 | ØD1 (mm): 50 | L (mm): 135 | L1 (mm): 48 | L2 (mm): 78 | H (mm): 101~141 | E (mm): 43 | Weight (kg): 4.7
BTT50-HM20-150 Shank: BTT50 | Ød (mm): 20 | ØD (mm): 42 | ØD1 (mm): 50 | L (mm): 150 | L1 (mm): 48 | L2 (mm): 93 | H (mm): 116~156 | E (mm): 43 | Weight (kg): 4.8
BTT50-HM25-105 Shank: BTT50 | Ød (mm): 25 | ØD (mm): 63 | L (mm): 105 | L1 (mm): 60 | H (mm): 71~111 | E (mm): 52 | Weight (kg): 5.0
BTT50-HM25-135 Shank: BTT50 | Ød (mm): 25 | ØD (mm): 63 | ØD1 (mm): 68 | L (mm): 135 | L1 (mm): 60 | L2 (mm): 78 | H (mm): 101~141 | E (mm): 52 | Weight (kg): 5.7
BTT50-HM32-105 Shank: BTT50 | Ød (mm): 32 | ØD (mm): 72 | L (mm): 105 | L1 (mm): 62 | H (mm): 71~111 | E (mm): 56 | Weight (kg): 5.1
BTT50-HM32-135 Shank: BTT50 | Ød (mm): 32 | ØD (mm): 72 | ØD1 (mm): 78 | L (mm): 135 | L1 (mm): 60 | L2 (mm): 78 | H (mm): 101~141 | E (mm): 56 | Weight (kg): 6.0
