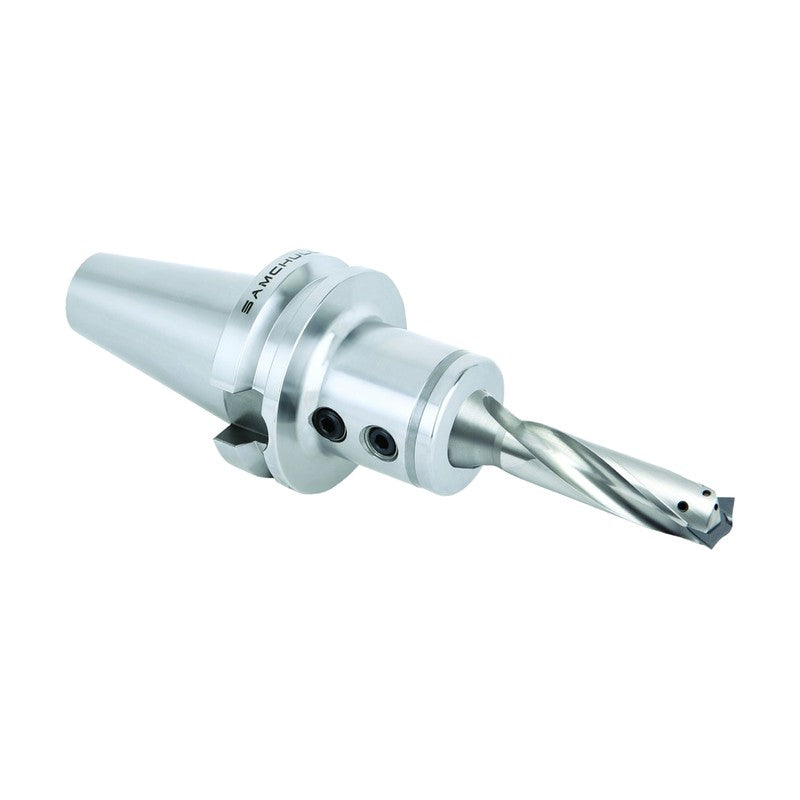

Samchully BTT Side Lock Holder

Samchully BTT Side Lock Holder

Side Lock Holder with BTT (MAS 403 BT taper with flange contact) shank, available in BTT30, BTT40, BTT50 sizes.

Specifications

Shank standard MAS 403-BT
BTT30-SLA16-90 Shank: BTT30 | L (mm): 90 | Ød (mm): 16 | ØD (mm): 40 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.1
BTT30-SLA20-90 Shank: BTT30 | L (mm): 90 | Ød (mm): 20 | ØD (mm): 50 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.2
BTT30-SLA25-90 Shank: BTT30 | L (mm): 90 | Ød (mm): 25 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.2
BTT40-SLA16-90 Shank: BTT40 | L (mm): 90 | Ød (mm): 16 | ØD (mm): 40 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.5
BTT40-SLA20-90 Shank: BTT40 | L (mm): 90 | Ød (mm): 20 | ØD (mm): 50 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.8
BTT40-SLA25-90 Shank: BTT40 | L (mm): 90 | Ød (mm): 25 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 2.0
BTT40-SLA32-90 Shank: BTT40 | L (mm): 90 | Ød (mm): 32 | ØD (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 2.2
BTT40-SLA32-105 Shank: BTT40 | L (mm): 105 | Ød (mm): 32 | ØD (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 2.4
BTT40-SLA40-105 Shank: BTT40 | L (mm): 105 | Ød (mm): 40 | ØD (mm): 80 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 2.4
BTT50-SLA20-105 Shank: BTT50 | L (mm): 105 | Ød (mm): 20 | ØD (mm): 50 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 4.4
BTT50-SLA25-105 Shank: BTT50 | L (mm): 105 | Ød (mm): 25 | ØD (mm): 50 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 4.4
BTT50-SLA32-105 Shank: BTT50 | L (mm): 105 | Ød (mm): 32 | ØD (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 4.8
BTT50-SLA40-105 Shank: BTT50 | L (mm): 105 | Ød (mm): 40 | ØD (mm): 90 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 5.2
BTT50-SLA42-105 Shank: BTT50 | L (mm): 105 | Ød (mm): 42 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 5.8
Side Lock HoldersSamchully
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully BTT Side Lock Holder

Brand Samchully·Side Lock Holders

Available part numbers (14)

BTT30-SLA16-90, BTT30-SLA20-90, BTT30-SLA25-90, BTT40-SLA16-90, BTT40-SLA20-90, BTT40-SLA25-90, BTT40-SLA32-90, BTT40-SLA32-105, BTT40-SLA40-105, BTT50-SLA20-105 + 4 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BTT30-SLA16-90Shank: BTT30 | L (mm): 90 | Ød (mm): 16 | ØD (mm): 40 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.1
BTT30-SLA20-90Shank: BTT30 | L (mm): 90 | Ød (mm): 20 | ØD (mm): 50 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.2
BTT30-SLA25-90Shank: BTT30 | L (mm): 90 | Ød (mm): 25 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.2
BTT40-SLA16-90Shank: BTT40 | L (mm): 90 | Ød (mm): 16 | ØD (mm): 40 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.5
BTT40-SLA20-90Shank: BTT40 | L (mm): 90 | Ød (mm): 20 | ØD (mm): 50 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 1.8
BTT40-SLA25-90Shank: BTT40 | L (mm): 90 | Ød (mm): 25 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 2.0
BTT40-SLA32-90Shank: BTT40 | L (mm): 90 | Ød (mm): 32 | ØD (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 2.2
BTT40-SLA32-105Shank: BTT40 | L (mm): 105 | Ød (mm): 32 | ØD (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 2.4
BTT40-SLA40-105Shank: BTT40 | L (mm): 105 | Ød (mm): 40 | ØD (mm): 80 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 2.4
BTT50-SLA20-105Shank: BTT50 | L (mm): 105 | Ød (mm): 20 | ØD (mm): 50 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 4.4
BTT50-SLA25-105Shank: BTT50 | L (mm): 105 | Ød (mm): 25 | ØD (mm): 50 | H (mm): 70 | H1 (mm): 25 | H2 (mm): 20 | Weight (kg): 4.4
BTT50-SLA32-105Shank: BTT50 | L (mm): 105 | Ød (mm): 32 | ØD (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 4.8
BTT50-SLA40-105Shank: BTT50 | L (mm): 105 | Ød (mm): 40 | ØD (mm): 90 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 5.2
BTT50-SLA42-105Shank: BTT50 | L (mm): 105 | Ød (mm): 42 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Weight (kg): 5.8
