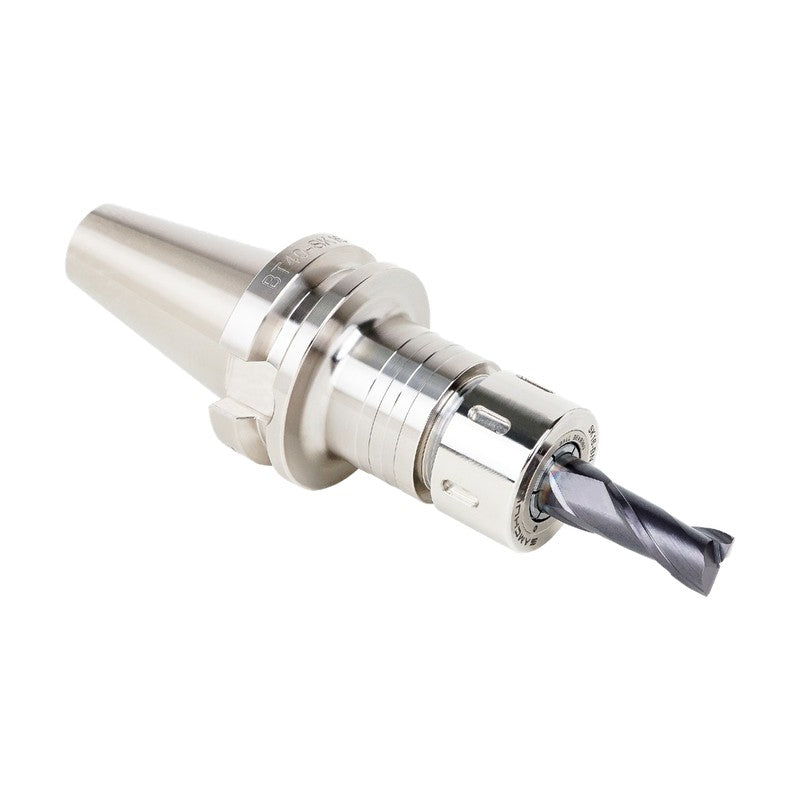

Samchully BTT SK Collet Chuck

Samchully BTT SK Collet Chuck

SK Collet Chuck with BTT (MAS 403 BT taper with flange contact) shank, available in BTT30, BTT40, BTT50 sizes.

Key features

  • SK collets give double the gripping strength of ER collets
  • Run-out within 0.003 mm at 4D
  • Ball bearing nut included

Specifications

Shank standard MAS 403-BT
Balancing grade G6.3
Max speed (rpm) 15,000
BTT30-SK06-60 Shank: BTT30 | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 60 | L1 (mm): 33 | H (mm): 35 | Weight (kg): 0.7
BTT30-SK06-90 Shank: BTT30 | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 90 | L1 (mm): 60 | H (mm): 35 | Weight (kg): 0.7
BTT30-SK06-120 Shank: BTT30 | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 120 | L1 (mm): 90 | H (mm): 35 | Weight (kg): 0.8
BTT30-SK08-45 Shank: BTT30 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 45 | L1 (mm): 22 | H (mm): 42 | Weight (kg): 0.8
BTT30-SK08-60 Shank: BTT30 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 60 | L1 (mm): 35 | H (mm): 42 | Weight (kg): 0.9
BTT30-SK08-75 Shank: BTT30 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 75 | L1 (mm): 50 | H (mm): 42 | Weight (kg): 1.0
BTT30-SK08-90 Shank: BTT30 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 90 | L1 (mm): 65 | H (mm): 42 | Weight (kg): 1.0
BTT30-SK08-120 Shank: BTT30 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 120 | L1 (mm): 95 | H (mm): 42 | Weight (kg): 1.1
BTT30-SK10-45 Shank: BTT30 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 45 | L1 (mm): 22 | H (mm): 50 | Weight (kg): 0.8
BTT30-SK10-60 Shank: BTT30 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 60 | L1 (mm): 35 | H (mm): 50 | Weight (kg): 0.9
BTT30-SK10-75 Shank: BTT30 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 75 | L1 (mm): 50 | H (mm): 50 | Weight (kg): 1.0
BTT30-SK10-90 Shank: BTT30 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 90 | L1 (mm): 65 | H (mm): 50 | Weight (kg): 1.0
BTT30-SK10-120 Shank: BTT30 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 120 | L1 (mm): 95 | H (mm): 50 | Weight (kg): 1.1
BTT30-SK13-60 Shank: BTT30 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 60 | L1 (mm): 35 | H (mm): 50 | Weight (kg): 1.0
BTT30-SK13-75 Shank: BTT30 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 75 | L1 (mm): 50 | H (mm): 65 | Weight (kg): 1.1
BTT30-SK13-90 Shank: BTT30 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 90 | L1 (mm): 65 | H (mm): 65 | Weight (kg): 1.1
BTT30-SK13-120 Shank: BTT30 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 120 | L1 (mm): 95 | H (mm): 65 | Weight (kg): 1.2
BTT30-SK16-60 Shank: BTT30 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 60 | L1 (mm): 37 | H (mm): 60 | Weight (kg): 1.1
BTT30-SK16-75 Shank: BTT30 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 75 | L1 (mm): 52 | H (mm): 65 | Weight (kg): 1.2
BTT30-SK16-90 Shank: BTT30 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 90 | L1 (mm): 67 | H (mm): 65 | Weight (kg): 1.2
BTT30-SK16-120 Shank: BTT30 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 120 | L1 (mm): 97 | H (mm): 70 | Weight (kg): 1.3
BTT30-SK20-60 Shank: BTT30 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 46 | L (mm): 60 | L1 (mm): 38 | H (mm): 59.5 | Weight (kg): 0.7
BTT30-SK20-75 Shank: BTT30 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 46 | L (mm): 75 | L1 (mm): 53 | H (mm): 75 | Weight (kg): 0.9
BTT30-SK20-90 Shank: BTT30 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 46 | L (mm): 90 | L1 (mm): 68 | H (mm): 75 | Weight (kg): 1.2
BTT30-SK25-90 Shank: BTT30 | Ød (mm): 7.6~25.0 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 90 | L1 (mm): 68 | H (mm): 75 | Weight (kg): 1.5
BTT40-SK06-60 Shank: BTT40 | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 60 | L1 (mm): 30 | H (mm): 35 | Weight (kg): 1.0
BTT40-SK06-90 Shank: BTT40 | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 90 | L1 (mm): 51 | H (mm): 35 | Weight (kg): 1.1
BTT40-SK06-120 Shank: BTT40 | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 120 | L1 (mm): 81 | H (mm): 35 | Weight (kg): 1.4
BTT40-SK06-150 Shank: BTT40 | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 150 | L1 (mm): 111 | H (mm): 35 | Weight (kg): 1.5
BTT40-SK08-60 Shank: BTT40 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 60 | L1 (mm): 32 | H (mm): 42 | Weight (kg): 1.1
BTT40-SK08-75 Shank: BTT40 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 75 | L1 (mm): 45 | H (mm): 42 | Weight (kg): 1.2
BTT40-SK08-90 Shank: BTT40 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 90 | L1 (mm): 53 | H (mm): 42 | Weight (kg): 1.2
BTT40-SK08-120 Shank: BTT40 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 120 | L1 (mm): 83 | H (mm): 42 | Weight (kg): 1.4
BTT40-SK08-150 Shank: BTT40 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 150 | L1 (mm): 113 | H (mm): 42 | Weight (kg): 1.6
BTT40-SK08-180 Shank: BTT40 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 180 | L1 (mm): 143 | H (mm): 42 | Weight (kg): 1.6
BTT40-SK08-200 Shank: BTT40 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 200 | L1 (mm): 161 | H (mm): 42 | Weight (kg): 1.8
BTT40-SK10-60 Shank: BTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 60 | L1 (mm): 32 | H (mm): 50 | Weight (kg): 1.1
BTT40-SK10-75 Shank: BTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 75 | L1 (mm): 45 | H (mm): 50 | Weight (kg): 1.2
BTT40-SK10-90 Shank: BTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 90 | L1 (mm): 53 | H (mm): 50 | Weight (kg): 1.2
BTT40-SK10-120 Shank: BTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 120 | L1 (mm): 83 | H (mm): 50 | Weight (kg): 1.4
BTT40-SK10-150 Shank: BTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 150 | L1 (mm): 113 | H (mm): 50 | Weight (kg): 1.6
BTT40-SK10-180 Shank: BTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 180 | L1 (mm): 143 | H (mm): 50 | Weight (kg): 1.6
BTT40-SK10-200 Shank: BTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 200 | L1 (mm): 161 | H (mm): 50 | Weight (kg): 1.8
BTT40-SK10-250 Shank: BTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 250 | L1 (mm): 211 | H (mm): 50 | Weight (kg): 2.1
BTT40-SK13-60 Shank: BTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 60 | L1 (mm): 28 | H (mm): 65 | Weight (kg): 1.2
BTT40-SK13-75 Shank: BTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 75 | L1 (mm): 43 | H (mm): 65 | Weight (kg): 1.3
BTT40-SK13-90 Shank: BTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 90 | L1 (mm): 58 | H (mm): 65 | Weight (kg): 1.4
BTT40-SK13-120 Shank: BTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 120 | L1 (mm): 88 | H (mm): 65 | Weight (kg): 1.6
BTT40-SK13-150 Shank: BTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 150 | L1 (mm): 115 | H (mm): 65 | Weight (kg): 1.8
BTT40-SK13-180 Shank: BTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 180 | L1 (mm): 145 | H (mm): 65 | Weight (kg): 1.8
BTT40-SK13-200 Shank: BTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 200 | L1 (mm): 165 | H (mm): 65 | Weight (kg): 2.0
BTT40-SK13-250 Shank: BTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 250 | L1 (mm): 213 | H (mm): 65 | Weight (kg): 2.4
BTT40-SK16-60 Shank: BTT40 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 60 | L1 (mm): 32 | H (mm): 65 | Weight (kg): 1.3
BTT40-SK16-75 Shank: BTT40 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 75 | L1 (mm): 43 | H (mm): 67 | Weight (kg): 1.4
BTT40-SK16-90 Shank: BTT40 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 90 | L1 (mm): 58 | H (mm): 70 | Weight (kg): 1.5
BTT40-SK16-120 Shank: BTT40 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 120 | L1 (mm): 88 | H (mm): 70 | Weight (kg): 1.7
BTT40-SK16-150 Shank: BTT40 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 150 | L1 (mm): 118 | H (mm): 70 | Weight (kg): 1.9
BTT40-SK16-180 Shank: BTT40 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 180 | L1 (mm): 148 | H (mm): 70 | Weight (kg): 2.0
BTT40-SK16-200 Shank: BTT40 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 200 | L1 (mm): 168 | H (mm): 70 | Weight (kg): 2.2
BTT40-SK16-250 Shank: BTT40 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 250 | L1 (mm): 218 | H (mm): 70 | Weight (kg): 2.7
BTT40-SK20-60 Shank: BTT40 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 60 | L1 (mm): 32 | H (mm): 60 | Weight (kg): 1.3
BTT40-SK20-75 Shank: BTT40 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 75 | L1 (mm): 45 | H (mm): 70 | Weight (kg): 1.4
BTT40-SK20-90 Shank: BTT40 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 90 | L1 (mm): 60 | H (mm): 80 | Weight (kg): 1.6
BTT40-SK20-120 Shank: BTT40 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 120 | L1 (mm): 90 | H (mm): 80 | Weight (kg): 2.0
BTT40-SK25-75 Shank: BTT40 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 75 | L1 (mm): 47 | H (mm): 75 | Weight (kg): 1.7
BTT40-SK25-90 Shank: BTT40 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 90 | L1 (mm): 61 | H (mm): 75 | Weight (kg): 1.8
BTT40-SK25-120 Shank: BTT40 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 120 | L1 (mm): 91 | H (mm): 85 | Weight (kg): 2.0
BTT50-SK06-105 Shank: BTT50 | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 105 | L1 (mm): 55 | H (mm): 35 | Weight (kg): 3.8
BTT50-SK06-135 Shank: BTT50 | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 135 | L1 (mm): 82 | H (mm): 35 | Weight (kg): 3.9
BTT50-SK06-165 Shank: BTT50 | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 165 | L1 (mm): 112 | H (mm): 35 | Weight (kg): 4.0
BTT50-SK06-200 Shank: BTT50 | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 200 | L1 (mm): 147 | H (mm): 35 | Weight (kg): 4.2
BTT50-SK08-105 Shank: BTT50 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 105 | L1 (mm): 57 | H (mm): 42 | Weight (kg): 4.2
BTT50-SK08-135 Shank: BTT50 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 135 | L1 (mm): 82 | H (mm): 42 | Weight (kg): 4.4
BTT50-SK08-165 Shank: BTT50 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 165 | L1 (mm): 112 | H (mm): 42 | Weight (kg): 4.6
BTT50-SK08-200 Shank: BTT50 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 200 | L1 (mm): 147 | H (mm): 42 | Weight (kg): 4.8
BTT50-SK08-225 Shank: BTT50 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 225 | L1 (mm): 172 | H (mm): 42 | Weight (kg): 5.0
BTT50-SK08-250 Shank: BTT50 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 250 | L1 (mm): 197 | H (mm): 42 | Weight (kg): 5.2
BTT50-SK10-105 Shank: BTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 105 | L1 (mm): 57 | H (mm): 50 | Weight (kg): 4.2
BTT50-SK10-135 Shank: BTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 135 | L1 (mm): 82 | H (mm): 50 | Weight (kg): 4.4
BTT50-SK10-165 Shank: BTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 165 | L1 (mm): 112 | H (mm): 50 | Weight (kg): 4.6
BTT50-SK10-200 Shank: BTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 200 | L1 (mm): 147 | H (mm): 50 | Weight (kg): 4.8
BTT50-SK10-225 Shank: BTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 225 | L1 (mm): 172 | H (mm): 50 | Weight (kg): 5.0
BTT50-SK10-250 Shank: BTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 250 | L1 (mm): 197 | H (mm): 50 | Weight (kg): 5.2
BTT50-SK10-300 Shank: BTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 300 | L1 (mm): 247 | H (mm): 50 | Weight (kg): 5.6
BTT50-SK13-105 Shank: BTT50 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 105 | L1 (mm): 62 | H (mm): 65 | Weight (kg): 4.5
BTT50-SK13-135 Shank: BTT50 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 135 | L1 (mm): 92 | H (mm): 65 | Weight (kg): 4.7
BTT50-SK13-165 Shank: BTT50 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 165 | L1 (mm): 112 | H (mm): 65 | Weight (kg): 4.9
BTT50-SK13-200 Shank: BTT50 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 200 | L1 (mm): 147 | H (mm): 65 | Weight (kg): 5.2
BTT50-SK13-250 Shank: BTT50 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 250 | L1 (mm): 197 | H (mm): 65 | Weight (kg): 5.7
BTT50-SK13-300 Shank: BTT50 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 300 | L1 (mm): 247 | H (mm): 65 | Weight (kg): 6.2
BTT50-SK16-105 Shank: BTT50 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 105 | L1 (mm): 62 | H (mm): 70 | Weight (kg): 4.7
BTT50-SK16-135 Shank: BTT50 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 135 | L1 (mm): 92 | H (mm): 70 | Weight (kg): 4.9
BTT50-SK16-165 Shank: BTT50 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 165 | L1 (mm): 115 | H (mm): 70 | Weight (kg): 5.1
BTT50-SK16-200 Shank: BTT50 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 200 | L1 (mm): 150 | H (mm): 70 | Weight (kg): 5.5
BTT50-SK16-250 Shank: BTT50 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 250 | L1 (mm): 200 | H (mm): 70 | Weight (kg): 6.0
BTT50-SK16-300 Shank: BTT50 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 300 | L1 (mm): 250 | H (mm): 70 | Weight (kg): 6.5
BTT50-SK20-105 Shank: BTT50 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 105 | L1 (mm): 62 | H (mm): 80 | Weight (kg): 4.3
BTT50-SK20-135 Shank: BTT50 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 135 | L1 (mm): 92 | H (mm): 80 | Weight (kg): 4.6
BTT50-SK20-165 Shank: BTT50 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 165 | L1 (mm): 122 | H (mm): 80 | Weight (kg): 5.0
BTT50-SK20-200 Shank: BTT50 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 200 | L1 (mm): 157 | H (mm): 80 | Weight (kg): 5.4
BTT50-SK20-250 Shank: BTT50 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 250 | L1 (mm): 207 | H (mm): 80 | Weight (kg): 6.1
BTT50-SK20-300 Shank: BTT50 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 300 | L1 (mm): 257 | H (mm): 80 | Weight (kg): 6.8
BTT50-SK25-105 Shank: BTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 105 | L1 (mm): 62 | H (mm): 85 | Weight (kg): 5.2
BTT50-SK25-135 Shank: BTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 135 | L1 (mm): 92 | H (mm): 85 | Weight (kg): 5.4
BTT50-SK25-165 Shank: BTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 165 | L1 (mm): 122 | H (mm): 85 | Weight (kg): 5.6
BTT50-SK25-200 Shank: BTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 200 | L1 (mm): 157 | H (mm): 85 | Weight (kg): 6.0
BTT50-SK25-250 Shank: BTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 250 | L1 (mm): 207 | H (mm): 85 | Weight (kg): 6.7
BTT50-SK25-300 Shank: BTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 300 | L1 (mm): 257 | H (mm): 85 | Weight (kg): 7.4
