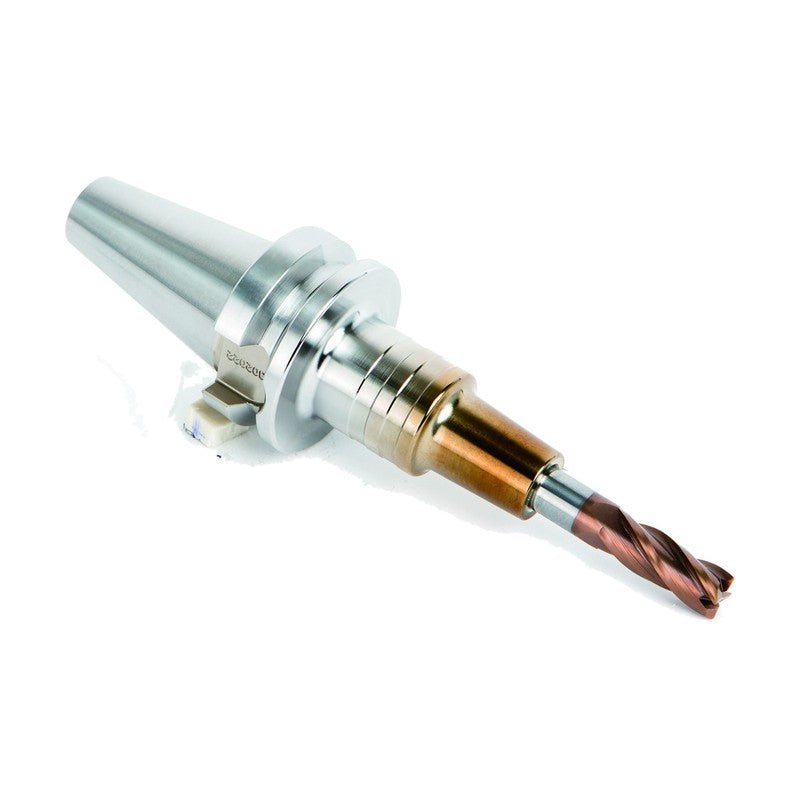

Samchully BTT Standard Shrink Fit Chuck

Samchully BTT Standard Shrink Fit Chuck

Standard Shrink Fit Chuck with BTT (MAS 403 BT taper with flange contact) shank, available in BTT30, BTT40, BTT50 sizes.

Key features

  • Use tools with h6 tolerance or better; flat (Weldon) shanks not allowed

Specifications

Shank standard MAS 403-BT
Max speed (rpm) 25,000
Run-out 3 µm
Balancing grade G2.5
BTT30-SR03-75 Shank: BTT30 | Ød (mm): 3 | Ød1 (mm): 4 | ØD1 (mm): 7.5 | ØD2 (mm): 25 | L (mm): 75 | h (mm): 99 | H (mm): 9 | Weight (kg): 0.5
BTT30-SR04-75 Shank: BTT30 | Ød (mm): 4 | Ød1 (mm): 5 | ØD1 (mm): 10 | ØD2 (mm): 25 | L (mm): 75 | h (mm): 99 | H (mm): 12 | Weight (kg): 0.5
BTT30-SR06-75 Shank: BTT30 | Ød (mm): 6 | Ød1 (mm): 7 | ØD1 (mm): 12 | ØD2 (mm): 25 | L (mm): 75 | h (mm): 99 | H (mm): 18 | Weight (kg): 0.5
BTT30-SR06-120 Shank: BTT30 | Ød (mm): 6 | Ød1 (mm): 7 | ØD1 (mm): 12 | ØD2 (mm): 25 | L (mm): 120 | h (mm): 144 | H (mm): 18 | Weight (kg): 0.6
BTT30-SR08-75 Shank: BTT30 | Ød (mm): 8 | Ød1 (mm): 9 | ØD1 (mm): 14 | ØD2 (mm): 25 | L (mm): 75 | h (mm): 99 | H (mm): 24 | Weight (kg): 0.4
BTT30-SR08-120 Shank: BTT30 | Ød (mm): 8 | Ød1 (mm): 9 | ØD1 (mm): 14 | ØD2 (mm): 25 | L (mm): 120 | h (mm): 144 | H (mm): 24 | Weight (kg): 0.6
BTT30-SR10-75 Shank: BTT30 | Ød (mm): 10 | Ød1 (mm): 11 | ØD1 (mm): 16 | ØD2 (mm): 25 | L (mm): 75 | h (mm): 99 | H (mm): 30 | Weight (kg): 0.4
BTT30-SR10-120 Shank: BTT30 | Ød (mm): 10 | Ød1 (mm): 11 | ØD1 (mm): 16 | ØD2 (mm): 25 | L (mm): 120 | h (mm): 144 | H (mm): 30 | Weight (kg): 0.5
BTT30-SR12-75 Shank: BTT30 | Ød (mm): 12 | Ød1 (mm): 13 | ØD1 (mm): 20 | ØD2 (mm): 25 | L (mm): 75 | h (mm): 72 | H (mm): 30 | Weight (kg): 0.5
BTT30-SR12-120 Shank: BTT30 | Ød (mm): 12 | Ød1 (mm): 13 | ØD1 (mm): 20 | ØD2 (mm): 25 | L (mm): 120 | h (mm): 72 | H (mm): 30 | Weight (kg): 0.5
BTT30-SR16-75 Shank: BTT30 | Ød (mm): 16 | Ød1 (mm): 16.6 | ØD1 (mm): 26 | ØD2 (mm): 34 | L (mm): 75 | h (mm): 80 | H (mm): 32 | Weight (kg): 0.5
BTT30-SR16-120 Shank: BTT30 | Ød (mm): 16 | Ød1 (mm): 16.6 | ØD1 (mm): 26 | ØD2 (mm): 34 | L (mm): 120 | h (mm): 80 | H (mm): 32 | Weight (kg): 0.6
BTT40-SR04-90 Shank: BTT40 | Ød (mm): 4 | Ød1 (mm): 5 | ØD1 (mm): 10 | ØD2 (mm): 26 | L (mm): 90 | h (mm): 125 | H (mm): 12 | Weight (kg): 1.0
BTT40-SR04-120 Shank: BTT40 | Ød (mm): 4 | Ød1 (mm): 5 | ØD1 (mm): 10 | ØD2 (mm): 25 | L (mm): 120 | h (mm): 155 | H (mm): 12 | Weight (kg): 1.1
BTT40-SR06-90 Shank: BTT40 | Ød (mm): 6 | Ød1 (mm): 8 | ØD1 (mm): 14 | ØD2 (mm): 32 | L (mm): 90 | h (mm): 125 | H (mm): 18 | Weight (kg): 1.1
BTT40-SR06-120 Shank: BTT40 | Ød (mm): 6 | Ød1 (mm): 8 | ØD1 (mm): 14 | L (mm): 120 | h (mm): 155 | H (mm): 18 | Weight (kg): 1.2
BTT40-SR08-90 Shank: BTT40 | Ød (mm): 8 | Ød1 (mm): 10 | ØD1 (mm): 18 | ØD2 (mm): 36 | L (mm): 90 | h (mm): 125 | H (mm): 24 | Weight (kg): 1.2
BTT40-SR08-120 Shank: BTT40 | Ød (mm): 8 | Ød1 (mm): 10 | ØD1 (mm): 18 | ØD2 (mm): 36 | L (mm): 120 | h (mm): 155 | H (mm): 24 | Weight (kg): 1.2
BTT40-SR10-90 Shank: BTT40 | Ød (mm): 10 | Ød1 (mm): 12 | ØD1 (mm): 22 | ØD2 (mm): 32 | L (mm): 90 | h (mm): 125 | H (mm): 30 | Weight (kg): 1.2
BTT40-SR10-120 Shank: BTT40 | Ød (mm): 10 | Ød1 (mm): 12 | ØD1 (mm): 22 | ØD2 (mm): 36 | L (mm): 120 | h (mm): 155 | H (mm): 30 | Weight (kg): 1.3
BTT40-SR12-90 Shank: BTT40 | Ød (mm): 12 | Ød1 (mm): 14 | ØD1 (mm): 26 | ØD2 (mm): 50 | L (mm): 90 | h (mm): 100 | H (mm): 30 | Weight (kg): 1.3
BTT40-SR12-120 Shank: BTT40 | Ød (mm): 12 | Ød1 (mm): 14 | ØD1 (mm): 26 | ØD2 (mm): 50 | L (mm): 120 | h (mm): 130 | H (mm): 30 | Weight (kg): 1.4
BTT40-SR16-90 Shank: BTT40 | Ød (mm): 16 | Ød1 (mm): 18 | ØD1 (mm): 32 | ØD2 (mm): 42 | L (mm): 90 | h (mm): 100 | H (mm): 32 | Weight (kg): 1.3
BTT40-SR16-120 Shank: BTT40 | Ød (mm): 16 | Ød1 (mm): 18 | ØD1 (mm): 32 | ØD2 (mm): 42 | L (mm): 120 | h (mm): 130 | H (mm): 32 | Weight (kg): 1.5
BTT40-SR20-90 Shank: BTT40 | Ød (mm): 20 | Ød1 (mm): 22 | ØD1 (mm): 38 | ØD2 (mm): 50 | L (mm): 90 | h (mm): 100 | H (mm): 40 | Weight (kg): 1.4
BTT40-SR20-120 Shank: BTT40 | Ød (mm): 20 | Ød1 (mm): 22 | ØD1 (mm): 38 | ØD2 (mm): 50 | L (mm): 120 | h (mm): 130 | H (mm): 40 | Weight (kg): 1.7
BTT40-SR25-90 Shank: BTT40 | Ød (mm): 25 | Ød1 (mm): 26 | ØD1 (mm): 45 | ØD2 (mm): 50 | L (mm): 90 | h (mm): 100 | H (mm): 45 | Weight (kg): 1.5
BTT40-SR25-120 Shank: BTT40 | Ød (mm): 25 | Ød1 (mm): 26 | ØD1 (mm): 45 | ØD2 (mm): 50 | L (mm): 120 | h (mm): 130 | H (mm): 45 | Weight (kg): 1.8
BTT50-SR06-90 Shank: BTT50 | Ød (mm): 6 | Ød1 (mm): 7 | ØD1 (mm): 14 | ØD2 (mm): 32 | L (mm): 90 | h (mm): 145 | H (mm): 18 | Weight (kg): 3.7
BTT50-SR06-135 Shank: BTT50 | Ød (mm): 6 | Ød1 (mm): 8 | ØD1 (mm): 14 | ØD2 (mm): 36 | L (mm): 135 | h (mm): 190 | H (mm): 18 | Weight (kg): 3.8
BTT50-SR06-165 Shank: BTT50 | Ød (mm): 6 | Ød1 (mm): 7 | ØD1 (mm): 14 | ØD2 (mm): 32 | L (mm): 165 | h (mm): 220 | H (mm): 18 | Weight (kg): 3.9
BTT50-SR08-90 Shank: BTT50 | Ød (mm): 8 | Ød1 (mm): 9 | ØD1 (mm): 18 | ØD2 (mm): 32 | L (mm): 90 | h (mm): 145 | H (mm): 24 | Weight (kg): 3.7
BTT50-SR08-135 Shank: BTT50 | Ød (mm): 8 | Ød1 (mm): 10 | ØD1 (mm): 18 | ØD2 (mm): 36 | L (mm): 135 | h (mm): 190 | H (mm): 24 | Weight (kg): 3.8
BTT50-SR08-165 Shank: BTT50 | Ød (mm): 8 | Ød1 (mm): 10 | ØD1 (mm): 18 | ØD2 (mm): 35 | L (mm): 165 | h (mm): 220 | H (mm): 24 | Weight (kg): 4.0
BTT50-SR10-90 Shank: BTT50 | Ød (mm): 10 | Ød1 (mm): 11 | ØD1 (mm): 22 | ØD2 (mm): 32 | L (mm): 90 | h (mm): 145 | H (mm): 30 | Weight (kg): 3.7
BTT50-SR10-135 Shank: BTT50 | Ød (mm): 10 | Ød1 (mm): 11 | ØD1 (mm): 22 | ØD2 (mm): 42 | L (mm): 135 | h (mm): 190 | H (mm): 30 | Weight (kg): 3.9
BTT50-SR10-165 Shank: BTT50 | Ød (mm): 10 | Ød1 (mm): 11 | ØD1 (mm): 22 | ØD2 (mm): 42 | L (mm): 165 | h (mm): 220 | H (mm): 30 | Weight (kg): 4.1
BTT50-SR12-90 Shank: BTT50 | Ød (mm): 12 | Ød1 (mm): 14 | ØD1 (mm): 26 | ØD2 (mm): 50 | L (mm): 90 | h (mm): 145 | H (mm): 30 | Weight (kg): 3.7
BTT50-SR12-135 Shank: BTT50 | Ød (mm): 12 | Ød1 (mm): 13 | ØD1 (mm): 26 | ØD2 (mm): 42 | L (mm): 135 | h (mm): 190 | H (mm): 30 | Weight (kg): 4.0
BTT50-SR12-165 Shank: BTT50 | Ød (mm): 12 | Ød1 (mm): 13 | ØD1 (mm): 26 | ØD2 (mm): 42 | L (mm): 165 | h (mm): 220 | H (mm): 30 | Weight (kg): 4.1
BTT50-SR16-90 Shank: BTT50 | Ød (mm): 16 | Ød1 (mm): 18 | ØD1 (mm): 32 | ØD2 (mm): 50 | L (mm): 90 | h (mm): 145 | H (mm): 32 | Weight (kg): 3.7
BTT50-SR16-135 Shank: BTT50 | Ød (mm): 16 | Ød1 (mm): 17 | ØD1 (mm): 32 | ØD2 (mm): 42 | L (mm): 135 | h (mm): 190 | H (mm): 32 | Weight (kg): 4.1
BTT50-SR16-165 Shank: BTT50 | Ød (mm): 16 | Ød1 (mm): 18 | ØD1 (mm): 32 | ØD2 (mm): 50 | L (mm): 165 | h (mm): 220 | H (mm): 32 | Weight (kg): 4.3
BTT50-SR20-110 Shank: BTT50 | Ød (mm): 20 | Ød1 (mm): 21 | ØD1 (mm): 38 | ØD2 (mm): 53 | L (mm): 110 | h (mm): 165 | H (mm): 40 | Weight (kg): 4.0
BTT50-SR20-135 Shank: BTT50 | Ød (mm): 20 | Ød1 (mm): 21 | ØD1 (mm): 38 | ØD2 (mm): 53 | L (mm): 135 | h (mm): 190 | H (mm): 40 | Weight (kg): 4.2
BTT50-SR20-165 Shank: BTT50 | Ød (mm): 20 | Ød1 (mm): 21 | ØD1 (mm): 38 | ØD2 (mm): 53 | L (mm): 165 | h (mm): 220 | H (mm): 40 | Weight (kg): 4.5
BTT50-SR25-110 Shank: BTT50 | Ød (mm): 25 | Ød1 (mm): 26 | ØD1 (mm): 45 | ØD2 (mm): 53 | L (mm): 110 | h (mm): 165 | H (mm): 45 | Weight (kg): 4.1
BTT50-SR25-140 Shank: BTT50 | Ød (mm): 25 | Ød1 (mm): 26 | ØD1 (mm): 45 | ØD2 (mm): 53 | L (mm): 140 | h (mm): 195 | H (mm): 45 | Weight (kg): 4.5
BTT50-SR25-170 Shank: BTT50 | Ød (mm): 25 | Ød1 (mm): 26 | ØD1 (mm): 45 | ØD2 (mm): 50 | L (mm): 170 | h (mm): 225 | H (mm): 45 | Weight (kg): 4.8
Shrink Fit HoldersSamchully
49 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully BTT Standard Shrink Fit Chuck

Brand Samchully·Shrink Fit Holders

Available part numbers (49)

BTT30-SR03-75, BTT30-SR04-75, BTT30-SR06-75, BTT30-SR06-120, BTT30-SR08-75, BTT30-SR08-120, BTT30-SR10-75, BTT30-SR10-120, BTT30-SR12-75, BTT30-SR12-120 + 39 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BTT30-SR03-75Shank: BTT30 | Ød (mm): 3 | Ød1 (mm): 4 | ØD1 (mm): 7.5 | ØD2 (mm): 25 | L (mm): 75 | h (mm): 99 | H (mm): 9 | Weight (kg): 0.5
BTT30-SR04-75Shank: BTT30 | Ød (mm): 4 | Ød1 (mm): 5 | ØD1 (mm): 10 | ØD2 (mm): 25 | L (mm): 75 | h (mm): 99 | H (mm): 12 | Weight (kg): 0.5
BTT30-SR06-75Shank: BTT30 | Ød (mm): 6 | Ød1 (mm): 7 | ØD1 (mm): 12 | ØD2 (mm): 25 | L (mm): 75 | h (mm): 99 | H (mm): 18 | Weight (kg): 0.5
BTT30-SR06-120Shank: BTT30 | Ød (mm): 6 | Ød1 (mm): 7 | ØD1 (mm): 12 | ØD2 (mm): 25 | L (mm): 120 | h (mm): 144 | H (mm): 18 | Weight (kg): 0.6
BTT30-SR08-75Shank: BTT30 | Ød (mm): 8 | Ød1 (mm): 9 | ØD1 (mm): 14 | ØD2 (mm): 25 | L (mm): 75 | h (mm): 99 | H (mm): 24 | Weight (kg): 0.4
BTT30-SR08-120Shank: BTT30 | Ød (mm): 8 | Ød1 (mm): 9 | ØD1 (mm): 14 | ØD2 (mm): 25 | L (mm): 120 | h (mm): 144 | H (mm): 24 | Weight (kg): 0.6
BTT30-SR10-75Shank: BTT30 | Ød (mm): 10 | Ød1 (mm): 11 | ØD1 (mm): 16 | ØD2 (mm): 25 | L (mm): 75 | h (mm): 99 | H (mm): 30 | Weight (kg): 0.4
BTT30-SR10-120Shank: BTT30 | Ød (mm): 10 | Ød1 (mm): 11 | ØD1 (mm): 16 | ØD2 (mm): 25 | L (mm): 120 | h (mm): 144 | H (mm): 30 | Weight (kg): 0.5
BTT30-SR12-75Shank: BTT30 | Ød (mm): 12 | Ød1 (mm): 13 | ØD1 (mm): 20 | ØD2 (mm): 25 | L (mm): 75 | h (mm): 72 | H (mm): 30 | Weight (kg): 0.5
BTT30-SR12-120Shank: BTT30 | Ød (mm): 12 | Ød1 (mm): 13 | ØD1 (mm): 20 | ØD2 (mm): 25 | L (mm): 120 | h (mm): 72 | H (mm): 30 | Weight (kg): 0.5
BTT30-SR16-75Shank: BTT30 | Ød (mm): 16 | Ød1 (mm): 16.6 | ØD1 (mm): 26 | ØD2 (mm): 34 | L (mm): 75 | h (mm): 80 | H (mm): 32 | Weight (kg): 0.5
BTT30-SR16-120Shank: BTT30 | Ød (mm): 16 | Ød1 (mm): 16.6 | ØD1 (mm): 26 | ØD2 (mm): 34 | L (mm): 120 | h (mm): 80 | H (mm): 32 | Weight (kg): 0.6
BTT40-SR04-90Shank: BTT40 | Ød (mm): 4 | Ød1 (mm): 5 | ØD1 (mm): 10 | ØD2 (mm): 26 | L (mm): 90 | h (mm): 125 | H (mm): 12 | Weight (kg): 1.0
BTT40-SR04-120Shank: BTT40 | Ød (mm): 4 | Ød1 (mm): 5 | ØD1 (mm): 10 | ØD2 (mm): 25 | L (mm): 120 | h (mm): 155 | H (mm): 12 | Weight (kg): 1.1
BTT40-SR06-90Shank: BTT40 | Ød (mm): 6 | Ød1 (mm): 8 | ØD1 (mm): 14 | ØD2 (mm): 32 | L (mm): 90 | h (mm): 125 | H (mm): 18 | Weight (kg): 1.1
BTT40-SR06-120Shank: BTT40 | Ød (mm): 6 | Ød1 (mm): 8 | ØD1 (mm): 14 | L (mm): 120 | h (mm): 155 | H (mm): 18 | Weight (kg): 1.2
BTT40-SR08-90Shank: BTT40 | Ød (mm): 8 | Ød1 (mm): 10 | ØD1 (mm): 18 | ØD2 (mm): 36 | L (mm): 90 | h (mm): 125 | H (mm): 24 | Weight (kg): 1.2
BTT40-SR08-120Shank: BTT40 | Ød (mm): 8 | Ød1 (mm): 10 | ØD1 (mm): 18 | ØD2 (mm): 36 | L (mm): 120 | h (mm): 155 | H (mm): 24 | Weight (kg): 1.2
BTT40-SR10-90Shank: BTT40 | Ød (mm): 10 | Ød1 (mm): 12 | ØD1 (mm): 22 | ØD2 (mm): 32 | L (mm): 90 | h (mm): 125 | H (mm): 30 | Weight (kg): 1.2
BTT40-SR10-120Shank: BTT40 | Ød (mm): 10 | Ød1 (mm): 12 | ØD1 (mm): 22 | ØD2 (mm): 36 | L (mm): 120 | h (mm): 155 | H (mm): 30 | Weight (kg): 1.3
BTT40-SR12-90Shank: BTT40 | Ød (mm): 12 | Ød1 (mm): 14 | ØD1 (mm): 26 | ØD2 (mm): 50 | L (mm): 90 | h (mm): 100 | H (mm): 30 | Weight (kg): 1.3
BTT40-SR12-120Shank: BTT40 | Ød (mm): 12 | Ød1 (mm): 14 | ØD1 (mm): 26 | ØD2 (mm): 50 | L (mm): 120 | h (mm): 130 | H (mm): 30 | Weight (kg): 1.4
BTT40-SR16-90Shank: BTT40 | Ød (mm): 16 | Ød1 (mm): 18 | ØD1 (mm): 32 | ØD2 (mm): 42 | L (mm): 90 | h (mm): 100 | H (mm): 32 | Weight (kg): 1.3
BTT40-SR16-120Shank: BTT40 | Ød (mm): 16 | Ød1 (mm): 18 | ØD1 (mm): 32 | ØD2 (mm): 42 | L (mm): 120 | h (mm): 130 | H (mm): 32 | Weight (kg): 1.5
BTT40-SR20-90Shank: BTT40 | Ød (mm): 20 | Ød1 (mm): 22 | ØD1 (mm): 38 | ØD2 (mm): 50 | L (mm): 90 | h (mm): 100 | H (mm): 40 | Weight (kg): 1.4
BTT40-SR20-120Shank: BTT40 | Ød (mm): 20 | Ød1 (mm): 22 | ØD1 (mm): 38 | ØD2 (mm): 50 | L (mm): 120 | h (mm): 130 | H (mm): 40 | Weight (kg): 1.7
BTT40-SR25-90Shank: BTT40 | Ød (mm): 25 | Ød1 (mm): 26 | ØD1 (mm): 45 | ØD2 (mm): 50 | L (mm): 90 | h (mm): 100 | H (mm): 45 | Weight (kg): 1.5
BTT40-SR25-120Shank: BTT40 | Ød (mm): 25 | Ød1 (mm): 26 | ØD1 (mm): 45 | ØD2 (mm): 50 | L (mm): 120 | h (mm): 130 | H (mm): 45 | Weight (kg): 1.8
BTT50-SR06-90Shank: BTT50 | Ød (mm): 6 | Ød1 (mm): 7 | ØD1 (mm): 14 | ØD2 (mm): 32 | L (mm): 90 | h (mm): 145 | H (mm): 18 | Weight (kg): 3.7
BTT50-SR06-135Shank: BTT50 | Ød (mm): 6 | Ød1 (mm): 8 | ØD1 (mm): 14 | ØD2 (mm): 36 | L (mm): 135 | h (mm): 190 | H (mm): 18 | Weight (kg): 3.8
BTT50-SR06-165Shank: BTT50 | Ød (mm): 6 | Ød1 (mm): 7 | ØD1 (mm): 14 | ØD2 (mm): 32 | L (mm): 165 | h (mm): 220 | H (mm): 18 | Weight (kg): 3.9
BTT50-SR08-90Shank: BTT50 | Ød (mm): 8 | Ød1 (mm): 9 | ØD1 (mm): 18 | ØD2 (mm): 32 | L (mm): 90 | h (mm): 145 | H (mm): 24 | Weight (kg): 3.7
BTT50-SR08-135Shank: BTT50 | Ød (mm): 8 | Ød1 (mm): 10 | ØD1 (mm): 18 | ØD2 (mm): 36 | L (mm): 135 | h (mm): 190 | H (mm): 24 | Weight (kg): 3.8
BTT50-SR08-165Shank: BTT50 | Ød (mm): 8 | Ød1 (mm): 10 | ØD1 (mm): 18 | ØD2 (mm): 35 | L (mm): 165 | h (mm): 220 | H (mm): 24 | Weight (kg): 4.0
BTT50-SR10-90Shank: BTT50 | Ød (mm): 10 | Ød1 (mm): 11 | ØD1 (mm): 22 | ØD2 (mm): 32 | L (mm): 90 | h (mm): 145 | H (mm): 30 | Weight (kg): 3.7
BTT50-SR10-135Shank: BTT50 | Ød (mm): 10 | Ød1 (mm): 11 | ØD1 (mm): 22 | ØD2 (mm): 42 | L (mm): 135 | h (mm): 190 | H (mm): 30 | Weight (kg): 3.9
BTT50-SR10-165Shank: BTT50 | Ød (mm): 10 | Ød1 (mm): 11 | ØD1 (mm): 22 | ØD2 (mm): 42 | L (mm): 165 | h (mm): 220 | H (mm): 30 | Weight (kg): 4.1
BTT50-SR12-90Shank: BTT50 | Ød (mm): 12 | Ød1 (mm): 14 | ØD1 (mm): 26 | ØD2 (mm): 50 | L (mm): 90 | h (mm): 145 | H (mm): 30 | Weight (kg): 3.7
BTT50-SR12-135Shank: BTT50 | Ød (mm): 12 | Ød1 (mm): 13 | ØD1 (mm): 26 | ØD2 (mm): 42 | L (mm): 135 | h (mm): 190 | H (mm): 30 | Weight (kg): 4.0
BTT50-SR12-165Shank: BTT50 | Ød (mm): 12 | Ød1 (mm): 13 | ØD1 (mm): 26 | ØD2 (mm): 42 | L (mm): 165 | h (mm): 220 | H (mm): 30 | Weight (kg): 4.1
BTT50-SR16-90Shank: BTT50 | Ød (mm): 16 | Ød1 (mm): 18 | ØD1 (mm): 32 | ØD2 (mm): 50 | L (mm): 90 | h (mm): 145 | H (mm): 32 | Weight (kg): 3.7
BTT50-SR16-135Shank: BTT50 | Ød (mm): 16 | Ød1 (mm): 17 | ØD1 (mm): 32 | ØD2 (mm): 42 | L (mm): 135 | h (mm): 190 | H (mm): 32 | Weight (kg): 4.1
BTT50-SR16-165Shank: BTT50 | Ød (mm): 16 | Ød1 (mm): 18 | ØD1 (mm): 32 | ØD2 (mm): 50 | L (mm): 165 | h (mm): 220 | H (mm): 32 | Weight (kg): 4.3
BTT50-SR20-110Shank: BTT50 | Ød (mm): 20 | Ød1 (mm): 21 | ØD1 (mm): 38 | ØD2 (mm): 53 | L (mm): 110 | h (mm): 165 | H (mm): 40 | Weight (kg): 4.0
BTT50-SR20-135Shank: BTT50 | Ød (mm): 20 | Ød1 (mm): 21 | ØD1 (mm): 38 | ØD2 (mm): 53 | L (mm): 135 | h (mm): 190 | H (mm): 40 | Weight (kg): 4.2
BTT50-SR20-165Shank: BTT50 | Ød (mm): 20 | Ød1 (mm): 21 | ØD1 (mm): 38 | ØD2 (mm): 53 | L (mm): 165 | h (mm): 220 | H (mm): 40 | Weight (kg): 4.5
BTT50-SR25-110Shank: BTT50 | Ød (mm): 25 | Ød1 (mm): 26 | ØD1 (mm): 45 | ØD2 (mm): 53 | L (mm): 110 | h (mm): 165 | H (mm): 45 | Weight (kg): 4.1
BTT50-SR25-140Shank: BTT50 | Ød (mm): 25 | Ød1 (mm): 26 | ØD1 (mm): 45 | ØD2 (mm): 53 | L (mm): 140 | h (mm): 195 | H (mm): 45 | Weight (kg): 4.5
BTT50-SR25-170Shank: BTT50 | Ød (mm): 25 | Ød1 (mm): 26 | ØD1 (mm): 45 | ØD2 (mm): 50 | L (mm): 170 | h (mm): 225 | H (mm): 45 | Weight (kg): 4.8
