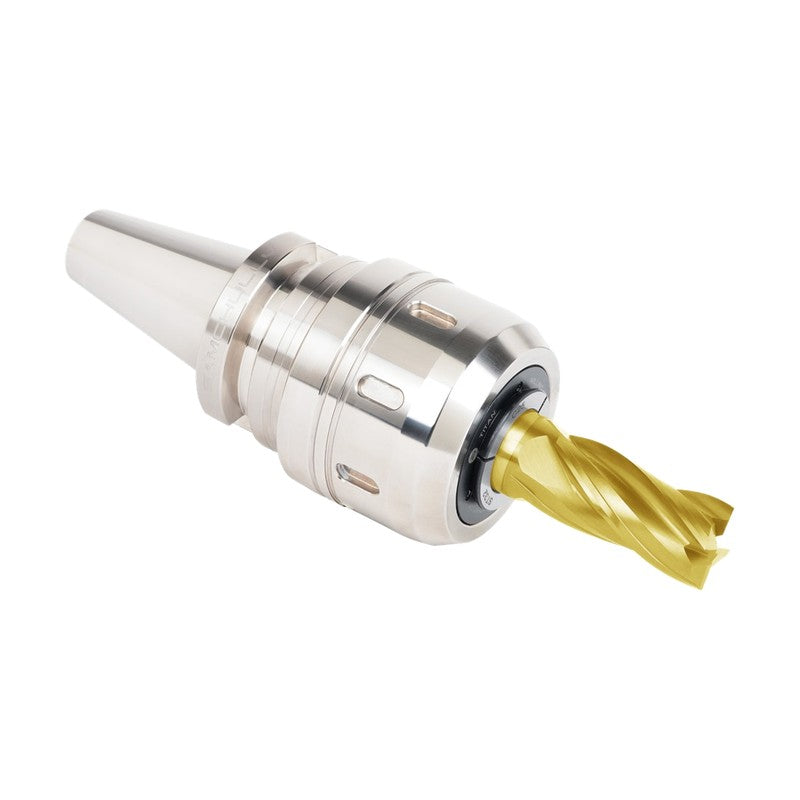

Samchully BTT Standard Titan Milling Chuck

Samchully BTT Standard Titan Milling Chuck

Standard Titan Milling Chuck with BTT (MAS 403 BT taper with flange contact) shank, available in BTT30, BTT40, BTT50 sizes.

Key features

  • Extreme gripping strength with high precision for aggressive material removal
  • Minimal run-out extends cutting tool life and improves surface finish
  • Straight collet and spanner available as options

Specifications

Shank standard MAS 403-BT
Run-out 10 µm
BTT30-C16-75 Shank: BTT30 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 75 | H (mm): 65 | E (mm): 55 | Weight (kg): 0.8
BTT30-C20-75 Shank: BTT30 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 75 | H (mm): 80 | E (mm): 56 | Weight (kg): 1.0
BTT30-C25-80 Shank: BTT30 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 80 | H (mm): 70 | E (mm): 57 | Weight (kg): 1.2 | Note: May be incompatible with some machines depending on flange specification
BTT30-C32-100 Shank: BTT30 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 100 | H (mm): 76 | E (mm): 58 | Weight (kg): 1.5
BTT40-C16-75 Shank: BTT40 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 75 | H (mm): 65 | E (mm): 55 | Weight (kg): 1.5
BTT40-C16-90 Shank: BTT40 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 90 | H (mm): 65 | E (mm): 55 | Weight (kg): 1.8
BTT40-C16-120 Shank: BTT40 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 120 | H (mm): 65 | E (mm): 55 | Weight (kg): 2.2
BTT40-C20-75 Shank: BTT40 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 75 | H (mm): 80 | E (mm): 56 | Weight (kg): 1.7
BTT40-C20-90 Shank: BTT40 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 90 | H (mm): 80 | E (mm): 56 | Weight (kg): 1.8
BTT40-C20-105 Shank: BTT40 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 105 | H (mm): 80 | E (mm): 56 | Weight (kg): 2.0
BTT40-C20-120 Shank: BTT40 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 120 | H (mm): 80 | E (mm): 56 | Weight (kg): 2.2
BTT40-C25-75 Shank: BTT40 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 75 | H (mm): 85 | E (mm): 57 | Weight (kg): 1.9
BTT40-C25-90 Shank: BTT40 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 90 | H (mm): 85 | E (mm): 57 | Weight (kg): 2.1
BTT40-C25-120 Shank: BTT40 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 120 | H (mm): 85 | E (mm): 57 | Weight (kg): 2.5
BTT40-C32-90 Shank: BTT40 | Ød (mm): 32 | ØD (mm): 72 | L (mm): 90 | H (mm): 100 | E (mm): 64 | Weight (kg): 2.2
BTT40-C32-105 Shank: BTT40 | Ød (mm): 32 | ØD (mm): 72 | L (mm): 105 | H (mm): 100 | E (mm): 64 | Weight (kg): 2.5
BTT40-C32-120 Shank: BTT40 | Ød (mm): 32 | ØD (mm): 72 | L (mm): 120 | H (mm): 105 | E (mm): 64 | Weight (kg): 2.8
BTT40-C32-135 Shank: BTT40 | Ød (mm): 32 | ØD (mm): 72 | L (mm): 135 | H (mm): 105 | E (mm): 64 | Weight (kg): 3.1
BTT50-C16-105 Shank: BTT50 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 105 | H (mm): 65 | E (mm): 55 | Weight (kg): 4.2
BTT50-C16-135 Shank: BTT50 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 135 | H (mm): 65 | E (mm): 55 | Weight (kg): 4.5
BTT50-C16-165 Shank: BTT50 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 165 | H (mm): 65 | E (mm): 55 | Weight (kg): 4.8
BTT50-C20-105 Shank: BTT50 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 105 | H (mm): 80 | E (mm): 56 | Weight (kg): 4.5
BTT50-C20-135 Shank: BTT50 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 135 | H (mm): 80 | E (mm): 56 | Weight (kg): 4.8
BTT50-C20-165 Shank: BTT50 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 165 | H (mm): 80 | E (mm): 56 | Weight (kg): 5.1
BTT50-C20-180 Shank: BTT50 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 180 | H (mm): 80 | E (mm): 56 | Weight (kg): 5.4
BTT50-C25-105 Shank: BTT50 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 105 | H (mm): 90 | E (mm): 65 | Weight (kg): 4.8
BTT50-C25-135 Shank: BTT50 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 135 | H (mm): 90 | E (mm): 65 | Weight (kg): 5.2
BTT50-C25-165 Shank: BTT50 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 165 | H (mm): 90 | E (mm): 65 | Weight (kg): 5.6
BTT50-C32-105 Shank: BTT50 | Ød (mm): 32 | ØD (mm): 75 | L (mm): 105 | H (mm): 105 | E (mm): 71 | Weight (kg): 4.6
BTT50-C32-120 Shank: BTT50 | Ød (mm): 32 | ØD (mm): 75 | L (mm): 120 | H (mm): 105 | E (mm): 71 | Weight (kg): 5.1
BTT50-C32-135 Shank: BTT50 | Ød (mm): 32 | ØD (mm): 75 | L (mm): 135 | H (mm): 105 | E (mm): 71 | Weight (kg): 5.6
BTT50-C32-165 Shank: BTT50 | Ød (mm): 32 | ØD (mm): 75 | L (mm): 165 | H (mm): 105 | E (mm): 71 | Weight (kg): 6.4
BTT50-C32-200 Shank: BTT50 | Ød (mm): 32 | ØD (mm): 75 | L (mm): 200 | H (mm): 105 | E (mm): 71 | Weight (kg): 7.8
BTT50-C42-105 Shank: BTT50 | Ød (mm): 42 | ØD (mm): 90 | L (mm): 105 | H (mm): 125 | E (mm): 73 | Weight (kg): 5.8
BTT50-C42-120 Shank: BTT50 | Ød (mm): 42 | ØD (mm): 90 | L (mm): 120 | H (mm): 125 | E (mm): 73 | Weight (kg): 6.6
BTT50-C42-135 Shank: BTT50 | Ød (mm): 42 | ØD (mm): 90 | L (mm): 135 | H (mm): 125 | E (mm): 73 | Weight (kg): 7.2
BTT50-C42-165 Shank: BTT50 | Ød (mm): 42 | ØD (mm): 90 | L (mm): 165 | H (mm): 125 | E (mm): 73 | Weight (kg): 8.6
BTT50-C42-200 Shank: BTT50 | Ød (mm): 42 | ØD (mm): 90 | L (mm): 200 | H (mm): 125 | E (mm): 73 | Weight (kg): 9.5
Milling ChucksSamchully
38 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully BTT Standard Titan Milling Chuck

Brand Samchully·Milling Chucks

Available part numbers (38)

BTT30-C16-75, BTT30-C20-75, BTT30-C25-80, BTT30-C32-100, BTT40-C16-75, BTT40-C16-90, BTT40-C16-120, BTT40-C20-75, BTT40-C20-90, BTT40-C20-105 + 28 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
