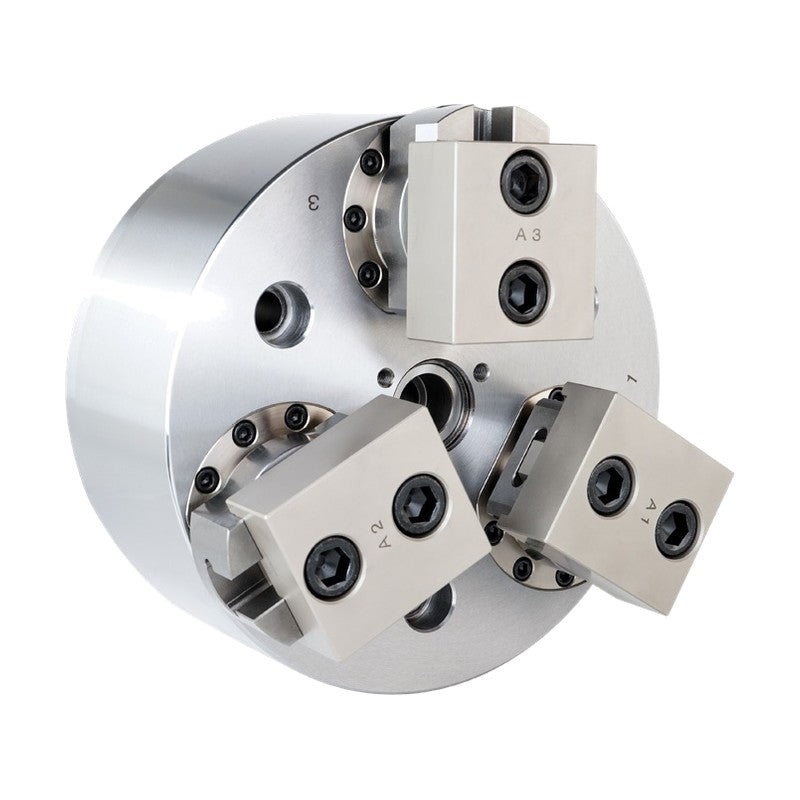

Samchully Centering Ball-Lock Chuck EGL

Samchully Centering Ball-Lock Chuck EGL

Ball-lock chuck for I.D. and O.D. clamping of rough castings or forgings.

Key features

  • Grips on taper up to 10 degrees
  • Centrifugal force compensation allows higher RPM than standard ball-lock chucks
  • Fully sealed against chips
  • Pull-down function (1 mm)
EGL-06 Plunger Stroke (mm): 12 | Jaw Stroke Angle (deg): 5 | Max. Drawbar Pull (kgf): 18 | Max. Clamping Force (kgf): 44 | Recommended Actuating Cylinders: Y-1020RE | Max. Speed (rpm): 4500 | Weight (kg): 16
EGL-08 Plunger Stroke (mm): 18 | Jaw Stroke Angle (deg): 5.2 | Max. Drawbar Pull (kgf): 25 | Max. Clamping Force (kgf): 60 | Recommended Actuating Cylinders: Y-1225, 1240RE | Max. Speed (rpm): 4500 | Weight (kg): 27
EGL-10 Plunger Stroke (mm): 23 | Jaw Stroke Angle (deg): 5.3 | Max. Drawbar Pull (kgf): 40 | Max. Clamping Force (kgf): 96 | Recommended Actuating Cylinders: Y-1225, 1240RE | Max. Speed (rpm): 3800 | Weight (kg): 39
Special ChucksSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Centering Ball-Lock Chuck EGL

Brand Samchully·Special Chucks

Available part numbers (3)

EGL-06, EGL-08, EGL-10

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EGL-06Plunger Stroke (mm): 12 | Jaw Stroke Angle (deg): 5 | Max. Drawbar Pull (kgf): 18 | Max. Clamping Force (kgf): 44 | Recommended Actuating Cylinders: Y-1020RE | Max. Speed (rpm): 4500 | Weight (kg): 16
EGL-08Plunger Stroke (mm): 18 | Jaw Stroke Angle (deg): 5.2 | Max. Drawbar Pull (kgf): 25 | Max. Clamping Force (kgf): 60 | Recommended Actuating Cylinders: Y-1225, 1240RE | Max. Speed (rpm): 4500 | Weight (kg): 27
EGL-10Plunger Stroke (mm): 23 | Jaw Stroke Angle (deg): 5.3 | Max. Drawbar Pull (kgf): 40 | Max. Clamping Force (kgf): 96 | Recommended Actuating Cylinders: Y-1225, 1240RE | Max. Speed (rpm): 3800 | Weight (kg): 39
