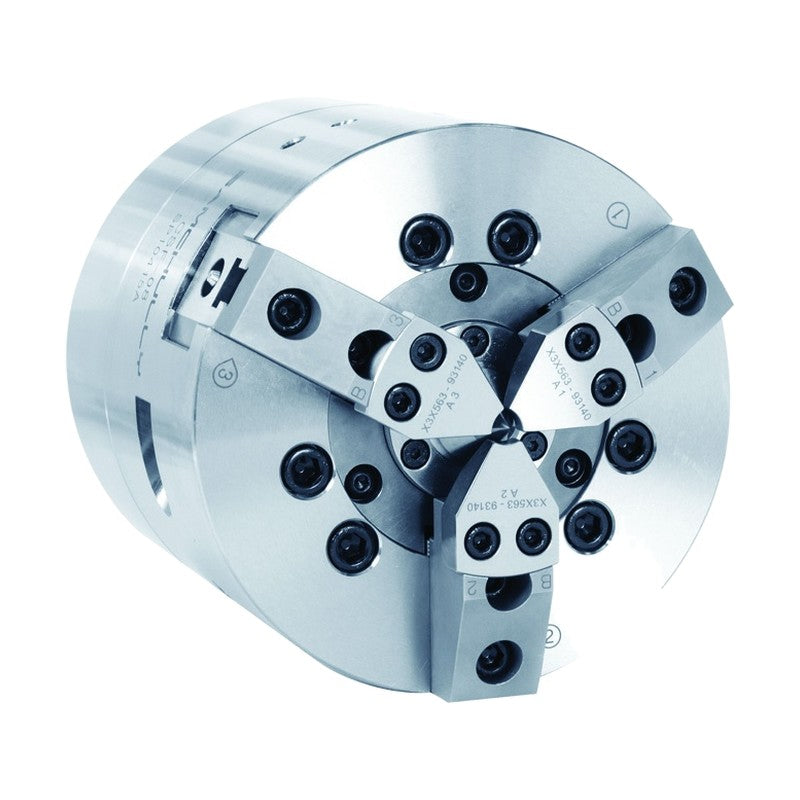

Samchully Compensating Chuck CSF

Samchully Compensating Chuck CSF

Compensating chuck whose jaws float on a spherical bearing for high-precision work on rounded surfaces.

Key features

  • Jaws float on spherical bearing to determine clamping points
  • Spring or fixed center available
  • All three jaws apply constant gripping force
CSF-07 Static Clamping Force (kgf): 2600 | Max. Drawbar Pull (kgf): 1500 | Jaw Stroke Dia. (mm): 12 | Plunger Stroke (mm): 15 | Min. Chucking Dia. (mm): 20 | Max. Runout Dia. (mm): 4 | Max. Speed (rpm): 4000 | Spring Force (kgf): 45 | Weight (kg): 15
CSF-08 Static Clamping Force (kgf): 3200 | Max. Drawbar Pull (kgf): 2100 | Jaw Stroke Dia. (mm): 20 | Plunger Stroke (mm): 25 | Min. Chucking Dia. (mm): 25 | Max. Runout Dia. (mm): 4 | Max. Speed (rpm): 3200 | Spring Force (kgf): 52 | Weight (kg): 28
CSF-12 Static Clamping Force (kgf): 3200 | Max. Drawbar Pull (kgf): 2700 | Jaw Stroke Dia. (mm): 25 | Plunger Stroke (mm): 30 | Min. Chucking Dia. (mm): 30 | Max. Runout Dia. (mm): 6 | Max. Speed (rpm): 2000 | Spring Force (kgf): 106 | Weight (kg): 58
Special ChucksSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Compensating Chuck CSF

Brand Samchully·Special Chucks

Available part numbers (3)

CSF-07, CSF-08, CSF-12

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CSF-07Static Clamping Force (kgf): 2600 | Max. Drawbar Pull (kgf): 1500 | Jaw Stroke Dia. (mm): 12 | Plunger Stroke (mm): 15 | Min. Chucking Dia. (mm): 20 | Max. Runout Dia. (mm): 4 | Max. Speed (rpm): 4000 | Spring Force (kgf): 45 | Weight (kg): 15
CSF-08Static Clamping Force (kgf): 3200 | Max. Drawbar Pull (kgf): 2100 | Jaw Stroke Dia. (mm): 20 | Plunger Stroke (mm): 25 | Min. Chucking Dia. (mm): 25 | Max. Runout Dia. (mm): 4 | Max. Speed (rpm): 3200 | Spring Force (kgf): 52 | Weight (kg): 28
CSF-12Static Clamping Force (kgf): 3200 | Max. Drawbar Pull (kgf): 2700 | Jaw Stroke Dia. (mm): 25 | Plunger Stroke (mm): 30 | Min. Chucking Dia. (mm): 30 | Max. Runout Dia. (mm): 6 | Max. Speed (rpm): 2000 | Spring Force (kgf): 106 | Weight (kg): 58
