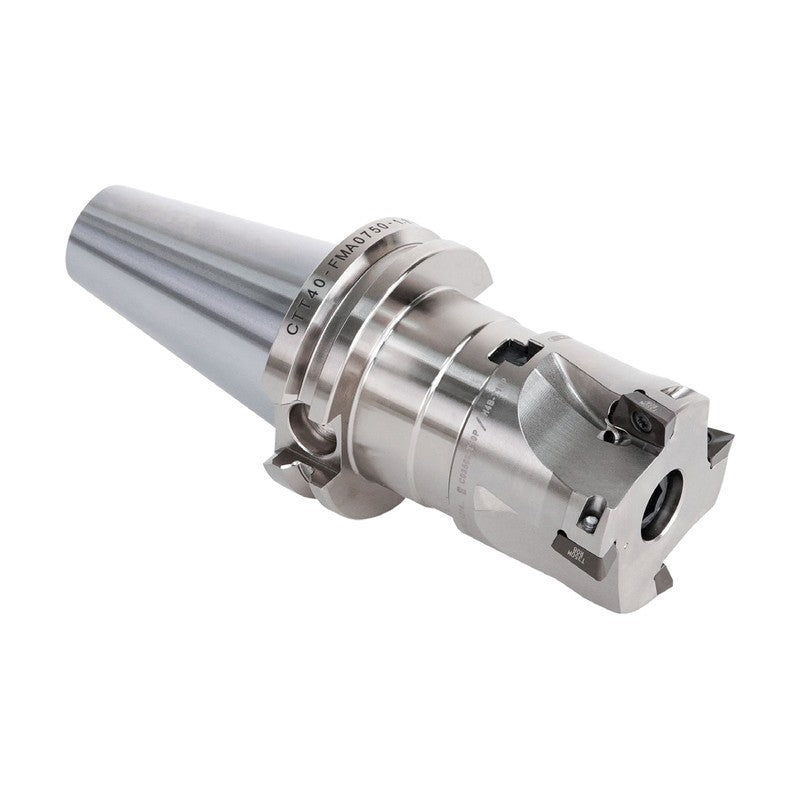

Samchully CTT Shell / Face Mill Arbor

Samchully CTT Shell / Face Mill Arbor

Shell / Face Mill Arbor with CTT (ASME B5.50 CAT taper) shank, inch sizes, available in CTT40, CTT50 sizes.

Key features

  • Mounting bolt (cutter clamping bolt) included

Specifications

Shank standard ASME B5.50
CTT40-FMA0750-1.77" Shank: CTT40 | ØD (mm): 19.05 | ØD1 (mm): 42.9 | L (in): 1.77 | L1 (mm): 17.53 | L2 (mm): 4 | Thread G: 3/8"-24 UNF | W (mm): 7.93
CTT40-FMA0750-3.54" Shank: CTT40 | ØD (mm): 19.05 | ØD1 (mm): 42.9 | L (in): 3.54 | L1 (mm): 17.53 | L2 (mm): 4 | Thread G: 3/8"-24 UNF | W (mm): 7.93
CTT40-FMA1000-1.77" Shank: CTT40 | ØD (mm): 25.4 | ØD1 (mm): 55.6 | L (in): 1.77 | L1 (mm): 17.53 | L2 (mm): 5 | Thread G: 1/2"-20 UNF | W (mm): 9.52
CTT40-FMA1000-3.54" Shank: CTT40 | ØD (mm): 25.4 | ØD1 (mm): 55.6 | L (in): 3.54 | L1 (mm): 17.53 | L2 (mm): 5 | Thread G: 1/2"-20 UNF | W (mm): 9.52
CTT40-FMA1250-2.00" Shank: CTT40 | ØD (mm): 31.75 | ØD1 (mm): 69.8 | L (in): 2.00 | L1 (mm): 17.53 | L2 (mm): 7 | Thread G: 5/8"-18 UNF | W (mm): 12.7
CTT40-FMA1250-3.54" Shank: CTT40 | ØD (mm): 31.75 | ØD1 (mm): 69.8 | L (in): 3.54 | L1 (mm): 17.53 | L2 (mm): 7 | Thread G: 5/8"-18 UNF | W (mm): 12.7
CTT40-FMA1500-2.36" Shank: CTT40 | ØD (mm): 38.1 | ØD1 (mm): 96.5 | L (in): 2.36 | L1 (mm): 23.87 | L2 (mm): 7.87 | Thread G: 3/4"-16 UNF | W (mm): 15.87
CTT50-FMA0750-1.77" Shank: CTT50 | ØD (mm): 19.05 | ØD1 (mm): 42.9 | L (in): 1.77 | L1 (mm): 17.53 | L2 (mm): 4 | Thread G: 3/8"-24 UNF | W (mm): 7.93
CTT50-FMA1000-1.77" Shank: CTT50 | ØD (mm): 25.4 | ØD1 (mm): 55.6 | L (in): 1.77 | L1 (mm): 17.53 | L2 (mm): 5 | Thread G: 1/2"-20 UNF | W (mm): 9.52
CTT50-FMA1000-3.54" Shank: CTT50 | ØD (mm): 25.4 | ØD1 (mm): 55.6 | L (in): 3.54 | L1 (mm): 17.53 | L2 (mm): 5 | Thread G: 1/2"-20 UNF | W (mm): 9.52
CTT50-FMA1000-5.91" Shank: CTT50 | ØD (mm): 25.4 | ØD1 (mm): 55.6 | L (in): 5.91 | L1 (mm): 17.53 | L2 (mm): 5 | Thread G: 1/2"-20 UNF | W (mm): 9.52
CTT50-FMA1250-1.77" Shank: CTT50 | ØD (mm): 31.75 | ØD1 (mm): 69.8 | L (in): 1.77 | L1 (mm): 17.53 | L2 (mm): 7 | Thread G: 5/8"-18 UNF | W (mm): 12.7
CTT50-FMA1250-2.95" Shank: CTT50 | ØD (mm): 31.75 | ØD1 (mm): 69.8 | L (in): 2.95 | L1 (mm): 17.53 | L2 (mm): 7 | Thread G: 5/8"-18 UNF | W (mm): 12.7
CTT50-FMA1250-4.13" Shank: CTT50 | ØD (mm): 31.75 | ØD1 (mm): 69.8 | L (in): 4.13 | L1 (mm): 17.53 | L2 (mm): 7 | Thread G: 5/8"-18 UNF | W (mm): 12.7
CTT50-FMA1250-5.91" Shank: CTT50 | ØD (mm): 31.75 | ØD1 (mm): 69.8 | L (in): 5.91 | L1 (mm): 17.53 | L2 (mm): 7 | Thread G: 5/8"-18 UNF | W (mm): 12.7
CTT50-FMA1500-2.00" Shank: CTT50 | ØD (mm): 38.1 | ØD1 (mm): 96.5 | L (in): 2.00 | L1 (mm): 23.87 | L2 (mm): 7.87 | Thread G: 3/4"-16 UNF | W (mm): 15.87
CTT50-FMA1500-2.95" Shank: CTT50 | ØD (mm): 38.1 | ØD1 (mm): 96.5 | L (in): 2.95 | L1 (mm): 23.87 | L2 (mm): 7.87 | Thread G: 3/4"-16 UNF | W (mm): 15.87
CTT50-FMA1500-5.91" Shank: CTT50 | ØD (mm): 38.1 | ØD1 (mm): 96.5 | L (in): 5.91 | L1 (mm): 23.87 | L2 (mm): 7.87 | Thread G: 3/4"-16 UNF | W (mm): 15.87
Face Mill ArborsSamchully
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully CTT Shell / Face Mill Arbor

Brand Samchully·Face Mill Arbors

Available part numbers (18)

CTT40-FMA0750-1.77", CTT40-FMA0750-3.54", CTT40-FMA1000-1.77", CTT40-FMA1000-3.54", CTT40-FMA1250-2.00", CTT40-FMA1250-3.54", CTT40-FMA1500-2.36", CTT50-FMA0750-1.77", CTT50-FMA1000-1.77", CTT50-FMA1000-3.54" + 8 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CTT40-FMA0750-1.77"Shank: CTT40 | ØD (mm): 19.05 | ØD1 (mm): 42.9 | L (in): 1.77 | L1 (mm): 17.53 | L2 (mm): 4 | Thread G: 3/8"-24 UNF | W (mm): 7.93
CTT40-FMA0750-3.54"Shank: CTT40 | ØD (mm): 19.05 | ØD1 (mm): 42.9 | L (in): 3.54 | L1 (mm): 17.53 | L2 (mm): 4 | Thread G: 3/8"-24 UNF | W (mm): 7.93
CTT40-FMA1000-1.77"Shank: CTT40 | ØD (mm): 25.4 | ØD1 (mm): 55.6 | L (in): 1.77 | L1 (mm): 17.53 | L2 (mm): 5 | Thread G: 1/2"-20 UNF | W (mm): 9.52
CTT40-FMA1000-3.54"Shank: CTT40 | ØD (mm): 25.4 | ØD1 (mm): 55.6 | L (in): 3.54 | L1 (mm): 17.53 | L2 (mm): 5 | Thread G: 1/2"-20 UNF | W (mm): 9.52
CTT40-FMA1250-2.00"Shank: CTT40 | ØD (mm): 31.75 | ØD1 (mm): 69.8 | L (in): 2.00 | L1 (mm): 17.53 | L2 (mm): 7 | Thread G: 5/8"-18 UNF | W (mm): 12.7
CTT40-FMA1250-3.54"Shank: CTT40 | ØD (mm): 31.75 | ØD1 (mm): 69.8 | L (in): 3.54 | L1 (mm): 17.53 | L2 (mm): 7 | Thread G: 5/8"-18 UNF | W (mm): 12.7
CTT40-FMA1500-2.36"Shank: CTT40 | ØD (mm): 38.1 | ØD1 (mm): 96.5 | L (in): 2.36 | L1 (mm): 23.87 | L2 (mm): 7.87 | Thread G: 3/4"-16 UNF | W (mm): 15.87
CTT50-FMA0750-1.77"Shank: CTT50 | ØD (mm): 19.05 | ØD1 (mm): 42.9 | L (in): 1.77 | L1 (mm): 17.53 | L2 (mm): 4 | Thread G: 3/8"-24 UNF | W (mm): 7.93
CTT50-FMA1000-1.77"Shank: CTT50 | ØD (mm): 25.4 | ØD1 (mm): 55.6 | L (in): 1.77 | L1 (mm): 17.53 | L2 (mm): 5 | Thread G: 1/2"-20 UNF | W (mm): 9.52
CTT50-FMA1000-3.54"Shank: CTT50 | ØD (mm): 25.4 | ØD1 (mm): 55.6 | L (in): 3.54 | L1 (mm): 17.53 | L2 (mm): 5 | Thread G: 1/2"-20 UNF | W (mm): 9.52
CTT50-FMA1000-5.91"Shank: CTT50 | ØD (mm): 25.4 | ØD1 (mm): 55.6 | L (in): 5.91 | L1 (mm): 17.53 | L2 (mm): 5 | Thread G: 1/2"-20 UNF | W (mm): 9.52
CTT50-FMA1250-1.77"Shank: CTT50 | ØD (mm): 31.75 | ØD1 (mm): 69.8 | L (in): 1.77 | L1 (mm): 17.53 | L2 (mm): 7 | Thread G: 5/8"-18 UNF | W (mm): 12.7
CTT50-FMA1250-2.95"Shank: CTT50 | ØD (mm): 31.75 | ØD1 (mm): 69.8 | L (in): 2.95 | L1 (mm): 17.53 | L2 (mm): 7 | Thread G: 5/8"-18 UNF | W (mm): 12.7
CTT50-FMA1250-4.13"Shank: CTT50 | ØD (mm): 31.75 | ØD1 (mm): 69.8 | L (in): 4.13 | L1 (mm): 17.53 | L2 (mm): 7 | Thread G: 5/8"-18 UNF | W (mm): 12.7
CTT50-FMA1250-5.91"Shank: CTT50 | ØD (mm): 31.75 | ØD1 (mm): 69.8 | L (in): 5.91 | L1 (mm): 17.53 | L2 (mm): 7 | Thread G: 5/8"-18 UNF | W (mm): 12.7
CTT50-FMA1500-2.00"Shank: CTT50 | ØD (mm): 38.1 | ØD1 (mm): 96.5 | L (in): 2.00 | L1 (mm): 23.87 | L2 (mm): 7.87 | Thread G: 3/4"-16 UNF | W (mm): 15.87
CTT50-FMA1500-2.95"Shank: CTT50 | ØD (mm): 38.1 | ØD1 (mm): 96.5 | L (in): 2.95 | L1 (mm): 23.87 | L2 (mm): 7.87 | Thread G: 3/4"-16 UNF | W (mm): 15.87
CTT50-FMA1500-5.91"Shank: CTT50 | ØD (mm): 38.1 | ØD1 (mm): 96.5 | L (in): 5.91 | L1 (mm): 23.87 | L2 (mm): 7.87 | Thread G: 3/4"-16 UNF | W (mm): 15.87
