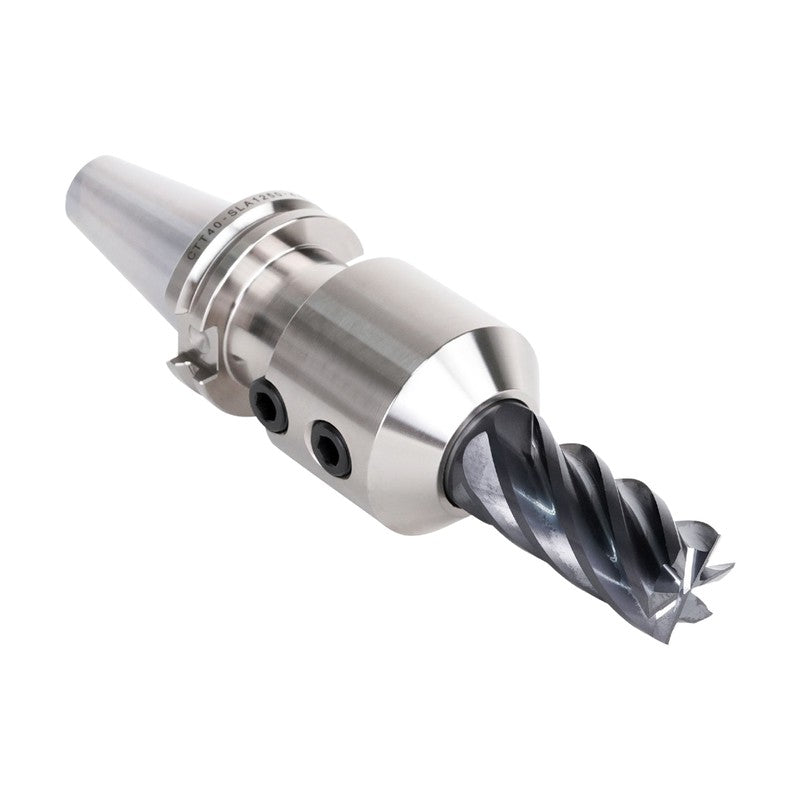

Samchully CTT Side Lock Holder

Samchully CTT Side Lock Holder

Side Lock Holder with CTT (ASME B5.50 CAT taper) shank, inch sizes, available in CTT40, CTT50 sizes.

Specifications

Shank standard ASME B5.50
CTT40-SLA0125-1.75" Shank: CTT40 | Ød (mm): 3.175 | ØD (mm): 17.5 | L (in): 1.75 | H1 (mm): 7.11
CTT40-SLA0125-2.50" Shank: CTT40 | Ød (mm): 3.175 | ØD (mm): 17.5 | L (in): 2.50 | H1 (mm): 7.11
CTT40-SLA0125-4.00" Shank: CTT40 | Ød (mm): 3.175 | ØD (mm): 17.5 | L (in): 4.00 | H1 (mm): 7.11
CTT40-SLA0125-6.00" Shank: CTT40 | Ød (mm): 3.175 | ØD (mm): 17.5 | L (in): 6.00 | H1 (mm): 7.11
CTT40-SLA0187-1.75" Shank: CTT40 | Ød (mm): 4.7625 | ØD (mm): 19.05 | L (in): 1.75 | H1 (mm): 10.28
CTT40-SLA0187-2.50" Shank: CTT40 | Ød (mm): 4.7625 | ØD (mm): 19.05 | L (in): 2.50 | H1 (mm): 10.28
CTT40-SLA0187-4.00" Shank: CTT40 | Ød (mm): 4.7625 | ØD (mm): 19.05 | L (in): 4.00 | H1 (mm): 10.28
CTT40-SLA0187-6.00" Shank: CTT40 | Ød (mm): 4.7625 | ØD (mm): 19.05 | L (in): 6.00 | H1 (mm): 10.28
CTT40-SLA0250-1.75" Shank: CTT40 | Ød (mm): 6.35 | ØD (mm): 20 | L (in): 1.75 | H1 (mm): 13.46
CTT40-SLA0250-2.50" Shank: CTT40 | Ød (mm): 6.35 | ØD (mm): 20 | L (in): 2.50 | H1 (mm): 13.46
CTT40-SLA0250-4.00" Shank: CTT40 | Ød (mm): 6.35 | ØD (mm): 20 | L (in): 4.00 | H1 (mm): 13.46
CTT40-SLA0250-6.00" Shank: CTT40 | Ød (mm): 6.35 | ØD (mm): 20 | L (in): 6.00 | H1 (mm): 13.46
CTT40-SLA0312-1.75" Shank: CTT40 | Ød (mm): 7.9375 | ØD (mm): 22.225 | L (in): 1.75 | H1 (mm): 16.64
CTT40-SLA0312-2.50" Shank: CTT40 | Ød (mm): 7.9375 | ØD (mm): 22.225 | L (in): 2.50 | H1 (mm): 16.64
CTT40-SLA0312-4.00" Shank: CTT40 | Ød (mm): 7.9375 | ØD (mm): 22.225 | L (in): 4.00 | H1 (mm): 16.64
CTT40-SLA0312-6.00" Shank: CTT40 | Ød (mm): 7.9375 | ØD (mm): 22.225 | L (in): 6.00 | H1 (mm): 16.64
CTT40-SLA0375-1.75" Shank: CTT40 | Ød (mm): 9.525 | ØD (mm): 25.4 | L (in): 1.75 | H1 (mm): 19.05
CTT40-SLA0375-2.50" Shank: CTT40 | Ød (mm): 9.525 | ØD (mm): 25.4 | L (in): 2.50 | H1 (mm): 19.05
CTT40-SLA0375-4.00" Shank: CTT40 | Ød (mm): 9.525 | ØD (mm): 25.4 | L (in): 4.00 | H1 (mm): 19.05
CTT40-SLA0375-6.00" Shank: CTT40 | Ød (mm): 9.525 | ØD (mm): 25.4 | L (in): 6.00 | H1 (mm): 19.05
CTT40-SLA0437-1.75" Shank: CTT40 | Ød (mm): 11.1125 | ØD (mm): 28.7 | L (in): 1.75 | H1 (mm): 19.05
CTT40-SLA0437-2.50" Shank: CTT40 | Ød (mm): 11.1125 | ØD (mm): 28.7 | L (in): 2.50 | H1 (mm): 19.05
CTT40-SLA0437-4.00" Shank: CTT40 | Ød (mm): 11.1125 | ØD (mm): 28.7 | L (in): 4.00 | H1 (mm): 19.05
CTT40-SLA0500-1.75" Shank: CTT40 | Ød (mm): 12.7 | ØD (mm): 31.75 | L (in): 1.75 | H1 (mm): 22.35
CTT40-SLA0500-2.50" Shank: CTT40 | Ød (mm): 12.7 | ØD (mm): 31.75 | L (in): 2.50 | H1 (mm): 22.35
CTT40-SLA0500-4.00" Shank: CTT40 | Ød (mm): 12.7 | ØD (mm): 31.75 | L (in): 4.00 | H1 (mm): 22.35
CTT40-SLA0500-6.00" Shank: CTT40 | Ød (mm): 12.7 | ØD (mm): 31.75 | L (in): 6.00 | H1 (mm): 22.35
CTT40-SLA0625-1.75" Shank: CTT40 | Ød (mm): 15.875 | ØD (mm): 38.1 | L (in): 1.75 | H1 (mm): 23.87
CTT40-SLA0625-2.50" Shank: CTT40 | Ød (mm): 15.875 | ØD (mm): 38.1 | L (in): 2.50 | H1 (mm): 23.87
CTT40-SLA0625-4.00" Shank: CTT40 | Ød (mm): 15.875 | ØD (mm): 38.1 | L (in): 4.00 | H1 (mm): 23.87
CTT40-SLA0625-6.00" Shank: CTT40 | Ød (mm): 15.875 | ØD (mm): 38.1 | L (in): 6.00 | H1 (mm): 23.87
CTT40-SLA0750-1.75" Shank: CTT40 | Ød (mm): 19.05 | ØD (mm): 44.45 | L (in): 1.75 | H1 (mm): 25.4
CTT40-SLA0750-2.50" Shank: CTT40 | Ød (mm): 19.05 | ØD (mm): 44.45 | L (in): 2.50 | H1 (mm): 25.4
CTT40-SLA0750-4.00" Shank: CTT40 | Ød (mm): 19.05 | ØD (mm): 44.45 | L (in): 4.00 | H1 (mm): 25.4
CTT40-SLA0750-6.00" Shank: CTT40 | Ød (mm): 19.05 | ØD (mm): 44.45 | L (in): 6.00 | H1 (mm): 25.4
CTT40-SLA1000-1.75" Shank: CTT40 | Ød (mm): 25.4 | ØD (mm): 44.45 | L (in): 1.75 | H1 (mm): 28.7
CTT40-SLA1000-3.00" Shank: CTT40 | Ød (mm): 25.4 | ØD (mm): 44.45 | L (in): 3.00 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT40-SLA1000-4.00" Shank: CTT40 | Ød (mm): 25.4 | ØD (mm): 44.45 | L (in): 4.00 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT40-SLA1000-6.00" Shank: CTT40 | Ød (mm): 25.4 | ØD (mm): 44.45 | L (in): 6.00 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT40-SLA1250-2.00" Shank: CTT40 | Ød (mm): 31.75 | ØD (mm): 57.15 | L (in): 2.00 | H1 (mm): 28.7 | Note: May be incompatible with some machines depending on flange specification
CTT40-SLA1250-4.00" Shank: CTT40 | Ød (mm): 31.75 | ØD (mm): 57.15 | L (in): 4.00 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT40-SLA1250-6.00" Shank: CTT40 | Ød (mm): 31.75 | ØD (mm): 57.15 | L (in): 6.00 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT40-SLA1500-4.50" Shank: CTT40 | Ød (mm): 38.1 | ØD (mm): 63.5 | L (in): 4.50 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT40-SLA1500-6.00" Shank: CTT40 | Ød (mm): 38.1 | ØD (mm): 63.5 | L (in): 6.00 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT50-SLA0125-2.00" Shank: CTT50 | Ød (mm): 3.175 | ØD (mm): 17.5 | L (in): 2.00 | H1 (mm): 7.11
CTT50-SLA0125-2.50" Shank: CTT50 | Ød (mm): 3.175 | ØD (mm): 17.5 | L (in): 2.50 | H1 (mm): 7.11
CTT50-SLA0125-4.00" Shank: CTT50 | Ød (mm): 3.175 | ØD (mm): 17.5 | L (in): 4.00 | H1 (mm): 7.11
CTT50-SLA0125-6.00" Shank: CTT50 | Ød (mm): 3.175 | ØD (mm): 17.5 | L (in): 6.00 | H1 (mm): 7.11
CTT50-SLA0187-2.00" Shank: CTT50 | Ød (mm): 4.7625 | ØD (mm): 19.05 | L (in): 2.00 | H1 (mm): 10.28
CTT50-SLA0187-2.50" Shank: CTT50 | Ød (mm): 4.7625 | ØD (mm): 19.05 | L (in): 2.50 | H1 (mm): 10.28
CTT50-SLA0187-4.00" Shank: CTT50 | Ød (mm): 4.7625 | ØD (mm): 19.05 | L (in): 4.00 | H1 (mm): 10.28
CTT50-SLA0187-6.00" Shank: CTT50 | Ød (mm): 4.7625 | ØD (mm): 19.05 | L (in): 6.00 | H1 (mm): 10.28
CTT50-SLA0250-2.00" Shank: CTT50 | Ød (mm): 6.35 | ØD (mm): 20 | L (in): 2.00 | H1 (mm): 13.46
CTT50-SLA0250-2.50" Shank: CTT50 | Ød (mm): 6.35 | ØD (mm): 20 | L (in): 2.50 | H1 (mm): 13.46
CTT50-SLA0250-4.00" Shank: CTT50 | Ød (mm): 6.35 | ØD (mm): 20 | L (in): 4.00 | H1 (mm): 13.46
CTT50-SLA0250-6.00" Shank: CTT50 | Ød (mm): 6.35 | ØD (mm): 20 | L (in): 6.00 | H1 (mm): 13.46
CTT50-SLA0312-2.50" Shank: CTT50 | Ød (mm): 7.9375 | ØD (mm): 22.225 | L (in): 2.50 | H1 (mm): 16.64
CTT50-SLA0312-4.00" Shank: CTT50 | Ød (mm): 7.9375 | ØD (mm): 22.225 | L (in): 4.00 | H1 (mm): 16.64
CTT50-SLA0312-6.00" Shank: CTT50 | Ød (mm): 7.9375 | ØD (mm): 22.225 | L (in): 6.00 | H1 (mm): 16.64
CTT50-SLA0375-2.00" Shank: CTT50 | Ød (mm): 9.525 | ØD (mm): 25.4 | L (in): 2.00 | H1 (mm): 19.05
CTT50-SLA0375-2.50" Shank: CTT50 | Ød (mm): 9.525 | ØD (mm): 25.4 | L (in): 2.50 | H1 (mm): 19.05
CTT50-SLA0375-4.00" Shank: CTT50 | Ød (mm): 9.525 | ØD (mm): 25.4 | L (in): 4.00 | H1 (mm): 19.05
CTT50-SLA0375-6.00" Shank: CTT50 | Ød (mm): 9.525 | ØD (mm): 25.4 | L (in): 6.00 | H1 (mm): 19.05
CTT50-SLA0437-2.50" Shank: CTT50 | Ød (mm): 11.1125 | ØD (mm): 28.7 | L (in): 2.50 | H1 (mm): 20.65
CTT50-SLA0437-3.00" Shank: CTT50 | Ød (mm): 11.1125 | ØD (mm): 28.7 | L (in): 3.00 | H1 (mm): 20.65
CTT50-SLA0437-4.00" Shank: CTT50 | Ød (mm): 11.1125 | ØD (mm): 28.7 | L (in): 4.00 | H1 (mm): 20.65
CTT50-SLA0437-6.00" Shank: CTT50 | Ød (mm): 11.1125 | ØD (mm): 28.7 | L (in): 6.00 | H1 (mm): 20.65
CTT50-SLA0500-2.00" Shank: CTT50 | Ød (mm): 12.7 | ØD (mm): 31.75 | L (in): 2.00 | H1 (mm): 22.35
CTT50-SLA0500-3.00" Shank: CTT50 | Ød (mm): 12.7 | ØD (mm): 31.75 | L (in): 3.00 | H1 (mm): 22.35
CTT50-SLA0500-4.00" Shank: CTT50 | Ød (mm): 12.7 | ØD (mm): 31.75 | L (in): 4.00 | H1 (mm): 22.35
CTT50-SLA0500-6.00" Shank: CTT50 | Ød (mm): 12.7 | ØD (mm): 31.75 | L (in): 6.00 | H1 (mm): 22.35
CTT50-SLA0625-2.00" Shank: CTT50 | Ød (mm): 15.875 | ØD (mm): 38.1 | L (in): 2.00 | H1 (mm): 23.87
CTT50-SLA0625-3.00" Shank: CTT50 | Ød (mm): 15.875 | ØD (mm): 38.1 | L (in): 3.00 | H1 (mm): 23.87
CTT50-SLA0625-4.00" Shank: CTT50 | Ød (mm): 15.875 | ØD (mm): 38.1 | L (in): 4.00 | H1 (mm): 23.87
CTT50-SLA0625-6.00" Shank: CTT50 | Ød (mm): 15.875 | ØD (mm): 38.1 | L (in): 6.00 | H1 (mm): 23.87
CTT50-SLA0750-2.00" Shank: CTT50 | Ød (mm): 19.05 | ØD (mm): 44.45 | L (in): 2.00 | H1 (mm): 25.4
CTT50-SLA0750-3.00" Shank: CTT50 | Ød (mm): 19.05 | ØD (mm): 44.45 | L (in): 3.00 | H1 (mm): 25.4
CTT50-SLA0750-4.00" Shank: CTT50 | Ød (mm): 19.05 | ØD (mm): 44.45 | L (in): 4.00 | H1 (mm): 25.4
CTT50-SLA0750-6.00" Shank: CTT50 | Ød (mm): 19.05 | ØD (mm): 44.45 | L (in): 6.00 | H1 (mm): 25.4
CTT50-SLA1000-2.00" Shank: CTT50 | Ød (mm): 25.4 | ØD (mm): 50.8 | L (in): 2.00 | H1 (mm): 28.7
CTT50-SLA1000-3.00" Shank: CTT50 | Ød (mm): 25.4 | ØD (mm): 50.8 | L (in): 3.00 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT50-SLA1000-4.00" Shank: CTT50 | Ød (mm): 25.4 | ØD (mm): 50.8 | L (in): 4.00 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT50-SLA1000-6.00" Shank: CTT50 | Ød (mm): 25.4 | ØD (mm): 50.8 | L (in): 6.00 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT50-SLA1250-2.00" Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 63.5 | L (in): 2.00 | H1 (mm): 28.7
CTT50-SLA1250-3.00" Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 63.5 | L (in): 3.00 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT50-SLA1250-4.00" Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 63.5 | L (in): 4.00 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT50-SLA1250-6.00" Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 63.5 | L (in): 6.00 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT50-SLA1250-8.00" Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 63.5 | L (in): 8.00 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT50-SLA1250-10.00" Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 63.5 | L (in): 10.00 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT50-SLA1500-2.50" Shank: CTT50 | Ød (mm): 38.1 | ØD (mm): 69.8 | L (in): 2.50 | H1 (mm): 28.7
CTT50-SLA1500-3.50" Shank: CTT50 | Ød (mm): 38.1 | ØD (mm): 75.9 | L (in): 3.50 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT50-SLA1500-4.50" Shank: CTT50 | Ød (mm): 38.1 | ØD (mm): 75.9 | L (in): 4.50 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT50-SLA1500-6.00" Shank: CTT50 | Ød (mm): 38.1 | ØD (mm): 75.9 | L (in): 6.00 | H1 (mm): 28.7 | H2 (mm): 25.4
CTT50-SLA1500-8.00" Shank: CTT50 | Ød (mm): 38.1 | ØD (mm): 75.9 | L (in): 6.00 | H1 (mm): 28.7 | H2 (mm): 25.4
Side Lock HoldersSamchully
94 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully CTT Side Lock Holder

Brand Samchully·Side Lock Holders

Available part numbers (94)

CTT40-SLA0125-1.75", CTT40-SLA0125-2.50", CTT40-SLA0125-4.00", CTT40-SLA0125-6.00", CTT40-SLA0187-1.75", CTT40-SLA0187-2.50", CTT40-SLA0187-4.00", CTT40-SLA0187-6.00", CTT40-SLA0250-1.75", CTT40-SLA0250-2.50" + 84 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
