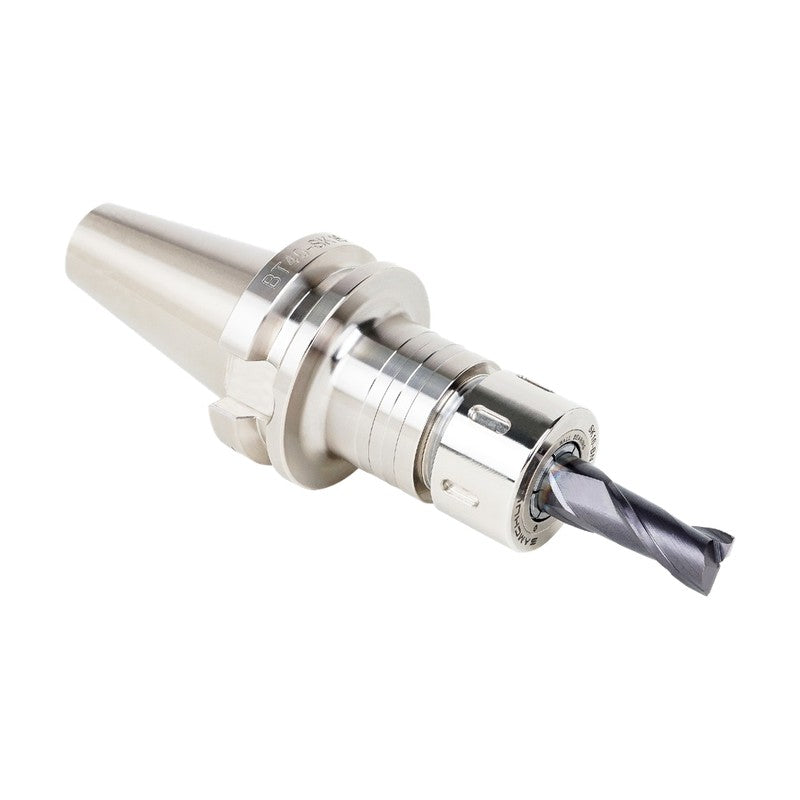

Samchully CTT SK Collet Chuck

SK Collet Chuck with CTT (ASME B5.50 CAT taper) shank, inch sizes, available in CTT40, CTT50 sizes.

Key features

SK collets give double the gripping strength of ER collets
Run-out within 0.003 mm at 4D
Ball bearing nut included

Specifications

Shank standard	ASME B5.50
Balancing grade	G6.3
Max speed (rpm)	15,000

CTT40-SK06-2.36"		Shank: CTT40 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 2.36 \| H (mm): 35
CTT40-SK06-3.54"		Shank: CTT40 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 3.54 \| H (mm): 35
CTT40-SK06-4.72"		Shank: CTT40 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 4.72 \| H (mm): 35
CTT40-SK06-5.91"		Shank: CTT40 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 5.91 \| H (mm): 35
CTT40-SK10-2.36"		Shank: CTT40 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 2.36 \| H (mm): 50
CTT40-SK10-2.95"		Shank: CTT40 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 2.95 \| H (mm): 50
CTT40-SK10-3.54"		Shank: CTT40 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 3.54 \| H (mm): 50
CTT40-SK10-4.72"		Shank: CTT40 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 4.72 \| H (mm): 50
CTT40-SK10-5.91"		Shank: CTT40 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 5.91 \| H (mm): 50
CTT40-SK10-7.09"		Shank: CTT40 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 7.09 \| H (mm): 50
CTT40-SK13-2.50"		Shank: CTT40 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 2.50 \| H (mm): 65
CTT40-SK13-2.95"		Shank: CTT40 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 2.95 \| H (mm): 65
CTT40-SK13-3.54"		Shank: CTT40 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 3.54 \| H (mm): 65
CTT40-SK13-4.72"		Shank: CTT40 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 4.72 \| H (mm): 65
CTT40-SK13-5.91"		Shank: CTT40 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 5.91 \| H (mm): 65
CTT40-SK13-7.09"		Shank: CTT40 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 7.09 \| H (mm): 65
CTT40-SK16-2.60"		Shank: CTT40 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 44.3 \| L (in): 2.60 \| H (mm): 65
CTT40-SK16-2.95"		Shank: CTT40 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 44.3 \| L (in): 2.95 \| H (mm): 67
CTT40-SK16-3.54"		Shank: CTT40 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 44.3 \| L (in): 3.54 \| H (mm): 70
CTT40-SK16-4.72"		Shank: CTT40 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 40 \| L (in): 4.72 \| H (mm): 70
CTT40-SK16-5.91"		Shank: CTT40 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 40 \| L (in): 5.91 \| H (mm): 70
CTT40-SK16-7.09"		Shank: CTT40 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 40 \| L (in): 7.09 \| H (mm): 70
CTT40-SK20-2.60"		Shank: CTT40 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 44.3 \| L (in): 2.60 \| H (mm): 60
CTT40-SK20-2.95"		Shank: CTT40 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 2.95 \| H (mm): 70
CTT40-SK20-3.54"		Shank: CTT40 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 3.54 \| H (mm): 80
CTT40-SK20-4.72"		Shank: CTT40 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 4.72 \| H (mm): 80
CTT40-SK20-5.91"		Shank: CTT40 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 5.91 \| H (mm): 80
CTT40-SK25-2.95"		Shank: CTT40 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 44.3 \| L (in): 2.95 \| H (mm): 75
CTT40-SK25-3.54"		Shank: CTT40 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 3.54 \| H (mm): 75
CTT40-SK25-4.72"		Shank: CTT40 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 4.72 \| H (mm): 85
CTT40-SK25-5.91"		Shank: CTT40 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 5.91 \| H (mm): 85
CTT50-SK06-4.13"		Shank: CTT50 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 4.13 \| H (mm): 35
CTT50-SK06-5.31"		Shank: CTT50 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 5.31 \| H (mm): 35
CTT50-SK06-6.50"		Shank: CTT50 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 6.50 \| H (mm): 35
CTT50-SK06-7.87"		Shank: CTT50 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 7.87 \| H (mm): 35
CTT50-SK10-4.13"		Shank: CTT50 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 4.13 \| H (mm): 50
CTT50-SK10-5.31"		Shank: CTT50 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 5.31 \| H (mm): 50
CTT50-SK10-6.50"		Shank: CTT50 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 6.50 \| H (mm): 50
CTT50-SK10-7.87"		Shank: CTT50 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 7.87 \| H (mm): 50
CTT50-SK10-8.86"		Shank: CTT50 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 8.86 \| H (mm): 50
CTT50-SK13-4.13"		Shank: CTT50 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 4.13 \| H (mm): 65
CTT50-SK13-5.31"		Shank: CTT50 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 5.31 \| H (mm): 65
CTT50-SK13-6.50"		Shank: CTT50 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 6.50 \| H (mm): 65
CTT50-SK13-7.87"		Shank: CTT50 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 7.87 \| H (mm): 65
CTT50-SK16-4.13"		Shank: CTT50 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 40 \| L (in): 4.13 \| H (mm): 70
CTT50-SK16-5.31"		Shank: CTT50 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 40 \| L (in): 5.31 \| H (mm): 70
CTT50-SK16-6.50"		Shank: CTT50 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 40 \| L (in): 6.50 \| H (mm): 70
CTT50-SK16-7.87"		Shank: CTT50 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 40 \| L (in): 7.87 \| H (mm): 70
CTT50-SK20-4.13"		Shank: CTT50 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 4.13 \| H (mm): 80
CTT50-SK20-5.31"		Shank: CTT50 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 5.31 \| H (mm): 80
CTT50-SK20-6.50"		Shank: CTT50 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 6.50 \| H (mm): 80
CTT50-SK20-7.87"		Shank: CTT50 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 7.87 \| H (mm): 80
CTT50-SK25-4.13"		Shank: CTT50 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 4.13 \| H (mm): 85
CTT50-SK25-5.31"		Shank: CTT50 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 5.31 \| H (mm): 85
CTT50-SK25-6.50"		Shank: CTT50 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 6.50 \| H (mm): 85
CTT50-SK25-7.87"		Shank: CTT50 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 7.87 \| H (mm): 85
CTT50-SK25-9.84"		Shank: CTT50 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 9.84 \| H (mm): 85

Collet ChucksSamchully

57 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully CTT SK Collet Chuck

Brand Samchully·Collet Chucks

Available part numbers (57)

CTT40-SK06-2.36", CTT40-SK06-3.54", CTT40-SK06-4.72", CTT40-SK06-5.91", CTT40-SK10-2.36", CTT40-SK10-2.95", CTT40-SK10-3.54", CTT40-SK10-4.72", CTT40-SK10-5.91", CTT40-SK10-7.09" + 47 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CTT40-SK06-2.36"	Shank: CTT40 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 2.36 \| H (mm): 35
	CTT40-SK06-3.54"	Shank: CTT40 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 3.54 \| H (mm): 35
	CTT40-SK06-4.72"	Shank: CTT40 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 4.72 \| H (mm): 35
	CTT40-SK06-5.91"	Shank: CTT40 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 5.91 \| H (mm): 35
	CTT40-SK10-2.36"	Shank: CTT40 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 2.36 \| H (mm): 50
	CTT40-SK10-2.95"	Shank: CTT40 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 2.95 \| H (mm): 50
	CTT40-SK10-3.54"	Shank: CTT40 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 3.54 \| H (mm): 50
	CTT40-SK10-4.72"	Shank: CTT40 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 4.72 \| H (mm): 50
	CTT40-SK10-5.91"	Shank: CTT40 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 5.91 \| H (mm): 50
	CTT40-SK10-7.09"	Shank: CTT40 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 7.09 \| H (mm): 50
	CTT40-SK13-2.50"	Shank: CTT40 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 2.50 \| H (mm): 65
	CTT40-SK13-2.95"	Shank: CTT40 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 2.95 \| H (mm): 65
	CTT40-SK13-3.54"	Shank: CTT40 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 3.54 \| H (mm): 65
	CTT40-SK13-4.72"	Shank: CTT40 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 4.72 \| H (mm): 65
	CTT40-SK13-5.91"	Shank: CTT40 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 5.91 \| H (mm): 65
	CTT40-SK13-7.09"	Shank: CTT40 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 7.09 \| H (mm): 65
	CTT40-SK16-2.60"	Shank: CTT40 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 44.3 \| L (in): 2.60 \| H (mm): 65
	CTT40-SK16-2.95"	Shank: CTT40 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 44.3 \| L (in): 2.95 \| H (mm): 67
	CTT40-SK16-3.54"	Shank: CTT40 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 44.3 \| L (in): 3.54 \| H (mm): 70
	CTT40-SK16-4.72"	Shank: CTT40 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 40 \| L (in): 4.72 \| H (mm): 70
	CTT40-SK16-5.91"	Shank: CTT40 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 40 \| L (in): 5.91 \| H (mm): 70
	CTT40-SK16-7.09"	Shank: CTT40 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 40 \| L (in): 7.09 \| H (mm): 70
	CTT40-SK20-2.60"	Shank: CTT40 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 44.3 \| L (in): 2.60 \| H (mm): 60
	CTT40-SK20-2.95"	Shank: CTT40 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 2.95 \| H (mm): 70
	CTT40-SK20-3.54"	Shank: CTT40 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 3.54 \| H (mm): 80
	CTT40-SK20-4.72"	Shank: CTT40 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 4.72 \| H (mm): 80
	CTT40-SK20-5.91"	Shank: CTT40 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 5.91 \| H (mm): 80
	CTT40-SK25-2.95"	Shank: CTT40 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 44.3 \| L (in): 2.95 \| H (mm): 75
	CTT40-SK25-3.54"	Shank: CTT40 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 3.54 \| H (mm): 75
	CTT40-SK25-4.72"	Shank: CTT40 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 4.72 \| H (mm): 85
	CTT40-SK25-5.91"	Shank: CTT40 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 5.91 \| H (mm): 85
	CTT50-SK06-4.13"	Shank: CTT50 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 4.13 \| H (mm): 35
	CTT50-SK06-5.31"	Shank: CTT50 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 5.31 \| H (mm): 35
	CTT50-SK06-6.50"	Shank: CTT50 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 6.50 \| H (mm): 35
	CTT50-SK06-7.87"	Shank: CTT50 \| Ød (mm): 1.8~6.0 \| ØD (mm): 22 \| ØD1 (mm): 22 \| L (in): 7.87 \| H (mm): 35
	CTT50-SK10-4.13"	Shank: CTT50 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 4.13 \| H (mm): 50
	CTT50-SK10-5.31"	Shank: CTT50 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 5.31 \| H (mm): 50
	CTT50-SK10-6.50"	Shank: CTT50 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 6.50 \| H (mm): 50
	CTT50-SK10-7.87"	Shank: CTT50 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 7.87 \| H (mm): 50
	CTT50-SK10-8.86"	Shank: CTT50 \| Ød (mm): 1.75~10.0 \| ØD (mm): 28 \| ØD1 (mm): 28 \| L (in): 8.86 \| H (mm): 50
	CTT50-SK13-4.13"	Shank: CTT50 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 4.13 \| H (mm): 65
	CTT50-SK13-5.31"	Shank: CTT50 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 5.31 \| H (mm): 65
	CTT50-SK13-6.50"	Shank: CTT50 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 6.50 \| H (mm): 65
	CTT50-SK13-7.87"	Shank: CTT50 \| Ød (mm): 2.75~13.0 \| ØD (mm): 33 \| ØD1 (mm): 33 \| L (in): 7.87 \| H (mm): 65
	CTT50-SK16-4.13"	Shank: CTT50 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 40 \| L (in): 4.13 \| H (mm): 70
	CTT50-SK16-5.31"	Shank: CTT50 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 40 \| L (in): 5.31 \| H (mm): 70
	CTT50-SK16-6.50"	Shank: CTT50 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 40 \| L (in): 6.50 \| H (mm): 70
	CTT50-SK16-7.87"	Shank: CTT50 \| Ød (mm): 2.75~16.0 \| ØD (mm): 40 \| ØD1 (mm): 40 \| L (in): 7.87 \| H (mm): 70
	CTT50-SK20-4.13"	Shank: CTT50 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 4.13 \| H (mm): 80
	CTT50-SK20-5.31"	Shank: CTT50 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 5.31 \| H (mm): 80
	CTT50-SK20-6.50"	Shank: CTT50 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 6.50 \| H (mm): 80
	CTT50-SK20-7.87"	Shank: CTT50 \| Ød (mm): 3.6~20.0 \| ØD (mm): 48.5 \| ØD1 (mm): 48.5 \| L (in): 7.87 \| H (mm): 80
	CTT50-SK25-4.13"	Shank: CTT50 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 4.13 \| H (mm): 85
	CTT50-SK25-5.31"	Shank: CTT50 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 5.31 \| H (mm): 85
	CTT50-SK25-6.50"	Shank: CTT50 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 6.50 \| H (mm): 85
	CTT50-SK25-7.87"	Shank: CTT50 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 7.87 \| H (mm): 85
	CTT50-SK25-9.84"	Shank: CTT50 \| Ød (mm): 7.6~25.4 \| ØD (mm): 55 \| ØD1 (mm): 55 \| L (in): 9.84 \| H (mm): 85
