• Samchully CTT SPEEDIA High-Speed SK Collet Chuck
1 1

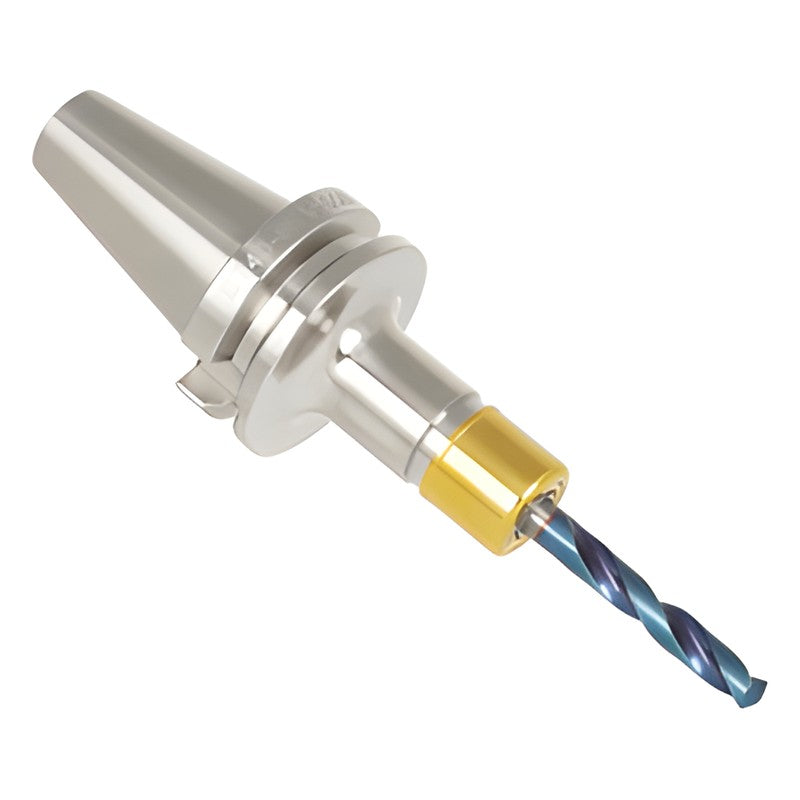

Samchully CTT SPEEDIA High-Speed SK Collet Chuck

Samchully CTT SPEEDIA High-Speed SK Collet Chuck

SPEEDIA High-Speed SK Collet Chuck with CTT (ASME B5.50 CAT taper) shank, inch sizes, available in CTT40, CTT50 sizes.

Key features

  • SK collets give double the gripping strength of ER collets
  • Run-out within 0.003 mm at 4D
  • Balanced for high-speed machining

Specifications

Shank standard ASME B5.50
Balancing grade G2.5
Max speed (rpm) 25,000
CTT40-SK06-2.60S" Shank: CTT40 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 44.3 | L (in): 2.60 | H (mm): 35
CTT40-SK06-3.54S" Shank: CTT40 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 19.5 | L (in): 3.54 | H (mm): 35
CTT40-SK06-4.72S" Shank: CTT40 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 19.5 | L (in): 4.72 | H (mm): 35
CTT40-SK06-5.91S" Shank: CTT40 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 19.5 | L (in): 5.91 | H (mm): 35
CTT40-SK10-2.60S" Shank: CTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 44.3 | L (in): 2.60 | H (mm): 50
CTT40-SK10-2.95S" Shank: CTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 2.95 | H (mm): 50
CTT40-SK10-3.54S" Shank: CTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 3.54 | H (mm): 50
CTT40-SK10-4.72S" Shank: CTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 4.72 | H (mm): 50
CTT40-SK10-5.91S" Shank: CTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 5.91 | H (mm): 50
CTT40-SK10-7.09S" Shank: CTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 7.09 | H (mm): 50
CTT40-SK10-9.84S" Shank: CTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 9.84 | H (mm): 50
CTT40-SK13-2.76S" Shank: CTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 44.3 | L (in): 2.36 | H (mm): 65
CTT40-SK13-2.95S" Shank: CTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 2.95 | H (mm): 65
CTT40-SK13-3.54S" Shank: CTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 3.54 | H (mm): 65
CTT40-SK13-4.72S" Shank: CTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 4.72 | H (mm): 65
CTT40-SK13-5.91S" Shank: CTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 5.91 | H (mm): 65
CTT40-SK13-7.09S" Shank: CTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 7.09 | H (mm): 65
CTT40-SK13-9.84S" Shank: CTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 9.84 | H (mm): 65
CTT40-SK16-2.36S" Shank: CTT40 | ØD (mm): 40 | ØD1 (mm): 44.3 | L (in): 2.36 | H (mm): 70 | Note: May be incompatible with some machines depending on flange specification
CTT40-SK16-2.95S" Shank: CTT40 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 2.95 | H (mm): 70
CTT40-SK16-3.54S" Shank: CTT40 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 3.54 | H (mm): 70
CTT40-SK16-4.72S" Shank: CTT40 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 4.72 | H (mm): 70
CTT40-SK16-5.91S" Shank: CTT40 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 5.91 | H (mm): 70
CTT40-SK16-7.09S" Shank: CTT40 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 7.09 | H (mm): 70
CTT40-SK20-1.97S" Shank: CTT40 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 1.97 | H (mm): 78 | Note: Use short nut; May be incompatible with some machines depending on flange specification
CTT40-SK20-2.95S" Shank: CTT40 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 44.3 | L (in): 2.95 | H (mm): 70
CTT40-SK20-3.54S" Shank: CTT40 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 3.54 | H (mm): 80
CTT40-SK20-4.72S" Shank: CTT40 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 4.72 | H (mm): 80
CTT40-SK20-5.91S" Shank: CTT40 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 5.91 | H (mm): 80
CTT40-SK25-2.95S" Shank: CTT40 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 44.3 | L (in): 2.95 | H (mm): 75 | Note: Use short nut
CTT40-SK25-3.54S" Shank: CTT40 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (in): 3.54 | H (mm): 75
CTT40-SK25-4.72S" Shank: CTT40 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (in): 4.72 | H (mm): 85
CTT50-SK06-4.13S" Shank: CTT50 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 19.5 | L (in): 4.13 | H (mm): 35
CTT50-SK06-5.31S" Shank: CTT50 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 19.5 | L (in): 5.31 | H (mm): 35
CTT50-SK06-6.50S" Shank: CTT50 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 19.5 | L (in): 6.50 | H (mm): 35
CTT50-SK06-7.87S" Shank: CTT50 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 19.5 | L (in): 7.87 | H (mm): 35
CTT50-SK10-4.13S" Shank: CTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 4.13 | H (mm): 50
CTT50-SK10-5.31S" Shank: CTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 5.31 | H (mm): 50
CTT50-SK10-6.50S" Shank: CTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 6.50 | H (mm): 50
CTT50-SK10-7.87S" Shank: CTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 7.87 | H (mm): 50
CTT50-SK10-8.86S" Shank: CTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 8.86 | H (mm): 50
CTT50-SK13-4.13S" Shank: CTT50 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 4.13 | H (mm): 65
CTT50-SK13-5.31S" Shank: CTT50 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 5.31 | H (mm): 65
CTT50-SK13-6.50S" Shank: CTT50 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 6.50 | H (mm): 65
CTT50-SK13-7.87S" Shank: CTT50 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 7.87 | H (mm): 65
CTT50-SK16-4.13S" Shank: CTT50 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 4.13 | H (mm): 70
CTT50-SK16-5.31S" Shank: CTT50 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 5.31 | H (mm): 70
CTT50-SK16-6.50S" Shank: CTT50 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 6.50 | H (mm): 70
CTT50-SK16-7.87S" Shank: CTT50 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 7.87 | H (mm): 70
CTT50-SK16-9.84S" Shank: CTT50 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 9.84 | H (mm): 70
CTT50-SK20-4.13S" Shank: CTT50 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 4.13 | H (mm): 80
CTT50-SK20-5.31S" Shank: CTT50 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 5.31 | H (mm): 80
CTT50-SK20-6.50S" Shank: CTT50 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 6.50 | H (mm): 80
CTT50-SK20-7.87S" Shank: CTT50 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 7.87 | H (mm): 80
CTT50-SK25-4.13S" Shank: CTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (in): 4.13 | H (mm): 85
CTT50-SK25-5.31S" Shank: CTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (in): 5.31 | H (mm): 85
CTT50-SK25-6.50S" Shank: CTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (in): 6.50 | H (mm): 85
CTT50-SK25-7.87S" Shank: CTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (in): 7.87 | H (mm): 85
CTT50-SK25-9.84S" Shank: CTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (in): 9.84 | H (mm): 85
Collet ChucksSamchully
59 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully CTT SPEEDIA High-Speed SK Collet Chuck

Brand Samchully·Collet Chucks

Available part numbers (59)

CTT40-SK06-2.60S", CTT40-SK06-3.54S", CTT40-SK06-4.72S", CTT40-SK06-5.91S", CTT40-SK10-2.60S", CTT40-SK10-2.95S", CTT40-SK10-3.54S", CTT40-SK10-4.72S", CTT40-SK10-5.91S", CTT40-SK10-7.09S" + 49 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CTT40-SK06-2.60S"Shank: CTT40 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 44.3 | L (in): 2.60 | H (mm): 35
CTT40-SK06-3.54S"Shank: CTT40 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 19.5 | L (in): 3.54 | H (mm): 35
CTT40-SK06-4.72S"Shank: CTT40 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 19.5 | L (in): 4.72 | H (mm): 35
CTT40-SK06-5.91S"Shank: CTT40 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 19.5 | L (in): 5.91 | H (mm): 35
CTT40-SK10-2.60S"Shank: CTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 44.3 | L (in): 2.60 | H (mm): 50
CTT40-SK10-2.95S"Shank: CTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 2.95 | H (mm): 50
CTT40-SK10-3.54S"Shank: CTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 3.54 | H (mm): 50
CTT40-SK10-4.72S"Shank: CTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 4.72 | H (mm): 50
CTT40-SK10-5.91S"Shank: CTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 5.91 | H (mm): 50
CTT40-SK10-7.09S"Shank: CTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 7.09 | H (mm): 50
CTT40-SK10-9.84S"Shank: CTT40 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 9.84 | H (mm): 50
CTT40-SK13-2.76S"Shank: CTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 44.3 | L (in): 2.36 | H (mm): 65
CTT40-SK13-2.95S"Shank: CTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 2.95 | H (mm): 65
CTT40-SK13-3.54S"Shank: CTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 3.54 | H (mm): 65
CTT40-SK13-4.72S"Shank: CTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 4.72 | H (mm): 65
CTT40-SK13-5.91S"Shank: CTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 5.91 | H (mm): 65
CTT40-SK13-7.09S"Shank: CTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 7.09 | H (mm): 65
CTT40-SK13-9.84S"Shank: CTT40 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 9.84 | H (mm): 65
CTT40-SK16-2.36S"Shank: CTT40 | ØD (mm): 40 | ØD1 (mm): 44.3 | L (in): 2.36 | H (mm): 70 | Note: May be incompatible with some machines depending on flange specification
CTT40-SK16-2.95S"Shank: CTT40 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 2.95 | H (mm): 70
CTT40-SK16-3.54S"Shank: CTT40 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 3.54 | H (mm): 70
CTT40-SK16-4.72S"Shank: CTT40 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 4.72 | H (mm): 70
CTT40-SK16-5.91S"Shank: CTT40 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 5.91 | H (mm): 70
CTT40-SK16-7.09S"Shank: CTT40 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 7.09 | H (mm): 70
CTT40-SK20-1.97S"Shank: CTT40 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 1.97 | H (mm): 78 | Note: Use short nut; May be incompatible with some machines depending on flange specification
CTT40-SK20-2.95S"Shank: CTT40 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 44.3 | L (in): 2.95 | H (mm): 70
CTT40-SK20-3.54S"Shank: CTT40 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 3.54 | H (mm): 80
CTT40-SK20-4.72S"Shank: CTT40 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 4.72 | H (mm): 80
CTT40-SK20-5.91S"Shank: CTT40 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 5.91 | H (mm): 80
CTT40-SK25-2.95S"Shank: CTT40 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 44.3 | L (in): 2.95 | H (mm): 75 | Note: Use short nut
CTT40-SK25-3.54S"Shank: CTT40 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (in): 3.54 | H (mm): 75
CTT40-SK25-4.72S"Shank: CTT40 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (in): 4.72 | H (mm): 85
CTT50-SK06-4.13S"Shank: CTT50 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 19.5 | L (in): 4.13 | H (mm): 35
CTT50-SK06-5.31S"Shank: CTT50 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 19.5 | L (in): 5.31 | H (mm): 35
CTT50-SK06-6.50S"Shank: CTT50 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 19.5 | L (in): 6.50 | H (mm): 35
CTT50-SK06-7.87S"Shank: CTT50 | Ød (mm): 1.8~6.0 | ØD (mm): 19.5 | ØD1 (mm): 19.5 | L (in): 7.87 | H (mm): 35
CTT50-SK10-4.13S"Shank: CTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 4.13 | H (mm): 50
CTT50-SK10-5.31S"Shank: CTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 5.31 | H (mm): 50
CTT50-SK10-6.50S"Shank: CTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 6.50 | H (mm): 50
CTT50-SK10-7.87S"Shank: CTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 7.87 | H (mm): 50
CTT50-SK10-8.86S"Shank: CTT50 | Ød (mm): 1.75~10.0 | ØD (mm): 27.1 | ØD1 (mm): 27.5 | L (in): 8.86 | H (mm): 50
CTT50-SK13-4.13S"Shank: CTT50 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 4.13 | H (mm): 65
CTT50-SK13-5.31S"Shank: CTT50 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 5.31 | H (mm): 65
CTT50-SK13-6.50S"Shank: CTT50 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 6.50 | H (mm): 65
CTT50-SK13-7.87S"Shank: CTT50 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (in): 7.87 | H (mm): 65
CTT50-SK16-4.13S"Shank: CTT50 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 4.13 | H (mm): 70
CTT50-SK16-5.31S"Shank: CTT50 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 5.31 | H (mm): 70
CTT50-SK16-6.50S"Shank: CTT50 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 6.50 | H (mm): 70
CTT50-SK16-7.87S"Shank: CTT50 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 7.87 | H (mm): 70
CTT50-SK16-9.84S"Shank: CTT50 | ØD (mm): 40 | ØD1 (mm): 40 | L (in): 9.84 | H (mm): 70
CTT50-SK20-4.13S"Shank: CTT50 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 4.13 | H (mm): 80
CTT50-SK20-5.31S"Shank: CTT50 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 5.31 | H (mm): 80
CTT50-SK20-6.50S"Shank: CTT50 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 6.50 | H (mm): 80
CTT50-SK20-7.87S"Shank: CTT50 | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (in): 7.87 | H (mm): 80
CTT50-SK25-4.13S"Shank: CTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (in): 4.13 | H (mm): 85
CTT50-SK25-5.31S"Shank: CTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (in): 5.31 | H (mm): 85
CTT50-SK25-6.50S"Shank: CTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (in): 6.50 | H (mm): 85
CTT50-SK25-7.87S"Shank: CTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (in): 7.87 | H (mm): 85
CTT50-SK25-9.84S"Shank: CTT50 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (in): 9.84 | H (mm): 85

Need a different model, or a part not listed here? Send us your parts list →
