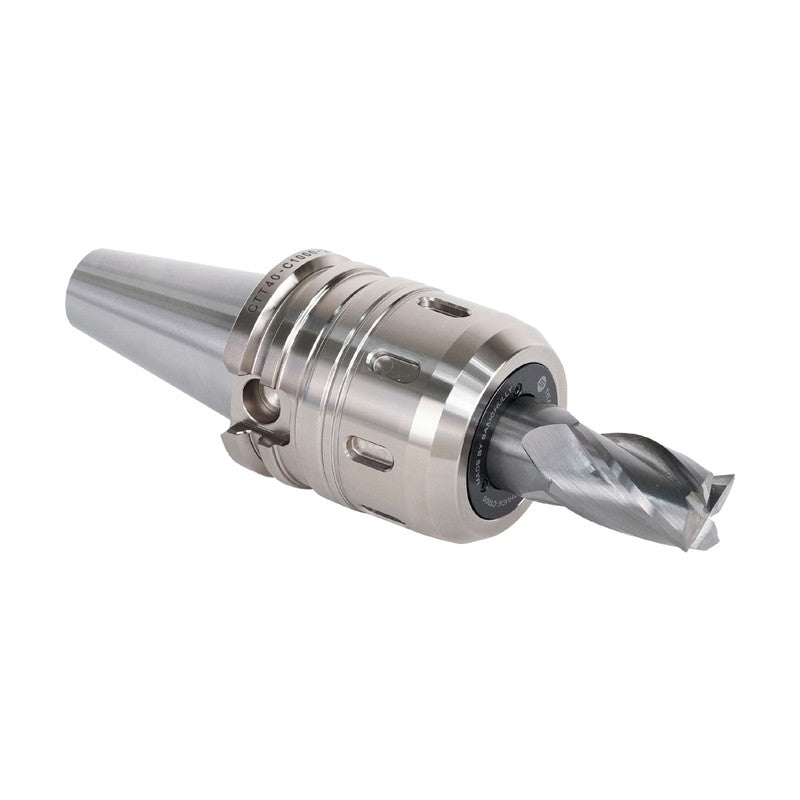

Samchully CTT Standard Titan Milling Chuck

Samchully CTT Standard Titan Milling Chuck

Standard Titan Milling Chuck with CTT (ASME B5.50 CAT taper) shank, inch sizes, available in CTT40, CTT50 sizes.

Key features

  • Extreme gripping strength with high precision for aggressive material removal
  • Minimal run-out extends cutting tool life and improves surface finish
  • Straight collet and spanner available as options

Specifications

Shank standard ASME B5.50
Run-out 10 µm
CTT40-C0750-2.56" Shank: CTT40 | Ød (mm): 19.05 | ØD (mm): 54 | L (in): 2.56 | H (mm): 73.4 | E (mm): 56 | Note: Short type cap; May be incompatible with some machines depending on flange specification
CTT40-C0750-3.35" Shank: CTT40 | Ød (mm): 19.05 | ØD (mm): 54 | L (in): 3.35 | H (mm): 80 | E (mm): 56
CTT40-C1000-2.95" Shank: CTT40 | Ød (mm): 25.4 | ØD (mm): 62 | L (in): 2.95 | H (mm): 85 | E (mm): 57 | Note: May be incompatible with some machines depending on flange specification
CTT40-C1000-3.54" Shank: CTT40 | Ød (mm): 25.4 | ØD (mm): 62 | L (in): 3.54 | H (mm): 85 | E (mm): 57
CTT40-C1250-3.35" Shank: CTT40 | Ød (mm): 31.75 | ØD (mm): 72 | L (in): 3.35 | H (mm): 80 | E (mm): 64 | Note: May be incompatible with some machines depending on flange specification
CTT40-C1250-4.13" Shank: CTT40 | Ød (mm): 31.75 | ØD (mm): 72 | L (in): 4.13 | H (mm): 100 | E (mm): 64
CTT40-C1250-5.31" Shank: CTT40 | Ød (mm): 31.75 | ØD (mm): 72 | L (in): 5.31 | H (mm): 105 | E (mm): 64
CTT50-C0750-4.13" Shank: CTT50 | Ød (mm): 19.05 | ØD (mm): 54 | L (in): 4.13 | H (mm): 80 | E (mm): 56
CTT50-C0750-5.31" Shank: CTT50 | Ød (mm): 19.05 | ØD (mm): 54 | L (in): 5.31 | H (mm): 80 | E (mm): 56
CTT50-C0750-6.50" Shank: CTT50 | Ød (mm): 19.05 | ØD (mm): 54 | L (in): 6.50 | H (mm): 80 | E (mm): 56
CTT50-C1000-4.13" Shank: CTT50 | Ød (mm): 25.4 | ØD (mm): 62 | L (in): 4.13 | H (mm): 90 | E (mm): 65
CTT50-C1000-5.31" Shank: CTT50 | Ød (mm): 25.4 | ØD (mm): 62 | L (in): 5.31 | H (mm): 90 | E (mm): 65
CTT50-C1000-6.50" Shank: CTT50 | Ød (mm): 25.4 | ØD (mm): 62 | L (in): 6.50 | H (mm): 90 | E (mm): 65
CTT50-C1250-4.13" Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 75 | L (in): 4.13 | H (mm): 105 | E (mm): 71
CTT50-C1250-5.31" Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 75 | L (in): 5.31 | H (mm): 105 | E (mm): 71
CTT50-C1250-6.50" Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 75 | L (in): 6.50 | H (mm): 105 | E (mm): 71
CTT50-C1250-7.87" Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 75 | L (in): 7.87 | H (mm): 105 | E (mm): 71
Milling ChucksSamchully
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully CTT Standard Titan Milling Chuck

Brand Samchully·Milling Chucks

Available part numbers (17)

CTT40-C0750-2.56", CTT40-C0750-3.35", CTT40-C1000-2.95", CTT40-C1000-3.54", CTT40-C1250-3.35", CTT40-C1250-4.13", CTT40-C1250-5.31", CTT50-C0750-4.13", CTT50-C0750-5.31", CTT50-C0750-6.50" + 7 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CTT40-C0750-2.56"Shank: CTT40 | Ød (mm): 19.05 | ØD (mm): 54 | L (in): 2.56 | H (mm): 73.4 | E (mm): 56 | Note: Short type cap; May be incompatible with some machines depending on flange specification
CTT40-C0750-3.35"Shank: CTT40 | Ød (mm): 19.05 | ØD (mm): 54 | L (in): 3.35 | H (mm): 80 | E (mm): 56
CTT40-C1000-2.95"Shank: CTT40 | Ød (mm): 25.4 | ØD (mm): 62 | L (in): 2.95 | H (mm): 85 | E (mm): 57 | Note: May be incompatible with some machines depending on flange specification
CTT40-C1000-3.54"Shank: CTT40 | Ød (mm): 25.4 | ØD (mm): 62 | L (in): 3.54 | H (mm): 85 | E (mm): 57
CTT40-C1250-3.35"Shank: CTT40 | Ød (mm): 31.75 | ØD (mm): 72 | L (in): 3.35 | H (mm): 80 | E (mm): 64 | Note: May be incompatible with some machines depending on flange specification
CTT40-C1250-4.13"Shank: CTT40 | Ød (mm): 31.75 | ØD (mm): 72 | L (in): 4.13 | H (mm): 100 | E (mm): 64
CTT40-C1250-5.31"Shank: CTT40 | Ød (mm): 31.75 | ØD (mm): 72 | L (in): 5.31 | H (mm): 105 | E (mm): 64
CTT50-C0750-4.13"Shank: CTT50 | Ød (mm): 19.05 | ØD (mm): 54 | L (in): 4.13 | H (mm): 80 | E (mm): 56
CTT50-C0750-5.31"Shank: CTT50 | Ød (mm): 19.05 | ØD (mm): 54 | L (in): 5.31 | H (mm): 80 | E (mm): 56
CTT50-C0750-6.50"Shank: CTT50 | Ød (mm): 19.05 | ØD (mm): 54 | L (in): 6.50 | H (mm): 80 | E (mm): 56
CTT50-C1000-4.13"Shank: CTT50 | Ød (mm): 25.4 | ØD (mm): 62 | L (in): 4.13 | H (mm): 90 | E (mm): 65
CTT50-C1000-5.31"Shank: CTT50 | Ød (mm): 25.4 | ØD (mm): 62 | L (in): 5.31 | H (mm): 90 | E (mm): 65
CTT50-C1000-6.50"Shank: CTT50 | Ød (mm): 25.4 | ØD (mm): 62 | L (in): 6.50 | H (mm): 90 | E (mm): 65
CTT50-C1250-4.13"Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 75 | L (in): 4.13 | H (mm): 105 | E (mm): 71
CTT50-C1250-5.31"Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 75 | L (in): 5.31 | H (mm): 105 | E (mm): 71
CTT50-C1250-6.50"Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 75 | L (in): 6.50 | H (mm): 105 | E (mm): 71
CTT50-C1250-7.87"Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 75 | L (in): 7.87 | H (mm): 105 | E (mm): 71
