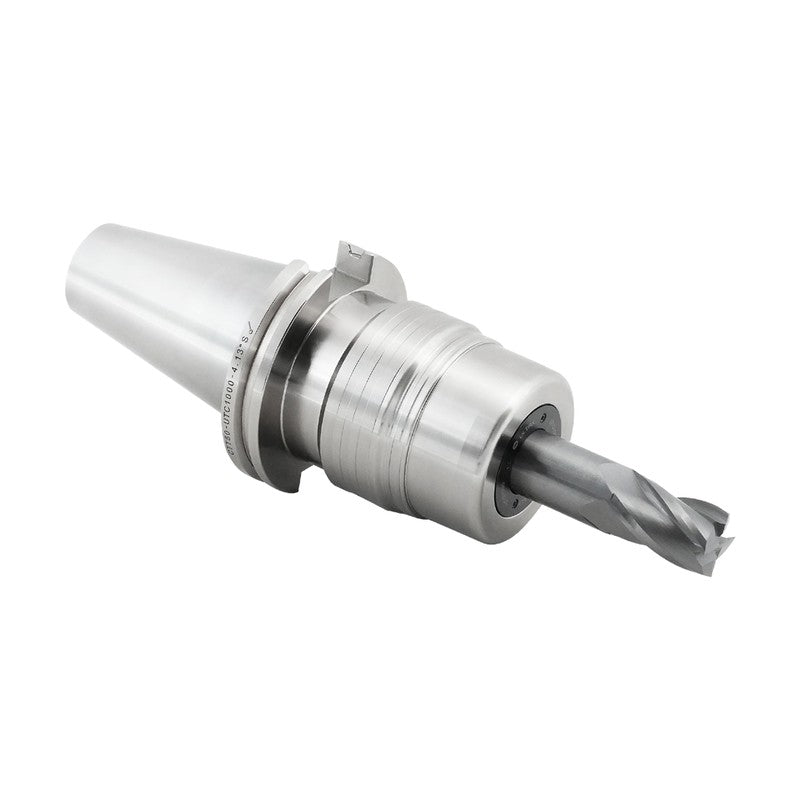

Samchully CTT ULTRA High-Rigidity Milling Chuck

Samchully CTT ULTRA High-Rigidity Milling Chuck

ULTRA High-Rigidity Milling Chuck with CTT (ASME B5.50 CAT taper) shank, inch sizes, available in CTT50 sizes.

Key features

  • Thicker body design increases rigidity for machining exotic alloys
  • Smooth nut improves balance and prevents coolant flaring
  • Used with a ring spanner

Specifications

Shank standard ASME B5.50
Max speed (rpm) 25,000
Run-out 5 µm
CTT50-UTC0750-4.13S" Shank: CTT50 | Ød (mm): 19.05 | ØD (mm): 60 | L (in): 4.13 | H (mm): 80 | E (mm): 56
CTT50-UTC1000-4.13S" Shank: CTT50 | Ød (mm): 25.4 | ØD (mm): 70 | L (in): 4.23 | H (mm): 90 | E (mm): 65
CTT50-UTC1250-4.53S" Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 80 | L (in): 4.62 | H (mm): 105 | E (mm): 71
Milling ChucksSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully CTT ULTRA High-Rigidity Milling Chuck

Brand Samchully·Milling Chucks

Available part numbers (3)

CTT50-UTC0750-4.13S", CTT50-UTC1000-4.13S", CTT50-UTC1250-4.53S"

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CTT50-UTC0750-4.13S"Shank: CTT50 | Ød (mm): 19.05 | ØD (mm): 60 | L (in): 4.13 | H (mm): 80 | E (mm): 56
CTT50-UTC1000-4.13S"Shank: CTT50 | Ød (mm): 25.4 | ØD (mm): 70 | L (in): 4.23 | H (mm): 90 | E (mm): 65
CTT50-UTC1250-4.53S"Shank: CTT50 | Ød (mm): 31.75 | ØD (mm): 80 | L (in): 4.62 | H (mm): 105 | E (mm): 71
