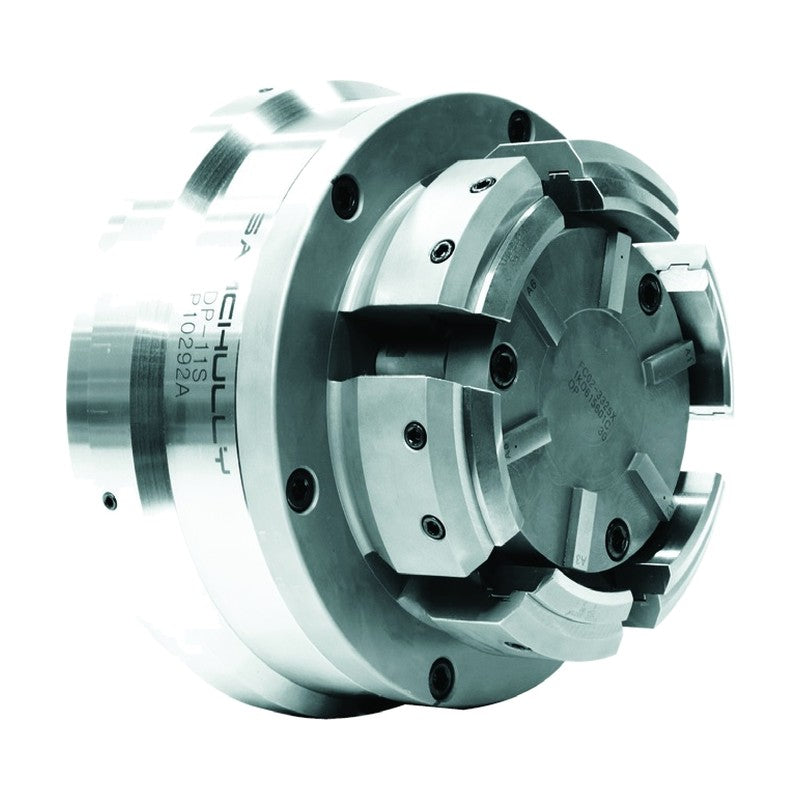

Samchully Diaphragm Chuck DP

Samchully Diaphragm Chuck DP

Diaphragm chuck whose elastic diaphragm increases accuracy and eliminates maintenance.

Key features

  • Sealed body eliminates maintenance
  • Jaws change easily for quick set-up
  • Self-contained cylinder

Specifications

No. of Jaw 3 (6Jaw)
Pressure (kgf/cm²) 4.5
DP-06 Max. Clamping Force (kgf): 450 | Jaw Stroke (mm): 0.23 | Grip Dia. (mm): 44~107 | Max. Speed (rpm): 4500 | Weight (kg): 11
DP-08 Max. Clamping Force (kgf): 720 | Jaw Stroke (mm): 0.25 | Grip Dia. (mm): 76~143 | Max. Speed (rpm): 4000 | Weight (kg): 20
DP-10 Max. Clamping Force (kgf): 1150 | Jaw Stroke (mm): 0.25 | Grip Dia. (mm): 114~181 | Max. Speed (rpm): 3500 | Weight (kg): 26.5
DP-13 Max. Clamping Force (kgf): 2000 | Jaw Stroke (mm): 0.35 | Grip Dia. (mm): 150~248 | Max. Speed (rpm): 3000 | Weight (kg): 43
DP-17 Max. Clamping Force (kgf): 3600 | Jaw Stroke (mm): 0.40 | Grip Dia. (mm): 203~349 | Max. Speed (rpm): 2000 | Weight (kg): 89
Special ChucksSamchully
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Diaphragm Chuck DP

Brand Samchully·Special Chucks

Available part numbers (5)

DP-06, DP-08, DP-10, DP-13, DP-17

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DP-06Max. Clamping Force (kgf): 450 | Jaw Stroke (mm): 0.23 | Grip Dia. (mm): 44~107 | Max. Speed (rpm): 4500 | Weight (kg): 11
DP-08Max. Clamping Force (kgf): 720 | Jaw Stroke (mm): 0.25 | Grip Dia. (mm): 76~143 | Max. Speed (rpm): 4000 | Weight (kg): 20
DP-10Max. Clamping Force (kgf): 1150 | Jaw Stroke (mm): 0.25 | Grip Dia. (mm): 114~181 | Max. Speed (rpm): 3500 | Weight (kg): 26.5
DP-13Max. Clamping Force (kgf): 2000 | Jaw Stroke (mm): 0.35 | Grip Dia. (mm): 150~248 | Max. Speed (rpm): 3000 | Weight (kg): 43
DP-17Max. Clamping Force (kgf): 3600 | Jaw Stroke (mm): 0.40 | Grip Dia. (mm): 203~349 | Max. Speed (rpm): 2000 | Weight (kg): 89
