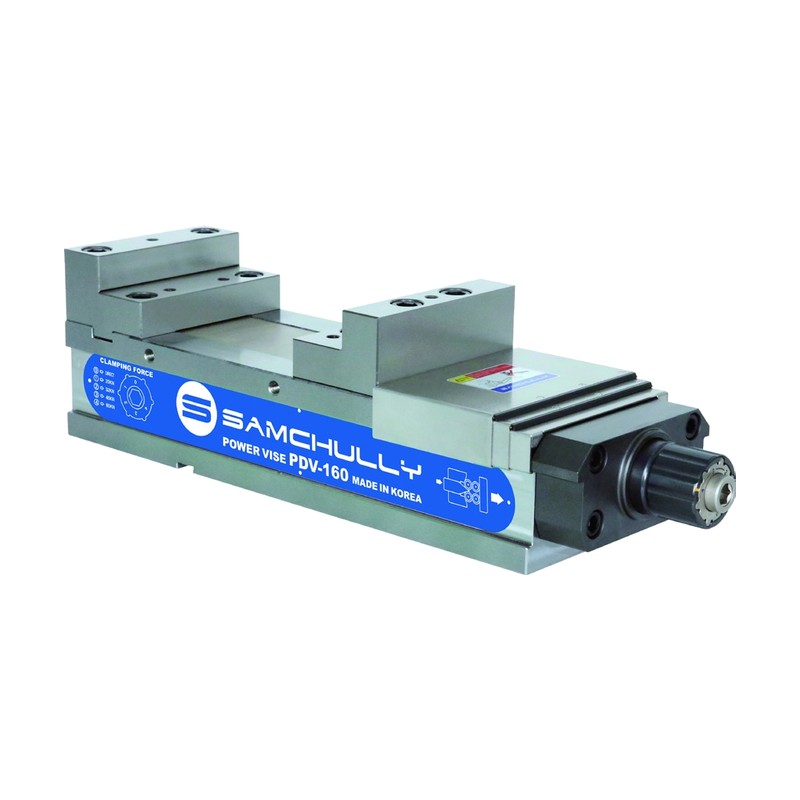

Samchully Direct Drive Step Jaw Power Vise PDV

Samchully Direct Drive Step Jaw Power Vise PDV

Direct-drive power vise with step jaws and four preset grip force settings.

Key features

  • 4 preset grip force settings
  • Step jaws help keep machined or ground plate stock flat
  • Consistent chucking force between operators
PDV-100 Size: 4" | Jaw width (mm): 100 | Jaw height (mm): 40 | Max. opening (mm): 220 | Total height (mm): 115 | Slider height (mm): 75 | Total width (mm): 107 | Total length (mm): 400.5 | Max. gripping force [kN(kgf)]: 25(2551) | Weight (kg): 25
PDV-125 Size: 4" (printed) | Jaw width (mm): 125 | Jaw height (mm): 50 | Max. opening (mm): 320 | Total height (mm): 135 | Slider height (mm): 85 | Total width (mm): 135 | Total length (mm): 505.5 | Max. gripping force [kN(kgf)]: 35(3571) | Weight (kg): 43
PDV-160 Size: 6" | Jaw width (mm): 160 | Jaw height (mm): 60 | Max. opening (mm): 400 | Total height (mm): 160 | Slider height (mm): 100 | Total width (mm): 170 | Total length (mm): 595.5 | Max. gripping force [kN(kgf)]: 60(6122) | Weight (kg): 65
PDV-200 Size: 8" | Jaw width (mm): 200 | Jaw height (mm): 70 | Max. opening (mm): 420 | Total height (mm): 180 | Slider height (mm): 110 | Total width (mm): 214 | Total length (mm): 638.5 | Max. gripping force [kN(kgf)]: 60(6122) | Weight (kg): 100
Machine VisesSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Direct Drive Step Jaw Power Vise PDV

Brand Samchully·Machine Vises

Available part numbers (4)

PDV-100, PDV-125, PDV-160, PDV-200

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PDV-100Size: 4" | Jaw width (mm): 100 | Jaw height (mm): 40 | Max. opening (mm): 220 | Total height (mm): 115 | Slider height (mm): 75 | Total width (mm): 107 | Total length (mm): 400.5 | Max. gripping force [kN(kgf)]: 25(2551) | Weight (kg): 25
PDV-125Size: 4" (printed) | Jaw width (mm): 125 | Jaw height (mm): 50 | Max. opening (mm): 320 | Total height (mm): 135 | Slider height (mm): 85 | Total width (mm): 135 | Total length (mm): 505.5 | Max. gripping force [kN(kgf)]: 35(3571) | Weight (kg): 43
PDV-160Size: 6" | Jaw width (mm): 160 | Jaw height (mm): 60 | Max. opening (mm): 400 | Total height (mm): 160 | Slider height (mm): 100 | Total width (mm): 170 | Total length (mm): 595.5 | Max. gripping force [kN(kgf)]: 60(6122) | Weight (kg): 65
PDV-200Size: 8" | Jaw width (mm): 200 | Jaw height (mm): 70 | Max. opening (mm): 420 | Total height (mm): 180 | Slider height (mm): 110 | Total width (mm): 214 | Total length (mm): 638.5 | Max. gripping force [kN(kgf)]: 60(6122) | Weight (kg): 100
