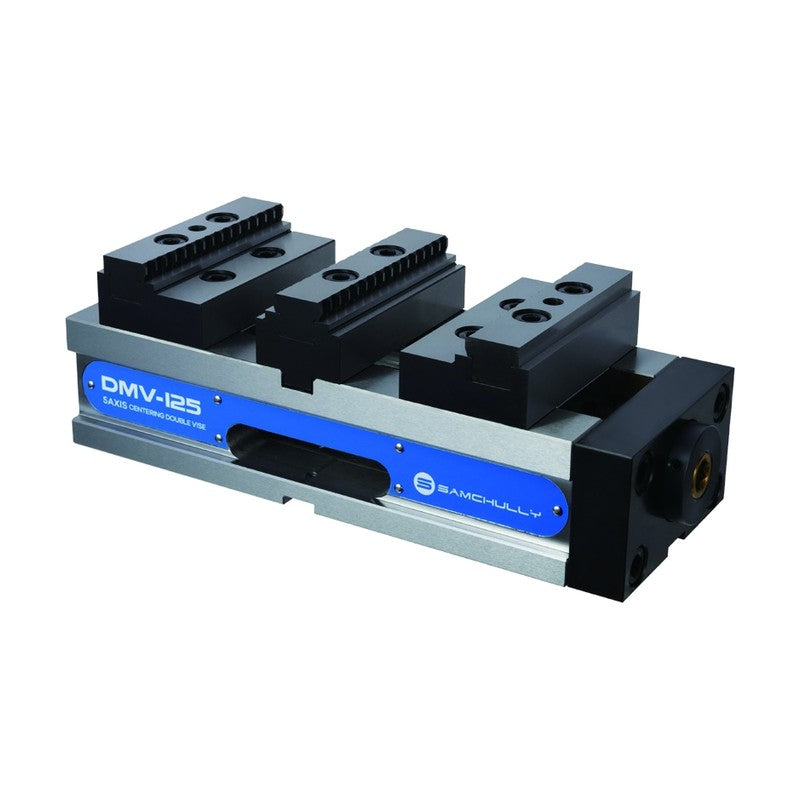

Samchully Double Clamping 5-Axis Vise DMV

Samchully Double Clamping 5-Axis Vise DMV

Double clamping 5-axis vise that clamps two workpieces simultaneously.

Key features

  • Clamps two workpieces simultaneously
  • Compensates up to 2 mm length difference between the two workpieces
  • Suited to saw-cut bar stock, square forgings and castings
DMV-125 Jaw width (mm): 125 | Jaw height (mm): 10 | Max. opening (mm): I1: 46~104 / I2: 46~104 | Total height (mm): 115 | Slider height (mm): 105 | Total width (mm): 126 | Total length (mm): 341 | Max. gripping force [kN(kgf)]: 20(2000) | Weight (kg): 26
Machine VisesSamchully
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Double Clamping 5-Axis Vise DMV

Brand Samchully·Machine Vises

Available part numbers (1)

DMV-125

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DMV-125Jaw width (mm): 125 | Jaw height (mm): 10 | Max. opening (mm): I1: 46~104 / I2: 46~104 | Total height (mm): 115 | Slider height (mm): 105 | Total width (mm): 126 | Total length (mm): 341 | Max. gripping force [kN(kgf)]: 20(2000) | Weight (kg): 26
