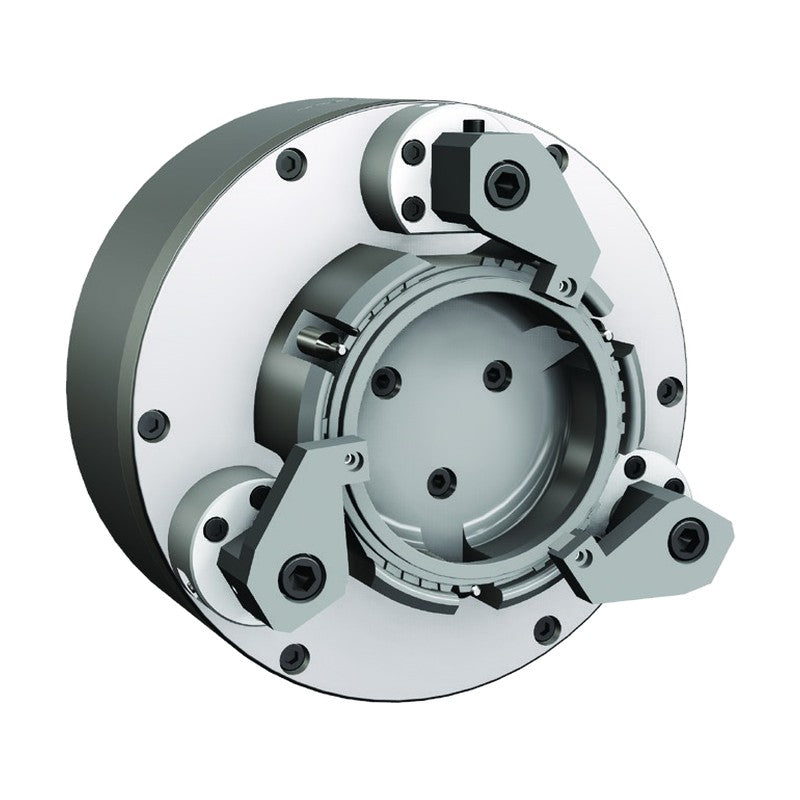

Samchully Finger Chuck FD

Samchully Finger Chuck FD

Finger chuck for workpieces that cannot be gripped on the inner or outer diameter or are prone to deformation.

Key features

  • Floating clamping fingers adjust to workpiece shape
  • Available in 2-jaw, 3-jaw and 4-jaw models
FD-06 Max. Clamping Force (kgf): 1,200 | Max. Drawbar Pull (kgf): 1,500 | Plunger Stroke (mm): 20 | Max. Speed (rpm): 3500 | Weight (kg): 20
FD-08 Max. Clamping Force (kgf): 1,600 | Max. Drawbar Pull (kgf): 2,000 | Plunger Stroke (mm): 20 | Max. Speed (rpm): 3000 | Weight (kg): 32
FD-10 Max. Clamping Force (kgf): 2,000 | Max. Drawbar Pull (kgf): 2,500 | Plunger Stroke (mm): 20 | Max. Speed (rpm): 2500 | Weight (kg): 44
FD-12 Max. Clamping Force (kgf): 2,000 | Max. Drawbar Pull (kgf): 2,500 | Plunger Stroke (mm): 20 | Max. Speed (rpm): 2000 | Weight (kg): 54
FD-15 Max. Clamping Force (kgf): 2,800 | Max. Drawbar Pull (kgf): 3,500 | Plunger Stroke (mm): 25 | Max. Speed (rpm): 1800 | Weight (kg): 97
Special ChucksSamchully
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Finger Chuck FD

Brand Samchully·Special Chucks

Available part numbers (5)

FD-06, FD-08, FD-10, FD-12, FD-15

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FD-06Max. Clamping Force (kgf): 1,200 | Max. Drawbar Pull (kgf): 1,500 | Plunger Stroke (mm): 20 | Max. Speed (rpm): 3500 | Weight (kg): 20
FD-08Max. Clamping Force (kgf): 1,600 | Max. Drawbar Pull (kgf): 2,000 | Plunger Stroke (mm): 20 | Max. Speed (rpm): 3000 | Weight (kg): 32
FD-10Max. Clamping Force (kgf): 2,000 | Max. Drawbar Pull (kgf): 2,500 | Plunger Stroke (mm): 20 | Max. Speed (rpm): 2500 | Weight (kg): 44
FD-12Max. Clamping Force (kgf): 2,000 | Max. Drawbar Pull (kgf): 2,500 | Plunger Stroke (mm): 20 | Max. Speed (rpm): 2000 | Weight (kg): 54
FD-15Max. Clamping Force (kgf): 2,800 | Max. Drawbar Pull (kgf): 3,500 | Plunger Stroke (mm): 25 | Max. Speed (rpm): 1800 | Weight (kg): 97
