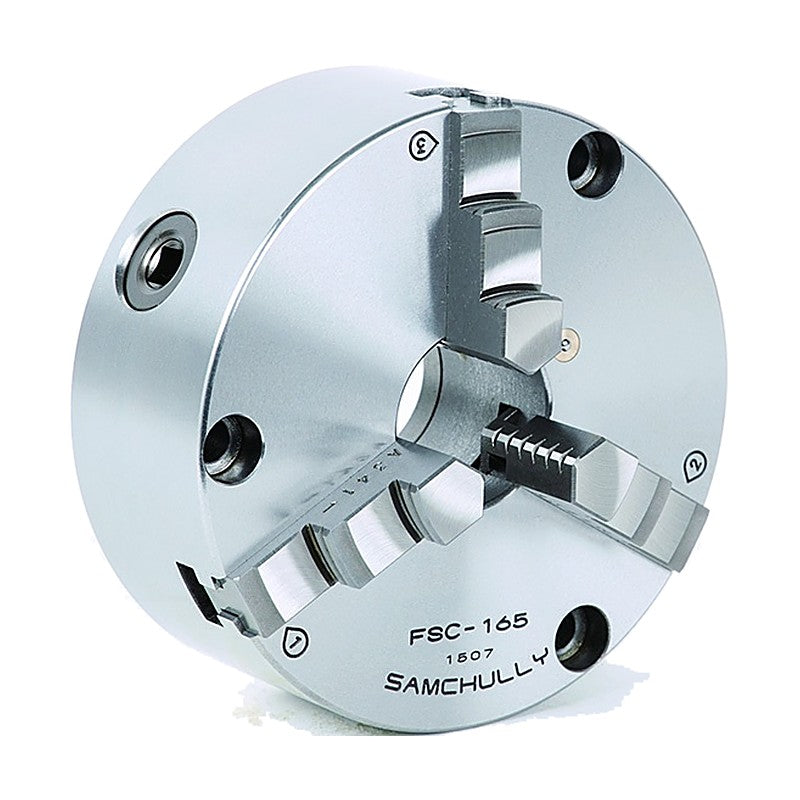

Samchully Front-Mounting Scroll Chuck FSC (Hard Jaws)

Samchully Front-Mounting Scroll Chuck FSC (Hard Jaws)

Front-mounting scroll chuck with hardened jaws.

Key features

  • Includes external and internal gripping jaws
FSC-85 Size (in): 3 | Max. Static Gripping Force (kN (kgf)): 9(918) | Clamping Range External (mm dia.): 2~70 | Clamping Range Internal (mm dia.): 24~64 | Handle Torque (N·m (kgf·m)): 29.4(3.0) | Max. Speed (rpm): 2500 | Weight (kg): 1.5
FSC-110 Size (in): 4 | Max. Static Gripping Force (kN (kgf)): 12(1224) | Clamping Range External (mm dia.): 3~94 | Clamping Range Internal (mm dia.): 29~84 | Handle Torque (N·m (kgf·m)): 44.1(4.1) | Max. Speed (rpm): 2500 | Weight (kg): 3.1
FSC-130 Size (in): 5 | Max. Static Gripping Force (kN (kgf)): 15(1530) | Clamping Range External (mm dia.): 3~110 | Clamping Range Internal (mm dia.): 33~100 | Handle Torque (N·m (kgf·m)): 63.7(6.5) | Max. Speed (rpm): 2500 | Weight (kg): 4.4
FSC-165 Size (in): 6 | Max. Static Gripping Force (kN (kgf)): 31(3161) | Clamping Range External (mm dia.): 3~160 | Clamping Range Internal (mm dia.): 48~150 | Handle Torque (N·m (kgf·m)): 88.3(9.0) | Max. Speed (rpm): 4000 | Weight (kg): 11.4
FSC-190 Size (in): 7 | Max. Static Gripping Force (kN (kgf)): 31(3161) | Clamping Range External (mm dia.): 4~180 | Clamping Range Internal (mm dia.): 56~170 | Handle Torque (N·m (kgf·m)): 107.9(11.0) | Max. Speed (rpm): 3500 | Weight (kg): 12
FSC-230 Size (in): 9 | Max. Static Gripping Force (kN (kgf)): 37(3773) | Clamping Range External (mm dia.): 5~220 | Clamping Range Internal (mm dia.): 62~210 | Handle Torque (N·m (kgf·m)): 147(15.0) | Max. Speed (rpm): 2900 | Weight (kg): 21.2
FSC-273 Size (in): 10 | Max. Static Gripping Force (kN (kgf)): 46(4691) | Clamping Range External (mm dia.): 5~260 | Clamping Range Internal (mm dia.): 70~250 | Handle Torque (N·m (kgf·m)): 176.5(18.0) | Max. Speed (rpm): 2500 | Weight (kg): 28
FSC-310 Size (in): 12 | Max. Static Gripping Force (kN (kgf)): 55(5608) | Clamping Range External (mm dia.): 10~300 | Clamping Range Internal (mm dia.): 86~290 | Handle Torque (N·m (kgf·m)): 206(21.0) | Max. Speed (rpm): 2200 | Weight (kg): 41
Scroll ChucksSamchully
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Front-Mounting Scroll Chuck FSC (Hard Jaws)

Brand Samchully·Scroll Chucks

Available part numbers (8)

FSC-85, FSC-110, FSC-130, FSC-165, FSC-190, FSC-230, FSC-273, FSC-310

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FSC-85Size (in): 3 | Max. Static Gripping Force (kN (kgf)): 9(918) | Clamping Range External (mm dia.): 2~70 | Clamping Range Internal (mm dia.): 24~64 | Handle Torque (N·m (kgf·m)): 29.4(3.0) | Max. Speed (rpm): 2500 | Weight (kg): 1.5
FSC-110Size (in): 4 | Max. Static Gripping Force (kN (kgf)): 12(1224) | Clamping Range External (mm dia.): 3~94 | Clamping Range Internal (mm dia.): 29~84 | Handle Torque (N·m (kgf·m)): 44.1(4.1) | Max. Speed (rpm): 2500 | Weight (kg): 3.1
FSC-130Size (in): 5 | Max. Static Gripping Force (kN (kgf)): 15(1530) | Clamping Range External (mm dia.): 3~110 | Clamping Range Internal (mm dia.): 33~100 | Handle Torque (N·m (kgf·m)): 63.7(6.5) | Max. Speed (rpm): 2500 | Weight (kg): 4.4
FSC-165Size (in): 6 | Max. Static Gripping Force (kN (kgf)): 31(3161) | Clamping Range External (mm dia.): 3~160 | Clamping Range Internal (mm dia.): 48~150 | Handle Torque (N·m (kgf·m)): 88.3(9.0) | Max. Speed (rpm): 4000 | Weight (kg): 11.4
FSC-190Size (in): 7 | Max. Static Gripping Force (kN (kgf)): 31(3161) | Clamping Range External (mm dia.): 4~180 | Clamping Range Internal (mm dia.): 56~170 | Handle Torque (N·m (kgf·m)): 107.9(11.0) | Max. Speed (rpm): 3500 | Weight (kg): 12
FSC-230Size (in): 9 | Max. Static Gripping Force (kN (kgf)): 37(3773) | Clamping Range External (mm dia.): 5~220 | Clamping Range Internal (mm dia.): 62~210 | Handle Torque (N·m (kgf·m)): 147(15.0) | Max. Speed (rpm): 2900 | Weight (kg): 21.2
FSC-273Size (in): 10 | Max. Static Gripping Force (kN (kgf)): 46(4691) | Clamping Range External (mm dia.): 5~260 | Clamping Range Internal (mm dia.): 70~250 | Handle Torque (N·m (kgf·m)): 176.5(18.0) | Max. Speed (rpm): 2500 | Weight (kg): 28
FSC-310Size (in): 12 | Max. Static Gripping Force (kN (kgf)): 55(5608) | Clamping Range External (mm dia.): 10~300 | Clamping Range Internal (mm dia.): 86~290 | Handle Torque (N·m (kgf·m)): 206(21.0) | Max. Speed (rpm): 2200 | Weight (kg): 41
