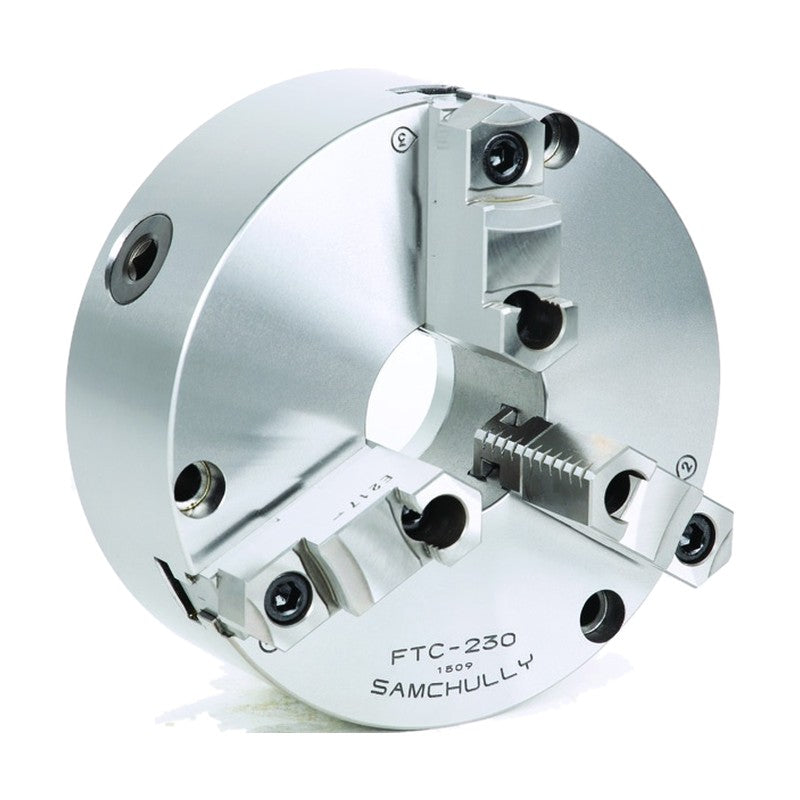

Samchully Front-Mounting Scroll Chuck FTC (Soft and Hard Top Jaws)

Samchully Front-Mounting Scroll Chuck FTC (Soft and Hard Top Jaws)

Large front-mounting scroll chucks with two-piece reversible jaws, 18 to 24 inch.

Key features

  • Front mounting
  • Two-piece jaws, reversible hard jaws
  • Sizes 18, 21 and 24 inch
FTC-460 Size: 18 in | Max. Static Gripping Force (kN (kgf)): 65 (6650) | Clamping Range External (mm): 40~410 | Clamping Range Internal (mm): 152~436 | Handle Torque (N·m): 255.0 | Max. Speed (min-1): 1200 | Weight (kg): 106 | Chuck Dia. (mm): 460
FTC-535 Size: 21 in | Max. Static Gripping Force (kN (kgf)): 73 (7400) | Clamping Range External (mm): 45~481 | Clamping Range Internal (mm): 155~499 | Handle Torque (N·m): 313.9 | Max. Speed (min-1): 950 | Weight (kg): 182 | Chuck Dia. (mm): 535
FTC-610B Size: 24 in | Max. Static Gripping Force (kN (kgf)): 80 (8200) | Clamping Range External (mm): 50~576 | Clamping Range Internal (mm): 235~592 | Handle Torque (N·m): 372.7 | Max. Speed (min-1): 850 | Weight (kg): 238 | Chuck Dia. (mm): 610
FTC-610HA Size: 24 in | Max. Static Gripping Force (kN (kgf)): 80 (8200) | Clamping Range External (mm): 130~576 | Clamping Range Internal (mm): 235~592 | Handle Torque (N·m): 372.7 | Max. Speed (min-1): 850 | Weight (kg): 238
Scroll ChucksSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Front-Mounting Scroll Chuck FTC (Soft and Hard Top Jaws)

Brand Samchully·Scroll Chucks

Available part numbers (4)

FTC-460, FTC-535, FTC-610B, FTC-610HA

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FTC-460Size: 18 in | Max. Static Gripping Force (kN (kgf)): 65 (6650) | Clamping Range External (mm): 40~410 | Clamping Range Internal (mm): 152~436 | Handle Torque (N·m): 255.0 | Max. Speed (min-1): 1200 | Weight (kg): 106 | Chuck Dia. (mm): 460
FTC-535Size: 21 in | Max. Static Gripping Force (kN (kgf)): 73 (7400) | Clamping Range External (mm): 45~481 | Clamping Range Internal (mm): 155~499 | Handle Torque (N·m): 313.9 | Max. Speed (min-1): 950 | Weight (kg): 182 | Chuck Dia. (mm): 535
FTC-610BSize: 24 in | Max. Static Gripping Force (kN (kgf)): 80 (8200) | Clamping Range External (mm): 50~576 | Clamping Range Internal (mm): 235~592 | Handle Torque (N·m): 372.7 | Max. Speed (min-1): 850 | Weight (kg): 238 | Chuck Dia. (mm): 610
FTC-610HASize: 24 in | Max. Static Gripping Force (kN (kgf)): 80 (8200) | Clamping Range External (mm): 130~576 | Clamping Range Internal (mm): 235~592 | Handle Torque (N·m): 372.7 | Max. Speed (min-1): 850 | Weight (kg): 238
