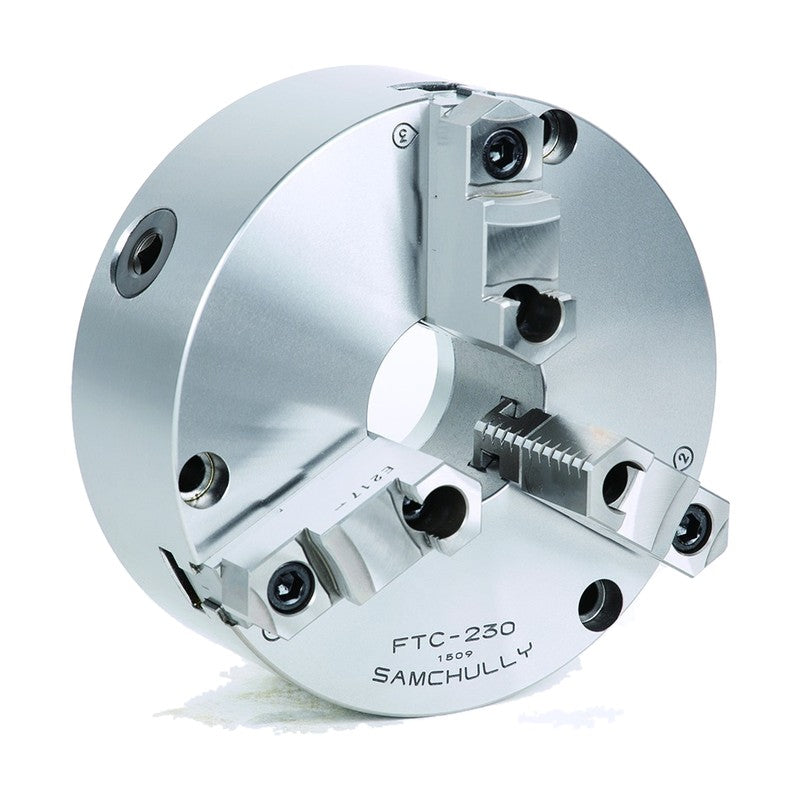

Samchully Front-Mounting Scroll Chuck FTC (Soft and Hard Top Jaws)

Samchully Front-Mounting Scroll Chuck FTC (Soft and Hard Top Jaws)

Front-mounting scroll chuck with two-piece jaws.

Key features

  • Reversible hard jaws
FTC-165 Max. Static Gripping Force (kN (kgf)): 31(3161) | Clamping Range External (mm dia.): 3~160 | Clamping Range Internal (mm dia.): 55~150 | Handle Torque (N·m (kgf·m)): 88(9.0) | Max. Speed (rpm): 4000 | Weight (kg): 9
FTC-190 Size (in): 7 | Max. Static Gripping Force (kN (kgf)): 31(3161) | Clamping Range External (mm dia.): 4~180 | Clamping Range Internal (mm dia.): 56~170 | Handle Torque (N·m (kgf·m)): 107.9(11.0) | Max. Speed (rpm): 3500 | Weight (kg): 12.2
FTC-230 Size (in): 9 | Max. Static Gripping Force (kN (kgf)): 37(3773) | Clamping Range External (mm dia.): 5~220 | Clamping Range Internal (mm dia.): 62~210 | Handle Torque (N·m (kgf·m)): 147(15.0) | Max. Speed (rpm): 2900 | Weight (kg): 21.2
FTC-273 Size (in): 10 | Max. Static Gripping Force (kN (kgf)): 46(4691) | Clamping Range External (mm dia.): 5~260 | Clamping Range Internal (mm dia.): 70~250 | Handle Torque (N·m (kgf·m)): 176.5(18.0) | Max. Speed (rpm): 2500 | Weight (kg): 28
FTC-310 Size (in): 12 | Max. Static Gripping Force (kN (kgf)): 55(5608) | Clamping Range External (mm dia.): 10~300 | Clamping Range Internal (mm dia.): 86~290 | Handle Torque (N·m (kgf·m)): 206(21.0) | Max. Speed (rpm): 2200 | Weight (kg): 41
FTC-610 Size (in): 24 | Max. Static Gripping Force (kN (kgf)): 80(8200) | Clamping Range External (mm dia.): 130~576 | Clamping Range Internal (mm dia.): 235~592 | Handle Torque (N·m (kgf·m)): 372.7(38) | Max. Speed (rpm): 850 | Weight (kg): 238
FTC-810 Size (in): 32 | Max. Static Gripping Force (kN (kgf)): 110(11216) | Clamping Range External (mm dia.): 270~810 | Clamping Range Internal (mm dia.): 390~800 | Handle Torque (N·m (kgf·m)): 588(60) | Max. Speed (rpm): 650 | Weight (kg): 480
FTC-1000 Size (in): 40 | Max. Static Gripping Force (kN (kgf)): 110(11216) | Clamping Range External (mm dia.): 340~990 | Clamping Range Internal (mm dia.): 450~940 | Handle Torque (N·m (kgf·m)): 588(60) | Max. Speed (rpm): 470 | Weight (kg): 780
Scroll ChucksSamchully
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Front-Mounting Scroll Chuck FTC (Soft and Hard Top Jaws)

Brand Samchully·Scroll Chucks

Available part numbers (8)

FTC-165, FTC-190, FTC-230, FTC-273, FTC-310, FTC-610, FTC-810, FTC-1000

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FTC-165Max. Static Gripping Force (kN (kgf)): 31(3161) | Clamping Range External (mm dia.): 3~160 | Clamping Range Internal (mm dia.): 55~150 | Handle Torque (N·m (kgf·m)): 88(9.0) | Max. Speed (rpm): 4000 | Weight (kg): 9
FTC-190Size (in): 7 | Max. Static Gripping Force (kN (kgf)): 31(3161) | Clamping Range External (mm dia.): 4~180 | Clamping Range Internal (mm dia.): 56~170 | Handle Torque (N·m (kgf·m)): 107.9(11.0) | Max. Speed (rpm): 3500 | Weight (kg): 12.2
FTC-230Size (in): 9 | Max. Static Gripping Force (kN (kgf)): 37(3773) | Clamping Range External (mm dia.): 5~220 | Clamping Range Internal (mm dia.): 62~210 | Handle Torque (N·m (kgf·m)): 147(15.0) | Max. Speed (rpm): 2900 | Weight (kg): 21.2
FTC-273Size (in): 10 | Max. Static Gripping Force (kN (kgf)): 46(4691) | Clamping Range External (mm dia.): 5~260 | Clamping Range Internal (mm dia.): 70~250 | Handle Torque (N·m (kgf·m)): 176.5(18.0) | Max. Speed (rpm): 2500 | Weight (kg): 28
FTC-310Size (in): 12 | Max. Static Gripping Force (kN (kgf)): 55(5608) | Clamping Range External (mm dia.): 10~300 | Clamping Range Internal (mm dia.): 86~290 | Handle Torque (N·m (kgf·m)): 206(21.0) | Max. Speed (rpm): 2200 | Weight (kg): 41
FTC-610Size (in): 24 | Max. Static Gripping Force (kN (kgf)): 80(8200) | Clamping Range External (mm dia.): 130~576 | Clamping Range Internal (mm dia.): 235~592 | Handle Torque (N·m (kgf·m)): 372.7(38) | Max. Speed (rpm): 850 | Weight (kg): 238
FTC-810Size (in): 32 | Max. Static Gripping Force (kN (kgf)): 110(11216) | Clamping Range External (mm dia.): 270~810 | Clamping Range Internal (mm dia.): 390~800 | Handle Torque (N·m (kgf·m)): 588(60) | Max. Speed (rpm): 650 | Weight (kg): 480
FTC-1000Size (in): 40 | Max. Static Gripping Force (kN (kgf)): 110(11216) | Clamping Range External (mm dia.): 340~990 | Clamping Range Internal (mm dia.): 450~940 | Handle Torque (N·m (kgf·m)): 588(60) | Max. Speed (rpm): 470 | Weight (kg): 780
