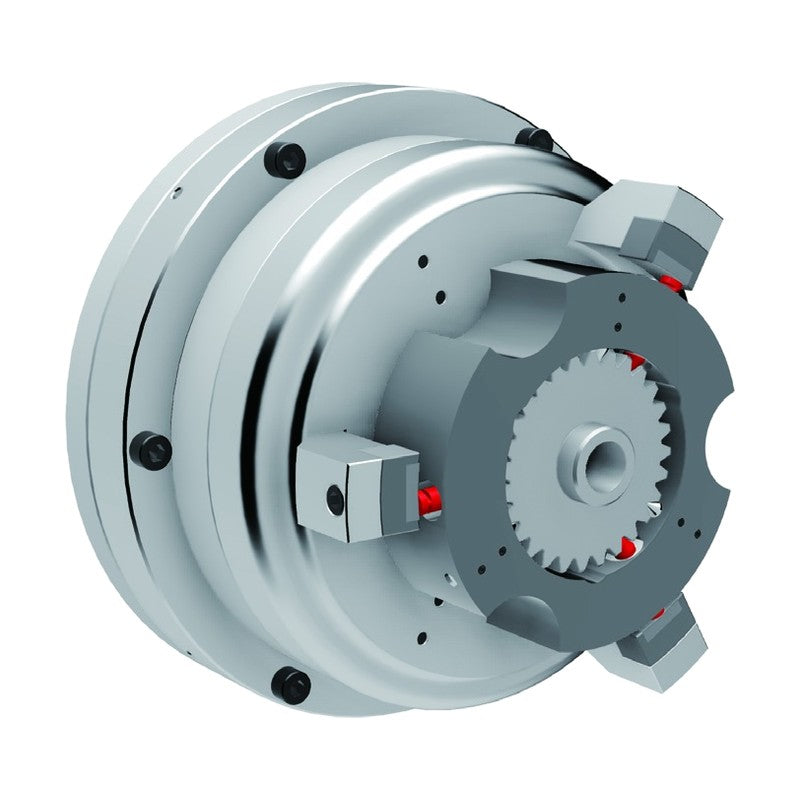

Samchully Gear Chuck GDP

Samchully Gear Chuck GDP

Diaphragm gear chuck for hard turning gears while clamping on the pitch diameter.

Key features

  • Jaws can be easily changed

Specifications

No. of Jaw 3
Pressure (kgf/cm²) 4.5
GDP-08 Max. Clamping Force (kgf): 720 | Jaw Stroke (mm): 0.25 | Grip Dia. (mm): 40~70 | Max. Speed (rpm): 4000 | Weight (kg): 20
GDP-10 Max. Clamping Force (kgf): 1150 | Jaw Stroke (mm): 0.25 | Grip Dia. (mm): 70~100 | Max. Speed (rpm): 3500 | Weight (kg): 26.5
GDP-13 Max. Clamping Force (kgf): 2000 | Jaw Stroke (mm): 0.35 | Grip Dia. (mm): 100~160 | Max. Speed (rpm): 3000 | Weight (kg): 43
GDP-17 Max. Clamping Force (kgf): 3600 | Jaw Stroke (mm): 0.40 | Grip Dia. (mm): 160~250 | Max. Speed (rpm): 2000 | Weight (kg): 89
Special ChucksSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Gear Chuck GDP

Brand Samchully·Special Chucks

Available part numbers (4)

GDP-08, GDP-10, GDP-13, GDP-17

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GDP-08Max. Clamping Force (kgf): 720 | Jaw Stroke (mm): 0.25 | Grip Dia. (mm): 40~70 | Max. Speed (rpm): 4000 | Weight (kg): 20
GDP-10Max. Clamping Force (kgf): 1150 | Jaw Stroke (mm): 0.25 | Grip Dia. (mm): 70~100 | Max. Speed (rpm): 3500 | Weight (kg): 26.5
GDP-13Max. Clamping Force (kgf): 2000 | Jaw Stroke (mm): 0.35 | Grip Dia. (mm): 100~160 | Max. Speed (rpm): 3000 | Weight (kg): 43
GDP-17Max. Clamping Force (kgf): 3600 | Jaw Stroke (mm): 0.40 | Grip Dia. (mm): 160~250 | Max. Speed (rpm): 2000 | Weight (kg): 89
