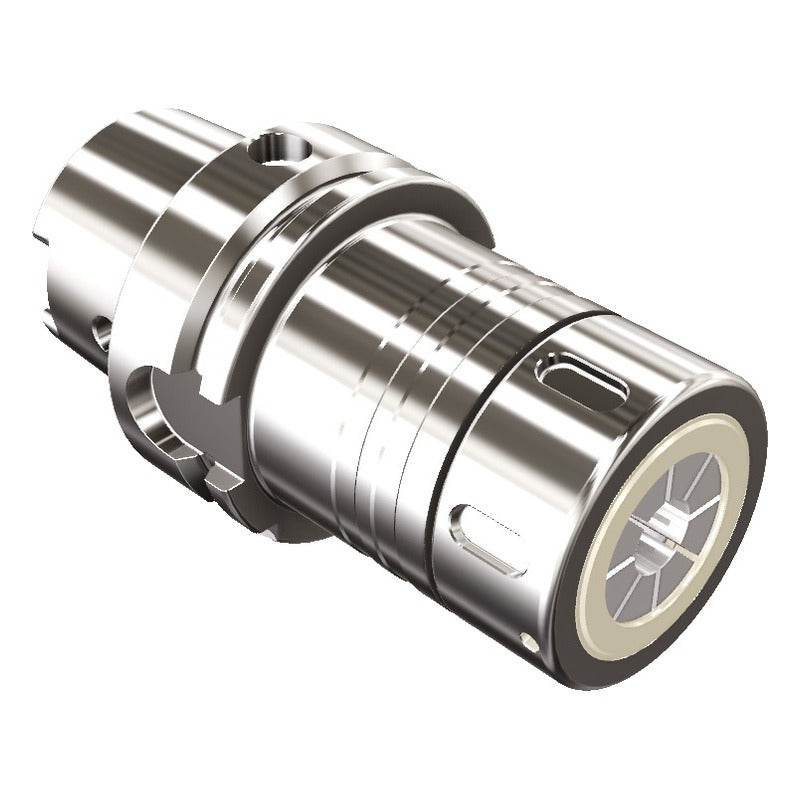

Samchully HSK ER Collet Chuck

Samchully HSK ER Collet Chuck

ER Collet Chuck with HSK-A (DIN 69893-1) shank, available in HSK63A, HSK100A sizes.

Key features

  • Eccentric collet race for greater accuracy and faster set-up
  • Ball bearing nut on ER16 and larger
  • Specially tempered steel and coating

Specifications

Shank standard DIN 69893-1
Balancing grade G6.3
Max speed (rpm) 15,000
HSK63A-ER11-60 Shank: HSK63A | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 60 | H (mm): 26~38 | Weight (kg): 0.9
HSK63A-ER11-90 Shank: HSK63A | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 90 | H (mm): 26~38 | Weight (kg): 1.0
HSK63A-ER11-135 Shank: HSK63A | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 135 | H (mm): 26~38 | Weight (kg): 1.1
HSK63A-ER16-60 Shank: HSK63A | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 60 | H (mm): 35~50 | Weight (kg): 1.0
HSK63A-ER16-90 Shank: HSK63A | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 90 | H (mm): 35~50 | Weight (kg): 1.2
HSK63A-ER16-135 Shank: HSK63A | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 135 | H (mm): 35~50 | Weight (kg): 1.3
HSK63A-ER20-60 Shank: HSK63A | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 60 | H (mm): 42~52 | Weight (kg): 1.0
HSK63A-ER20-90 Shank: HSK63A | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 90 | H (mm): 42~52 | Weight (kg): 1.3
HSK63A-ER20-120 Shank: HSK63A | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 120 | H (mm): 42~52 | Weight (kg): 1.4
HSK63A-ER20-150 Shank: HSK63A | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 150 | H (mm): 42~52 | Weight (kg): 1.6
HSK63A-ER25-60 Shank: HSK63A | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 60 | H (mm): 44~67 | Weight (kg): 1.1
HSK63A-ER25-90 Shank: HSK63A | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 90 | H (mm): 44~67 | Weight (kg): 1.3
HSK63A-ER25-120 Shank: HSK63A | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 120 | H (mm): 44~67 | Weight (kg): 1.7
HSK63A-ER32-60 Shank: HSK63A | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 60 | H (mm): 50~68 | Weight (kg): 1.2
HSK63A-ER32-90 Shank: HSK63A | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 90 | H (mm): 50~68 | Weight (kg): 1.5
HSK63A-ER32-120 Shank: HSK63A | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 120 | H (mm): 50~68 | Weight (kg): 1.8
HSK63A-ER40-90 Shank: HSK63A | Ød (mm): 2.0~26.0 | ØD (mm): 63 | ØD1 (mm): 58 | L (mm): 90 | H (mm): 56~71 | Weight (kg): 1.6
HSK63A-ER40-120 Shank: HSK63A | Ød (mm): 2.0~26.0 | ØD (mm): 63 | ØD1 (mm): 58 | L (mm): 120 | H (mm): 56~71 | Weight (kg): 1.8
HSK100A-ER11-90 Shank: HSK100A | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 90 | H (mm): 26~38 | Weight (kg): 2.5
HSK100A-ER11-120 Shank: HSK100A | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 120 | H (mm): 26~38 | Weight (kg): 2.5
HSK100A-ER11-165 Shank: HSK100A | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 165 | H (mm): 26~38 | Weight (kg): 2.6
HSK100A-ER16-90 Shank: HSK100A | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 90 | H (mm): 35~50 | Weight (kg): 2.6
HSK100A-ER16-120 Shank: HSK100A | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 120 | H (mm): 35~50 | Weight (kg): 2.7
HSK100A-ER16-165 Shank: HSK100A | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 165 | H (mm): 35~50 | Weight (kg): 2.9
HSK100A-ER20-90 Shank: HSK100A | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 90 | H (mm): 42~52 | Weight (kg): 2.7
HSK100A-ER20-120 Shank: HSK100A | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 120 | H (mm): 42~52 | Weight (kg): 2.9
HSK100A-ER20-165 Shank: HSK100A | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 165 | H (mm): 42~52 | Weight (kg): 3.2
HSK100A-ER25-90 Shank: HSK100A | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 90 | H (mm): 44~67 | Weight (kg): 2.8
HSK100A-ER25-120 Shank: HSK100A | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 120 | H (mm): 44~67 | Weight (kg): 3.1
HSK100A-ER25-165 Shank: HSK100A | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 165 | H (mm): 44~67 | Weight (kg): 3.5
HSK100A-ER32-90 Shank: HSK100A | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 90 | H (mm): 50~68 | Weight (kg): 2.9
HSK100A-ER32-120 Shank: HSK100A | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 120 | H (mm): 50~68 | Weight (kg): 3.3
HSK100A-ER32-165 Shank: HSK100A | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 165 | H (mm): 50~68 | Weight (kg): 3.8
HSK100A-ER40-90 Shank: HSK100A | Ød (mm): 2.0~30.0 | ØD (mm): 63 | ØD1 (mm): 63 | L (mm): 90 | H (mm): 56~79 | Weight (kg): 3.0
HSK100A-ER40-120 Shank: HSK100A | Ød (mm): 2.0~30.0 | ØD (mm): 63 | ØD1 (mm): 63 | L (mm): 120 | H (mm): 56~79 | Weight (kg): 3.4
HSK100A-ER40-165 Shank: HSK100A | Ød (mm): 2.0~30.0 | ØD (mm): 63 | ØD1 (mm): 63 | L (mm): 165 | H (mm): 56~79 | Weight (kg): 3.9
Collet ChucksSamchully
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully HSK ER Collet Chuck

Brand Samchully·Collet Chucks

Available part numbers (36)

HSK63A-ER11-60, HSK63A-ER11-90, HSK63A-ER11-135, HSK63A-ER16-60, HSK63A-ER16-90, HSK63A-ER16-135, HSK63A-ER20-60, HSK63A-ER20-90, HSK63A-ER20-120, HSK63A-ER20-150 + 26 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSK63A-ER11-60Shank: HSK63A | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 60 | H (mm): 26~38 | Weight (kg): 0.9
HSK63A-ER11-90Shank: HSK63A | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 90 | H (mm): 26~38 | Weight (kg): 1.0
HSK63A-ER11-135Shank: HSK63A | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 135 | H (mm): 26~38 | Weight (kg): 1.1
HSK63A-ER16-60Shank: HSK63A | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 60 | H (mm): 35~50 | Weight (kg): 1.0
HSK63A-ER16-90Shank: HSK63A | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 90 | H (mm): 35~50 | Weight (kg): 1.2
HSK63A-ER16-135Shank: HSK63A | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 135 | H (mm): 35~50 | Weight (kg): 1.3
HSK63A-ER20-60Shank: HSK63A | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 60 | H (mm): 42~52 | Weight (kg): 1.0
HSK63A-ER20-90Shank: HSK63A | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 90 | H (mm): 42~52 | Weight (kg): 1.3
HSK63A-ER20-120Shank: HSK63A | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 120 | H (mm): 42~52 | Weight (kg): 1.4
HSK63A-ER20-150Shank: HSK63A | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 150 | H (mm): 42~52 | Weight (kg): 1.6
HSK63A-ER25-60Shank: HSK63A | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 60 | H (mm): 44~67 | Weight (kg): 1.1
HSK63A-ER25-90Shank: HSK63A | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 90 | H (mm): 44~67 | Weight (kg): 1.3
HSK63A-ER25-120Shank: HSK63A | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 120 | H (mm): 44~67 | Weight (kg): 1.7
HSK63A-ER32-60Shank: HSK63A | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 60 | H (mm): 50~68 | Weight (kg): 1.2
HSK63A-ER32-90Shank: HSK63A | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 90 | H (mm): 50~68 | Weight (kg): 1.5
HSK63A-ER32-120Shank: HSK63A | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 120 | H (mm): 50~68 | Weight (kg): 1.8
HSK63A-ER40-90Shank: HSK63A | Ød (mm): 2.0~26.0 | ØD (mm): 63 | ØD1 (mm): 58 | L (mm): 90 | H (mm): 56~71 | Weight (kg): 1.6
HSK63A-ER40-120Shank: HSK63A | Ød (mm): 2.0~26.0 | ØD (mm): 63 | ØD1 (mm): 58 | L (mm): 120 | H (mm): 56~71 | Weight (kg): 1.8
HSK100A-ER11-90Shank: HSK100A | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 90 | H (mm): 26~38 | Weight (kg): 2.5
HSK100A-ER11-120Shank: HSK100A | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 120 | H (mm): 26~38 | Weight (kg): 2.5
HSK100A-ER11-165Shank: HSK100A | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 165 | H (mm): 26~38 | Weight (kg): 2.6
HSK100A-ER16-90Shank: HSK100A | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 90 | H (mm): 35~50 | Weight (kg): 2.6
HSK100A-ER16-120Shank: HSK100A | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 120 | H (mm): 35~50 | Weight (kg): 2.7
HSK100A-ER16-165Shank: HSK100A | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 165 | H (mm): 35~50 | Weight (kg): 2.9
HSK100A-ER20-90Shank: HSK100A | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 90 | H (mm): 42~52 | Weight (kg): 2.7
HSK100A-ER20-120Shank: HSK100A | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 120 | H (mm): 42~52 | Weight (kg): 2.9
HSK100A-ER20-165Shank: HSK100A | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 165 | H (mm): 42~52 | Weight (kg): 3.2
HSK100A-ER25-90Shank: HSK100A | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 90 | H (mm): 44~67 | Weight (kg): 2.8
HSK100A-ER25-120Shank: HSK100A | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 120 | H (mm): 44~67 | Weight (kg): 3.1
HSK100A-ER25-165Shank: HSK100A | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 165 | H (mm): 44~67 | Weight (kg): 3.5
HSK100A-ER32-90Shank: HSK100A | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 90 | H (mm): 50~68 | Weight (kg): 2.9
HSK100A-ER32-120Shank: HSK100A | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 120 | H (mm): 50~68 | Weight (kg): 3.3
HSK100A-ER32-165Shank: HSK100A | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 165 | H (mm): 50~68 | Weight (kg): 3.8
HSK100A-ER40-90Shank: HSK100A | Ød (mm): 2.0~30.0 | ØD (mm): 63 | ØD1 (mm): 63 | L (mm): 90 | H (mm): 56~79 | Weight (kg): 3.0
HSK100A-ER40-120Shank: HSK100A | Ød (mm): 2.0~30.0 | ØD (mm): 63 | ØD1 (mm): 63 | L (mm): 120 | H (mm): 56~79 | Weight (kg): 3.4
HSK100A-ER40-165Shank: HSK100A | Ød (mm): 2.0~30.0 | ØD (mm): 63 | ØD1 (mm): 63 | L (mm): 165 | H (mm): 56~79 | Weight (kg): 3.9
