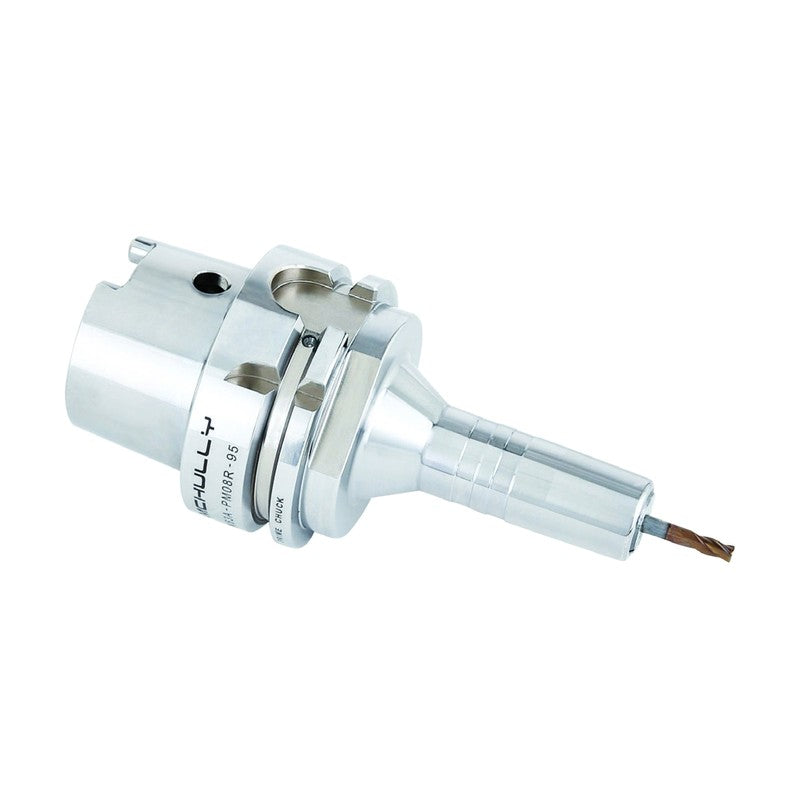

Samchully HSK PRIME Ultra-Precision Chuck

Samchully HSK PRIME Ultra-Precision Chuck

PRIME Ultra-Precision Chuck with HSK-A (DIN 69893-1) shank, available in HSK63A sizes.

Key features

  • Set-up without a tooling fixture
  • Slim body for tight clearance features
  • Ultra-precision run-out and high-RPM balance
  • Fastening wrench included

Specifications

Shank standard DIN 69893-1
Max speed (rpm) 25,000
Run-out 3 µm
HSK63A-PM08-140 Shank: HSK63A | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 140 | L1 (mm): 58 | L2 (mm): 63 | R (mm): 5
HSK63A-PM12-140 Shank: HSK63A | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 140 | L1 (mm): 58 | L2 (mm): 63 | R (mm): 5
HSK63A-PM16-140 Shank: HSK63A | Ød (mm): 2.8~16.0 | ØD (mm): 34 | L (mm): 140 | L1 (mm): 58 | L2 (mm): 63 | R (mm): 5
Collet ChucksSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully HSK PRIME Ultra-Precision Chuck

Brand Samchully·Collet Chucks

Available part numbers (3)

HSK63A-PM08-140, HSK63A-PM12-140, HSK63A-PM16-140

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSK63A-PM08-140Shank: HSK63A | Ød (mm): 1.8~8.0 | ØD (mm): 20 | L (mm): 140 | L1 (mm): 58 | L2 (mm): 63 | R (mm): 5
HSK63A-PM12-140Shank: HSK63A | Ød (mm): 2.8~12.0 | ØD (mm): 30 | L (mm): 140 | L1 (mm): 58 | L2 (mm): 63 | R (mm): 5
HSK63A-PM16-140Shank: HSK63A | Ød (mm): 2.8~16.0 | ØD (mm): 34 | L (mm): 140 | L1 (mm): 58 | L2 (mm): 63 | R (mm): 5
