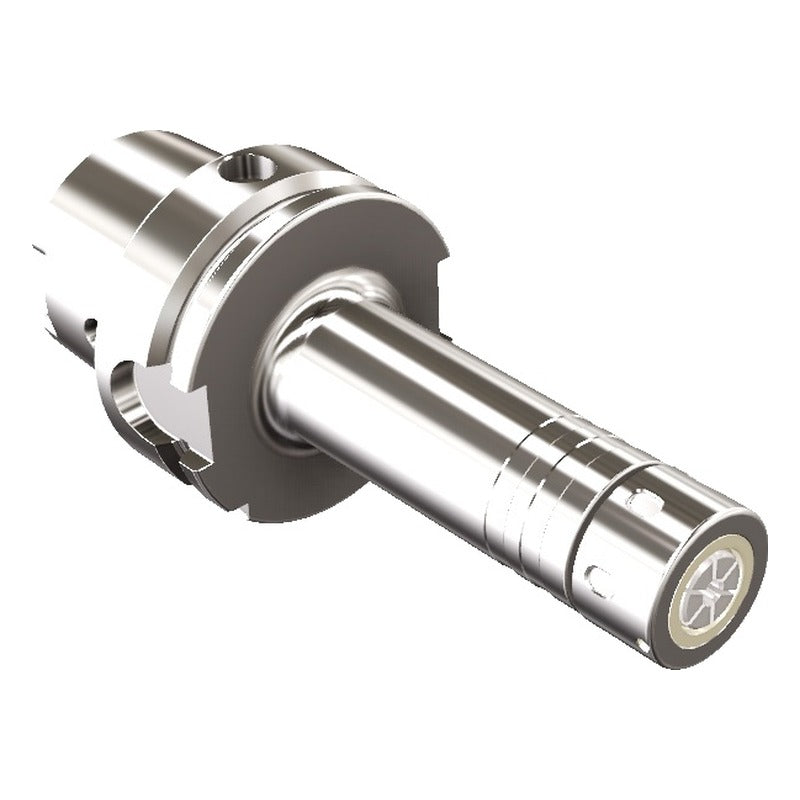

Samchully HSK SK Collet Chuck

Samchully HSK SK Collet Chuck

SK Collet Chuck with HSK-A (DIN 69893-1) shank, available in HSK63A, HSK100A sizes.

Key features

  • SK collets give double the gripping strength of ER collets
  • Run-out within 0.003 mm at 4D
  • Ball bearing nut included

Specifications

Shank standard DIN 69893-1
Balancing grade G6.3
Max speed (rpm) 15,000
HSK63A-SK06-60 Shank: HSK63A | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 60 | H (mm): 35 | Weight (kg): 0.7
HSK63A-SK06-90 Shank: HSK63A | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 90 | H (mm): 35 | Weight (kg): 1.0
HSK63A-SK06-120 Shank: HSK63A | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 120 | H (mm): 35 | Weight (kg): 1.1
HSK63A-SK06-150 Shank: HSK63A | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 150 | H (mm): 35 | Weight (kg): 1.2
HSK63A-SK10-60 Shank: HSK63A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 60 | H (mm): 50 | Weight (kg): 0.7
HSK63A-SK10-90 Shank: HSK63A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 90 | H (mm): 50 | Weight (kg): 1.1
HSK63A-SK10-120 Shank: HSK63A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 120 | H (mm): 50 | Weight (kg): 1.4
HSK63A-SK10-150 Shank: HSK63A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 150 | H (mm): 50 | Weight (kg): 1.8
HSK63A-SK13-60 Shank: HSK63A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 60 | H (mm): 65 | Weight (kg): 0.9
HSK63A-SK13-90 Shank: HSK63A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 90 | H (mm): 65 | Weight (kg): 1.2
HSK63A-SK13-120 Shank: HSK63A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 120 | H (mm): 65 | Weight (kg): 1.5
HSK63A-SK13-150 Shank: HSK63A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 150 | H (mm): 65 | Weight (kg): 1.8
HSK63A-SK16-60 Shank: HSK63A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 60 | H (mm): 65 | Weight (kg): 1.0
HSK63A-SK16-90 Shank: HSK63A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 90 | H (mm): 63 | Weight (kg): 1.1
HSK63A-SK16-120 Shank: HSK63A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 120 | H (mm): 70 | Weight (kg): 1.6
HSK63A-SK16-150 Shank: HSK63A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 150 | H (mm): 70 | Weight (kg): 1.7
HSK63A-SK20-60 Shank: HSK63A | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 60 | H (mm): 60 | Weight (kg): 1.3
HSK63A-SK20-90 Shank: HSK63A | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 90 | H (mm): 80 | Weight (kg): 1.4
HSK63A-SK20-120 Shank: HSK63A | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 120 | H (mm): 80 | Weight (kg): 1.6
HSK63A-SK25-75 Shank: HSK63A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 75 | H (mm): 75 | Weight (kg): 1.5
HSK63A-SK25-90 Shank: HSK63A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 90 | H (mm): 75 | Weight (kg): 1.6
HSK63A-SK25-120 Shank: HSK63A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 120 | H (mm): 85 | Weight (kg): 1.8
HSK100A-SK06-105 Shank: HSK100A | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 64 | H (mm): 35 | Weight (kg): 2.2
HSK100A-SK06-135 Shank: HSK100A | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 92 | H (mm): 35 | Weight (kg): 2.4
HSK100A-SK10-105 Shank: HSK100A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 57 | H (mm): 50 | Weight (kg): 2.6
HSK100A-SK10-135 Shank: HSK100A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 92 | H (mm): 50 | Weight (kg): 2.9
HSK100A-SK10-165 Shank: HSK100A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 114 | H (mm): 50 | Weight (kg): 3.3
HSK100A-SK10-200 Shank: HSK100A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 151 | H (mm): 50 | Weight (kg): 3.5
HSK100A-SK13-105 Shank: HSK100A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 62 | H (mm): 65 | Weight (kg): 2.7
HSK100A-SK13-135 Shank: HSK100A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 92 | H (mm): 65 | Weight (kg): 3.2
HSK100A-SK13-165 Shank: HSK100A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 122 | H (mm): 65 | Weight (kg): 3.5
HSK100A-SK13-200 Shank: HSK100A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 157 | H (mm): 65 | Weight (kg): 3.8
HSK100A-SK16-105 Shank: HSK100A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 62 | H (mm): 70 | Weight (kg): 2.7
HSK100A-SK16-135 Shank: HSK100A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 92 | H (mm): 70 | Weight (kg): 3.3
HSK100A-SK16-165 Shank: HSK100A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 122 | H (mm): 70 | Weight (kg): 3.6
HSK100A-SK16-200 Shank: HSK100A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 157 | H (mm): 70 | Weight (kg): 3.8
HSK100A-SK20-105 Shank: HSK100A | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 62 | H (mm): 80 | Weight (kg): 2.9
HSK100A-SK20-135 Shank: HSK100A | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 92 | H (mm): 80 | Weight (kg): 3.2
HSK100A-SK20-165 Shank: HSK100A | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 122 | H (mm): 80 | Weight (kg): 3.6
HSK100A-SK20-200 Shank: HSK100A | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 157 | H (mm): 80 | Weight (kg): 4.2
HSK100A-SK25-105 Shank: HSK100A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 62 | H (mm): 85 | Weight (kg): 3.2
HSK100A-SK25-135 Shank: HSK100A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 92 | H (mm): 85 | Weight (kg): 3.5
HSK100A-SK25-165 Shank: HSK100A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 122 | H (mm): 85 | Weight (kg): 4.8
Collet ChucksSamchully
43 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully HSK SK Collet Chuck

Brand Samchully·Collet Chucks

Available part numbers (43)

HSK63A-SK06-60, HSK63A-SK06-90, HSK63A-SK06-120, HSK63A-SK06-150, HSK63A-SK10-60, HSK63A-SK10-90, HSK63A-SK10-120, HSK63A-SK10-150, HSK63A-SK13-60, HSK63A-SK13-90 + 33 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSK63A-SK06-60Shank: HSK63A | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 60 | H (mm): 35 | Weight (kg): 0.7
HSK63A-SK06-90Shank: HSK63A | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 90 | H (mm): 35 | Weight (kg): 1.0
HSK63A-SK06-120Shank: HSK63A | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 120 | H (mm): 35 | Weight (kg): 1.1
HSK63A-SK06-150Shank: HSK63A | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 150 | H (mm): 35 | Weight (kg): 1.2
HSK63A-SK10-60Shank: HSK63A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 60 | H (mm): 50 | Weight (kg): 0.7
HSK63A-SK10-90Shank: HSK63A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 90 | H (mm): 50 | Weight (kg): 1.1
HSK63A-SK10-120Shank: HSK63A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 120 | H (mm): 50 | Weight (kg): 1.4
HSK63A-SK10-150Shank: HSK63A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 150 | H (mm): 50 | Weight (kg): 1.8
HSK63A-SK13-60Shank: HSK63A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 60 | H (mm): 65 | Weight (kg): 0.9
HSK63A-SK13-90Shank: HSK63A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 90 | H (mm): 65 | Weight (kg): 1.2
HSK63A-SK13-120Shank: HSK63A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 120 | H (mm): 65 | Weight (kg): 1.5
HSK63A-SK13-150Shank: HSK63A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 150 | H (mm): 65 | Weight (kg): 1.8
HSK63A-SK16-60Shank: HSK63A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 60 | H (mm): 65 | Weight (kg): 1.0
HSK63A-SK16-90Shank: HSK63A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 90 | H (mm): 63 | Weight (kg): 1.1
HSK63A-SK16-120Shank: HSK63A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 120 | H (mm): 70 | Weight (kg): 1.6
HSK63A-SK16-150Shank: HSK63A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 150 | H (mm): 70 | Weight (kg): 1.7
HSK63A-SK20-60Shank: HSK63A | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 60 | H (mm): 60 | Weight (kg): 1.3
HSK63A-SK20-90Shank: HSK63A | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 90 | H (mm): 80 | Weight (kg): 1.4
HSK63A-SK20-120Shank: HSK63A | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 120 | H (mm): 80 | Weight (kg): 1.6
HSK63A-SK25-75Shank: HSK63A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 75 | H (mm): 75 | Weight (kg): 1.5
HSK63A-SK25-90Shank: HSK63A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 90 | H (mm): 75 | Weight (kg): 1.6
HSK63A-SK25-120Shank: HSK63A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 120 | H (mm): 85 | Weight (kg): 1.8
HSK100A-SK06-105Shank: HSK100A | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 64 | H (mm): 35 | Weight (kg): 2.2
HSK100A-SK06-135Shank: HSK100A | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 92 | H (mm): 35 | Weight (kg): 2.4
HSK100A-SK10-105Shank: HSK100A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 57 | H (mm): 50 | Weight (kg): 2.6
HSK100A-SK10-135Shank: HSK100A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 92 | H (mm): 50 | Weight (kg): 2.9
HSK100A-SK10-165Shank: HSK100A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 114 | H (mm): 50 | Weight (kg): 3.3
HSK100A-SK10-200Shank: HSK100A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 151 | H (mm): 50 | Weight (kg): 3.5
HSK100A-SK13-105Shank: HSK100A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 62 | H (mm): 65 | Weight (kg): 2.7
HSK100A-SK13-135Shank: HSK100A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 92 | H (mm): 65 | Weight (kg): 3.2
HSK100A-SK13-165Shank: HSK100A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 122 | H (mm): 65 | Weight (kg): 3.5
HSK100A-SK13-200Shank: HSK100A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 157 | H (mm): 65 | Weight (kg): 3.8
HSK100A-SK16-105Shank: HSK100A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 62 | H (mm): 70 | Weight (kg): 2.7
HSK100A-SK16-135Shank: HSK100A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 92 | H (mm): 70 | Weight (kg): 3.3
HSK100A-SK16-165Shank: HSK100A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 122 | H (mm): 70 | Weight (kg): 3.6
HSK100A-SK16-200Shank: HSK100A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 157 | H (mm): 70 | Weight (kg): 3.8
HSK100A-SK20-105Shank: HSK100A | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 62 | H (mm): 80 | Weight (kg): 2.9
HSK100A-SK20-135Shank: HSK100A | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 92 | H (mm): 80 | Weight (kg): 3.2
HSK100A-SK20-165Shank: HSK100A | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 122 | H (mm): 80 | Weight (kg): 3.6
HSK100A-SK20-200Shank: HSK100A | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 157 | H (mm): 80 | Weight (kg): 4.2
HSK100A-SK25-105Shank: HSK100A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 62 | H (mm): 85 | Weight (kg): 3.2
HSK100A-SK25-135Shank: HSK100A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 92 | H (mm): 85 | Weight (kg): 3.5
HSK100A-SK25-165Shank: HSK100A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 122 | H (mm): 85 | Weight (kg): 4.8
