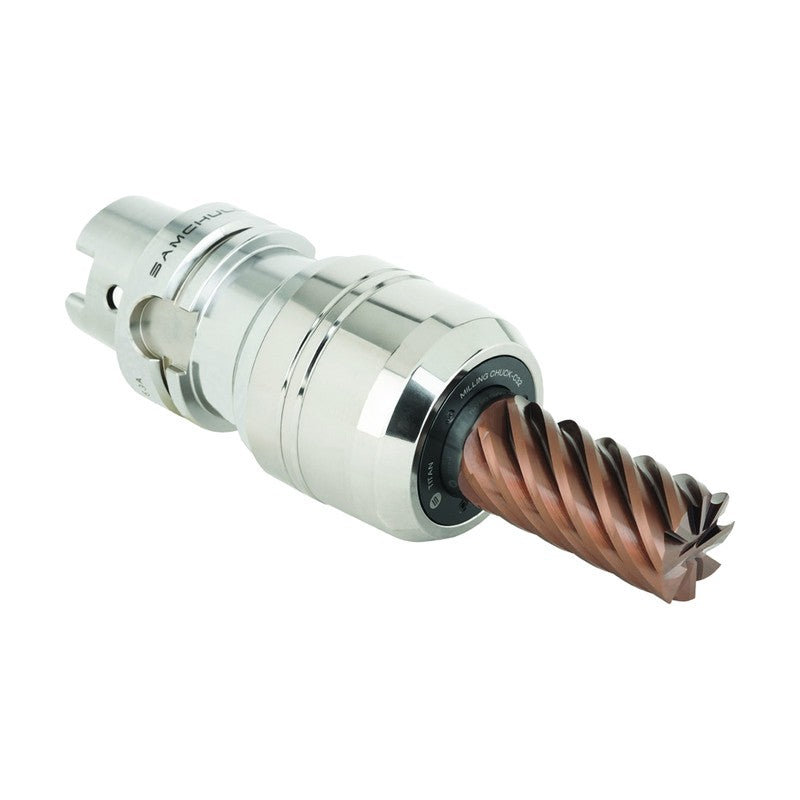

Samchully HSK SPEEDIA High-Speed Milling Chuck

Samchully HSK SPEEDIA High-Speed Milling Chuck

SPEEDIA High-Speed Milling Chuck with HSK-A (DIN 69893-1) shank, available in HSK40A, HSK50A, HSK63A, HSK100A sizes.

Key features

  • Designed for high-speed rotation
  • Extreme gripping strength with high precision
  • Smooth nut improves balance and prevents coolant flaring

Specifications

Shank standard DIN 69893-1
Run-out 5 µm
Max speed (rpm) 25,000
HSK40A-C16-80S Shank: HSK40A | Ød (mm): 16 | ØD (mm): 40 | L (mm): 80 | H (mm): 62 | E (mm): 50 | Weight (kg): 0.8
HSK50A-C16-85S Shank: HSK50A | Ød (mm): 16 | ØD (mm): 40 | L (mm): 85 | H (mm): 62 | E (mm): 50 | Weight (kg): 1.1
HSK50A-C20-85S Shank: HSK50A | Ød (mm): 20 | ØD (mm): 48 | L (mm): 85 | H (mm): 63 | E (mm): 51 | Weight (kg): 1.1
HSK63A-C16-80S Shank: HSK63A | Ød (mm): 16 | ØD (mm): 40 | L (mm): 80 | H (mm): 55 | E (mm): 50 | Weight (kg): 1.3
HSK63A-C16-90S Shank: HSK63A | Ød (mm): 16 | ØD (mm): 40 | L (mm): 90 | H (mm): 65 | E (mm): 55 | Weight (kg): 1.5
HSK63A-C16-105S Shank: HSK63A | Ød (mm): 16 | ØD (mm): 40 | L (mm): 105 | H (mm): 71 | E (mm): 55 | Weight (kg): 1.8
HSK63A-C16-135S Shank: HSK63A | Ød (mm): 16 | ØD (mm): 40 | L (mm): 135 | H (mm): 71 | E (mm): 55 | Weight (kg): 2.3
HSK63A-C16-165S Shank: HSK63A | Ød (mm): 16 | ØD (mm): 40 | L (mm): 165 | H (mm): 71 | E (mm): 55 | Weight (kg): 2.8
HSK63A-C20-90S Shank: HSK63A | Ød (mm): 20 | ØD (mm): 48 | L (mm): 90 | H (mm): 65 | E (mm): 56 | Weight (kg): 1.6
HSK63A-C20-105S Shank: HSK63A | Ød (mm): 20 | ØD (mm): 48 | L (mm): 105 | H (mm): 80 | E (mm): 56 | Weight (kg): 1.5
HSK63A-C20-120S Shank: HSK63A | Ød (mm): 20 | ØD (mm): 48 | L (mm): 120 | H (mm): 80 | E (mm): 56 | Weight (kg): 2.1
HSK63A-C20-135S Shank: HSK63A | Ød (mm): 20 | ØD (mm): 48 | L (mm): 135 | H (mm): 80 | E (mm): 56 | Weight (kg): 2.4
HSK63A-C20-165S Shank: HSK63A | Ød (mm): 20 | ØD (mm): 48 | L (mm): 165 | H (mm): 80 | E (mm): 56 | Weight (kg): 3.1
HSK63A-C25-100S Shank: HSK63A | Ød (mm): 25 | ØD (mm): 55 | L (mm): 100 | H (mm): 75 | E (mm): 57 | Weight (kg): 2.0
HSK63A-C25-135S Shank: HSK63A | Ød (mm): 25 | ØD (mm): 55 | L (mm): 135 | H (mm): 80 | E (mm): 57 | Weight (kg): 2.8
HSK63A-C32-110S Shank: HSK63A | Ød (mm): 32 | ØD (mm): 68 | L (mm): 110 | H (mm): 80 | E (mm): 64 | Weight (kg): 2.2
HSK63A-C32-135S Shank: HSK63A | Ød (mm): 32 | ØD (mm): 68 | L (mm): 135 | H (mm): 90 | E (mm): 64 | Weight (kg): 2.9
HSK100A-C16-105S Shank: HSK100A | Ød (mm): 16 | ØD (mm): 40 | L (mm): 105 | H (mm): 71 | E (mm): 50
HSK100A-C16-135S Shank: HSK100A | Ød (mm): 16 | ØD (mm): 40 | L (mm): 135 | H (mm): 71 | E (mm): 50
HSK100A-C16-165S Shank: HSK100A | Ød (mm): 16 | ØD (mm): 40 | L (mm): 165 | H (mm): 71 | E (mm): 50
HSK100A-C20-105S Shank: HSK100A | Ød (mm): 20 | ØD (mm): 48 | L (mm): 105 | H (mm): 73 | E (mm): 56
HSK100A-C20-135S Shank: HSK100A | Ød (mm): 20 | ØD (mm): 48 | L (mm): 135 | H (mm): 80 | E (mm): 56
HSK100A-C20-165S Shank: HSK100A | Ød (mm): 20 | ØD (mm): 48 | L (mm): 165 | H (mm): 80 | E (mm): 56
HSK100A-C25-105S Shank: HSK100A | Ød (mm): 25 | ØD (mm): 55 | L (mm): 105 | H (mm): 73 | E (mm): 65
HSK100A-C25-135S Shank: HSK100A | Ød (mm): 25 | ØD (mm): 55 | L (mm): 135 | H (mm): 90 | E (mm): 65
HSK100A-C25-165S Shank: HSK100A | Ød (mm): 25 | ØD (mm): 55 | L (mm): 165 | H (mm): 90 | E (mm): 65
HSK100A-C32-115S Shank: HSK100A | Ød (mm): 32 | ØD (mm): 68 | L (mm): 115 | H (mm): 83 | E (mm): 71
HSK100A-C32-135S Shank: HSK100A | Ød (mm): 32 | ØD (mm): 68 | L (mm): 135 | H (mm): 103 | E (mm): 71
HSK100A-C32-165S Shank: HSK100A | Ød (mm): 32 | ØD (mm): 68 | L (mm): 165 | H (mm): 105 | E (mm): 71
HSK100A-C42-115S Shank: HSK100A | Ød (mm): 42 | ØD (mm): 86 | L (mm): 115 | H (mm): 83 | E (mm): 78
HSK100A-C42-135S Shank: HSK100A | Ød (mm): 42 | ØD (mm): 86 | L (mm): 135 | H (mm): 97 | E (mm): 78
