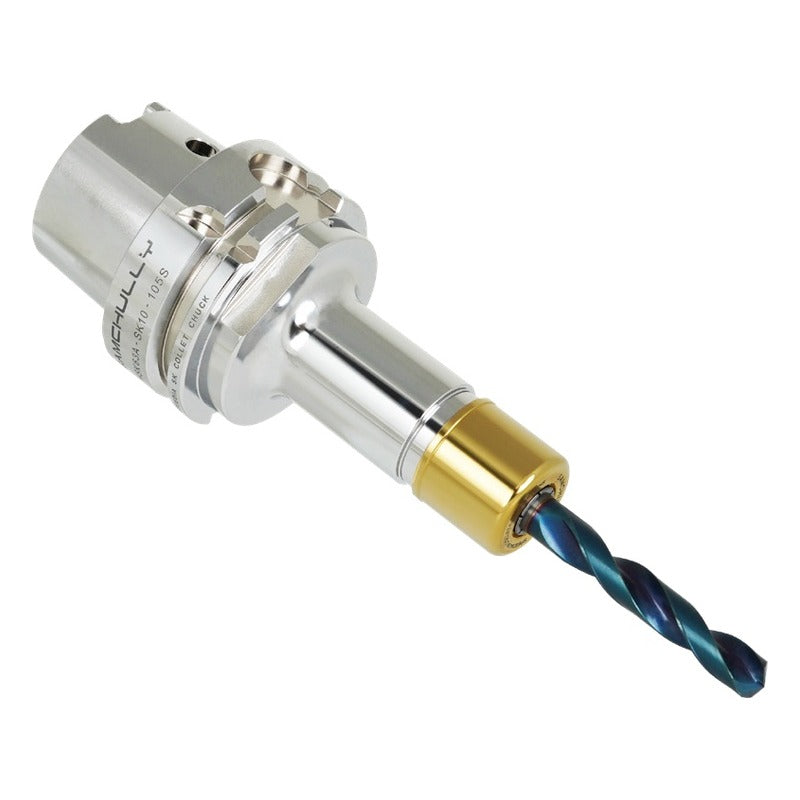

Samchully HSK SPEEDIA High-Speed SK Collet Chuck

Samchully HSK SPEEDIA High-Speed SK Collet Chuck

SPEEDIA High-Speed SK Collet Chuck with HSK-A (DIN 69893-1) shank, available in HSK63A, HSK100A sizes.

Key features

  • SK collets give double the gripping strength of ER collets
  • Run-out within 0.003 mm at 4D
  • Balanced for high-speed machining

Specifications

Shank standard DIN 69893-1
Balancing grade G2.5
Max speed (rpm) 25,000
Run-out 3 µm
HSK63A-SK06-60S Shank: HSK63A | Ød (mm): 1.8~6.0 | ØD (mm): 20 | ØD1 (mm): 19.5 | L (mm): 60 | H (mm): 35 | Weight (kg): 0.7
HSK63A-SK06-90S Shank: HSK63A | Ød (mm): 1.8~6.0 | ØD (mm): 20 | ØD1 (mm): 19.5 | L (mm): 90 | H (mm): 35 | Weight (kg): 1.0
HSK63A-SK06-120S Shank: HSK63A | Ød (mm): 1.8~6.0 | ØD (mm): 20 | ØD1 (mm): 19.5 | L (mm): 120 | H (mm): 35 | Weight (kg): 1.1
HSK63A-SK06-150S Shank: HSK63A | Ød (mm): 1.8~6.0 | ØD (mm): 20 | ØD1 (mm): 19.5 | L (mm): 150 | H (mm): 35 | Weight (kg): 1.2
HSK63A-SK08-60S Shank: HSK63A | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 60 | H (mm): 42 | Weight (kg): 0.7
HSK63A-SK08-90S Shank: HSK63A | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 90 | H (mm): 42 | Weight (kg): 1.1
HSK63A-SK08-105S Shank: HSK63A | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 105 | H (mm): 42 | Weight (kg): 1.3
HSK63A-SK08-120S Shank: HSK63A | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 120 | H (mm): 42 | Weight (kg): 1.4
HSK63A-SK08-150S Shank: HSK63A | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 150 | H (mm): 42 | Weight (kg): 1.8
HSK63A-SK10-60S Shank: HSK63A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 27.5 | L (mm): 60 | H (mm): 50 | Weight (kg): 0.7
HSK63A-SK10-90S Shank: HSK63A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 27.5 | L (mm): 90 | H (mm): 50 | Weight (kg): 1.1
HSK63A-SK10-105S Shank: HSK63A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 27.5 | L (mm): 105 | H (mm): 50 | Weight (kg): 1.3
HSK63A-SK10-120S Shank: HSK63A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 27.5 | L (mm): 120 | H (mm): 50 | Weight (kg): 1.4
HSK63A-SK10-150S Shank: HSK63A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 27.5 | L (mm): 150 | H (mm): 50 | Weight (kg): 1.8
HSK63A-SK13-90S Shank: HSK63A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 90 | H (mm): 65 | Weight (kg): 1.2
HSK63A-SK13-120S Shank: HSK63A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 120 | H (mm): 65 | Weight (kg): 1.5
HSK63A-SK13-150S Shank: HSK63A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 150 | H (mm): 65 | Weight (kg): 1.8
HSK63A-SK16-90S Shank: HSK63A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 90 | H (mm): 63 | Weight (kg): 1.1
HSK63A-SK16-120S Shank: HSK63A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 120 | H (mm): 70 | Weight (kg): 1.6
HSK63A-SK16-150S Shank: HSK63A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 150 | H (mm): 70 | Weight (kg): 1.7
HSK63A-SK20-90S Shank: HSK63A | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (mm): 90 | H (mm): 60 | Weight (kg): 1.4
HSK63A-SK20-120S Shank: HSK63A | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (mm): 120 | H (mm): 80 | Weight (kg): 1.6
HSK63A-SK25-90S Shank: HSK63A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 90 | H (mm): 63 | Weight (kg): 1.6
HSK63A-SK25-120S Shank: HSK63A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 120 | H (mm): 85 | Weight (kg): 1.8
HSK100A-SK06-105S Shank: HSK100A | Ød (mm): 1.8~6.0 | ØD (mm): 20 | ØD1 (mm): 19.5 | L (mm): 64 | H (mm): 35 | Weight (kg): 2.2
HSK100A-SK06-135S Shank: HSK100A | Ød (mm): 1.8~6.0 | ØD (mm): 20 | ØD1 (mm): 19.5 | L (mm): 92 | H (mm): 35 | Weight (kg): 2.4
HSK100A-SK08-105S Shank: HSK100A | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 105 | H (mm): 42 | Weight (kg): 2.6
HSK100A-SK08-135S Shank: HSK100A | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 135 | H (mm): 42 | Weight (kg): 2.9
HSK100A-SK08-165S Shank: HSK100A | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 165 | H (mm): 42 | Weight (kg): 3.3
HSK100A-SK08-200S Shank: HSK100A | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 200 | H (mm): 42 | Weight (kg): 3.5
HSK100A-SK10-105S Shank: HSK100A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 27.5 | L (mm): 57 | H (mm): 50 | Weight (kg): 2.6
HSK100A-SK10-135S Shank: HSK100A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 27.5 | L (mm): 92 | H (mm): 50 | Weight (kg): 2.9
HSK100A-SK10-165S Shank: HSK100A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 27.5 | L (mm): 114 | H (mm): 50 | Weight (kg): 3.3
HSK100A-SK10-200S Shank: HSK100A | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 27.5 | L (mm): 151 | H (mm): 50 | Weight (kg): 3.5
HSK100A-SK13-105S Shank: HSK100A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 62 | H (mm): 65 | Weight (kg): 2.7
HSK100A-SK13-135S Shank: HSK100A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 92 | H (mm): 65 | Weight (kg): 3.2
HSK100A-SK13-165S Shank: HSK100A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 122 | H (mm): 65 | Weight (kg): 3.5
HSK100A-SK13-200S Shank: HSK100A | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 157 | H (mm): 65 | Weight (kg): 3.8
HSK100A-SK16-105S Shank: HSK100A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 62 | H (mm): 70 | Weight (kg): 2.7
HSK100A-SK16-135S Shank: HSK100A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 92 | H (mm): 70 | Weight (kg): 3.3
HSK100A-SK16-165S Shank: HSK100A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 122 | H (mm): 70 | Weight (kg): 3.6
HSK100A-SK16-200S Shank: HSK100A | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 157 | H (mm): 70 | Weight (kg): 3.8
HSK100A-SK20-105S Shank: HSK100A | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (mm): 62 | H (mm): 80 | Weight (kg): 2.9
HSK100A-SK20-135S Shank: HSK100A | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (mm): 92 | H (mm): 80 | Weight (kg): 3.2
HSK100A-SK20-165S Shank: HSK100A | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (mm): 122 | H (mm): 80 | Weight (kg): 3.6
HSK100A-SK20-200S Shank: HSK100A | Ød (mm): 3.6~20.0 | ØD (mm): 48 | ØD1 (mm): 48 | L (mm): 157 | H (mm): 80 | Weight (kg): 4.2
HSK100A-SK25-105S Shank: HSK100A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 62 | H (mm): 85 | Weight (kg): 3.2
HSK100A-SK25-135S Shank: HSK100A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 92 | H (mm): 85 | Weight (kg): 3.5
HSK100A-SK25-165S Shank: HSK100A | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 122 | H (mm): 85 | Weight (kg): 4.8
