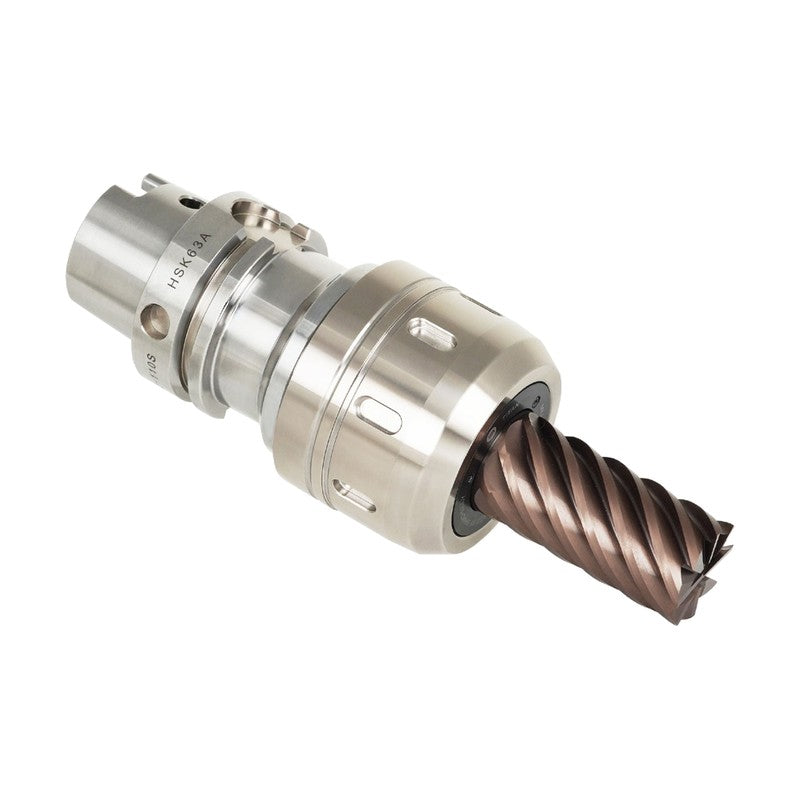

Samchully HSK Standard Titan Milling Chuck

Samchully HSK Standard Titan Milling Chuck

Standard Titan Milling Chuck with HSK-A (DIN 69893-1) shank, available in HSK40A, HSK50A, HSK63A, HSK100A sizes.

Key features

  • Extreme gripping strength with high precision for aggressive material removal
  • Minimal run-out extends cutting tool life and improves surface finish
  • Straight collet and spanner available as options

Specifications

Shank standard DIN 69893-1
Run-out 10 µm
HSK40A-C20-85 Shank: HSK40A | Ød (mm): 20 | ØD (mm): 54 | L (mm): 85 | H max. (mm): 66 | E (mm): 56 | Weight (kg): 0.9
HSK50A-C20-90 Shank: HSK50A | Ød (mm): 20 | ØD (mm): 54 | L (mm): 90 | H max. (mm): 66 | E (mm): 56 | Weight (kg): 1.2
HSK63A-C20-90 Shank: HSK63A | Ød (mm): 20 | ØD (mm): 54 | L (mm): 90 | H max. (mm): 65 | E (mm): 56 | Weight (kg): 1.5
HSK63A-C20-120 Shank: HSK63A | Ød (mm): 20 | ØD (mm): 54 | L (mm): 120 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 1.9
HSK63A-C25-100 Shank: HSK63A | Ød (mm): 25 | ØD (mm): 62 | L (mm): 100 | H max. (mm): 75 | E (mm): 57 | Weight (kg): 2.0
HSK63A-C25-135 Shank: HSK63A | Ød (mm): 25 | ØD (mm): 62 | L (mm): 135 | H max. (mm): 80 | E (mm): 57 | Weight (kg): 2.5
HSK63A-C32-110 Shank: HSK63A | Ød (mm): 32 | ØD (mm): 72 | L (mm): 110 | H max. (mm): 85 | E (mm): 64 | Weight (kg): 2.3
HSK63A-C32-135 Shank: HSK63A | Ød (mm): 32 | ØD (mm): 72 | L (mm): 135 | H max. (mm): 90 | E (mm): 64 | Weight (kg): 2.6
HSK63A-C32-165 Shank: HSK63A | Ød (mm): 32 | ØD (mm): 72 | L (mm): 165 | H max. (mm): 90 | E (mm): 64 | Weight (kg): 3.2
HSK100A-C20-105 Shank: HSK100A | Ød (mm): 20 | ØD (mm): 54 | L (mm): 105 | H max. (mm): 73 | E (mm): 56 | Weight (kg): 3.0
HSK100A-C20-135 Shank: HSK100A | Ød (mm): 20 | ØD (mm): 54 | L (mm): 135 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 3.5
HSK100A-C20-165 Shank: HSK100A | Ød (mm): 20 | ØD (mm): 54 | L (mm): 165 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 4.1
HSK100A-C25-105 Shank: HSK100A | Ød (mm): 25 | ØD (mm): 62 | L (mm): 105 | H max. (mm): 73 | E (mm): 57 | Weight (kg): 3.3
HSK100A-C25-135 Shank: HSK100A | Ød (mm): 25 | ØD (mm): 62 | L (mm): 135 | H max. (mm): 90 | E (mm): 57 | Weight (kg): 3.9
HSK100A-C25-165 Shank: HSK100A | Ød (mm): 25 | ØD (mm): 62 | L (mm): 165 | H max. (mm): 90 | E (mm): 57 | Weight (kg): 4.8
HSK100A-C32-115 Shank: HSK100A | Ød (mm): 32 | ØD (mm): 75 | L (mm): 115 | H max. (mm): 83 | E (mm): 72 | Weight (kg): 3.9
HSK100A-C32-135 Shank: HSK100A | Ød (mm): 32 | ØD (mm): 75 | L (mm): 135 | H max. (mm): 103 | E (mm): 72 | Weight (kg): 4.4
HSK100A-C32-165 Shank: HSK100A | Ød (mm): 32 | ØD (mm): 75 | L (mm): 165 | H max. (mm): 105 | E (mm): 72
HSK100A-C32-200 Shank: HSK100A | Ød (mm): 32 | ØD (mm): 75 | L (mm): 200 | H max. (mm): 105 | E (mm): 72
HSK100A-C42-115 Shank: HSK100A | Ød (mm): 42 | ØD (mm): 90 | L (mm): 115 | H max. (mm): 83 | E (mm): 73
HSK100A-C42-135 Shank: HSK100A | Ød (mm): 42 | ØD (mm): 90 | L (mm): 135 | H max. (mm): 103 | E (mm): 73
HSK100A-C42-165 Shank: HSK100A | Ød (mm): 42 | ØD (mm): 90 | L (mm): 165 | H max. (mm): 107 | E (mm): 73
