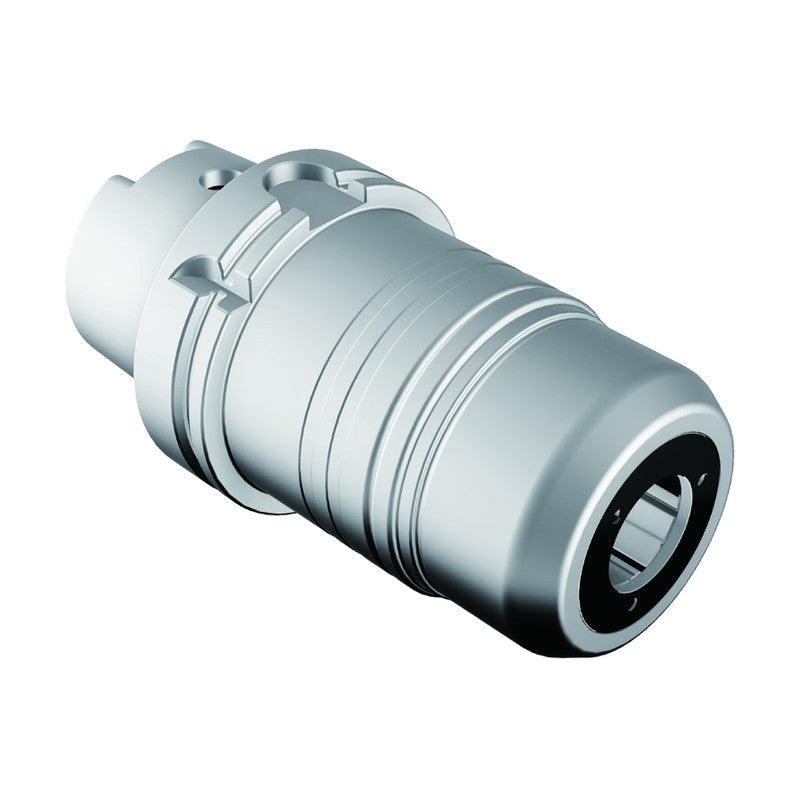

Samchully HSK ULTRA High-Rigidity Milling Chuck

ULTRA High-Rigidity Milling Chuck with HSK-A (DIN 69893-1) shank, available in HSK100A sizes.

Key features

Thicker body design increases rigidity for machining exotic alloys
Smooth nut improves balance and prevents coolant flaring
Used with a ring spanner

Specifications

Shank standard	DIN 69893-1
Run-out	5 µm
Max speed (rpm)	25,000

HSK100A-UTC16-105S		Shank: HSK100A \| Ød (mm): 16 \| ØD (mm): 46 \| L (mm): 105 \| H (mm): 71 \| E (mm): 50 \| Weight (kg): 3.6
HSK100A-UTC16-135S		Shank: HSK100A \| Ød (mm): 16 \| ØD (mm): 46 \| L (mm): 135 \| H (mm): 71 \| E (mm): 50 \| Weight (kg): 4.0
HSK100A-UTC20-105S		Shank: HSK100A \| Ød (mm): 20 \| ØD (mm): 60 \| L (mm): 105 \| H (mm): 73 \| E (mm): 56 \| Weight (kg): 4.1
HSK100A-UTC20-135S		Shank: HSK100A \| Ød (mm): 20 \| ØD (mm): 60 \| L (mm): 135 \| H (mm): 80 \| E (mm): 56 \| Weight (kg): 5.0
HSK100A-UTC25-105S		Shank: HSK100A \| Ød (mm): 25 \| ØD (mm): 70 \| L (mm): 105 \| H (mm): 73 \| E (mm): 65 \| Weight (kg): 4.5
HSK100A-UTC25-135S		Shank: HSK100A \| Ød (mm): 25 \| ØD (mm): 70 \| L (mm): 135 \| H (mm): 90 \| E (mm): 65 \| Weight (kg): 5.5
HSK100A-UTC25-165S		Shank: HSK100A \| Ød (mm): 25 \| ØD (mm): 70 \| L (mm): 165 \| H (mm): 90 \| E (mm): 65 \| Weight (kg): 6.0
HSK100A-UTC32-115S		Shank: HSK100A \| Ød (mm): 32 \| ØD (mm): 80 \| L (mm): 115 \| H (mm): 83 \| E (mm): 71 \| Weight (kg): 5.0
HSK100A-UTC32-135S		Shank: HSK100A \| Ød (mm): 32 \| ØD (mm): 80 \| L (mm): 135 \| H (mm): 103 \| E (mm): 71 \| Weight (kg): 6.0
HSK100A-UTC32-165S		Shank: HSK100A \| Ød (mm): 32 \| ØD (mm): 80 \| L (mm): 135 \| H (mm): 105 \| E (mm): 71 \| Weight (kg): 7.0
HSK100A-UTC42-115S		Shank: HSK100A \| Ød (mm): 42 \| ØD (mm): 99 \| L (mm): 115 \| H (mm): 83 \| E (mm): 78 \| Weight (kg): 5.5
HSK100A-UTC42-135S		Shank: HSK100A \| Ød (mm): 42 \| ØD (mm): 99 \| L (mm): 135 \| H (mm): 97 \| E (mm): 78 \| Weight (kg): 7.1
HSK100A-UTC42-165S		Shank: HSK100A \| Ød (mm): 42 \| ØD (mm): 99 \| L (mm): 165 \| H (mm): 97 \| E (mm): 78 \| Weight (kg): 8.2

Milling ChucksSamchully

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully HSK ULTRA High-Rigidity Milling Chuck

Brand Samchully·Milling Chucks

Available part numbers (13)

HSK100A-UTC16-105S, HSK100A-UTC16-135S, HSK100A-UTC20-105S, HSK100A-UTC20-135S, HSK100A-UTC25-105S, HSK100A-UTC25-135S, HSK100A-UTC25-165S, HSK100A-UTC32-115S, HSK100A-UTC32-135S, HSK100A-UTC32-165S + 3 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
