• Samchully Independent Chuck IC (Hard Jaws)
1 1

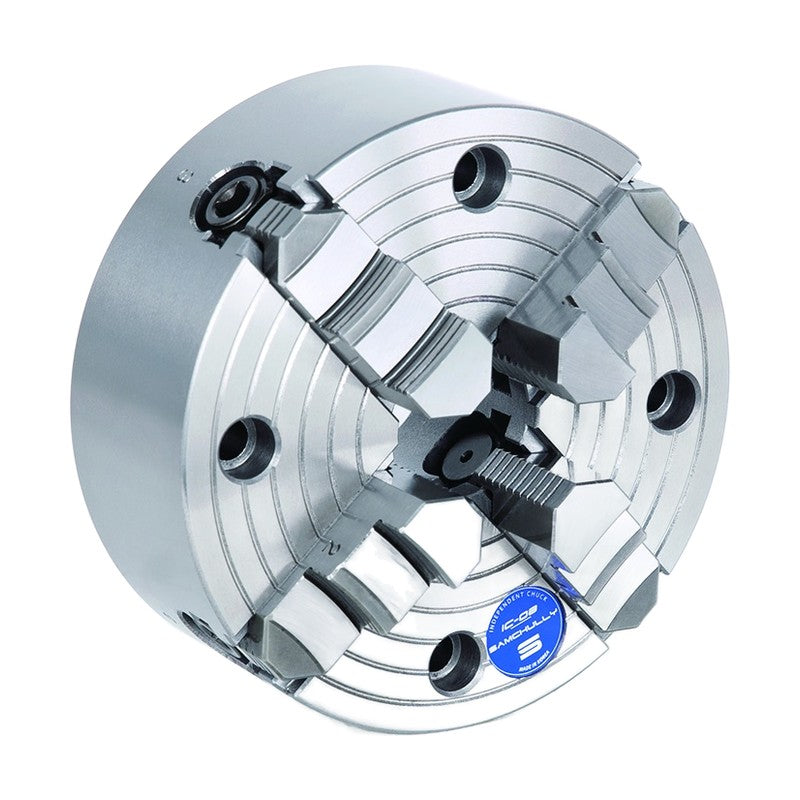

Samchully Independent Chuck IC (Hard Jaws)

Samchully Independent Chuck IC (Hard Jaws)

Independent chuck with independently moving jaws.

Key features

  • Chucks 12 inches and larger have T-slots for added versatility
IC-08 Chuck Dia. A (mm): 200 | Max. Static Gripping Force (kN (kgf)): 1000 | Clamping Range External (mm dia.): 12 | Clamping Range Internal (mm dia.): 180 | Max. Speed (rpm): 1600 | Weight (kg): 14.8
IC-10 Chuck Dia. A (mm): 250 | Max. Static Gripping Force (kN (kgf)): 1400 | Clamping Range External (mm dia.): 12 | Clamping Range Internal (mm dia.): 230 | Max. Speed (rpm): 1600 | Weight (kg): 21
IC-12 Chuck Dia. A (mm): 300 | Max. Static Gripping Force (kN (kgf)): 1600 | Clamping Range External (mm dia.): 16 | Clamping Range Internal (mm dia.): 270 | Max. Speed (rpm): 1400 | Weight (kg): 29.5
IC-14 Chuck Dia. A (mm): 350 | Max. Static Gripping Force (kN (kgf)): 1700 | Clamping Range External (mm dia.): 20 | Clamping Range Internal (mm dia.): 320 | Max. Speed (rpm): 1400 | Weight (kg): 40
IC-16 Max. Static Gripping Force (kN (kgf)): 2000 | Clamping Range External (mm dia.): 20 | Clamping Range Internal (mm dia.): 370 | Max. Speed (rpm): 1200 | Weight (kg): 56.5
IC-18 Chuck Dia. A (mm): 450 | Max. Static Gripping Force (kN (kgf)): 2000 | Clamping Range External (mm dia.): 20 | Clamping Range Internal (mm dia.): 420 | Max. Speed (rpm): 1200 | Weight (kg): 70
IC-20 Chuck Dia. A (mm): 500 | Max. Static Gripping Force (kN (kgf)): 2200 | Clamping Range External (mm dia.): 20 | Clamping Range Internal (mm dia.): 460 | Max. Speed (rpm): 900 | Weight (kg): 90
IC-24 Chuck Dia. A (mm): 600 | Max. Static Gripping Force (kN (kgf)): 2300 | Clamping Range External (mm dia.): 25 | Clamping Range Internal (mm dia.): 560 | Max. Speed (rpm): 900 | Weight (kg): 150
IC-28 Chuck Dia. A (mm): 710 | Max. Static Gripping Force (kN (kgf)): 2396 | Clamping Range External (mm dia.): 30 | Clamping Range Internal (mm dia.): 660 | Max. Speed (rpm): 900 | Weight (kg): 247
IC-32 Max. Static Gripping Force (kN (kgf)): 2447 | Clamping Range External (mm dia.): 40 | Clamping Range Internal (mm dia.): 750 | Max. Speed (rpm): 600 | Weight (kg): 357
IC-2018 Chuck Dia. A (mm): 500 | Max. Static Gripping Force (kN (kgf)): 27.4(2800) | Clamping Range External (mm dia.): 460 | Clamping Range Internal (mm dia.): 450 | Max. Speed (rpm): 800 | Weight (kg): 180
IC-2023 Chuck Dia. A (mm): 500 | Max. Static Gripping Force (kN (kgf)): 27.4(2800) | Clamping Range External (mm dia.): 460 | Clamping Range Internal (mm dia.): 450 | Max. Speed (rpm): 800 | Weight (kg): 170
IC-2423 Chuck Dia. A (mm): 600 | Max. Static Gripping Force (kN (kgf)): 28.5(2904) | Clamping Range External (mm dia.): 550 | Clamping Range Internal (mm dia.): 530 | Max. Speed (rpm): 800 | Weight (kg): 350
IC-2427 Max. Static Gripping Force (kN (kgf)): 30(3056) | Clamping Range External (mm dia.): 550 | Clamping Range Internal (mm dia.): 550 | Max. Speed (rpm): 800 | Weight (kg): 340
IC-2432 Chuck Dia. A (mm): 600 | Max. Static Gripping Force (kN (kgf)): 30(3056) | Clamping Range External (mm dia.): 550 | Clamping Range Internal (mm dia.): 550 | Max. Speed (rpm): 800 | Weight (kg): 340
IC-3232 Chuck Dia. A (mm): 800 | Max. Static Gripping Force (kN (kgf)): 32.4(3300) | Clamping Range External (mm dia.): 750 | Clamping Range Internal (mm dia.): 730 | Max. Speed (rpm): 600 | Weight (kg): 463
IC-3237 Chuck Dia. A (mm): 800 | Max. Static Gripping Force (kN (kgf)): 32.4(3300) | Clamping Range External (mm dia.): 750 | Clamping Range Internal (mm dia.): 730 | Max. Speed (rpm): 600 | Weight (kg): 490
IC-4056 Max. Static Gripping Force (kN (kgf)): 36(3700) | Clamping Range External (mm dia.): 920 | Clamping Range Internal (mm dia.): 840 | Max. Speed (rpm): 480 | Weight (kg): 660
Manual ChucksSamchully
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Independent Chuck IC (Hard Jaws)

Brand Samchully·Manual Chucks

Available part numbers (18)

IC-08, IC-10, IC-12, IC-14, IC-16, IC-18, IC-20, IC-24, IC-28, IC-32 + 8 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IC-08Chuck Dia. A (mm): 200 | Max. Static Gripping Force (kN (kgf)): 1000 | Clamping Range External (mm dia.): 12 | Clamping Range Internal (mm dia.): 180 | Max. Speed (rpm): 1600 | Weight (kg): 14.8
IC-10Chuck Dia. A (mm): 250 | Max. Static Gripping Force (kN (kgf)): 1400 | Clamping Range External (mm dia.): 12 | Clamping Range Internal (mm dia.): 230 | Max. Speed (rpm): 1600 | Weight (kg): 21
IC-12Chuck Dia. A (mm): 300 | Max. Static Gripping Force (kN (kgf)): 1600 | Clamping Range External (mm dia.): 16 | Clamping Range Internal (mm dia.): 270 | Max. Speed (rpm): 1400 | Weight (kg): 29.5
IC-14Chuck Dia. A (mm): 350 | Max. Static Gripping Force (kN (kgf)): 1700 | Clamping Range External (mm dia.): 20 | Clamping Range Internal (mm dia.): 320 | Max. Speed (rpm): 1400 | Weight (kg): 40
IC-16Max. Static Gripping Force (kN (kgf)): 2000 | Clamping Range External (mm dia.): 20 | Clamping Range Internal (mm dia.): 370 | Max. Speed (rpm): 1200 | Weight (kg): 56.5
IC-18Chuck Dia. A (mm): 450 | Max. Static Gripping Force (kN (kgf)): 2000 | Clamping Range External (mm dia.): 20 | Clamping Range Internal (mm dia.): 420 | Max. Speed (rpm): 1200 | Weight (kg): 70
IC-20Chuck Dia. A (mm): 500 | Max. Static Gripping Force (kN (kgf)): 2200 | Clamping Range External (mm dia.): 20 | Clamping Range Internal (mm dia.): 460 | Max. Speed (rpm): 900 | Weight (kg): 90
IC-24Chuck Dia. A (mm): 600 | Max. Static Gripping Force (kN (kgf)): 2300 | Clamping Range External (mm dia.): 25 | Clamping Range Internal (mm dia.): 560 | Max. Speed (rpm): 900 | Weight (kg): 150
IC-28Chuck Dia. A (mm): 710 | Max. Static Gripping Force (kN (kgf)): 2396 | Clamping Range External (mm dia.): 30 | Clamping Range Internal (mm dia.): 660 | Max. Speed (rpm): 900 | Weight (kg): 247
IC-32Max. Static Gripping Force (kN (kgf)): 2447 | Clamping Range External (mm dia.): 40 | Clamping Range Internal (mm dia.): 750 | Max. Speed (rpm): 600 | Weight (kg): 357
IC-2018Chuck Dia. A (mm): 500 | Max. Static Gripping Force (kN (kgf)): 27.4(2800) | Clamping Range External (mm dia.): 460 | Clamping Range Internal (mm dia.): 450 | Max. Speed (rpm): 800 | Weight (kg): 180
IC-2023Chuck Dia. A (mm): 500 | Max. Static Gripping Force (kN (kgf)): 27.4(2800) | Clamping Range External (mm dia.): 460 | Clamping Range Internal (mm dia.): 450 | Max. Speed (rpm): 800 | Weight (kg): 170
IC-2423Chuck Dia. A (mm): 600 | Max. Static Gripping Force (kN (kgf)): 28.5(2904) | Clamping Range External (mm dia.): 550 | Clamping Range Internal (mm dia.): 530 | Max. Speed (rpm): 800 | Weight (kg): 350
IC-2427Max. Static Gripping Force (kN (kgf)): 30(3056) | Clamping Range External (mm dia.): 550 | Clamping Range Internal (mm dia.): 550 | Max. Speed (rpm): 800 | Weight (kg): 340
IC-2432Chuck Dia. A (mm): 600 | Max. Static Gripping Force (kN (kgf)): 30(3056) | Clamping Range External (mm dia.): 550 | Clamping Range Internal (mm dia.): 550 | Max. Speed (rpm): 800 | Weight (kg): 340
IC-3232Chuck Dia. A (mm): 800 | Max. Static Gripping Force (kN (kgf)): 32.4(3300) | Clamping Range External (mm dia.): 750 | Clamping Range Internal (mm dia.): 730 | Max. Speed (rpm): 600 | Weight (kg): 463
IC-3237Chuck Dia. A (mm): 800 | Max. Static Gripping Force (kN (kgf)): 32.4(3300) | Clamping Range External (mm dia.): 750 | Clamping Range Internal (mm dia.): 730 | Max. Speed (rpm): 600 | Weight (kg): 490
IC-4056Max. Static Gripping Force (kN (kgf)): 36(3700) | Clamping Range External (mm dia.): 920 | Clamping Range Internal (mm dia.): 840 | Max. Speed (rpm): 480 | Weight (kg): 660
