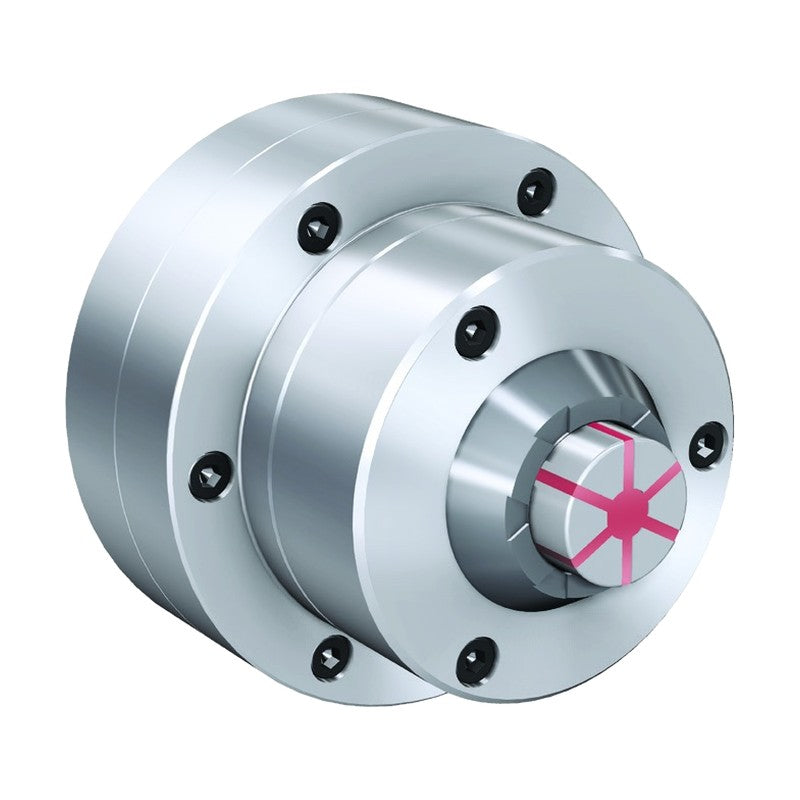

Samchully Inside Collet Chuck CDI

Samchully Inside Collet Chuck CDI

Inside collet chuck offering excellent squareness and parallelism.

Key features

  • Quick collet change for a variety of workpieces
  • Air sensing can be added for automatic loading
CDI-06 Max. Clamping Force (kgf): 4000 | Max. Drawbar Pull (kgf): 1500 | Jaw Stroke Dia. (mm): 0.8 | Plunger Stroke (mm): 3 | Clamping Range Max. (mm): 40 | Clamping Range Min. (mm): 15 | Max. Speed (rpm): 4500 | Weight (kg): 7
CDI-08 Max. Clamping Force (kgf): 7000 | Max. Drawbar Pull (kgf): 2500 | Jaw Stroke Dia. (mm): 1.0 | Plunger Stroke (mm): 4 | Clamping Range Max. (mm): 90 | Clamping Range Min. (mm): 40 | Max. Speed (rpm): 4000 | Weight (kg): 14
CDI-10 Max. Clamping Force (kgf): 12000 | Max. Drawbar Pull (kgf): 4000 | Jaw Stroke Dia. (mm): 1.0 | Plunger Stroke (mm): 4 | Clamping Range Max. (mm): 130 | Clamping Range Min. (mm): 90 | Max. Speed (rpm): 3300 | Weight (kg): 34
CDI-12 Max. Clamping Force (kgf): 15000 | Max. Drawbar Pull (kgf): 4800 | Jaw Stroke Dia. (mm): 1.4 | Plunger Stroke (mm): 5 | Clamping Range Max. (mm): 180 | Clamping Range Min. (mm): 130 | Max. Speed (rpm): 2500 | Weight (kg): 55
Special ChucksSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Inside Collet Chuck CDI

Brand Samchully·Special Chucks

Available part numbers (4)

CDI-06, CDI-08, CDI-10, CDI-12

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CDI-06Max. Clamping Force (kgf): 4000 | Max. Drawbar Pull (kgf): 1500 | Jaw Stroke Dia. (mm): 0.8 | Plunger Stroke (mm): 3 | Clamping Range Max. (mm): 40 | Clamping Range Min. (mm): 15 | Max. Speed (rpm): 4500 | Weight (kg): 7
CDI-08Max. Clamping Force (kgf): 7000 | Max. Drawbar Pull (kgf): 2500 | Jaw Stroke Dia. (mm): 1.0 | Plunger Stroke (mm): 4 | Clamping Range Max. (mm): 90 | Clamping Range Min. (mm): 40 | Max. Speed (rpm): 4000 | Weight (kg): 14
CDI-10Max. Clamping Force (kgf): 12000 | Max. Drawbar Pull (kgf): 4000 | Jaw Stroke Dia. (mm): 1.0 | Plunger Stroke (mm): 4 | Clamping Range Max. (mm): 130 | Clamping Range Min. (mm): 90 | Max. Speed (rpm): 3300 | Weight (kg): 34
CDI-12Max. Clamping Force (kgf): 15000 | Max. Drawbar Pull (kgf): 4800 | Jaw Stroke Dia. (mm): 1.4 | Plunger Stroke (mm): 5 | Clamping Range Max. (mm): 180 | Clamping Range Min. (mm): 130 | Max. Speed (rpm): 2500 | Weight (kg): 55
