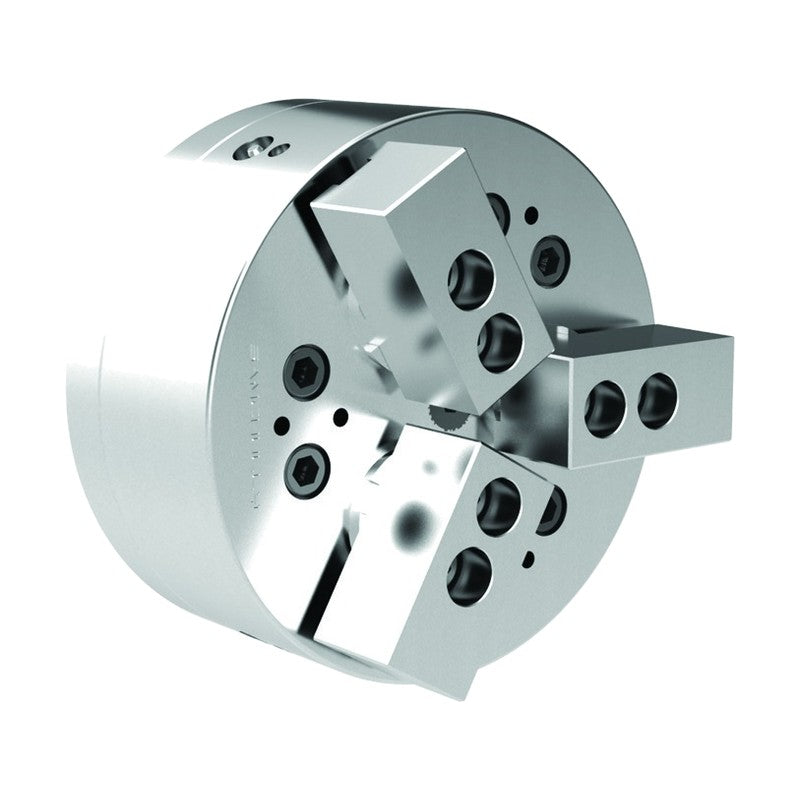

Samchully Inside Draw-Down Chuck DDO

Samchully Inside Draw-Down Chuck DDO

Inside draw-down chuck that pulls the workpiece down to location for superior accuracy.

Key features

  • Very accurate for parallel and perpendicular surfaces
  • Sealed against chips and coolant
DDO-06 Max. Clamping Force (kgf): 2,500 | Max. Drawbar Pull (kgf): 1,500 | Jaw Stroke Dia. (mm): 5.8 | Plunger Stroke (mm): 8 | Clamping Range Pin Jaw Standard (mm): 35~140 | Clamping Range Pin Jaw Top Jaw (mm): 70~140 | Max. Speed (rpm): 5,000 | Weight (kg): 13
DDO-08 Max. Clamping Force (kgf): 4,500 | Max. Drawbar Pull (kgf): 2,500 | Jaw Stroke Dia. (mm): 7.2 | Plunger Stroke (mm): 10 | Clamping Range Pin Jaw Standard (mm): 40~180 | Clamping Range Pin Jaw Top Jaw (mm): 90~180 | Max. Speed (rpm): 4,500 | Weight (kg): 26
DDO-10 Max. Clamping Force (kgf): 6,000 | Max. Drawbar Pull (kgf): 3,500 | Jaw Stroke Dia. (mm): 10.8 | Plunger Stroke (mm): 15 | Clamping Range Pin Jaw Standard (mm): 50~220 | Clamping Range Pin Jaw Top Jaw (mm): 100~220 | Max. Speed (rpm): 4,000 | Weight (kg): 44
DDO-12 Max. Clamping Force (kgf): 7,500 | Max. Drawbar Pull (kgf): 4,500 | Jaw Stroke Dia. (mm): 10.8 | Plunger Stroke (mm): 15 | Clamping Range Pin Jaw Standard (mm): 60~270 | Clamping Range Pin Jaw Top Jaw (mm): 110~220 | Max. Speed (rpm): 3,500 | Weight (kg): 68
DDO-15 Max. Clamping Force (kgf): 9,000 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 14.5 | Plunger Stroke (mm): 20 | Clamping Range Pin Jaw Standard (mm): 200~340 | Clamping Range Pin Jaw Top Jaw (mm): 250~340 | Max. Speed (rpm): 1,500 | Weight (kg): 110
DDO-18 Max. Clamping Force (kgf): 9,000 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 10.9 | Plunger Stroke (mm): 15 | Clamping Range Pin Jaw Standard (mm): 260~420 | Clamping Range Pin Jaw Top Jaw (mm): 310~420 | Max. Speed (rpm): 1,200 | Weight (kg): 217
Special ChucksSamchully
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Inside Draw-Down Chuck DDO

Brand Samchully·Special Chucks

Available part numbers (6)

DDO-06, DDO-08, DDO-10, DDO-12, DDO-15, DDO-18

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DDO-06Max. Clamping Force (kgf): 2,500 | Max. Drawbar Pull (kgf): 1,500 | Jaw Stroke Dia. (mm): 5.8 | Plunger Stroke (mm): 8 | Clamping Range Pin Jaw Standard (mm): 35~140 | Clamping Range Pin Jaw Top Jaw (mm): 70~140 | Max. Speed (rpm): 5,000 | Weight (kg): 13
DDO-08Max. Clamping Force (kgf): 4,500 | Max. Drawbar Pull (kgf): 2,500 | Jaw Stroke Dia. (mm): 7.2 | Plunger Stroke (mm): 10 | Clamping Range Pin Jaw Standard (mm): 40~180 | Clamping Range Pin Jaw Top Jaw (mm): 90~180 | Max. Speed (rpm): 4,500 | Weight (kg): 26
DDO-10Max. Clamping Force (kgf): 6,000 | Max. Drawbar Pull (kgf): 3,500 | Jaw Stroke Dia. (mm): 10.8 | Plunger Stroke (mm): 15 | Clamping Range Pin Jaw Standard (mm): 50~220 | Clamping Range Pin Jaw Top Jaw (mm): 100~220 | Max. Speed (rpm): 4,000 | Weight (kg): 44
DDO-12Max. Clamping Force (kgf): 7,500 | Max. Drawbar Pull (kgf): 4,500 | Jaw Stroke Dia. (mm): 10.8 | Plunger Stroke (mm): 15 | Clamping Range Pin Jaw Standard (mm): 60~270 | Clamping Range Pin Jaw Top Jaw (mm): 110~220 | Max. Speed (rpm): 3,500 | Weight (kg): 68
DDO-15Max. Clamping Force (kgf): 9,000 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 14.5 | Plunger Stroke (mm): 20 | Clamping Range Pin Jaw Standard (mm): 200~340 | Clamping Range Pin Jaw Top Jaw (mm): 250~340 | Max. Speed (rpm): 1,500 | Weight (kg): 110
DDO-18Max. Clamping Force (kgf): 9,000 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 10.9 | Plunger Stroke (mm): 15 | Clamping Range Pin Jaw Standard (mm): 260~420 | Clamping Range Pin Jaw Top Jaw (mm): 310~420 | Max. Speed (rpm): 1,200 | Weight (kg): 217
