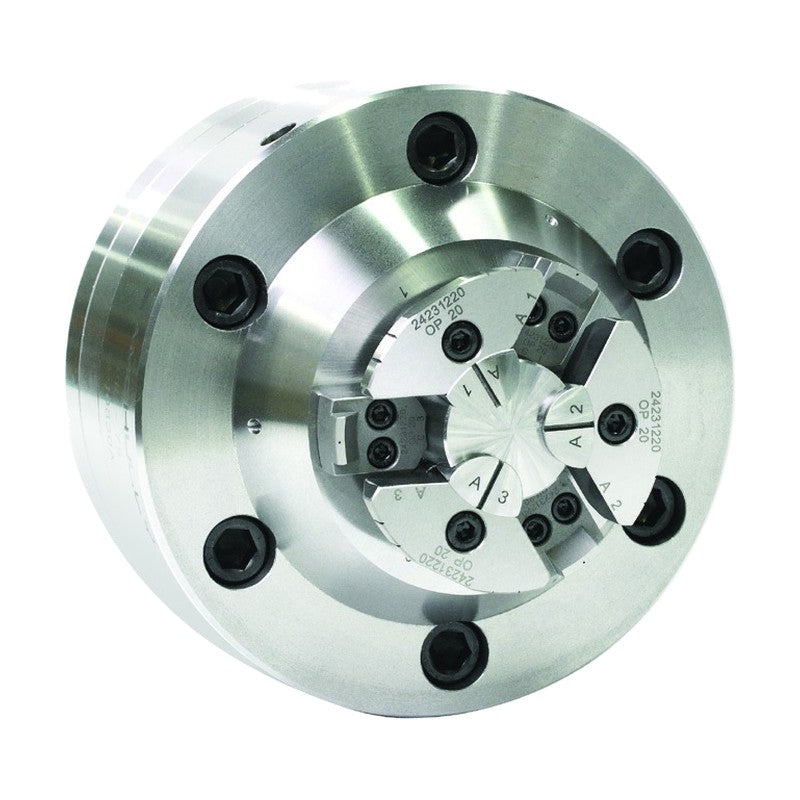

Pin arbor chuck for second-operation I.D. gripping.

Key features

  • Active pull-down for high precision
  • Counter-centrifugal gripping reduces distortion
PIL-25 Max. Clamping Force (kgf): 2250 | Max. Drawbar Pull (kgf): 1200 | Jaw Stroke Dia. (mm): 1.7 | Plunger Stroke (mm): 4 | Clamping Range Pin Jaw (mm): 17~25 | Max. Speed (rpm): 5000 | Weight (kg): 3.5
PIL-35 Max. Clamping Force (kgf): 3380 | Max. Drawbar Pull (kgf): 1800 | Jaw Stroke Dia. (mm): 1.7 | Plunger Stroke (mm): 4 | Clamping Range Pin Jaw (mm): 25~40 | Clamping Range Top Jaw (mm): 48~60 | Max. Speed (rpm): 4500 | Weight (kg): 4.3
PIL-55 Max. Clamping Force (kgf): 5640 | Max. Drawbar Pull (kgf): 3000 | Jaw Stroke Dia. (mm): 4.2 | Plunger Stroke (mm): 10 | Clamping Range Pin Jaw (mm): 35~55 | Clamping Range Top Jaw (mm): 62~90 | Max. Speed (rpm): 3500 | Weight (kg): 18.4
PIL-75 Max. Clamping Force (kgf): 7150 | Max. Drawbar Pull (kgf): 3800 | Jaw Stroke Dia. (mm): 4.2 | Plunger Stroke (mm): 10 | Clamping Range Pin Jaw (mm): 55~76 | Clamping Range Top Jaw (mm): 85~130 | Max. Speed (rpm): 2500 | Weight (kg): 35
PIL-100 Max. Clamping Force (kgf): 17860 | Max. Drawbar Pull (kgf): 3800 | Jaw Stroke Dia. (mm): 4.2 | Plunger Stroke (mm): 10 | Clamping Range Pin Jaw (mm): 80~110 | Clamping Range Top Jaw (mm): 120~180 | Max. Speed (rpm): 2000 | Weight (kg): 55
