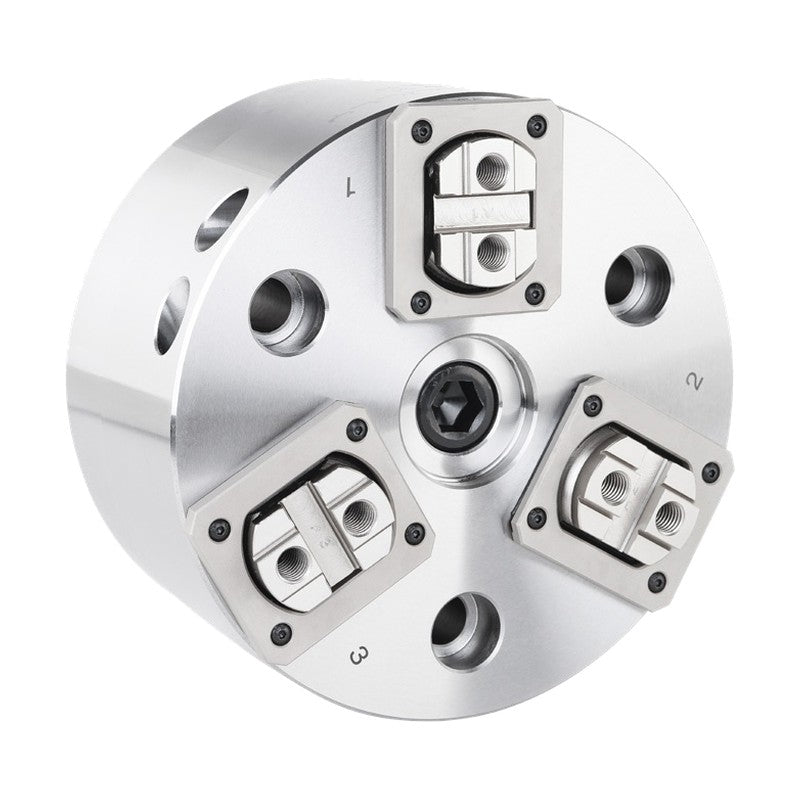

Samchully Lever Chuck LCC

Samchully Lever Chuck LCC

Lever chuck for workpieces subject to deformation.

Key features

  • Pulls the workpiece down toward the center for maximum locating
LCC-06 Max. Clamping Force (kgf): 1,498 | Max. Drawbar Pull (kgf): 2,304 | Plunger Stroke (mm): 4 | Clamping Range Outside Dia. (mm): 25~110 | Clamping Range Inside Dia. (mm): 130~175 | Max. Speed (rpm): 3800 | Weight (kg): 16
LCC-08 Max. Clamping Force (kgf): 2,997 | Max. Drawbar Pull (kgf): 3,997 | Plunger Stroke (mm): 5.5 | Clamping Range Outside Dia. (mm): 40~132 | Clamping Range Inside Dia. (mm): 150~210 | Max. Speed (rpm): 3000 | Weight (kg): 24
LCC-10 Max. Clamping Force (kgf): 4,496 | Max. Drawbar Pull (kgf): 5,995 | Plunger Stroke (mm): 5.5 | Clamping Range Outside Dia. (mm): 50~160 | Clamping Range Inside Dia. (mm): 190~255 | Max. Speed (rpm): 2600 | Weight (kg): 36
LCC-12 Max. Clamping Force (kgf): 6,903 | Max. Drawbar Pull (kgf): 8,004 | Plunger Stroke (mm): 6 | Clamping Range Outside Dia. (mm): 60~200 | Clamping Range Inside Dia. (mm): 230~305 | Max. Speed (rpm): 2200 | Weight (kg): 600
Special ChucksSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Lever Chuck LCC

Brand Samchully·Special Chucks

Available part numbers (4)

LCC-06, LCC-08, LCC-10, LCC-12

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LCC-06Max. Clamping Force (kgf): 1,498 | Max. Drawbar Pull (kgf): 2,304 | Plunger Stroke (mm): 4 | Clamping Range Outside Dia. (mm): 25~110 | Clamping Range Inside Dia. (mm): 130~175 | Max. Speed (rpm): 3800 | Weight (kg): 16
LCC-08Max. Clamping Force (kgf): 2,997 | Max. Drawbar Pull (kgf): 3,997 | Plunger Stroke (mm): 5.5 | Clamping Range Outside Dia. (mm): 40~132 | Clamping Range Inside Dia. (mm): 150~210 | Max. Speed (rpm): 3000 | Weight (kg): 24
LCC-10Max. Clamping Force (kgf): 4,496 | Max. Drawbar Pull (kgf): 5,995 | Plunger Stroke (mm): 5.5 | Clamping Range Outside Dia. (mm): 50~160 | Clamping Range Inside Dia. (mm): 190~255 | Max. Speed (rpm): 2600 | Weight (kg): 36
LCC-12Max. Clamping Force (kgf): 6,903 | Max. Drawbar Pull (kgf): 8,004 | Plunger Stroke (mm): 6 | Clamping Range Outside Dia. (mm): 60~200 | Clamping Range Inside Dia. (mm): 230~305 | Max. Speed (rpm): 2200 | Weight (kg): 600
