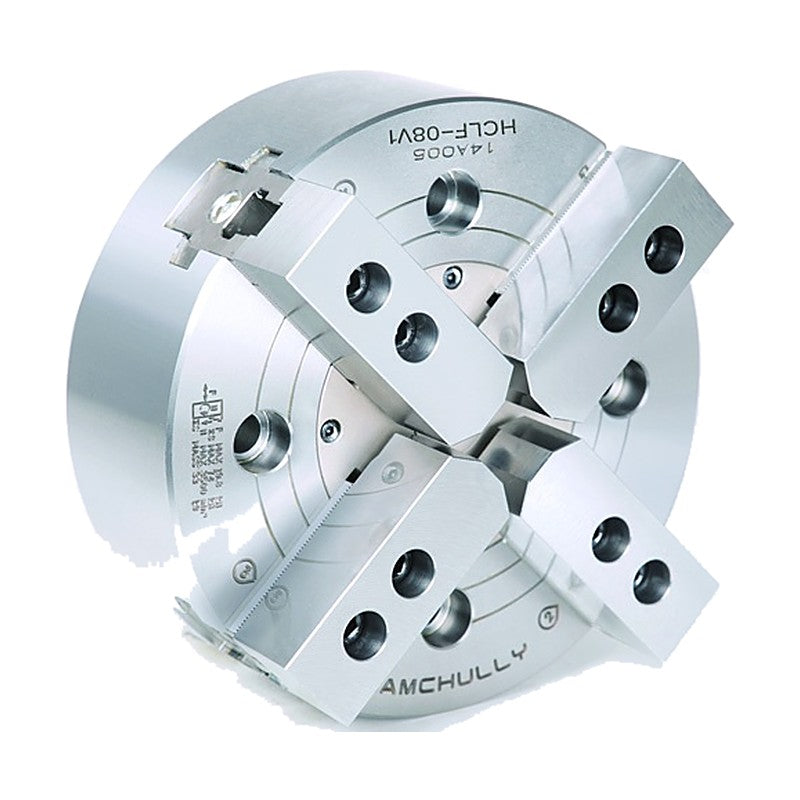

Samchully Long-Stroke 2-Jaw / 4-Jaw Closed-Center Power Chuck HCLT/HCLF

Samchully Long-Stroke 2-Jaw / 4-Jaw Closed-Center Power Chuck HCLT/HCLF

High-speed 2-jaw (HCLT) and 4-jaw (HCLF) wedge-style closed-center power chuck with long stroke.

Key features

  • Gripping force transmission by wedge structure
  • Precision-hardened core components ensure chuck longevity
HCLT-06 Jaw Stroke Dia. (mm): 13 | Plunger Stroke (mm): 20 | Grip Dia. Max (mm): 165 | Grip Dia. Min (mm): 22 | Max. Permissible Input Force (kN (kgf)): 14(1428) | Max. Static Gripping Force (kN (kgf)): 26(2651) | Max. Speed (rpm): 4300 | Weight (kg): 12.5 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.06(21.0) | Operating Cylinder: Y-1020R
HCLT-08 Jaw Stroke Dia. (mm): 16.2 | Plunger Stroke (mm): 25 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 24 | Max. Permissible Input Force (kN (kgf)): 20(2039) | Max. Static Gripping Force (kN (kgf)): 40(4079) | Max. Speed (rpm): 3600 | Weight (kg): 12.5 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.03(20.7) | Operating Cylinder: Y-1225R
HCLT-10 Jaw Stroke Dia. (mm): 18.1 | Plunger Stroke (mm): 28 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 27 | Max. Permissible Input Force (kN (kgf)): 27(2753) | Max. Static Gripping Force (kN (kgf)): 54(5508) | Max. Speed (rpm): 3100 | Weight (kg): 35.5 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.93(19.7) | Operating Cylinder: Y-1530R
HCLT-12 Jaw Stroke Dia. (mm): 19.4 | Plunger Stroke (mm): 30 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 33 | Max. Permissible Input Force (kN (kgf)): 36(3671) | Max. Static Gripping Force (kN (kgf)): 74(7546) | Max. Speed (rpm): 2500 | Weight (kg): 60.5 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.50(25.5) | Operating Cylinder: Y-1530R
HCLF-08 Jaw Stroke Dia. (mm): 16.2 | Plunger Stroke (mm): 25 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 24 | Max. Permissible Input Force (kN (kgf)): 20(2039) | Max. Static Gripping Force (kN (kgf)): 40(4079) | Max. Speed (rpm): 3600 | Weight (kg): 24 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.03(20.7) | Operating Cylinder: Y-1225R
HCLF-12 Jaw Stroke Dia. (mm): 19.4 | Plunger Stroke (mm): 30 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 33 | Max. Permissible Input Force (kN (kgf)): 36(3671) | Max. Static Gripping Force (kN (kgf)): 74(7546) | Max. Speed (rpm): 2500 | Weight (kg): 60.5 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.50(25.5) | Operating Cylinder: Y-1530R
Power ChucksSamchully
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Long-Stroke 2-Jaw / 4-Jaw Closed-Center Power Chuck HCLT/HCLF

Brand Samchully·Power Chucks

Available part numbers (6)

HCLT-06, HCLT-08, HCLT-10, HCLT-12, HCLF-08, HCLF-12

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HCLT-06Jaw Stroke Dia. (mm): 13 | Plunger Stroke (mm): 20 | Grip Dia. Max (mm): 165 | Grip Dia. Min (mm): 22 | Max. Permissible Input Force (kN (kgf)): 14(1428) | Max. Static Gripping Force (kN (kgf)): 26(2651) | Max. Speed (rpm): 4300 | Weight (kg): 12.5 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.06(21.0) | Operating Cylinder: Y-1020R
HCLT-08Jaw Stroke Dia. (mm): 16.2 | Plunger Stroke (mm): 25 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 24 | Max. Permissible Input Force (kN (kgf)): 20(2039) | Max. Static Gripping Force (kN (kgf)): 40(4079) | Max. Speed (rpm): 3600 | Weight (kg): 12.5 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.03(20.7) | Operating Cylinder: Y-1225R
HCLT-10Jaw Stroke Dia. (mm): 18.1 | Plunger Stroke (mm): 28 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 27 | Max. Permissible Input Force (kN (kgf)): 27(2753) | Max. Static Gripping Force (kN (kgf)): 54(5508) | Max. Speed (rpm): 3100 | Weight (kg): 35.5 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.93(19.7) | Operating Cylinder: Y-1530R
HCLT-12Jaw Stroke Dia. (mm): 19.4 | Plunger Stroke (mm): 30 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 33 | Max. Permissible Input Force (kN (kgf)): 36(3671) | Max. Static Gripping Force (kN (kgf)): 74(7546) | Max. Speed (rpm): 2500 | Weight (kg): 60.5 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.50(25.5) | Operating Cylinder: Y-1530R
HCLF-08Jaw Stroke Dia. (mm): 16.2 | Plunger Stroke (mm): 25 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 24 | Max. Permissible Input Force (kN (kgf)): 20(2039) | Max. Static Gripping Force (kN (kgf)): 40(4079) | Max. Speed (rpm): 3600 | Weight (kg): 24 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.03(20.7) | Operating Cylinder: Y-1225R
HCLF-12Jaw Stroke Dia. (mm): 19.4 | Plunger Stroke (mm): 30 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 33 | Max. Permissible Input Force (kN (kgf)): 36(3671) | Max. Static Gripping Force (kN (kgf)): 74(7546) | Max. Speed (rpm): 2500 | Weight (kg): 60.5 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.50(25.5) | Operating Cylinder: Y-1530R
