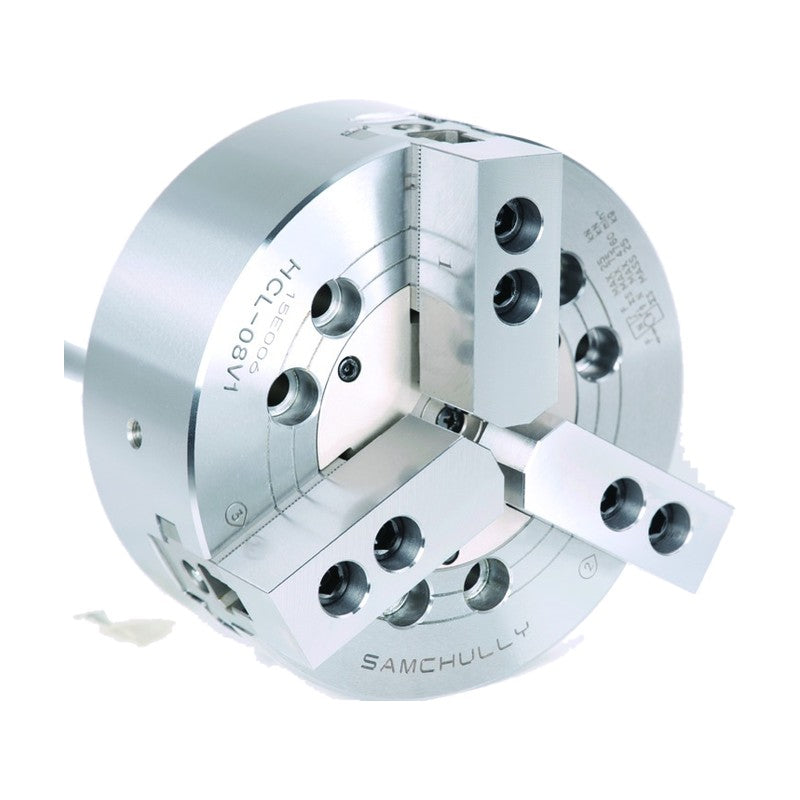

Samchully Long-Stroke 3-Jaw Closed-Center Power Chuck HCL

Samchully Long-Stroke 3-Jaw Closed-Center Power Chuck HCL

High-speed 3-jaw wedge-style closed-center power chuck with long stroke.

Key features

  • Gripping force transmission by wedge structure
  • Precision-hardened core components ensure chuck longevity
HCL-04 Jaw Stroke Dia. (mm): 12.1 | Plunger Stroke (mm): 15 | Grip Dia. Max (mm): 110 | Grip Dia. Min (mm): 12 | Max. Permissible Input Force (kN (kgf)): 10(1020) | Max. Static Gripping Force (kN (kgf)): 14.4(1468) | Max. Speed (rpm): 5000 | Weight (kg): 4.1 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.9(29.6) | Operating Cylinder: Y-0715R(RE) | Operating Hard Jaw: HB04N1
HCL-06 Jaw Stroke Dia. (mm): 13 | Plunger Stroke (mm): 20 | Grip Dia. Max (mm): 165 | Grip Dia. Min (mm): 22 | Max. Permissible Input Force (kN (kgf)): 21(2141) | Max. Static Gripping Force (kN (kgf)): 39(3977) | Max. Speed (rpm): 4300 | Weight (kg): 12 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.0(29.6) | Operating Cylinder: Y-1020R(RE) | Operating Hard Jaw: HB06A1
HCL-08 Jaw Stroke Dia. (mm): 16.2 | Plunger Stroke (mm): 25 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 23 | Max. Permissible Input Force (kN (kgf)): 30(3059) | Max. Static Gripping Force (kN (kgf)): 60(6118) | Max. Speed (rpm): 3600 | Weight (kg): 22.9 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.9(29.6) | Operating Cylinder: Y-1225R(RE) | Operating Hard Jaw: HB08A1
HCL-10 Jaw Stroke Dia. (mm): 18.1 | Plunger Stroke (mm): 28 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 27 | Max. Permissible Input Force (kN (kgf)): 40(4079) | Max. Static Gripping Force (kN (kgf)): 81(8260) | Max. Speed (rpm): 3100 | Weight (kg): 34.6 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.8(28.6) | Operating Cylinder: Y-1530R(RE) | Operating Hard Jaw: HB10A1
HCL-12 Jaw Stroke Dia. (mm): 19.4 | Plunger Stroke (mm): 30 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 33 | Max. Permissible Input Force (kN (kgf)): 54(5506) | Max. Static Gripping Force (kN (kgf)): 111(11319) | Max. Speed (rpm): 2500 | Weight (kg): 60 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.6(36.7) | Operating Cylinder: Y-1530R(RE) | Operating Hard Jaw: HB12B1
Power ChucksSamchully
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Long-Stroke 3-Jaw Closed-Center Power Chuck HCL

Brand Samchully·Power Chucks

Available part numbers (5)

HCL-04, HCL-06, HCL-08, HCL-10, HCL-12

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HCL-04Jaw Stroke Dia. (mm): 12.1 | Plunger Stroke (mm): 15 | Grip Dia. Max (mm): 110 | Grip Dia. Min (mm): 12 | Max. Permissible Input Force (kN (kgf)): 10(1020) | Max. Static Gripping Force (kN (kgf)): 14.4(1468) | Max. Speed (rpm): 5000 | Weight (kg): 4.1 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.9(29.6) | Operating Cylinder: Y-0715R(RE) | Operating Hard Jaw: HB04N1
HCL-06Jaw Stroke Dia. (mm): 13 | Plunger Stroke (mm): 20 | Grip Dia. Max (mm): 165 | Grip Dia. Min (mm): 22 | Max. Permissible Input Force (kN (kgf)): 21(2141) | Max. Static Gripping Force (kN (kgf)): 39(3977) | Max. Speed (rpm): 4300 | Weight (kg): 12 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.0(29.6) | Operating Cylinder: Y-1020R(RE) | Operating Hard Jaw: HB06A1
HCL-08Jaw Stroke Dia. (mm): 16.2 | Plunger Stroke (mm): 25 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 23 | Max. Permissible Input Force (kN (kgf)): 30(3059) | Max. Static Gripping Force (kN (kgf)): 60(6118) | Max. Speed (rpm): 3600 | Weight (kg): 22.9 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.9(29.6) | Operating Cylinder: Y-1225R(RE) | Operating Hard Jaw: HB08A1
HCL-10Jaw Stroke Dia. (mm): 18.1 | Plunger Stroke (mm): 28 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 27 | Max. Permissible Input Force (kN (kgf)): 40(4079) | Max. Static Gripping Force (kN (kgf)): 81(8260) | Max. Speed (rpm): 3100 | Weight (kg): 34.6 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.8(28.6) | Operating Cylinder: Y-1530R(RE) | Operating Hard Jaw: HB10A1
HCL-12Jaw Stroke Dia. (mm): 19.4 | Plunger Stroke (mm): 30 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 33 | Max. Permissible Input Force (kN (kgf)): 54(5506) | Max. Static Gripping Force (kN (kgf)): 111(11319) | Max. Speed (rpm): 2500 | Weight (kg): 60 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.6(36.7) | Operating Cylinder: Y-1530R(RE) | Operating Hard Jaw: HB12B1
