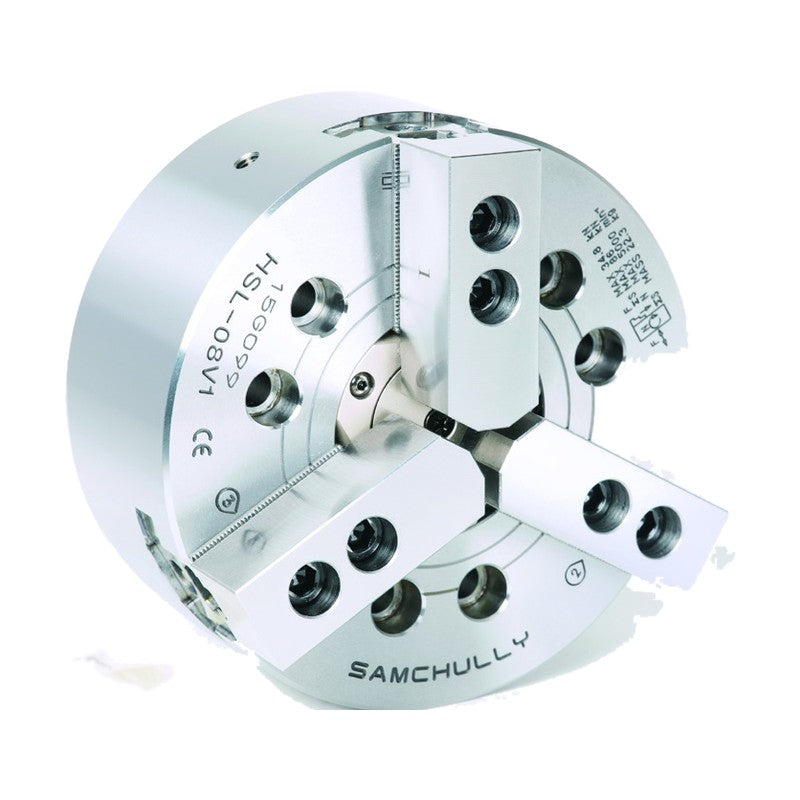

Samchully Long-Stroke 3-Jaw High-Speed Open-Center Chuck HSL

Samchully Long-Stroke 3-Jaw High-Speed Open-Center Chuck HSL

Long-stroke high-speed 3-jaw wedge-style open-center power chuck.

Key features

  • Gripping force transmission by wedge structure
  • Precision-hardened core components ensure chuck longevity
HSL-06 Through Hole Dia. (mm): 33 | Grip Dia. Max (mm): 169 | Grip Dia. Min (mm): 28 | Jaw Stroke Dia. (mm): 20.2 | Plunger Stroke (mm): 15 | Max. Permissible Input Force (kN (kgf)): 27.9(2845) | Max. Static Gripping Force (kN (kgf)): 31.2(3182) | Max. Speed (rpm): 4500 | Weight (kg): 14 | Operating Cylinder: SD-13546 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.40(34.7) | Operating Hard Jaw: HB06A1
HSL-08 Through Hole Dia. (mm): 46 | Grip Dia. Max (mm): 215 | Grip Dia. Min (mm): 32 | Jaw Stroke Dia. (mm): 25.4 | Plunger Stroke (mm): 22 | Max. Permissible Input Force (kN (kgf)): 41.1(4191) | Max. Static Gripping Force (kN (kgf)): 49.0(4997) | Max. Speed (rpm): 3300 | Weight (kg): 25 | Operating Cylinder: SD-15452 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.99(30.5) | Operating Hard Jaw: HB08A1
HSL-10 Through Hole Dia. (mm): 53 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 42 | Jaw Stroke Dia. (mm): 30 | Plunger Stroke (mm): 25 | Max. Permissible Input Force (kN (kgf)): 53.8(5486) | Max. Static Gripping Force (kN (kgf)): 63.0(6427) | Max. Speed (rpm): 3000 | Weight (kg): 45 | Operating Cylinder: SD-18577 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.20(32.6) | Operating Hard Jaw: HB10A1
HSL-12 Through Hole Dia. (mm): 63 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 43 | Jaw Stroke Dia. (mm): 36 | Plunger Stroke (mm): 30 | Max. Permissible Input Force (kN (kgf)): 69.3(7067) | Max. Static Gripping Force (kN (kgf)): 80.4(8199) | Max. Speed (rpm): 2200 | Weight (kg): 78 | Operating Cylinder: SD-20591 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.22(32.8) | Operating Hard Jaw: HB12N1
Power ChucksSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Long-Stroke 3-Jaw High-Speed Open-Center Chuck HSL

Brand Samchully·Power Chucks

Available part numbers (4)

HSL-06, HSL-08, HSL-10, HSL-12

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSL-06Through Hole Dia. (mm): 33 | Grip Dia. Max (mm): 169 | Grip Dia. Min (mm): 28 | Jaw Stroke Dia. (mm): 20.2 | Plunger Stroke (mm): 15 | Max. Permissible Input Force (kN (kgf)): 27.9(2845) | Max. Static Gripping Force (kN (kgf)): 31.2(3182) | Max. Speed (rpm): 4500 | Weight (kg): 14 | Operating Cylinder: SD-13546 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.40(34.7) | Operating Hard Jaw: HB06A1
HSL-08Through Hole Dia. (mm): 46 | Grip Dia. Max (mm): 215 | Grip Dia. Min (mm): 32 | Jaw Stroke Dia. (mm): 25.4 | Plunger Stroke (mm): 22 | Max. Permissible Input Force (kN (kgf)): 41.1(4191) | Max. Static Gripping Force (kN (kgf)): 49.0(4997) | Max. Speed (rpm): 3300 | Weight (kg): 25 | Operating Cylinder: SD-15452 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.99(30.5) | Operating Hard Jaw: HB08A1
HSL-10Through Hole Dia. (mm): 53 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 42 | Jaw Stroke Dia. (mm): 30 | Plunger Stroke (mm): 25 | Max. Permissible Input Force (kN (kgf)): 53.8(5486) | Max. Static Gripping Force (kN (kgf)): 63.0(6427) | Max. Speed (rpm): 3000 | Weight (kg): 45 | Operating Cylinder: SD-18577 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.20(32.6) | Operating Hard Jaw: HB10A1
HSL-12Through Hole Dia. (mm): 63 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 43 | Jaw Stroke Dia. (mm): 36 | Plunger Stroke (mm): 30 | Max. Permissible Input Force (kN (kgf)): 69.3(7067) | Max. Static Gripping Force (kN (kgf)): 80.4(8199) | Max. Speed (rpm): 2200 | Weight (kg): 78 | Operating Cylinder: SD-20591 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.22(32.8) | Operating Hard Jaw: HB12N1
