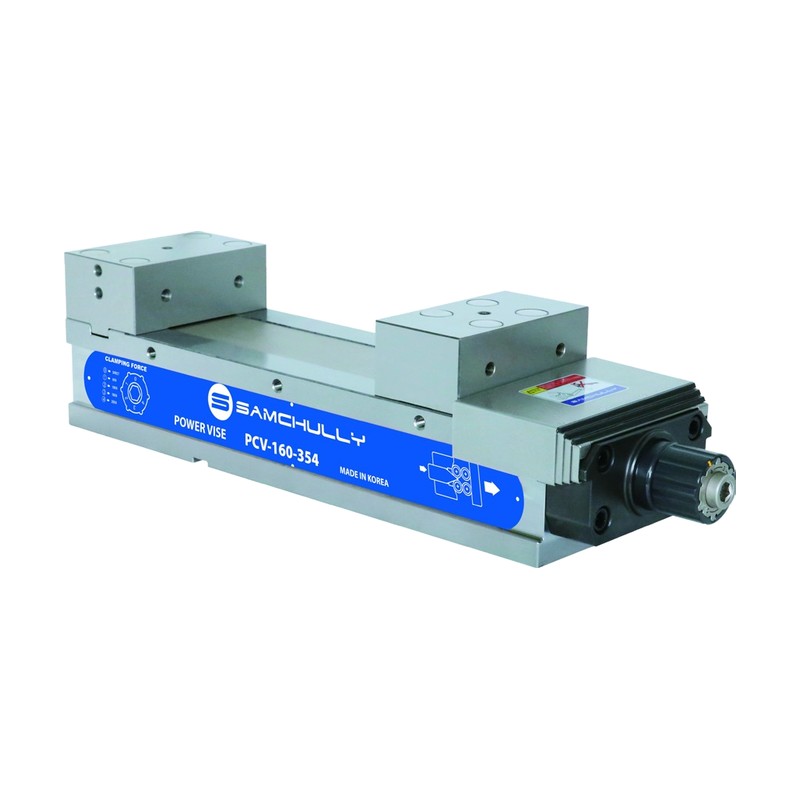

Samchully Long Stroke Type Power Vise PCV-L

Samchully Long Stroke Type Power Vise PCV-L

Long-stroke power vise with four preset grip force levels for a wide range of workpiece sizes.

Key features

  • 4 preset grip force settings in addition to direct clamping
  • Avoids deformation of hollow or delicate parts
  • Consistent chucking force between operators
PCV-125L-420 Size: 5" | Jaw width (mm): 125 | Max. opening (mm): 420 | Grip force L1 [kN(kgf)]: 10(1020) | Grip force L2 [kN(kgf)]: 20(2039) | Grip force L3 [kN(kgf)]: 27(2753) | Grip force L4 [kN(kgf)]: 35(3569) | Weight (kg): 47 | Total length L (mm): 700.5 | Total height B (mm): 135 | Old model: PLV-125
PCV-160L-354 Size: 6" | Jaw width (mm): 160 | Max. opening (mm): 354 | Grip force L1 [kN(kgf)]: 20(2039) | Grip force L2 [kN(kgf)]: 32(3263) | Grip force L3 [kN(kgf)]: 45(4589) | Grip force L4 [kN(kgf)]: 60(6118) | Weight (kg): 70 | Total length L (mm): 647.5 | Total height B (mm): 160 | Old model: PLV-160
PCV-200L-405 Size: 8" | Jaw width (mm): 200 | Max. opening (mm): 405 | Grip force L1 [kN(kgf)]: 20(2039) | Grip force L2 [kN(kgf)]: 32(3263) | Grip force L3 [kN(kgf)]: 45(4589) | Grip force L4 [kN(kgf)]: 60(6118) | Weight (kg): 110 | Total length L (mm): 723.5 | Total height B (mm): 180 | Old model: PLV-200
PCV-200L-780 Jaw width (mm): 200 | Max. opening (mm): 340~780 | Grip force L1 [kN(kgf)]: 20(2039) | Grip force L2 [kN(kgf)]: 32(3263) | Grip force L3 [kN(kgf)]: 45(4589) | Grip force L4 [kN(kgf)]: 60(6118) | Weight (kg): 150 | Total length L (mm): 1098.5 | Total height B (mm): 180
PCV-200L-1100 Jaw width (mm): 200 | Max. opening (mm): 660~1100 | Grip force L1 [kN(kgf)]: 20(2039) | Grip force L2 [kN(kgf)]: 32(3263) | Grip force L3 [kN(kgf)]: 45(4589) | Grip force L4 [kN(kgf)]: 60(6118) | Weight (kg): 195 | Total length L (mm): 1418.5 | Total height B (mm): 180
Machine VisesSamchully
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Long Stroke Type Power Vise PCV-L

Brand Samchully·Machine Vises

Available part numbers (5)

PCV-125L-420, PCV-160L-354, PCV-200L-405, PCV-200L-780, PCV-200L-1100

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PCV-125L-420Size: 5" | Jaw width (mm): 125 | Max. opening (mm): 420 | Grip force L1 [kN(kgf)]: 10(1020) | Grip force L2 [kN(kgf)]: 20(2039) | Grip force L3 [kN(kgf)]: 27(2753) | Grip force L4 [kN(kgf)]: 35(3569) | Weight (kg): 47 | Total length L (mm): 700.5 | Total height B (mm): 135 | Old model: PLV-125
PCV-160L-354Size: 6" | Jaw width (mm): 160 | Max. opening (mm): 354 | Grip force L1 [kN(kgf)]: 20(2039) | Grip force L2 [kN(kgf)]: 32(3263) | Grip force L3 [kN(kgf)]: 45(4589) | Grip force L4 [kN(kgf)]: 60(6118) | Weight (kg): 70 | Total length L (mm): 647.5 | Total height B (mm): 160 | Old model: PLV-160
PCV-200L-405Size: 8" | Jaw width (mm): 200 | Max. opening (mm): 405 | Grip force L1 [kN(kgf)]: 20(2039) | Grip force L2 [kN(kgf)]: 32(3263) | Grip force L3 [kN(kgf)]: 45(4589) | Grip force L4 [kN(kgf)]: 60(6118) | Weight (kg): 110 | Total length L (mm): 723.5 | Total height B (mm): 180 | Old model: PLV-200
PCV-200L-780Jaw width (mm): 200 | Max. opening (mm): 340~780 | Grip force L1 [kN(kgf)]: 20(2039) | Grip force L2 [kN(kgf)]: 32(3263) | Grip force L3 [kN(kgf)]: 45(4589) | Grip force L4 [kN(kgf)]: 60(6118) | Weight (kg): 150 | Total length L (mm): 1098.5 | Total height B (mm): 180
PCV-200L-1100Jaw width (mm): 200 | Max. opening (mm): 660~1100 | Grip force L1 [kN(kgf)]: 20(2039) | Grip force L2 [kN(kgf)]: 32(3263) | Grip force L3 [kN(kgf)]: 45(4589) | Grip force L4 [kN(kgf)]: 60(6118) | Weight (kg): 195 | Total length L (mm): 1418.5 | Total height B (mm): 180
